Product description: RF antenna cable CFD400 - RP-SMA F / M - 3 m - for SenseCAP M1 and fiberglass antenna - Seeedstudio 321990876
RF CFD400 antenna cable, 300 cm long, intended for use with the SenseCAP M1 network gateway and fiberglass antennas . The use of this type of cable significantly improves data transmission , allows for better coverage and ensures low signal loss . The cable at the ends has RP-SMA F / M connectors.

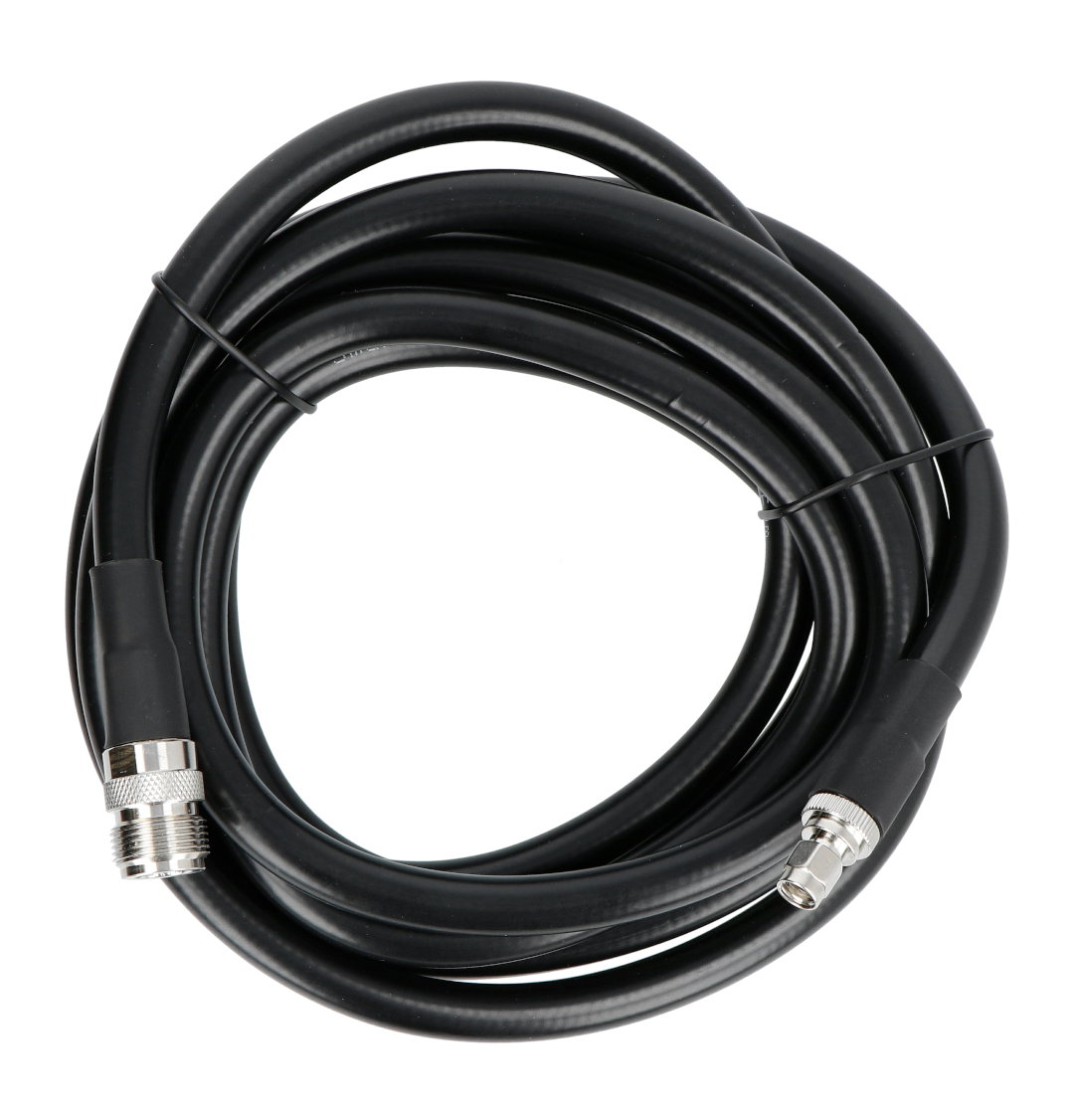

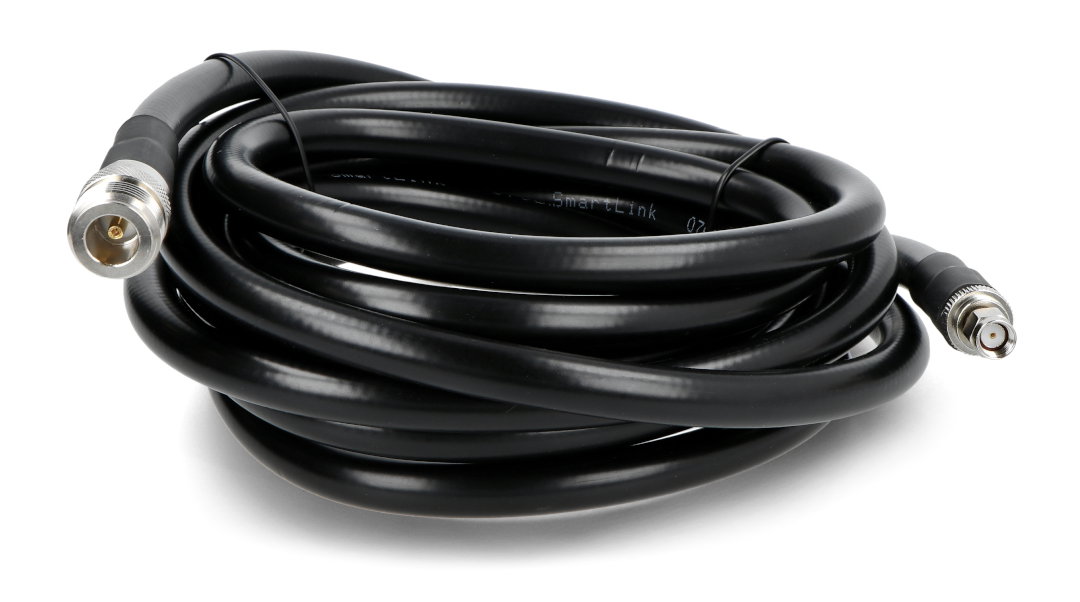

RF antenna cable CFD400 - 3 meters - RP-SMA F / M - for SenseCAP M1 and fiberglass antenna.
RF antenna cable CFD400 - RP-SMA F / M.
Special features of the cable
- It has low insertion loss, which is typically 0.45 dB at 900 MHz
- Low VSWR, typically 1.1 dB at 900 MHz
- Made of solid materials that allow the cable to be used outdoors
- The length of the cable allows for the implementation of unusual projects
We also offer compatible RF Explorer antennas and the SenseCAP M1 gateway !
Technical specification of the cable
- Cable type: antenna
- Compatible devices: SenseCAP M1 and fiberglass antennas
- Manufacturer part number: RF CFD400-BLACK
- Frequency range: 0 Hz to 6000 MHz
- Impedance: 50 Ohm
- VSWR:
- Typical: 1.1 dB @ 900 MHz
- Maximum: ≤1.5 dB @ 6 GHz
- Signal Strength Loss:
- Typical: 0.15 dB @ 900 MHz
- Maximum: ≤1.5 dB @ 6 GHz
- Capacitance: 76 pF / m2
- Velocity of Propagation: 85%
- Cable Connectors:
- 1: NF type - female
- 2: RP-SMA type - male
- Insulation resistance:> 1000 MOhm
- Breakdown voltage: 2.5 kV
- Cable length: 300 cm +/- 4 cm
- Cable outer diameter: 10.3 mm
- Bending radius: minimum 25.4 mm
- Sheath material: PE
- Conductor material: copper
- Sheath material: tinned copper wire
