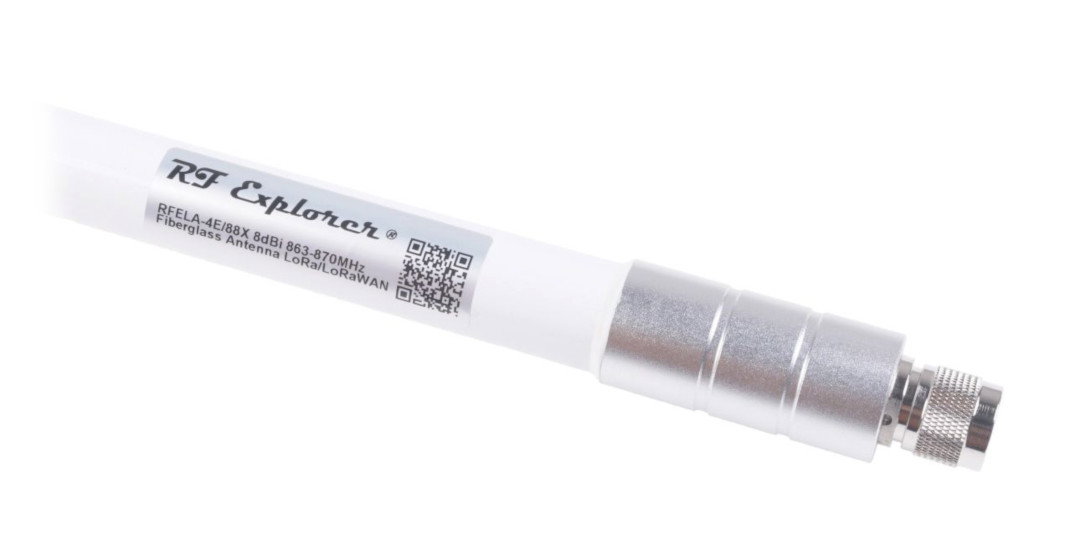

LoRa Fiberglass 8 dBi, 863-870 MHz RFELA-4/88X - 130cm long - Seeedstudio 318020692
Fiberglass outdoor antenna from Seeedstudio. It works in the frequency range from 863 MHz to 870 MHz and provides an average gain of 8 dBi . The antenna is 130 cm long . The LoRa Fiberglass antenna is used in conjunction with the LoRaWAN 868 MHz network gateway - SenseCAP M1 Indoor Gateway. In addition, the set includes accessories compatible with the SenseCAP M1 Indoor Gateway - necessary for mounting on a pole or wall, and a CFD200 cable with a length of 1 m.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: LoRa Fiberglass 8 dBi, 863-870 MHz RF RFELA-4 / 88X antenna - 130 cm length - Seeedstudio 318020692
Fiberglass outdoor antenna from Seeedstudio. It works in the frequency range from 863 MHz to 870 MHz and provides an average gain of 8 dBi . The antenna is 130 cm long . The LoRa Fiberglass antenna is used in conjunction with the LoRaWAN 868 MHz network gateway - SenseCAP M1 Indoor Gateway . In addition, the set includes accessories compatible with the SenseCAP M1 Indoor Gateway - necessary for mounting on a pole or wall, and a CFD200 cable with a length of 1 m.
Kit contents
- LoRa Fiberglass 8dBi, 863-870MHz RF RFELA-4 / 88X antenna - 130cm length - Seeedstudio 318020692 - 1 pc.
- Antenna cable - 1 m long - 1 pc.
- Mounting accessories
LoRa Fiberglass 8 dBi, 863-870MHz RF RFELA-4 / 88X antenna - 130 cm long - Seeedstudio 318020692.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
LoRa Fiberglass 8 dBi, 863-870 MHz RF RFELA-4 / 88X antenna.
The use of the LoRa Fiberglass antenna
The antenna is mainly used when the SenseCAP M1 is used in a large city and when it is necessary to monitor large areas of the area. In such situations, the standard gate range may not be enough. The LoRa Fiberglass antenna from Seeedstudio is a solution that provides additional power and coverage for external LoRa base stations. Its use is especially recommended for:
- Agriculture
- Monitoring the quality of the environment in large areas
- Monitoring of urban areas

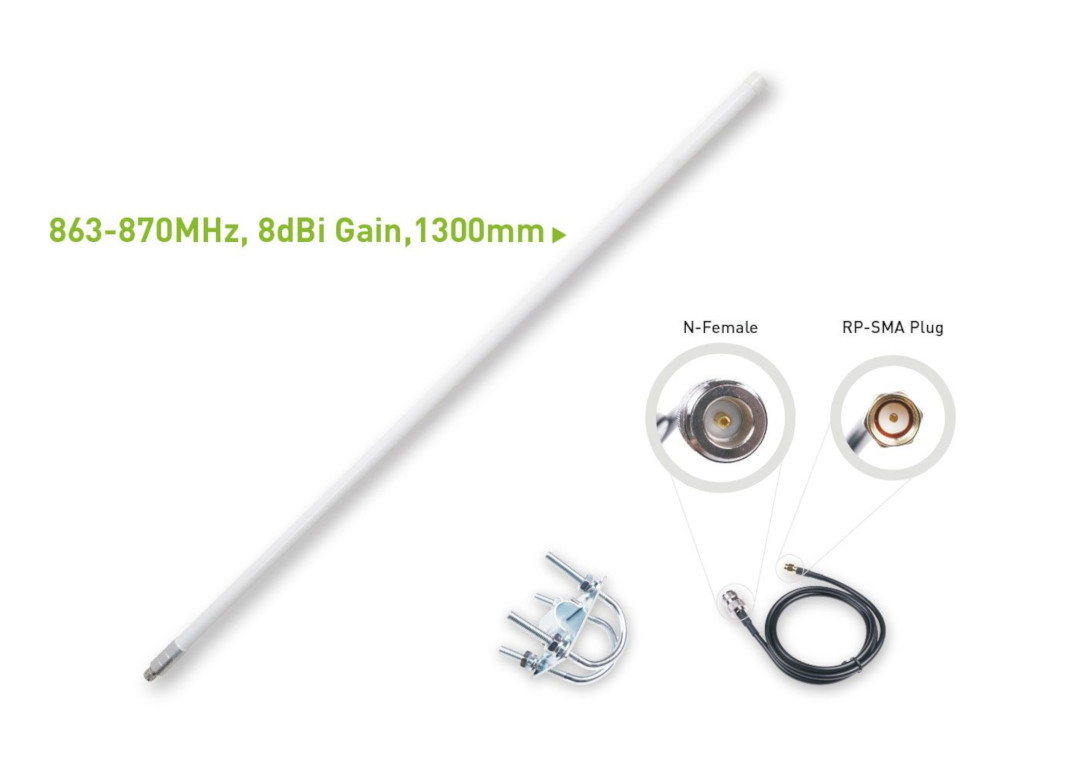

Specification of the LoRa Fiberglass RF RFELA-4 / 88X antenna
- Working frequency: from 863 to 870 MHz
- Antenna gain (gain): 8 dBi (+/- 1 dBi)
- Efficiency: above 80%
- Radiation pattern: omnidirectional
- Polarization: linear / vertical polarization
- Impedance: 50 ohms
- Antenna material: FRP (fiber-reinforced polymer)
- Cable type: CFD200 50 Ohm
- Cable connectors: N-Female - RP-SMA male connector
- The durability of the antenna surface color: approx. 2 years
- Antenna Length: 1300mm (+/- 10mm)
- Cable length: 1000 mm

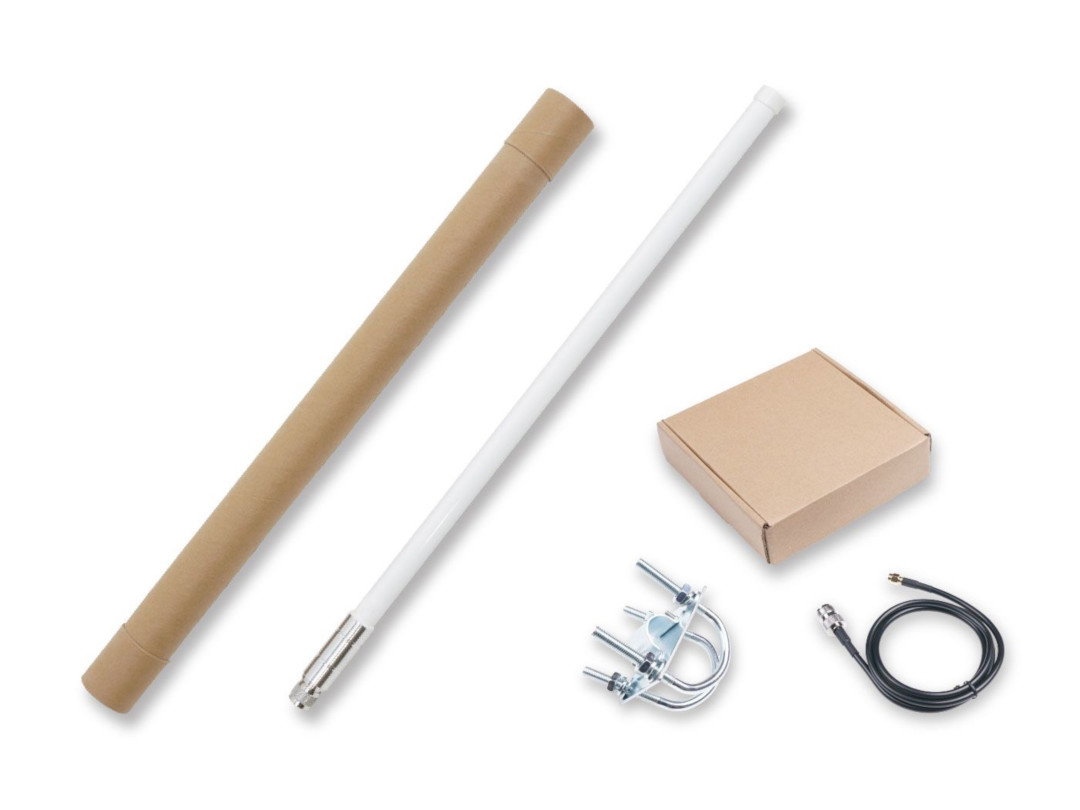

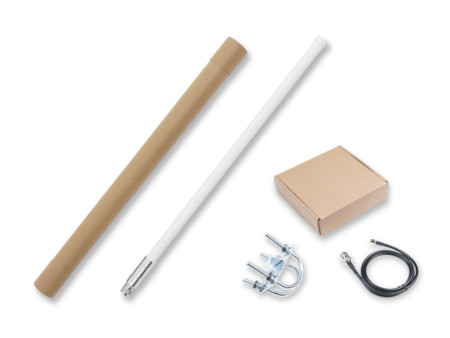

Elements included in the kit.
Useful links
| Name | Value |
|---|---|
| Width | 8 cm |
| Height | 8.5 cm |
| Depth | 136 cm |
| Weight | 1.45 kg |
