Product description: Active multiband GNSS antenna L1 + L2 + L5 with SMA connector - Waveshare 25482
An active multiband GNSS antenna is a GPS antenna that receives accurate data from the satellite for precise positioning. It supports the L1, L2 and L5 bands , which ensures better signal accuracy and reliability in various environmental conditions. The antenna has a 5 m long cable with an SMA connector . It is ideal for applications requiring high location accuracy, such as car navigation. It combines modern technologies with reliability, which makes it a unique design solution.
Active multiband GNSS antenna L1 + L2 + L5 with SMA connector - Waveshare 25482.

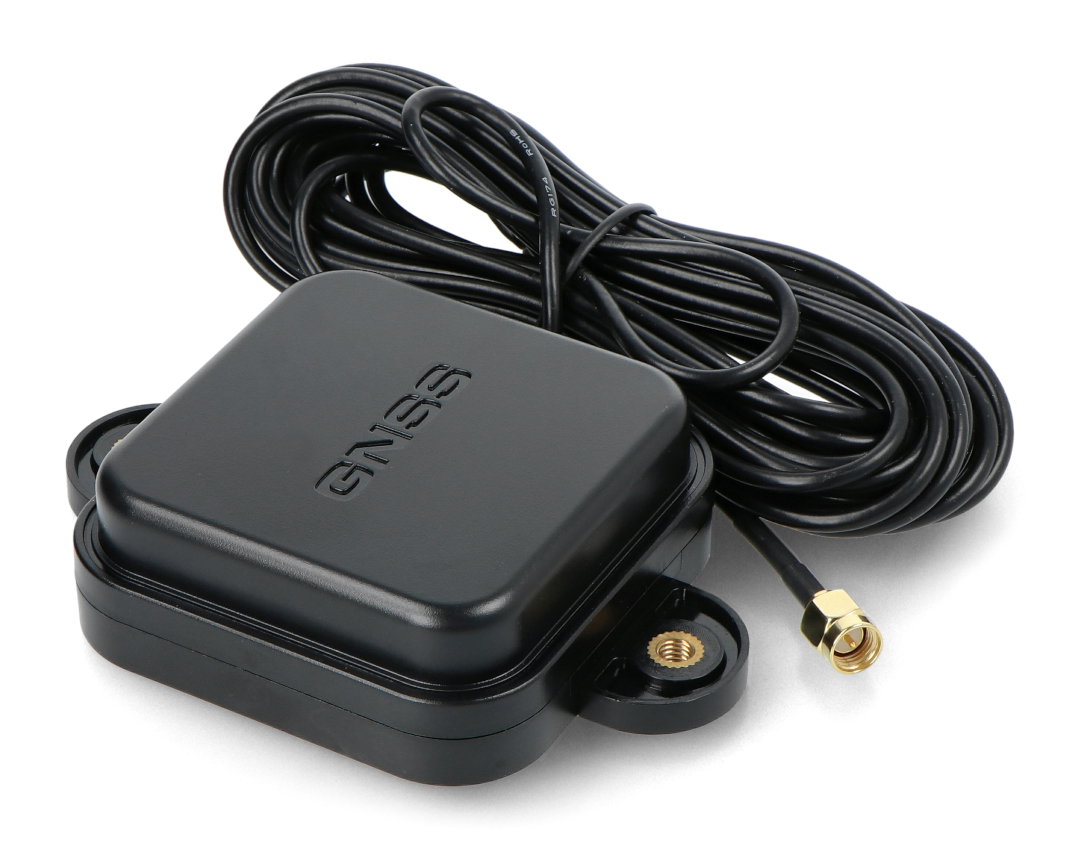

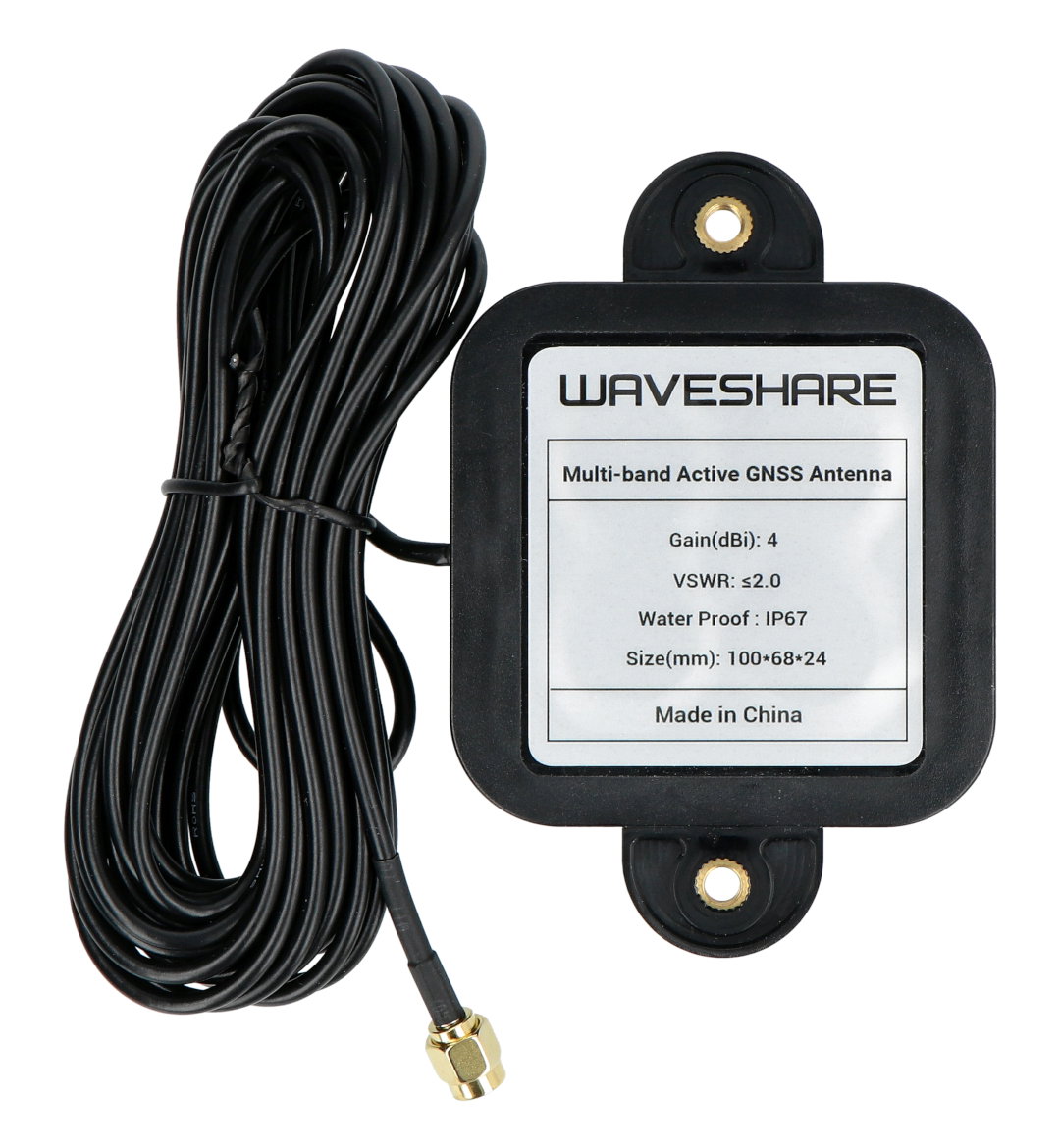

The antenna has an SMA connector.
Main features of the antenna
- It supports the L1, L2 and L5 bands, ensuring high signal accuracy and reliability
- It has an SMA connector, enabling easy connection to various navigation systems
- It is compatible with multiple GNSS positioning systems, including BeiDou, GPS, GLONASS and Galileo
- Perfect for applications requiring precise positioning in a variety of environmental conditions
Application of a multi-band GNSS antenna
The multi-band GNSS antenna with an SMA connector is used in advanced navigation systems to achieve precise positioning. It supports the most popular GNSS systems - GLONASS, Galileo and BeiDou and ensures high signal accuracy and reliability. It is widely used in professional geodetic and cartographic systems, and is also crucial in the transport industry, especially in automotive, air and maritime navigation, where precise position tracking is essential.

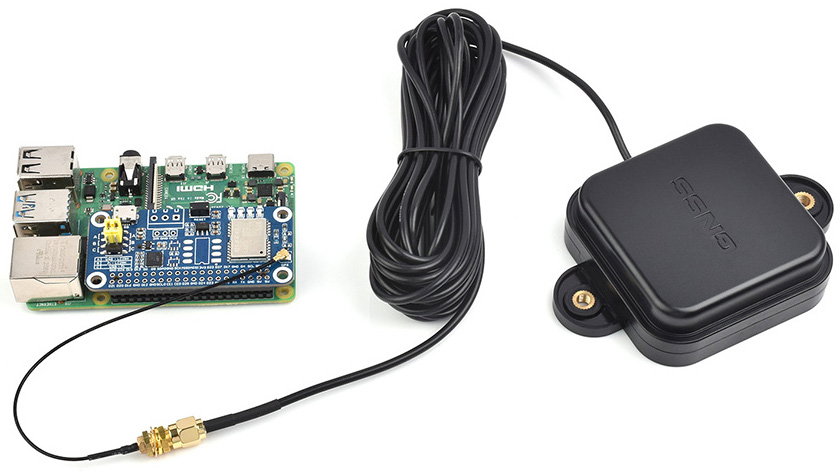

The device is used for accurate positioning.
The product operates on the L1, L2 and L5 frequency bands.Technical specifications of the antenna
- Frequency range:
- BDS B1/B2/B3
- GPS L1/L2/L5
- GLONASS G1/G2/G3
- GALILEO E1 / E2 / E5a / E5b / E6
- Phase center error: ±2 mm
- LNA gain: 40 ±2 dB
- Polarization: RHCP
- Energy gain: 4 dBi
- VSWR standing wave ratio: ≤2.0
- Cable type: RG174
- Connector type: male SMA
- Output impedance: 50 Ω
- Working current: ≤45 mA
- Supply voltage: 3V to 18V DC
- Axial factor: ≤3.0 dB
- Noise figure: ≤1.8 dB
- Operating temperature range: from -40°C to 70°C
- Cable length: 5 m
- Dimensions: 108 x 76 x 27 mm
