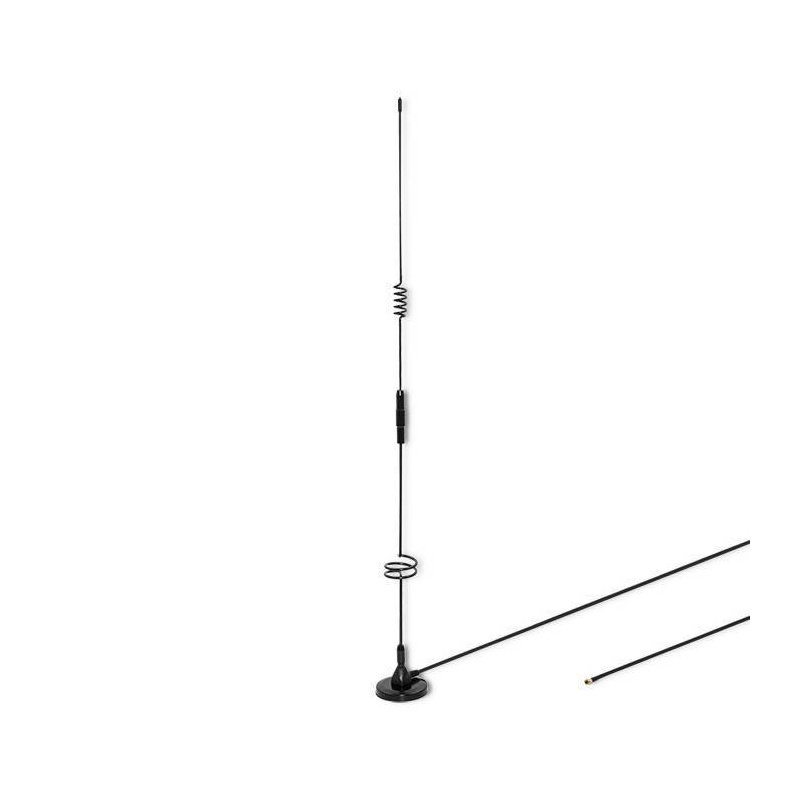

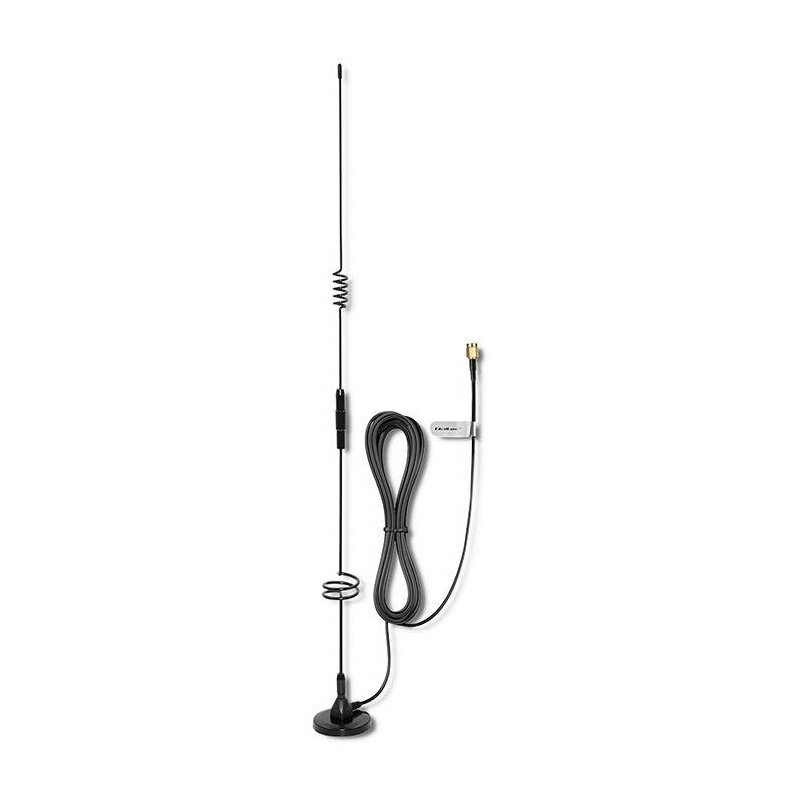

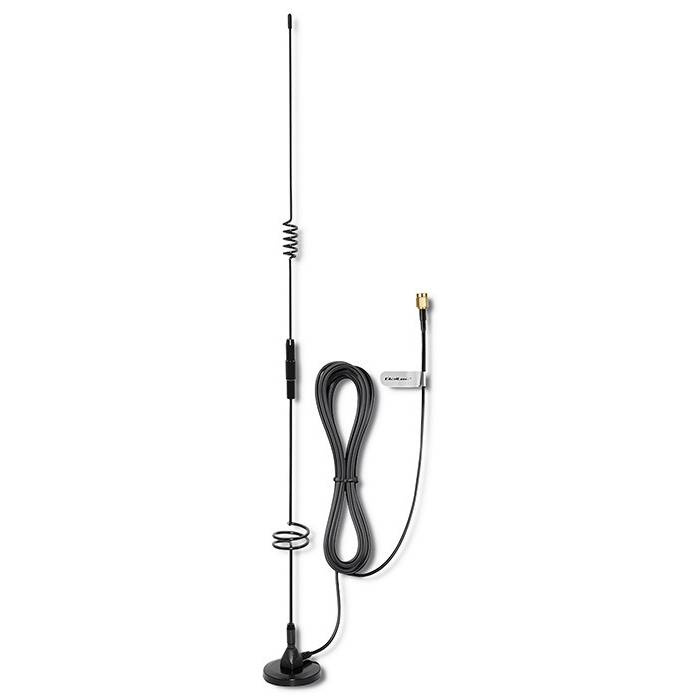

Product description: GSM 600 - 2700 MHz LTE antenna - 14 dBi - SMA - internal - Qoltec 57035
The Qoltec GSM/LTE antenna is designed for stable data transmission and improved signal reception across a wide frequency range from 600 MHz to 2700 MHz . With a 14 dBi gain, the antenna can improve the quality of voice calls and LTE data transfer, especially in areas with weak cellular network signals. This model is equipped with an SMA male connector , 50Ω impedance, and a VSWR of ≤ 2 , which helps reduce signal loss and ensure stable operation. The magnetic base allows for quick antenna mounting on any surface. The copper, metal, and plastic construction ensures durability, and the IP65 rating increases the antenna's resistance to dust and water.
Technical specifications of the antenna
- Antenna type: internal
- Antenna type: GSM / LTE, omnidirectional
- Operating frequency: 600 MHz to 2700 MHz
- Energy gain: 14 dBi
- Power: 50 W
- Impedance: 50 Ω
- Polarization: vertical

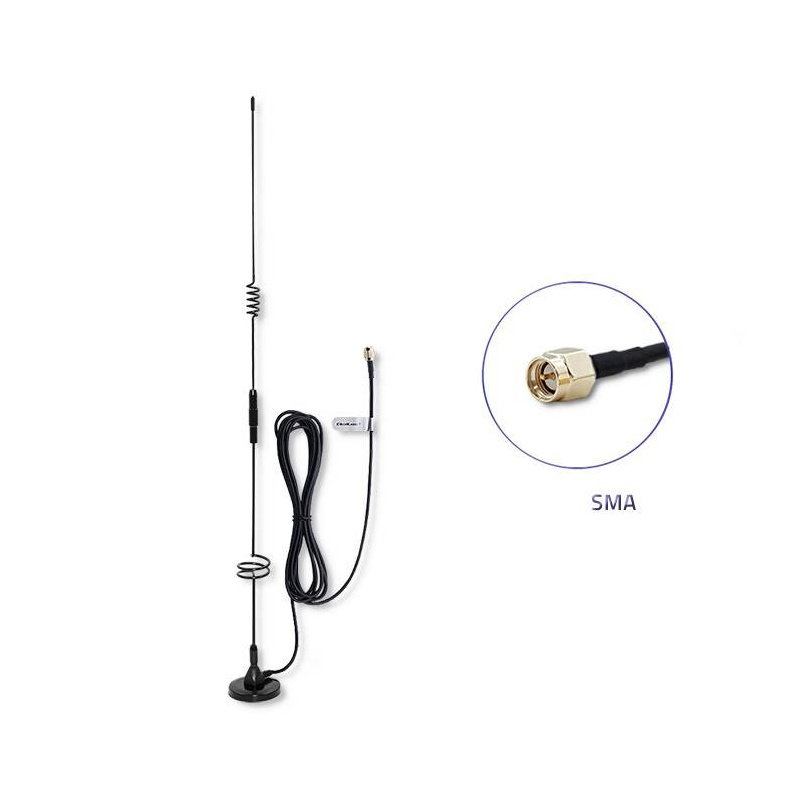

- Antenna connector: SMA male
- VSWR: ≤ 2
- Tightness class: IP65
- Additional information: magnetic stand, LTE support
- Color: black
- Material: copper, metal, plastic
- Cable: RG58
- Cable length: 3 m
- Operating temperature: -20°C to 85°C
- Dimensions: 60 x 60 x 685 mm
Contents of the set
- 1x Qoltec 57035 omnidirectional GSM antenna
