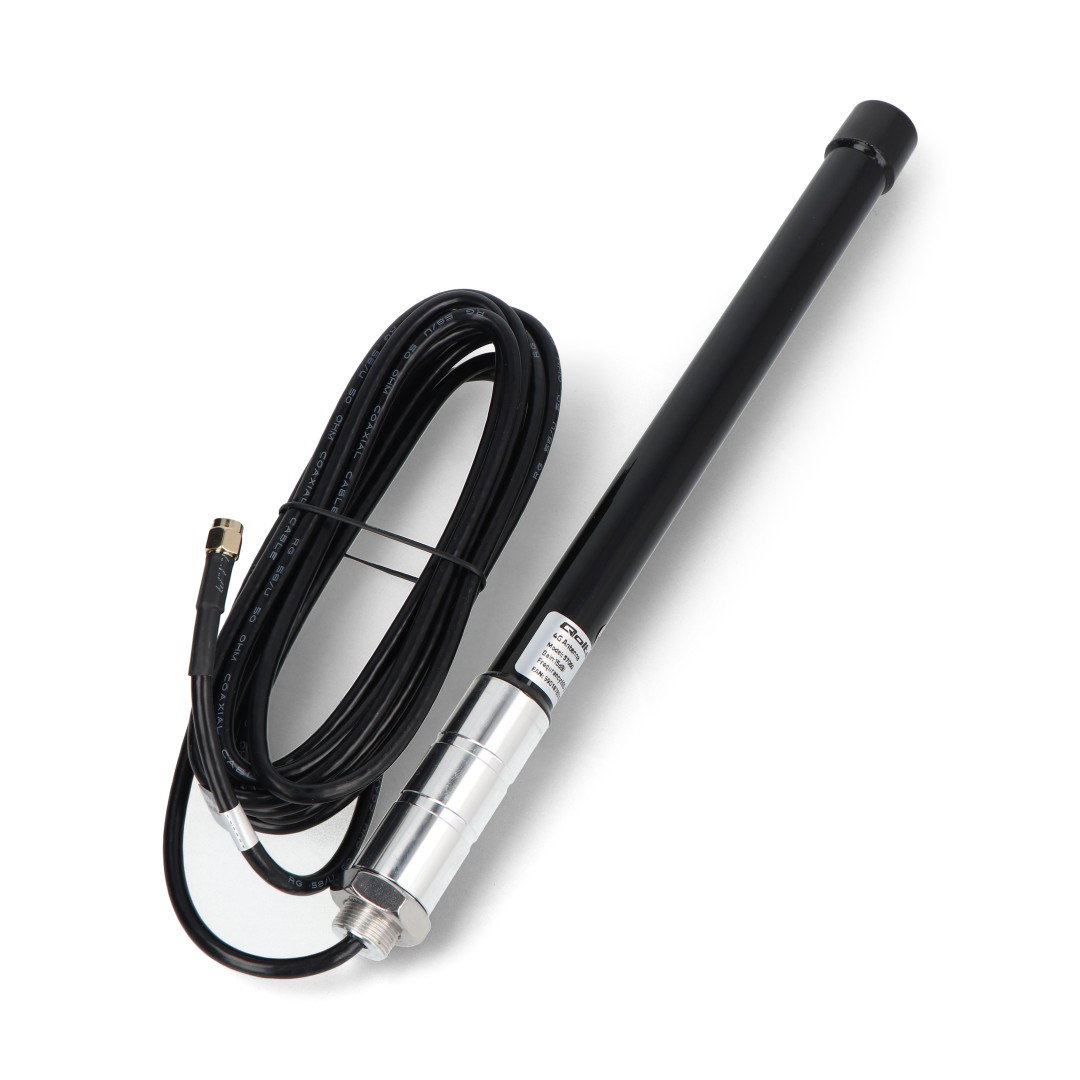

Product description: 4G LTE antenna - 15 dBi - external - Qoltec 57060
The Qoltec 4G LTE external antenna with a high gain of 15 dBi is an efficient solution designed to improve the quality and stability of internet connections in mobile networks. Thanks to its wide frequency range from 600 MHz to 2700 MHz, it is compatible with multiple LTE bands, allowing for efficient use of available network infrastructure. Its omnidirectional operation ensures 360° signal reception , making it ideal for locations where the signal comes from different directions or its source is unclear. The high energy gain of 15 dBi significantly improves signal strength , resulting in a more stable connection, higher transmission speeds, and lower latency.
4G LTE antenna - 15 dBi - external - Qoltec 57060.
The Qoltec 4G LTE external antenna with a high gain of 15 dBi is an efficient solution designed to improve the quality and stability of the Internet connection in mobile networks.Special features
- Antenna type: omnidirectional (360°) - signal reception from every direction
- Energy gain: 15 dBi - significant LTE signal amplification
- Frequency range - from 600 MHz to 2700 MHz - wide compatibility
- 4G LTE standard - stable and fast internet connection

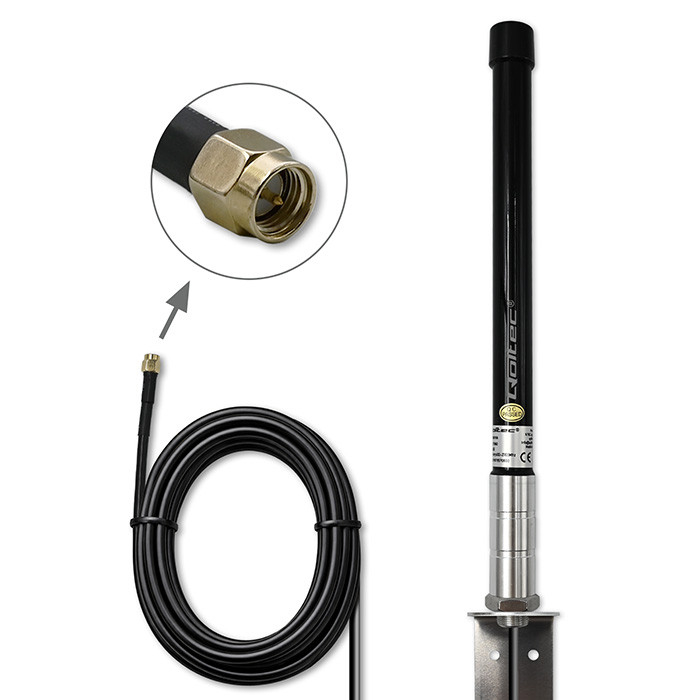

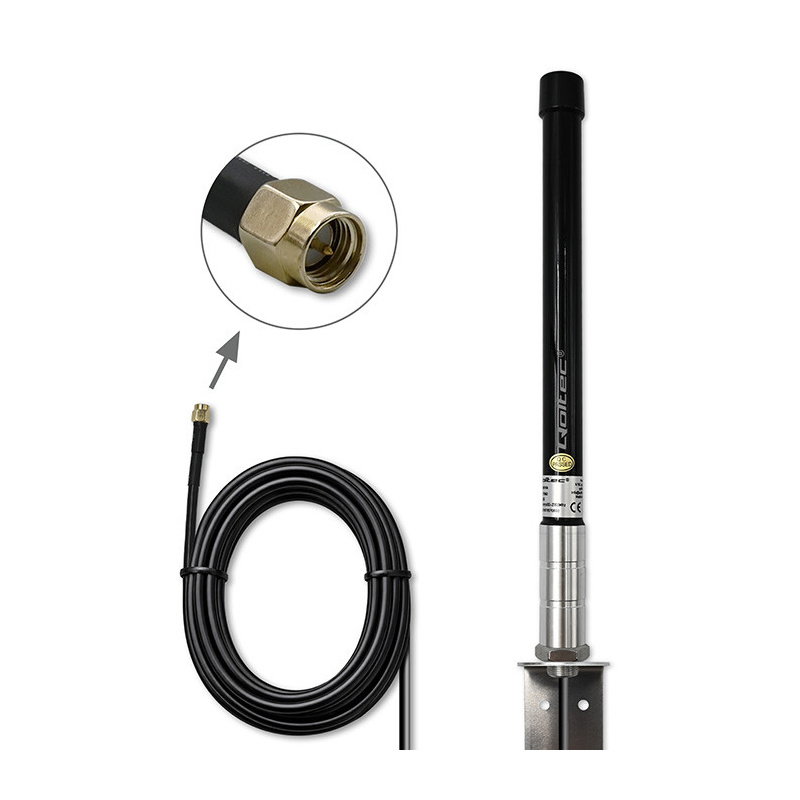

- SMA-J connector - easy connection to routers and modems
- Cable approx. 3 m RG58/U - convenient installation
- IP67 resistance - operation in difficult weather conditions
- Fiberglass construction - resistant to UV, moisture and temperatures
Practical applications
The Qoltec 4G LTE antenna is ideal for locations with weak or unstable cellular network coverage, such as rural areas, summer cottages, offices, and industrial facilities. It improves signal quality, resulting in comfortable internet use while working remotely, streaming, or using online services. Thanks to its omnidirectional characteristics, the antenna does not require precise alignment with the transmitter, significantly simplifying installation and use. It is compatible with LTE routers, USB modems, and other network devices equipped with an SMA connector.
Technical specifications of the antenna
- Antenna type: omnidirectional
- Gain: 15 dBi
- Operating frequency: 600 MHz to 2700 MHz
- Power: 100 W
- Impedance: 50 Ω
- Polarization: vertical
- Connector: SMA
- VSWR: ≤ 2
- Tightness class: IP67
- Cable: RG58/U
- Cable length: 3 m
- Material: fiberglass
- Color: black
- Operating temperature: -40°C to 85°C
- Dimensions: 22 x 22 x 300 mm

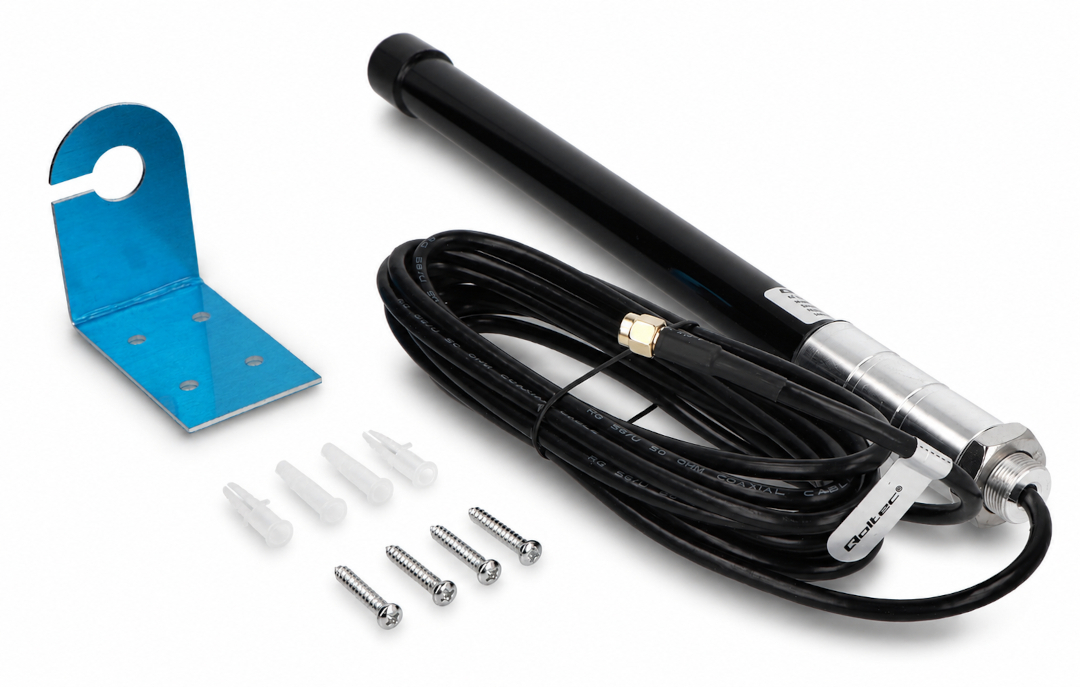

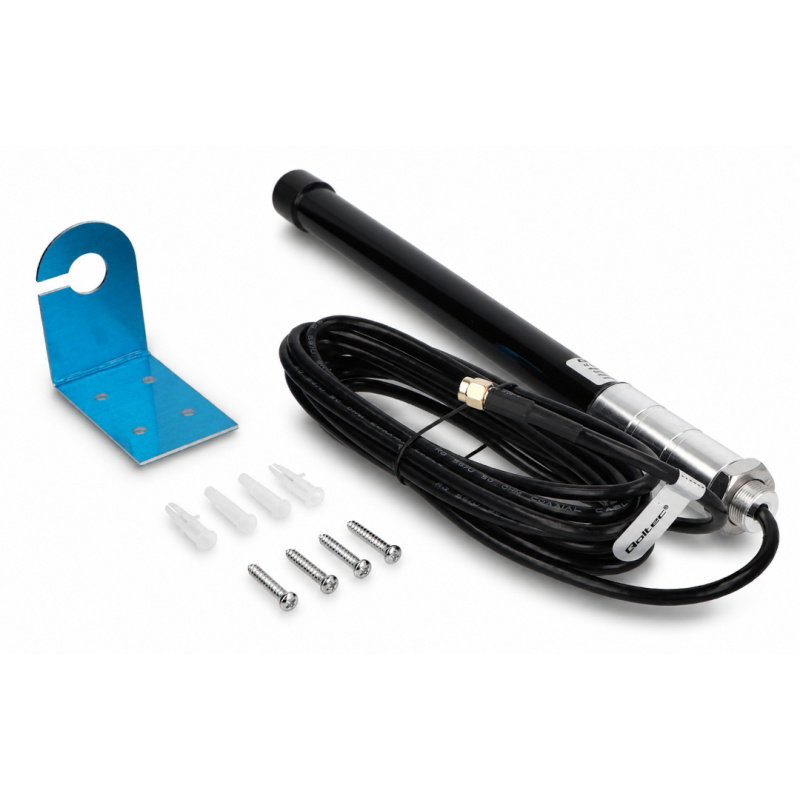

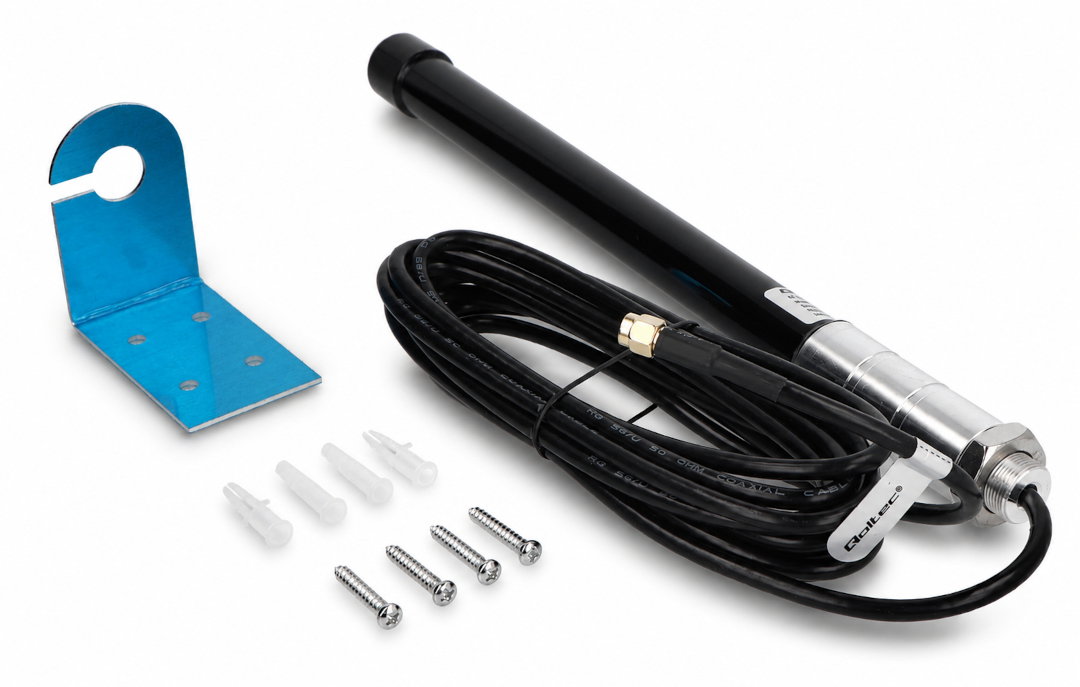

Kit contents
- Qoltec 4G LTE Antenna
- U-type mounting bracket
- Set of mounting screws
The omnidirectional operating characteristic ensures signal reception in a 360° range.
