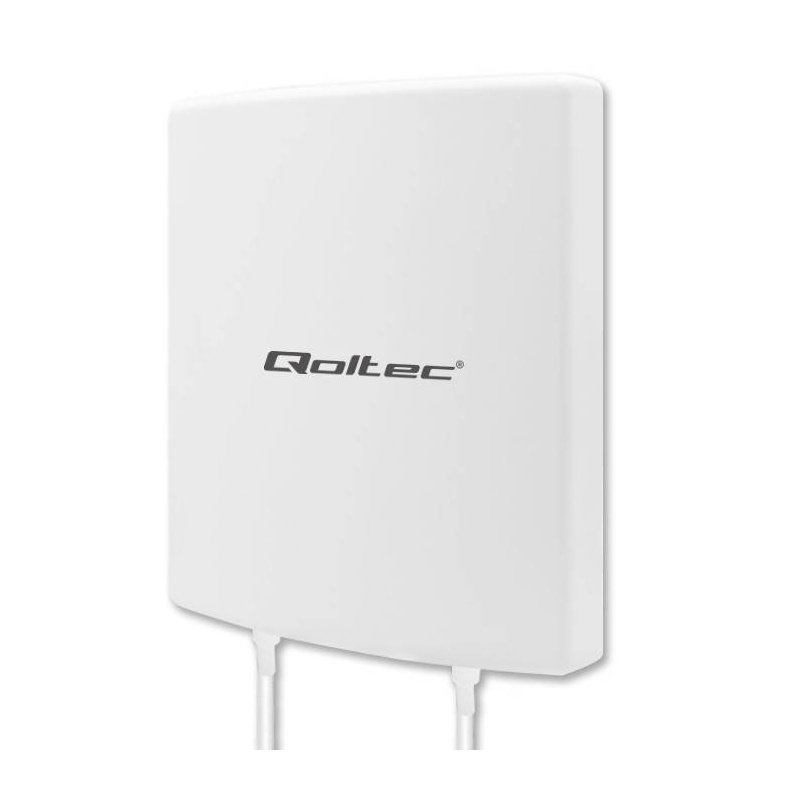

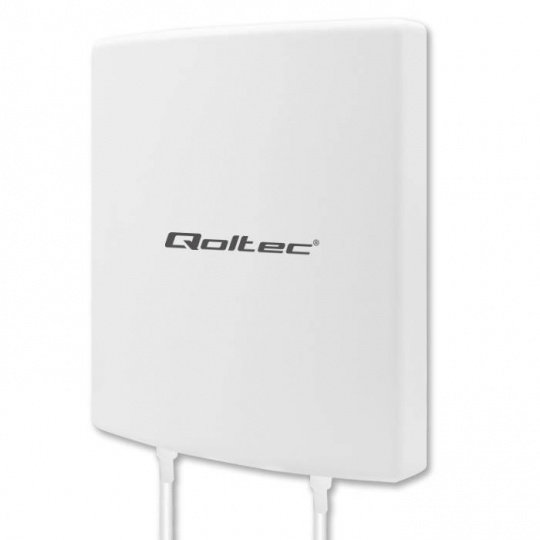

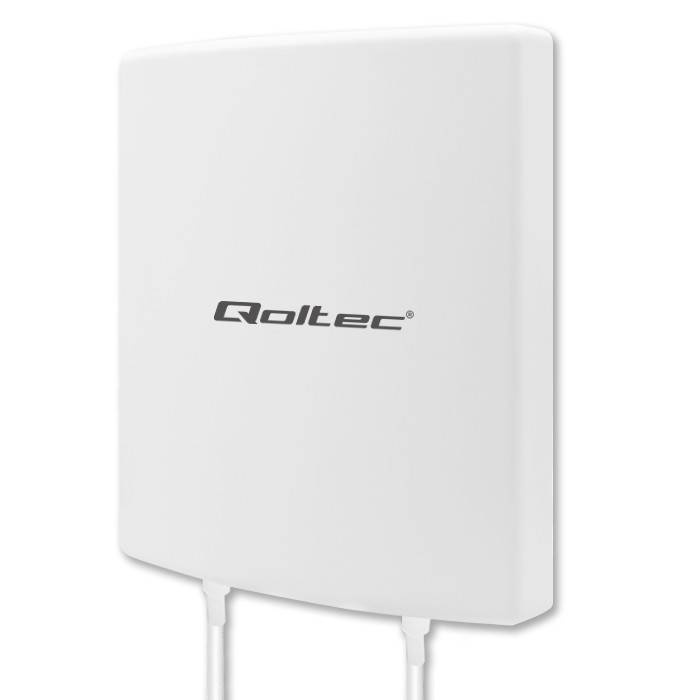

5G LTE Antenna -14dBi - outdoor - Qoltec 57022
The Qoltec 5G LTE antenna is an external directional antenna designed to improve the quality and stability of your internet connection. It supports 5G and LTE technologies, offering 14 dBi gain and a wide frequency range of 600 MHz to 2700 MHz and 3300 MHz to 3800 MHz . The antenna uses MIMO technology and is equipped with two male SMA connectors and two 3m RG58 cables.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 5G LTE antenna - 14 dBi - external - Qoltec 57022
The Qoltec 5G antenna is designed for users who expect a stable and fast internet connection at home, in the office, in a vehicle, or in industrial installations. MIMO technology enables simultaneous connection of two signal paths, resulting in better data transmission efficiency and greater connection stability in 5G and LTE networks. A wide operating frequency range spanning 600 MHz to 2700 MHz and 3300 MHz to 3800 MHz allows for compatibility with modern cellular networks from many operators. The antenna offers 14 dBi gain , 50 Ω impedance, and a VSWR of ≤ 2.0, effectively reducing signal loss. The IP65 housing ensures resistance to weather conditions, making the antenna suitable for outdoor installation .
Technical specifications of the antenna
- Antenna type: external
- Antenna type: 5G LTE
- Technology: MIMO
- Operating frequency: from 600 MHz to 2700 MHz and from 3300 MHz to 3800 MHz
- Energy gain: 14 dBi
- Power: 50 W
- Impedance: 50 Ω
- Polarization: vertical
- Antenna connector: 2 x SMA male
- VSWR: ≤ 2.0
- Tightness class: IP65

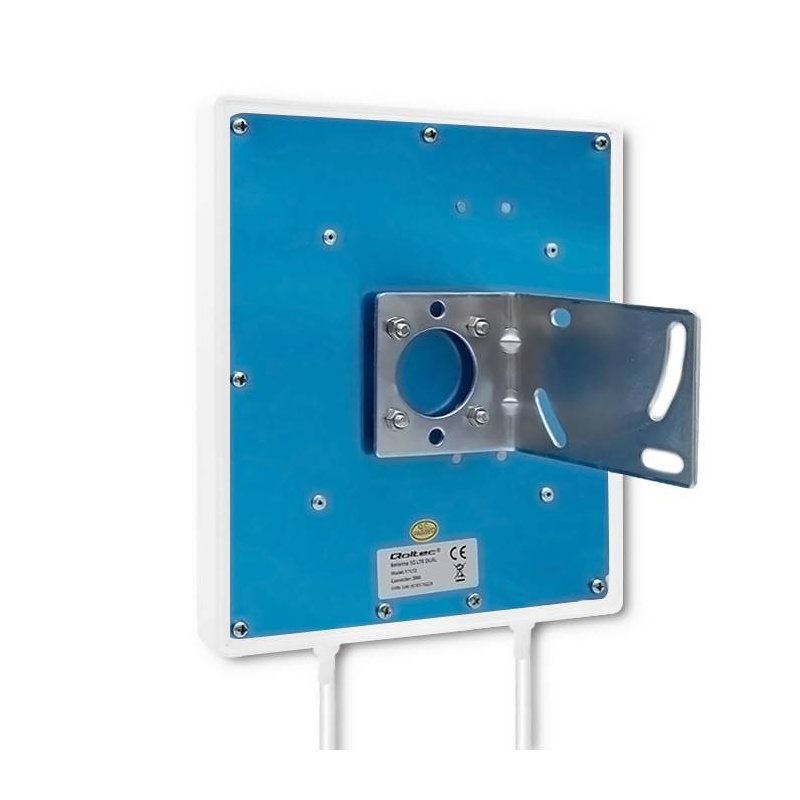

- Additional information: antenna for external mounting
- Color: white
- Material: copper, plastic
- Cable: RG58
- Cable length: 2 x 3 m
- Operating temperature: -20°C to 85°C
- Dimensions: 195 x 245 mm
- Weight: 1.001 kg

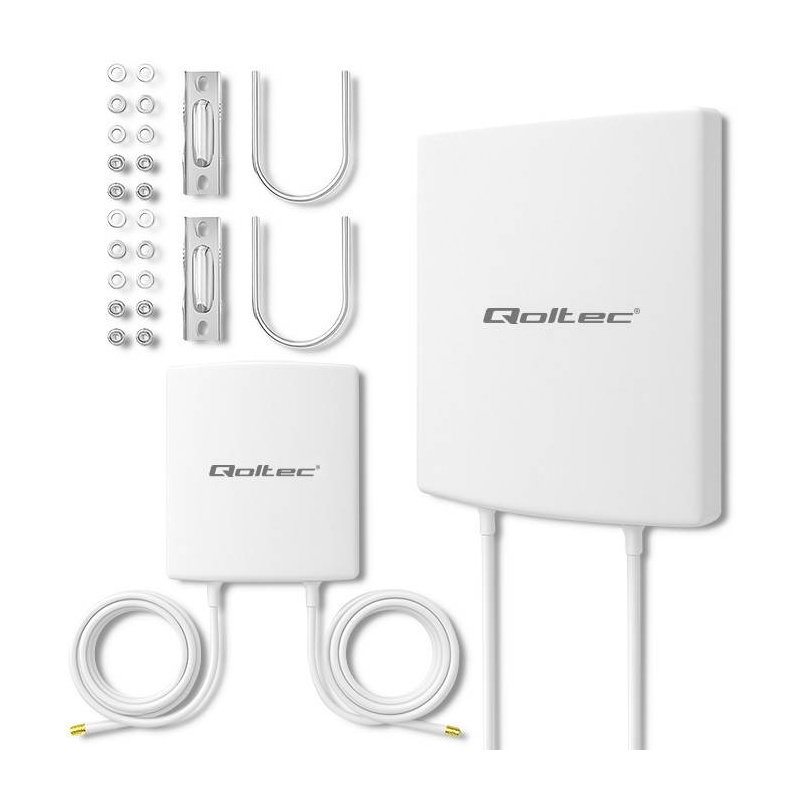

Kit contents
| Name | Value |
|---|---|
| Width | 25.5 cm |
| Height | 20.3 cm |
| Depth | 9.3 cm |
| Weight | 0.827 kg |
