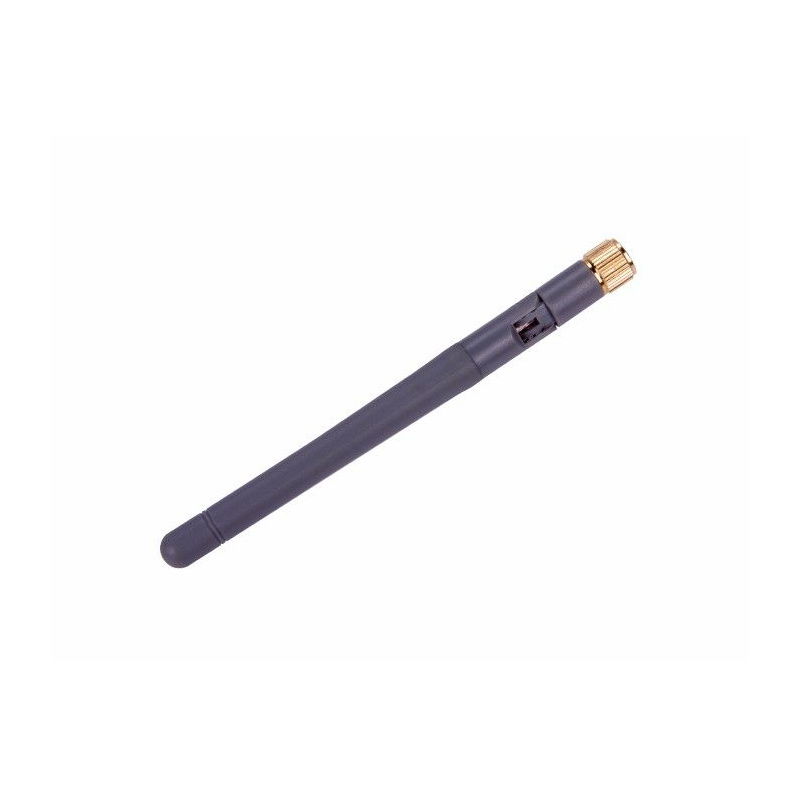

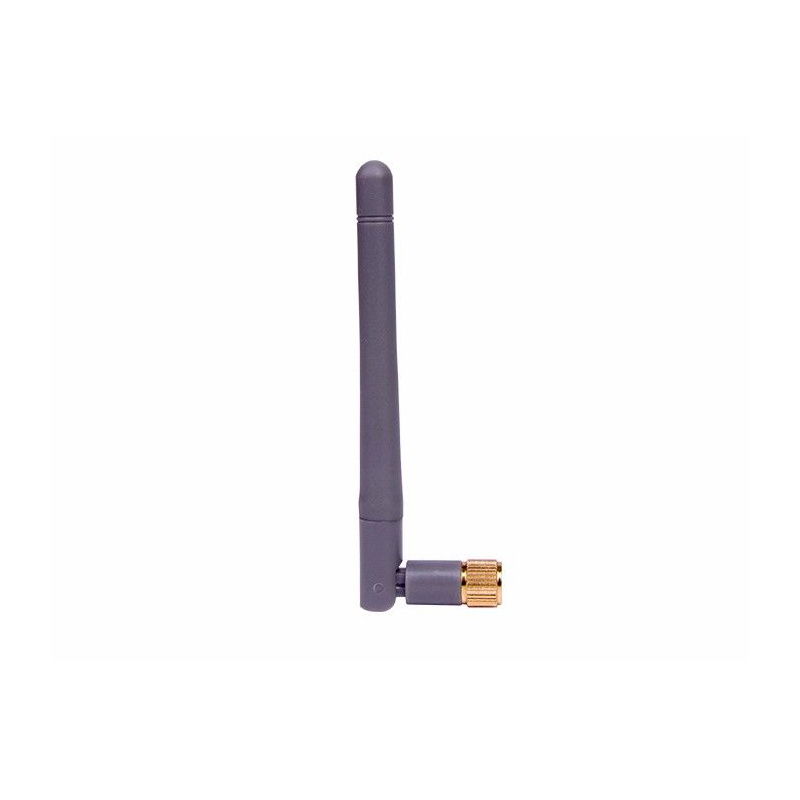

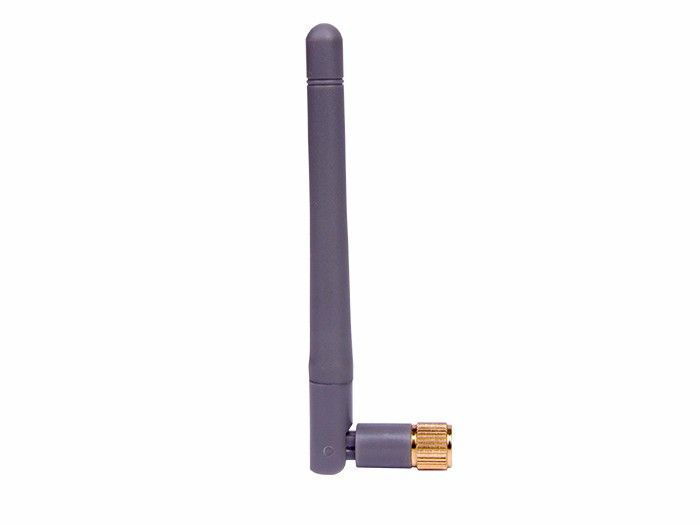

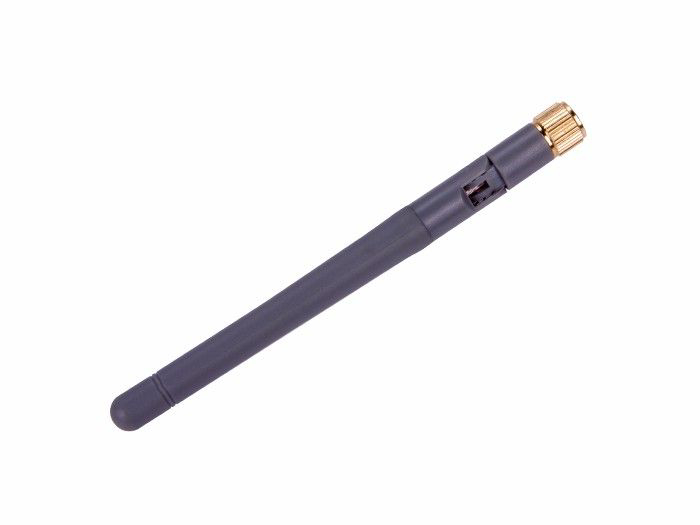

Rubber Duck UFH 400-900MHz 3,5dBi articulated antenna with SMA connector - Seeedstudio 109990205
Articulated antenna with SMA "rubber duck" connector operating in the frequency range from 400 MHz to 900 MHz . Provides excellent sensitivity and signal quality, ideal for professional applications in audio, video and for RF Explorer devices. The antenna is characterized by a solid construction, low weight and durability
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Rubber Duck UFH 400-900 MHz 3.5 dBi Articulated Antenna with SMA Connector - Seeedstudio 109990205
The SMA articulated antenna is a specialist antenna designed for audio and video professionals and RF Explorer users. The antenna provides a higher signal-to-noise ratio (S/N) than standard antennas, offering up to 20 dB of sensitivity improvement in the UHF range. It is designed to cover the entire TV and DTVB (Broadcasting) range and frequencies used by UHF wireless microphones. The antenna is dedicated to RF Explorer models: WSUB1G , ISM Combo , 3G Combo and 6G Combo, providing the best signal reception quality in this band. Thanks to its design and low weight, it is easy to use and durable, making it an excellent choice for professionals and hobbyists.
Rubber Duck UFH SMA articulated antenna - Seeedstudio 109990205.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Rubber Duck Articulating Antenna Designed for Audio and Video Professionals and RF Explorer System Users
Special Features
- RF Explorer compatible: provides the best sensitivity in the UHF range
- Ideal for professional use: excellent for receiving TV, DTVB and wireless microphone signals
- Better signal to noise ratio: 20 dB better sensitivity compared to standard antenna
- Solid construction: low weight, resistant to mechanical damage
- Frequency range: 400 MHz to 900 MHz (compatible with most audio and video systems) justify;"> Vertical polarization: ensures stable signal reception in professional conditions
Technical specification
- Impedance: 50 ohms

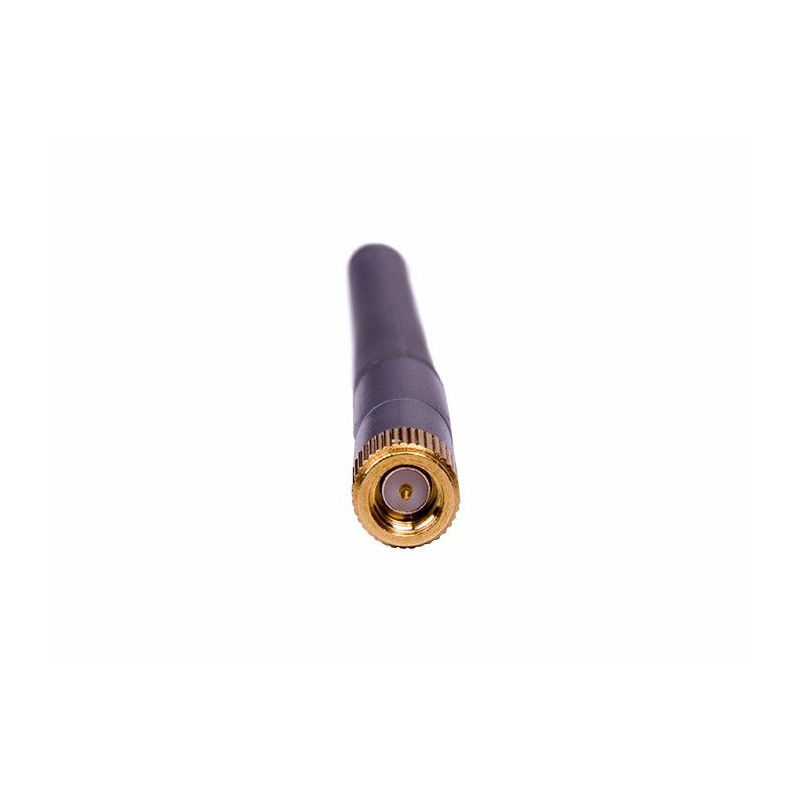

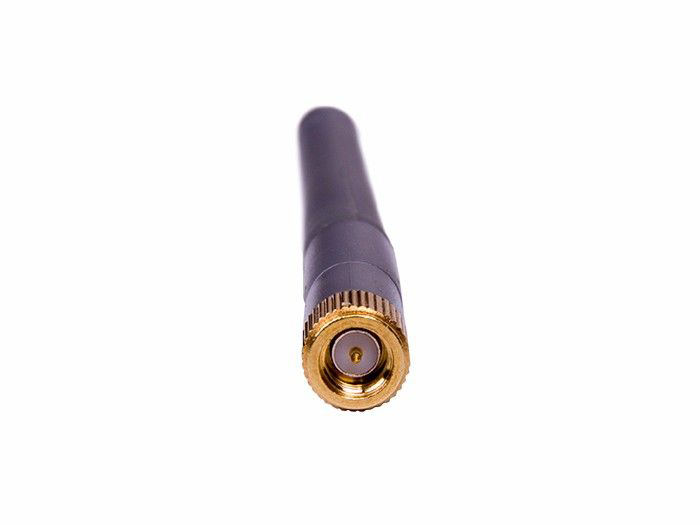

- Connector Type: SMA Male
- Antenna type: rubber duck
- Frequency range: 400-950 MHz
- VSWR:
- < 2 (for 450 MHz and 850 MHz)
- < 3.5 (for the range from 400 MHz to 900 MHz)
- Polarization: vertical
- Gain: up to 3.5 dBi
- Maximum power: 50 W
- Operating temperature: 0°C to 40°C
- Antenna dimensions: 80mm x 120mm x 8.3mm
- Weight: 13 g (with packaging)
The antenna is dedicated to RF Explorer models: WSUB1G, ISM Combo, 3G Combo and 6G Combo, ensuring the best signal reception quality in this band.
Useful links
| Name | Value |
|---|---|
| Antenna - Connector type | SMA |
| Antenna - Type: | 400-900 MHz |
| Width | 12 cm |
| Height | 3.5 cm |
| Depth | 1 cm |
| Weight | 0.01 kg |
