Product description: SenseCAP Solar Node P1-Pro - LoRa MeshCore communication node - Seeedstudio 100023690
The SenseCAP Solar Node P1-Pro from Seeedstudio is a complete communication node designed for creating and expanding field LoRa MeshCore networks. The device utilizes an energy-efficient nRF52840 microcontroller, an SX1262 radio module, and an L76K GNSS receiver supporting GPS, GLONASS, and Galileo. Pre-installed MeshCore Repeater software allows for quick deployment as a multi-hop communication hub. Power is provided by a 5W solar panel and four 18650 batteries , and a Grove interface allows for expansion with additional devices. The housing is IPX6 rated, making the design suitable for long-term outdoor installations.

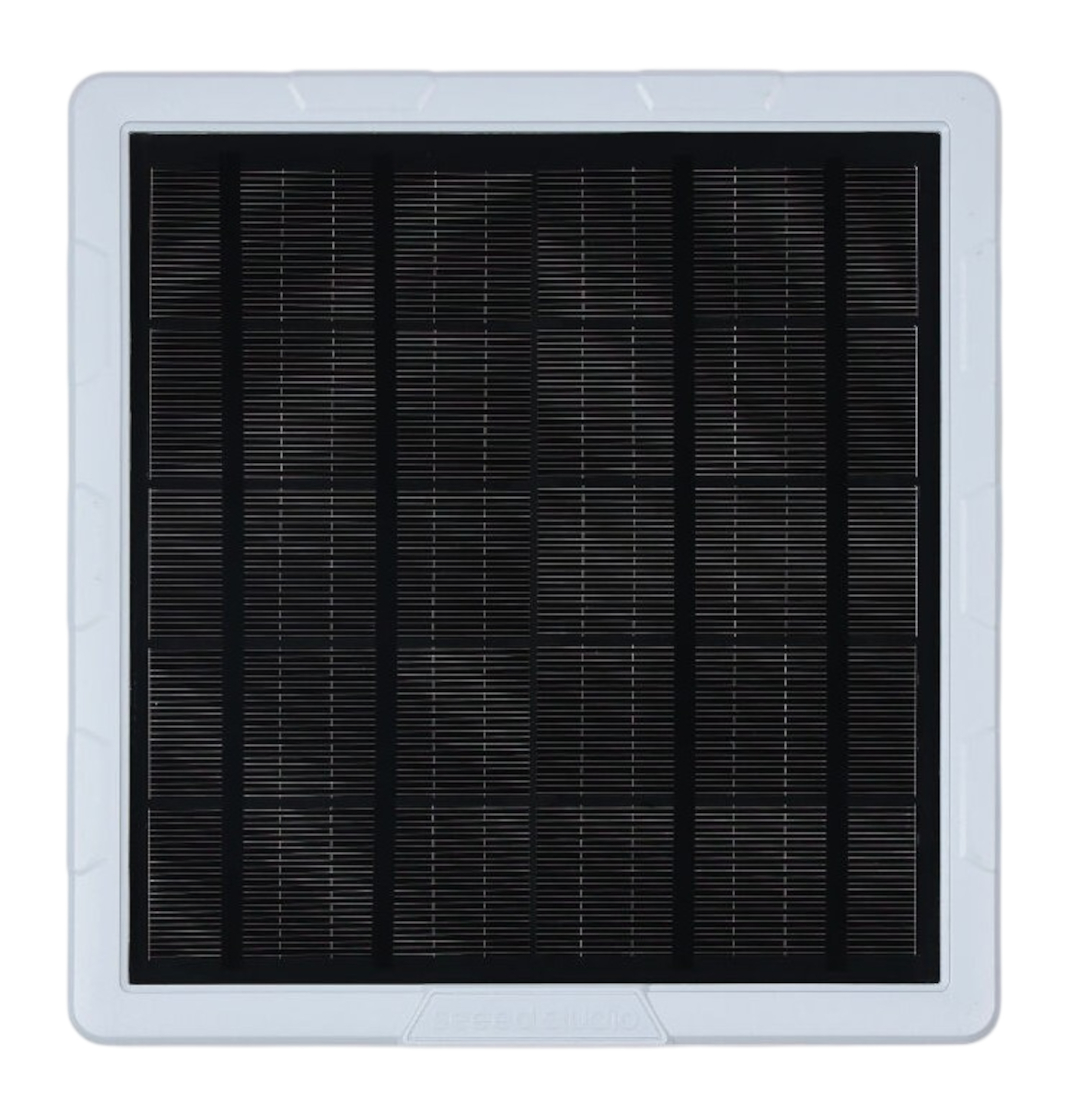

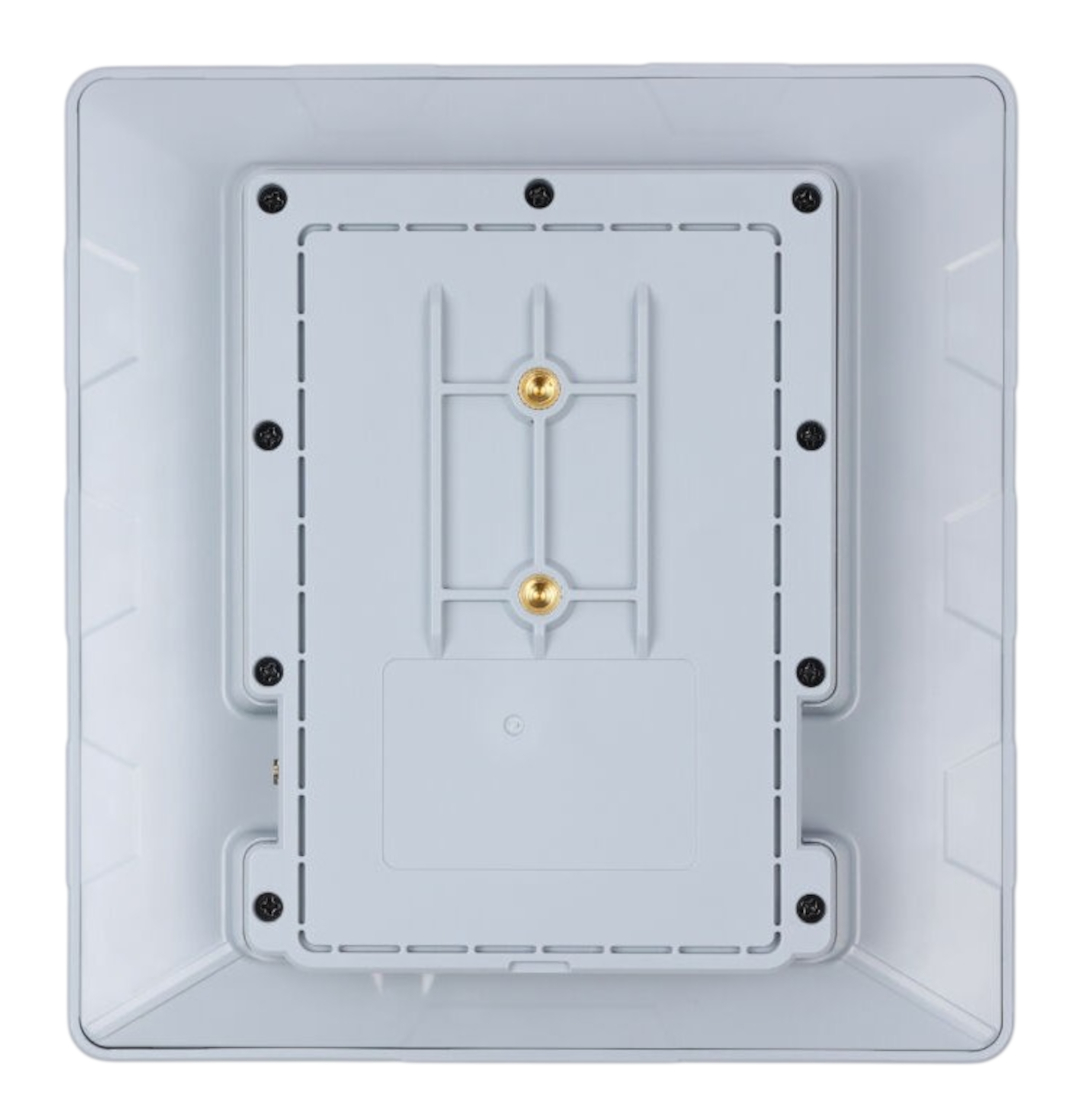

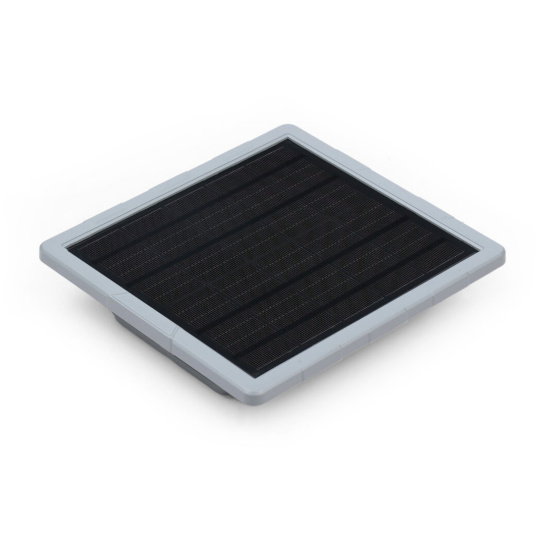

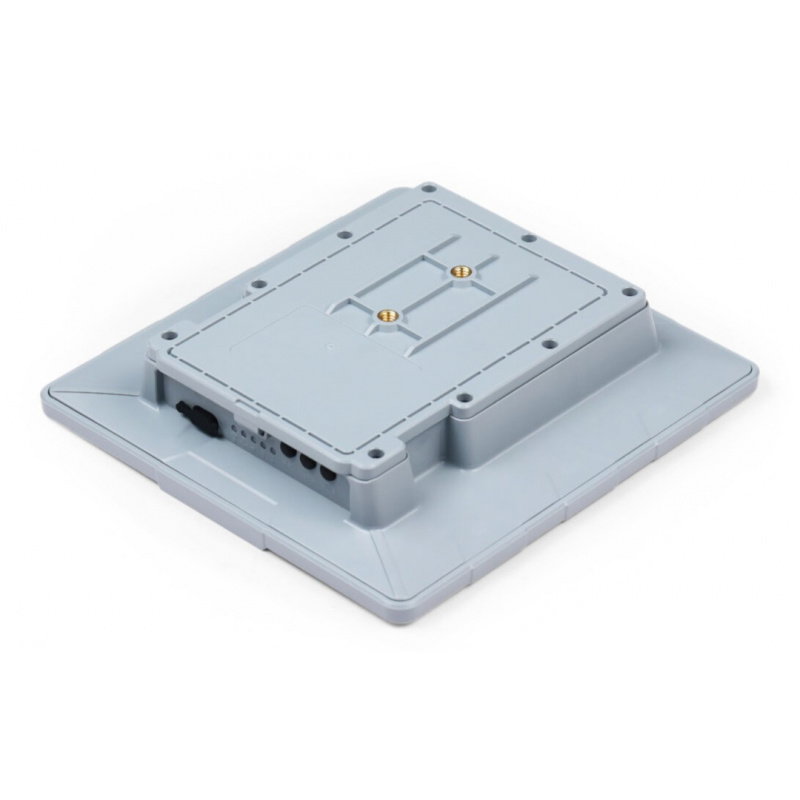

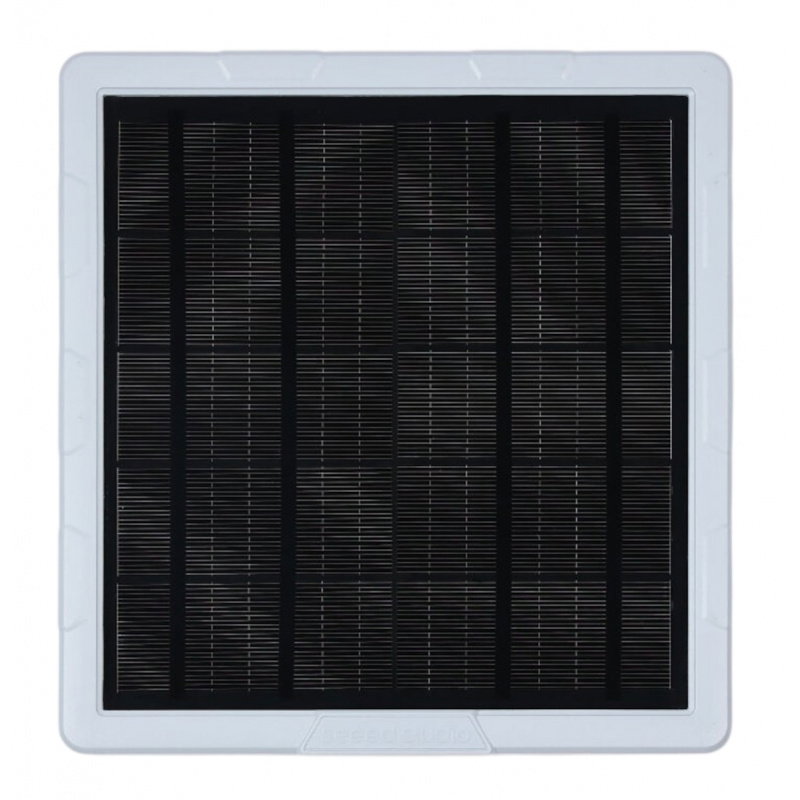

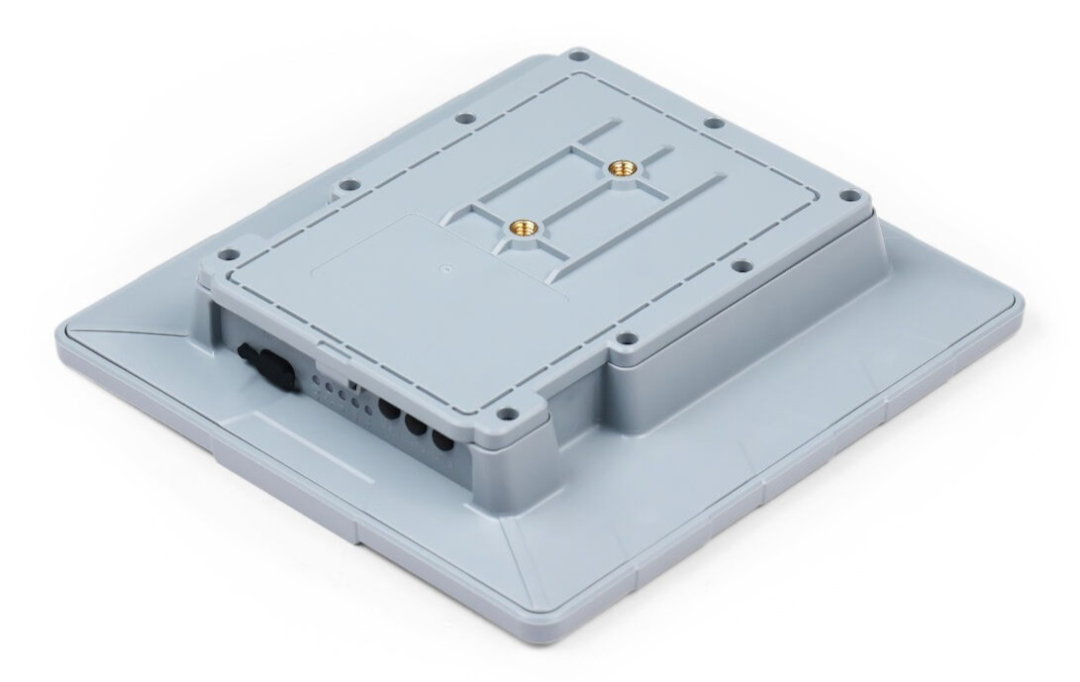

SenseCAP Solar Node P1-Pro - LoRa MeshCore communication node - Seeedstudio 100023690.

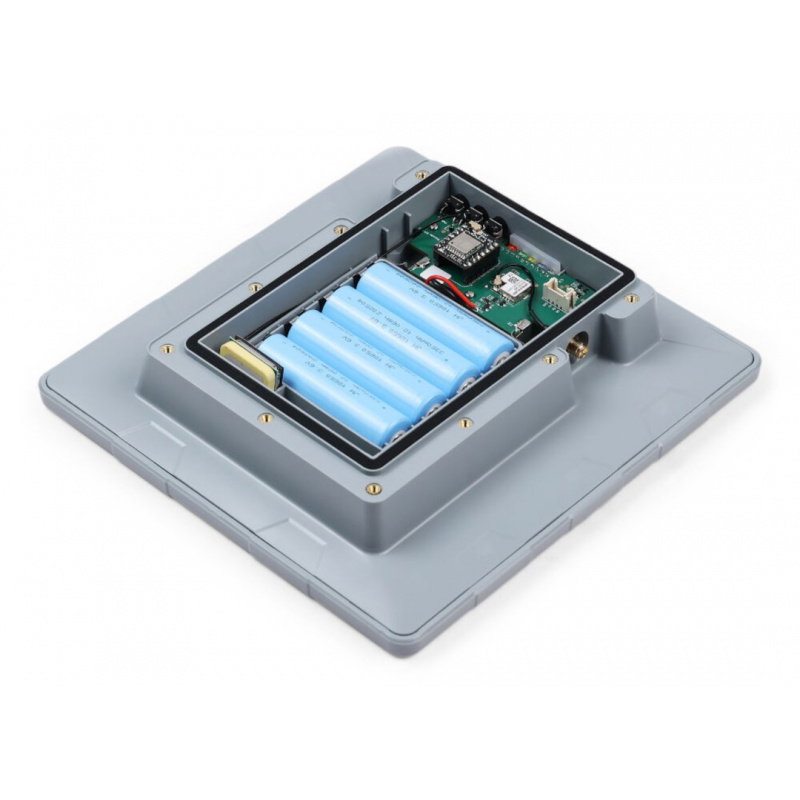

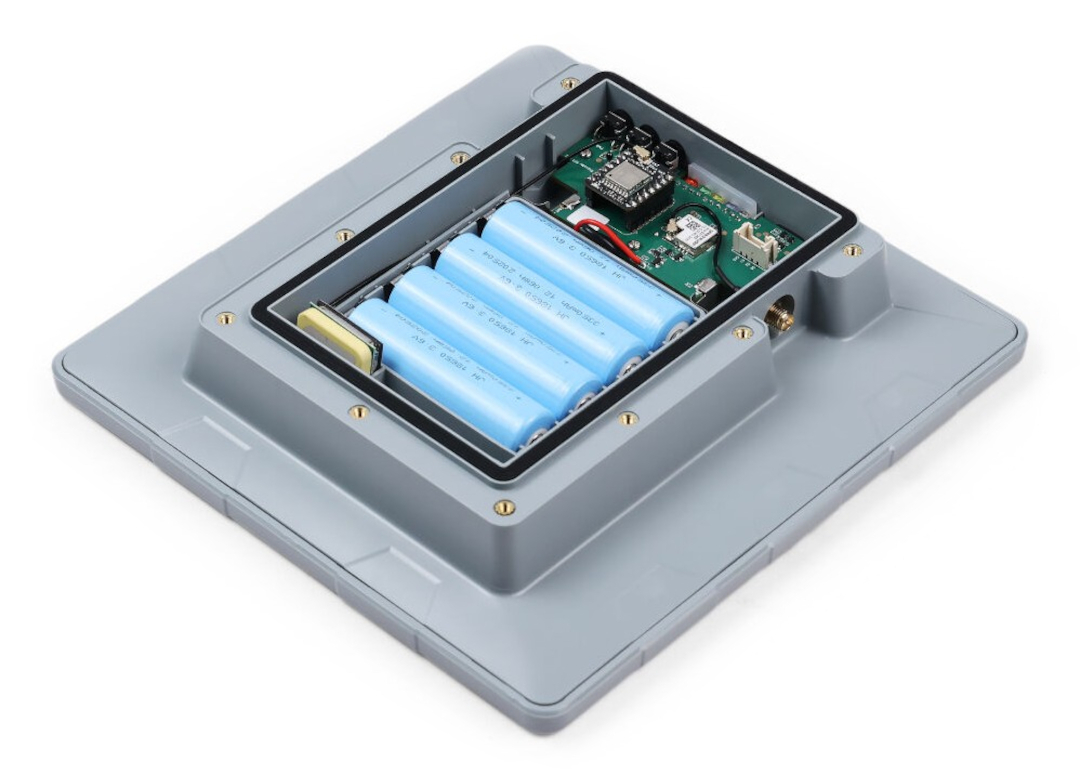

The SenseCAP Solar Node P1-Pro is equipped with 4 18650 batteries.
Main Features of the LoRa MeshCore Node
- Factory-installed MeshCore Repeater : the device is ready to work as an intermediate node increasing the range of the MeshCore network
- LoRa long-range connectivity : Wio-SX1262 module with Semtech SX1262 chip provides transmit power up to 22 dBm
- Range from 8 km to 9 km : possible in open terrain with appropriate propagation conditions and correct antenna installation

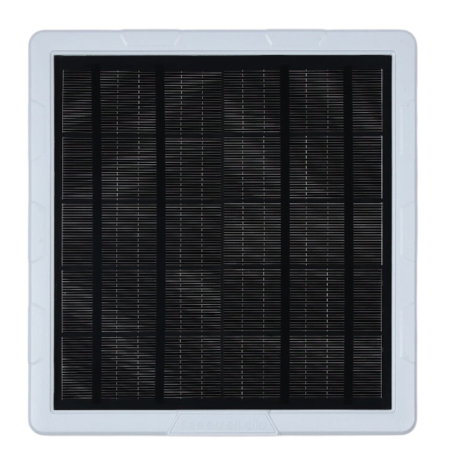

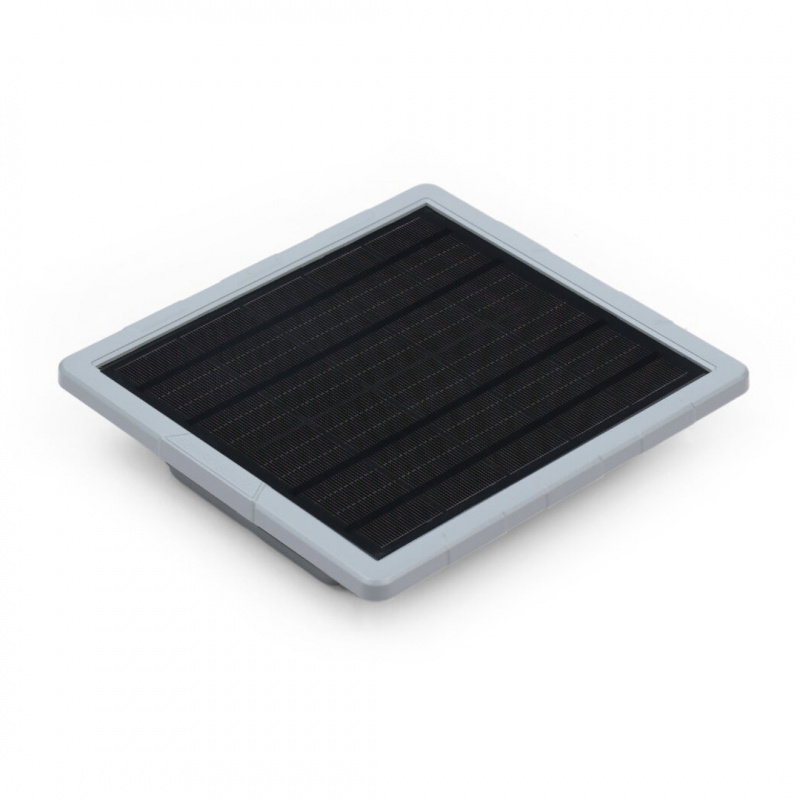

- 5W solar power : integrated panel allows you to recharge the device while working in the field
- Four 18650 batteries : cells with a capacity of 3350 mAh each provide energy reserve even in limited sunlight
- GNSS positioning : the L76K module supports GPS, GLONASS and Galileo systems
- Energy-efficient nRF52840 : 32-bit ARM Cortex-M4 processor with FPU running at 64 MHz
- Bluetooth 5.0 : The hardware provides support for energy-efficient Bluetooth communication
- Grove interface : I2C, UART and GPIO support makes it easy to expand the device with additional modules and sensors
- Resistance to outdoor conditions : IPX6 housing is designed for operation in field installations

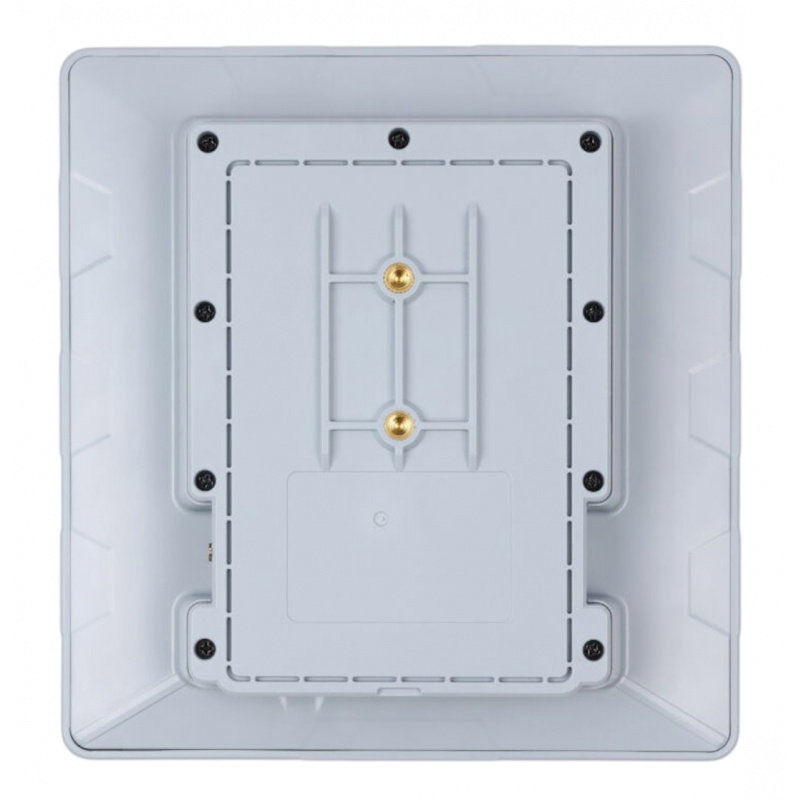

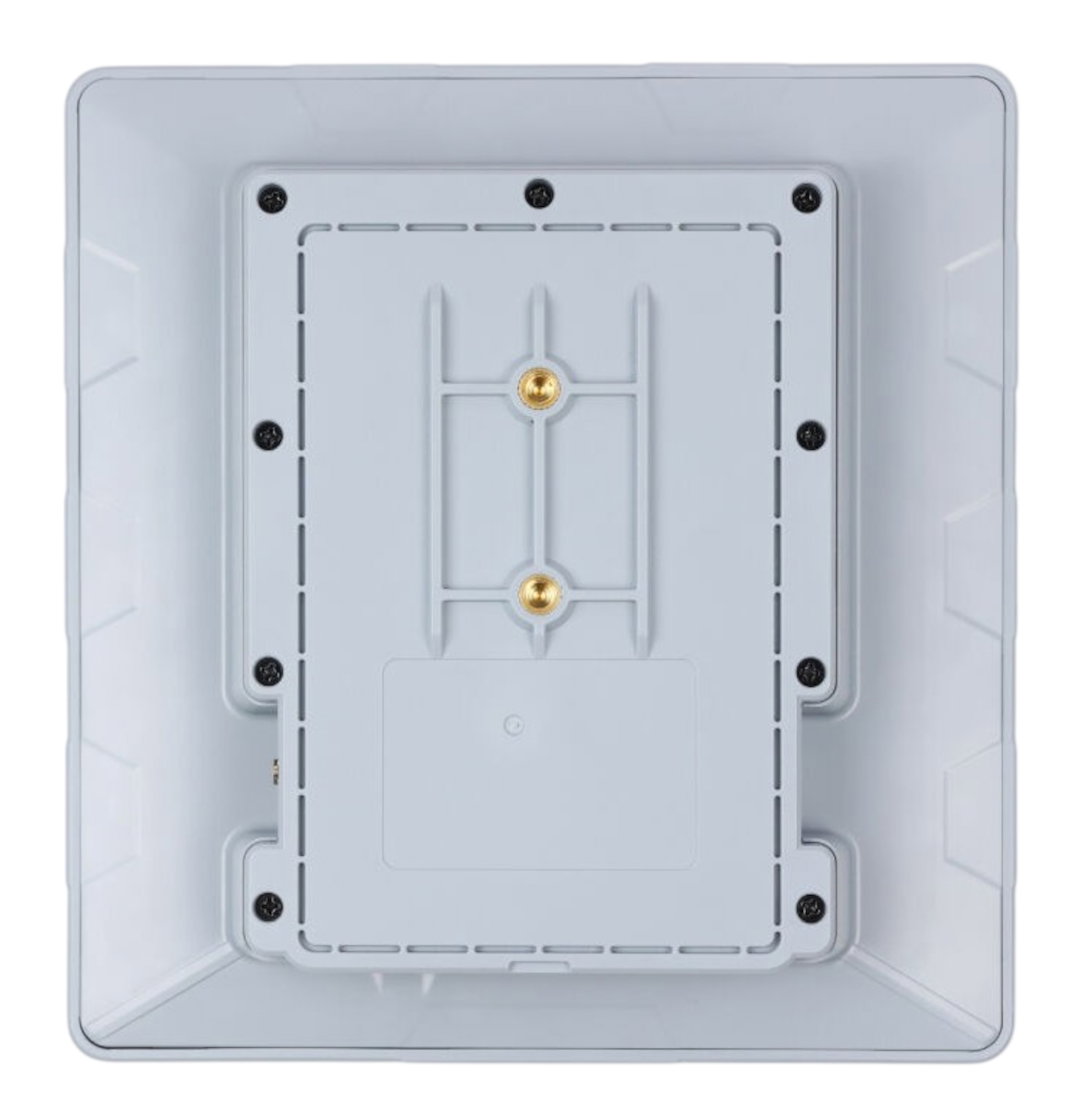

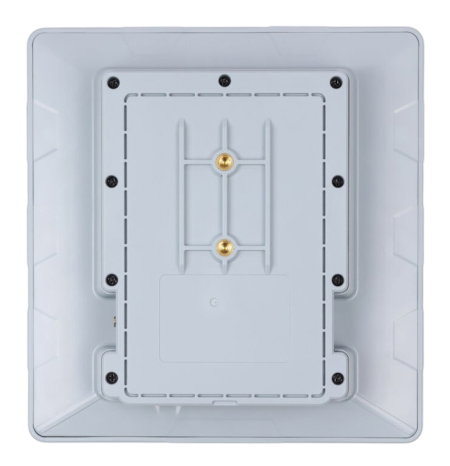

- Flexible installation : the included jointed bracket makes it easy to install on a pole and set the appropriate angle of the device
- Indicator LEDs : provide information on charging, charging completion, solar energy availability, and LoRa activity, among other things.
MeshCore - a decentralized LoRa network without internet access
MeshCore is an open-source communication system that uses LoRa to create independent radio networks in which messages can be relayed between nodes. SenseCAP The Solar Node P1-Pro comes with pre-installed Repeater firmware , so its primary function is receiving and forwarding appropriate packets, allowing for increased range and the creation of a multi-hop MeshCore infrastructure. The Repeater doesn't need to retransmit every received packet, and its operation can be managed according to the mechanisms provided by the MeshCore platform. In a practical network, the Solar Node can be placed in a high-elevation location and act as a permanent intermediary point between Companion devices. This allows for the creation of an extensive communication infrastructure without a cellular provider, Wi-Fi, or a fixed power connection . MeshCore also provides tools for configuring and updating the software of devices compatible with the platform.
The communication range between two devices can reach 8-9 km in open terrain.
The SenseCAP Solar Node P1-Pro for Meshcore comes with the Meshcore Repeater software pre-loaded .
SenseCAP Solar Node P1-Pro Technical Specifications
- Microcontroller: Seeedstudio XIAO nRF52840 Plus
- MCU: Nordic nRF52840
- Core: ARM Cortex-M4 with FPU, 32-bit
- Clock speed: 64 MHz
- RAM: 256 kB
- MCU Flash Memory: 1MB
- Additional Flash Memory: 2 MB
- LoRa module: Wio-SX1262
- Radio chip: Semtech SX1262
- LoRa module operating range: 862 MHz to 930 MHz
- Maximum transmit power: 22 dBm
- LoRa antenna: rod, rubber
- LoRa antenna frequency range: 868 MHz to 915 MHz
- LoRa antenna gain: 2 dBi
- Antenna connector type: SMA with attached RF cable RP-SMA Male - RF-SMA Female
- RF cable length: 300 mm
- GNSS module: XIAO L76K
- Supported GNSS systems: GPS, GLONASS, Galileo
- GPS L1 C/A: 1575.42 MHz
- GLONASS L1: 1602 MHz
- BeiDou B1 - antenna frequency: 1561.098 MHz
- Bluetooth: 5.0
- Solar panel: 5 W
- Power supply via USB Type-C: 5V/1A
- Solar power: 5V/1A
- Batteries: 4 x 18650 Li-Ion NMC
- Single battery capacity: 3350 mAh
- Charging: via USB Type-C or solar panel
- Factory firmware: MeshCore Repeater
- Discharging temperature range: -40°C to 60°C
- Charging temperature range: 0°C to 50°C
- Expansion Interface: 1 x Grove
- Supported Grove interfaces: I2C, GPIO, UART
- Service interface: USB Type-C
- Buttons: power, reset, user button
- LEDs: 2 x charging status, 1 x solar panel status, 1 x MeshCore activity, 1 x user LED
- Protection class: IPX6
- Supported pole diameter with attached clamp: 70 mm to 100 mm
- Dimensions: 191.2 x 201.2 x 42.1 mm
SenseCAP Solar Node P1-Pro Kit Contents
- SenseCAP Solar Node P1-Pro with GNSS module and batteries
- Set of mounting brackets with universal joint, connector, clamp holder and band
- LoRa 2 dBi antenna from 868 MHz to 915 MHz
- RF cable RP-SMA male - RF-SMA female, 300 mm long
- 1/4-20 UNC Hex Head Machine Screw, 6mm Length - 2 pcs.
- Machine screw M6 x 14 mm, P1.0 - 4 pcs.
- USB Type-C cable

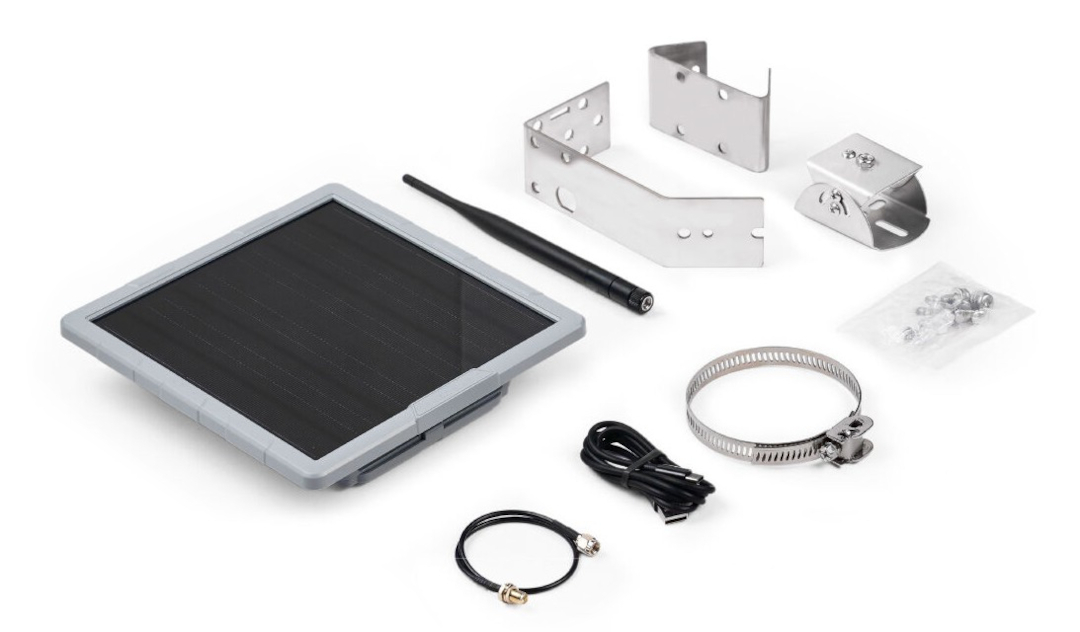

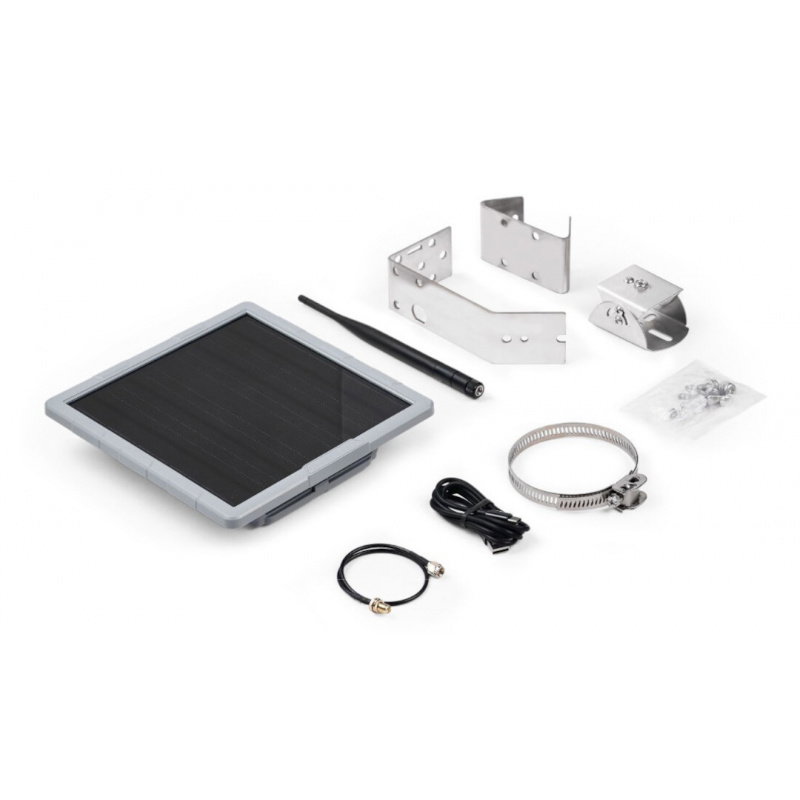

Elements included in the set.
