Product description: SenseCAP LoRaWAN Starter Kit - SenseCAP M2 Multi-Platform LoRaWAN gateway + sensor kit - ESP32-S3 - Seeedstudio 114993166
The SenseCAP LoRaWAN Starter Kit is a comprehensive solution for people starting their adventure with IoT and LoRaWAN technology. The kit includes the SenseCAP M2 Multi-Platform internal gateway, the compact Xiao ESP32-S3 microcontroller with an expansion board , and Grove modules : soil moisture sensor , temperature and humidity sensor . Thanks to easy configuration, you can even run a LoRaWAN project in 10 minutes, send data to the SenseCAP cloud and visualize it in the application. The kit supports expansion with additional Grove modules , making it a flexible tool for hobbyist and industrial projects. Thanks to the SenseCAP Mate software and support for the LoRaWAN network, it is an ideal tool for learning, range testing and developing your own IoT applications.
SenseCAP LoRaWAN Starter Kit - SenseCAP M2 Multi-Platform LoRaWAN gateway + sensor kit - ESP32-S3 - Seeedstudio 114993166.
Before starting the project, you must solder the connectors on the Xiao board and install the antenna.
Main features of the set
- Comprehensive kit : includes gateway, microcontroller, sensors and accessories to get started
- Fast implementation : launch your LoRaWAN project in 4 easy steps within 10 minutes with the ability to visualize data in the cloud
- Universal applications : compatible with various LoRaWAN network servers, making it suitable for a wide range of applications in many industries
- Versatile expansion: supports additional Grove sensors and easy firmware updates
- Extended capabilities of Xiao boards : Xiao ESP32-S3 module offers numerous data transfer interfaces and additional functions, fully compatible with Arduino
- Ease of use : plug-and-play, no programming knowledge required
What is LoRaWAN?
LoRaWAN (Long Range Wide Area Network) is a low-power wireless communications protocol designed specifically for IoT applications. Key features of LoRaWAN are:
- Long distance communication
- Low energy consumption
- Possibility of both public and private implementation
- Support for connections with a large number of devices
Thanks to these properties, LoRaWAN finds wide application in such areas as smart agriculture, smart cities, environmental monitoring and other applications requiring wireless data collection.

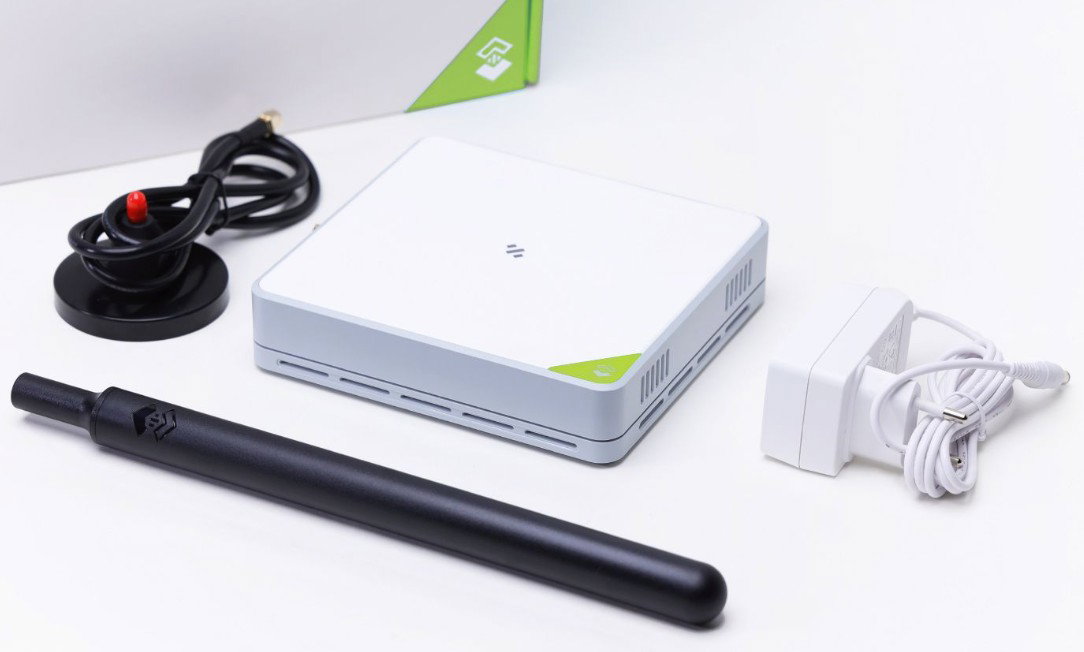

SenseCAP M2 Multi-Platform with long-range antenna.

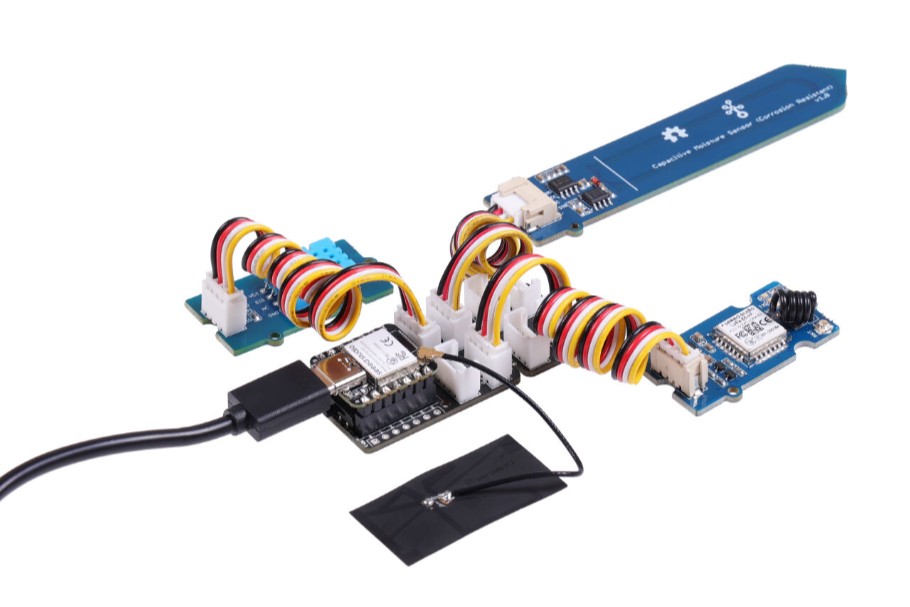

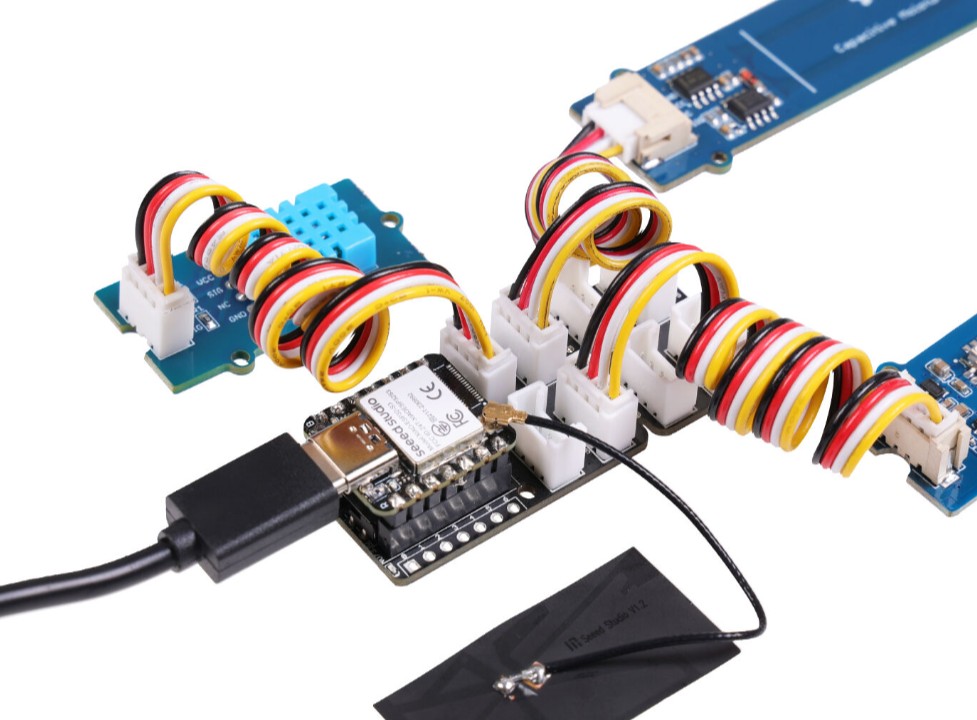

Sensors connected to the Xiao expansion board.
LoRaWAN Quick Start Kit - Simple steps to get you started
The LoRaWAN SenseCAP kit lets you get your project up and running in just four simple steps:
- Power and Internet connection : Turn on the SenseCAP gateway and connect it to the Internet via Ethernet or WiFi. You can use the Luci app to configure the WiFi connection.
- Connecting sensors : Connect Grove sensors, such as the soil moisture sensor and Grove-Wio-E5, to the Xiao expansion board.
- QR Code Scanning : Download the SenseCAP Mate app and scan the QR code on the Grove-Wio-E5 module to pair your devices with the app.
- Data visualization : Once your devices are successfully paired, you will start seeing sensor data on your app screen.
No programming required - just plug in, scan and start using!
The SenseCAP Mate app does not refresh data automatically. You must manually scroll through the sensor data page. If no new data appears for more than 10 minutes, try restarting the Wio module by pressing the side button once.
Technical specification of the set
- Gateway: SenseCAP M2 Multi-Platform LoRaWAN
- Microcontroller: Xiao ESP32-S3
- Grove modules: soil moisture sensor , temperature and humidity sensor
- Power supply voltage: 5V via USB port
- Compatibility: LoRaWAN EU868 networks, Arduino
Kit Contents
- 1x SenseCAP M2 Multi-Platform LoRaWAN Gateway
- 1x 3dBi Long Range Antenna
- 1x Power supply
- 1x Xiao ESP32-S3
- 1x Xiao Expand Board
- 1x Grove-Wio-E5
- 1x Grove - temperature and humidity sensor (DHT11)
- 1x Grove - soil moisture sensor
- 3x Grove Cables
- 1x USB Type-C Cable

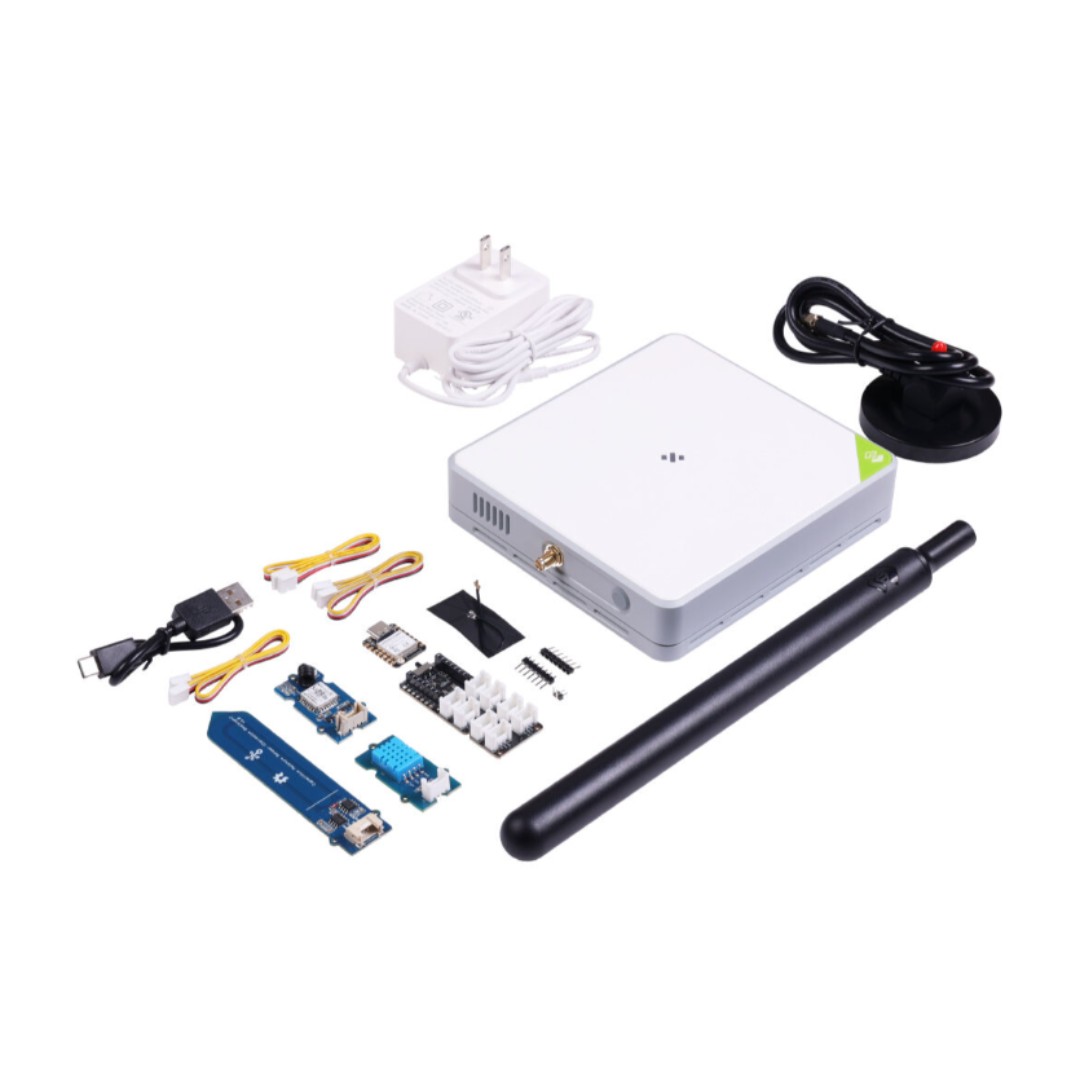

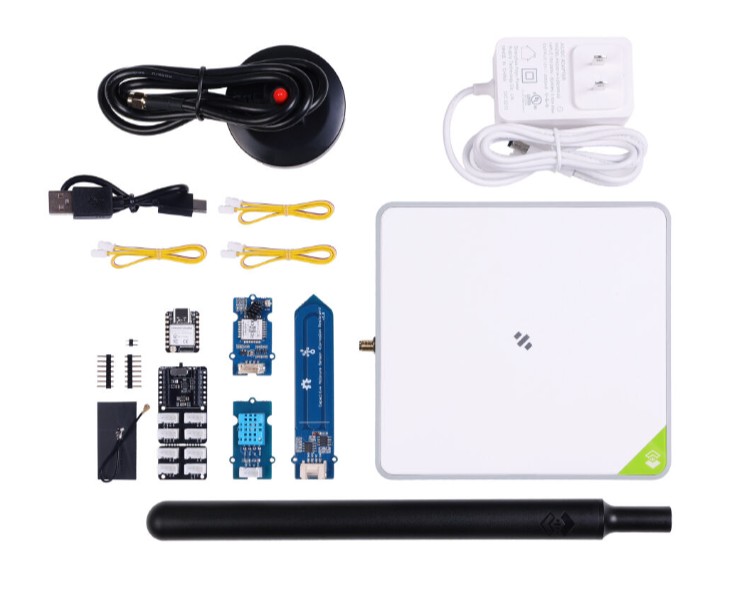

Items included in the set.
