Product description: Sunlu Fila Dryer E2 - filament drying and annealing system

The Sunlu FilaDryer E2 is an advanced 3D filament dryer with an annealing function , designed for working with engineering materials. Equipped with a 500W PTC heater , it ensures fast and stable heating, effectively removing moisture from the filament and improving its mechanical properties. The device operates in a wide temperature range from 35°C to 110°C , allowing it to adapt to both standard and demanding technical materials. The E2 model combines the drying and annealing processes in a single, sealed structure with a double insulated chamber , minimizing heat loss and the risk of re-moisturization. The large build chamber allows for the use of spools with maximum dimensions of 250 mm x 153 mm. In practice, this means compatibility with two 1 kg spools, two 2 kg spools, or one 3 kg spool (depending on their design). The dryer works with most standard spools available on the market, but when operating at higher temperatures , the thermal resistance of the spool itself must be taken into account . The intuitive control panel allows for precise temperature and operating time settings ranging from 0 to 99 hours . This solution is for demanding users who expect repeatable print results and maximum model durability.

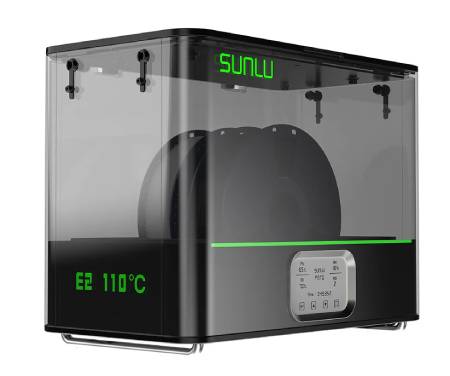

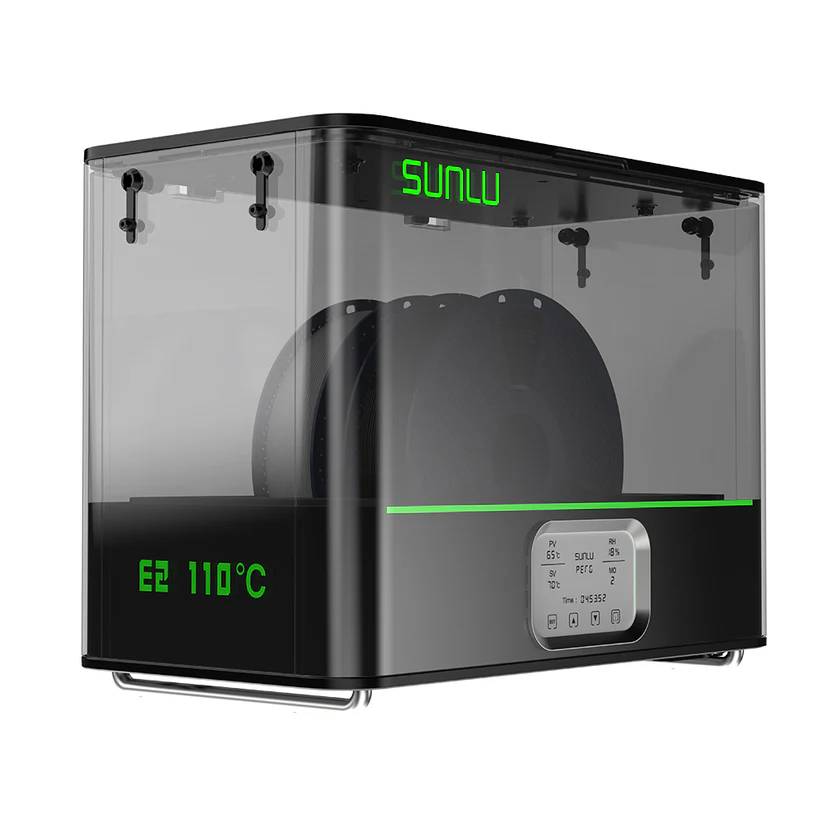

Sunlu Fila Dryer E2 - filament drying and annealing system.

Sunlu FilaDryer E2 offers 3D model annealing function.

Annealing 3D filaments - what are the benefits and when to use it?

Annealing is the process of controlled heating of a printed part to a specific temperature and then slowly cooling it . It reduces internal stresses generated during printing and stabilizes the material's structure. This allows models made with engineering filaments to gain greater impact resistance, greater strength, and improved thermal stability . The process is particularly useful for materials such as PA , PC , ASA , ABS-CF , and PA-CF , where durability and operation in demanding conditions are key. For best results, it's best to select annealing temperature and time according to the filament manufacturer's recommendations, as material properties can vary between batches and brands.

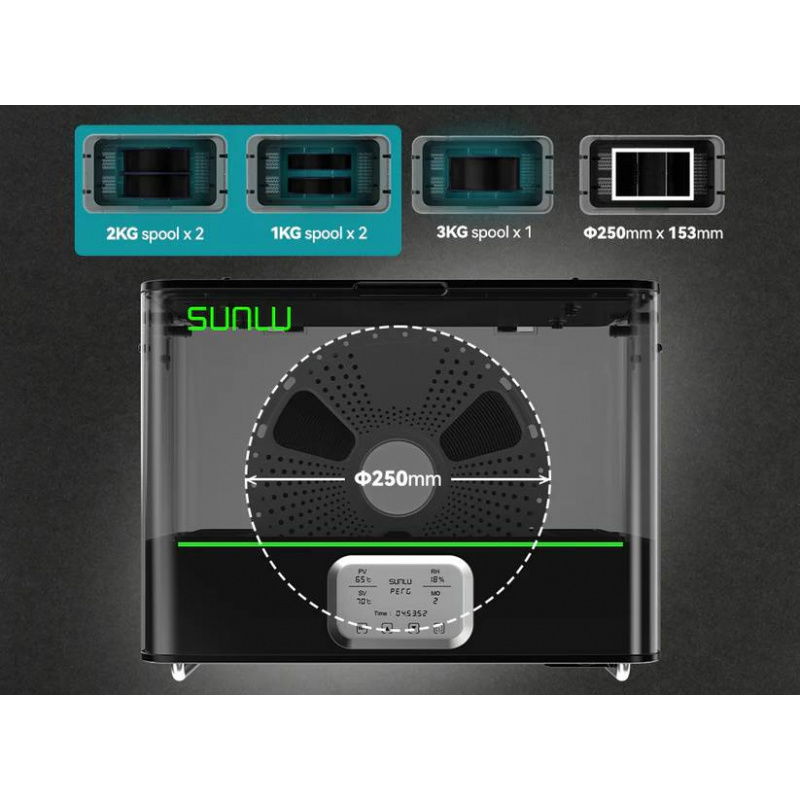

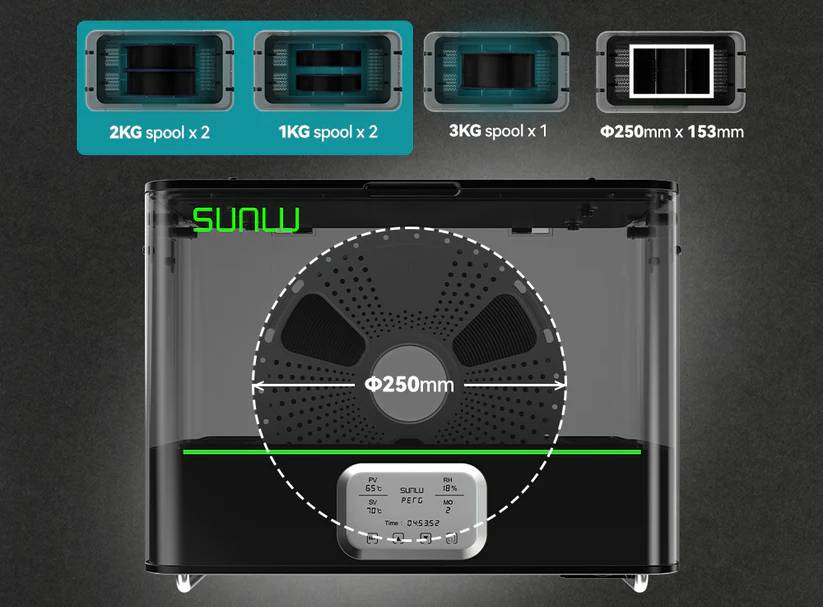

Filament and Spool Compatibility for the Sunlu FilaDryer E2

Sunlu FilaDryer E2 works with most filaments available on the market - both standard and PLA , PETG , ABS and TPU , as well as engineering materials such as ASA , PC , PA6 , PA12 , PA-CF and PA-GF . The device supports filament diameters of 1.75 mm , 2.85 mm and 3 mm , and the set includes PTFE tubes measuring 4 x 3 mm and lengths of 8 cm (2 pcs.) and 1 m (2 pcs.). The large chamber allows the use of spools with maximum dimensions of 250 mm x 153 mm , which in practice means space for 2 x 1 kg , 2 x 2 kg or 1 x 3 kg spool. The dimensions of the device are 400 x 220 x 307 mm , the chamber dimensions are 372 x 192 x 255 mm , and it weighs 6.1 kg , which facilitates stable positioning on the workstation. When drying at high temperatures , the thermal resistance of the spool itself must be taken into account to avoid its deformation.

Temperature protection and safe operation of the device

The Sunlu FilaDryer E2 features an intelligent protection system that ensures safety during drying and annealing. A two-stage temperature control system automatically shuts off the heating in the event of overheating and resumes normal operation after cooling. An additional alarm is triggered when the temperature exceeds the set value by 10°C , facilitating a quick response. Double thermal insulation limits heat buildup in the housing, ensuring that the external touch temperature remains below 60°C even at internal temperatures above 100°C . The design, based on materials with increased heat resistance, supports safe use in the home and workshop.

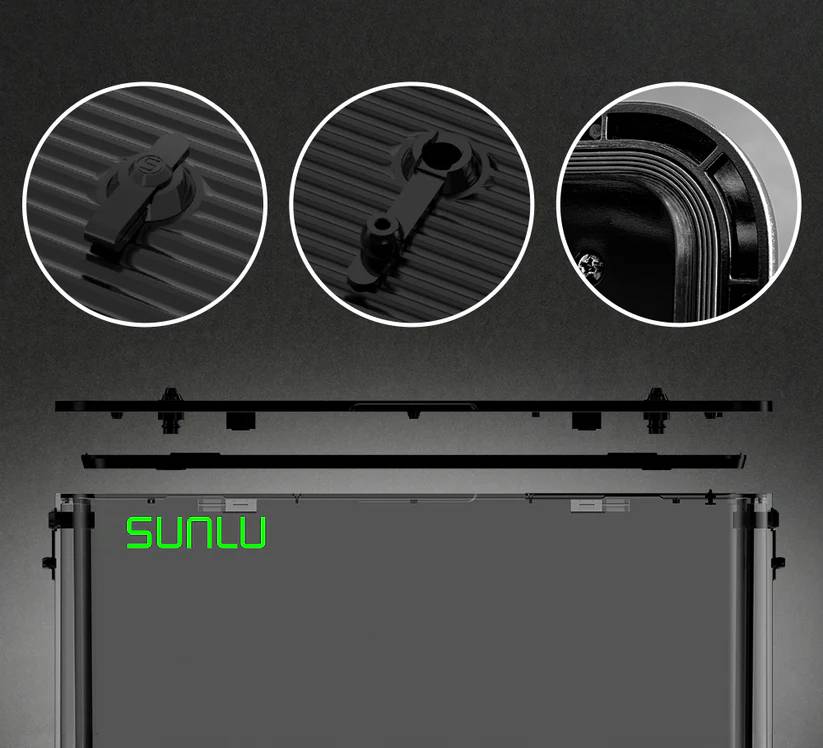

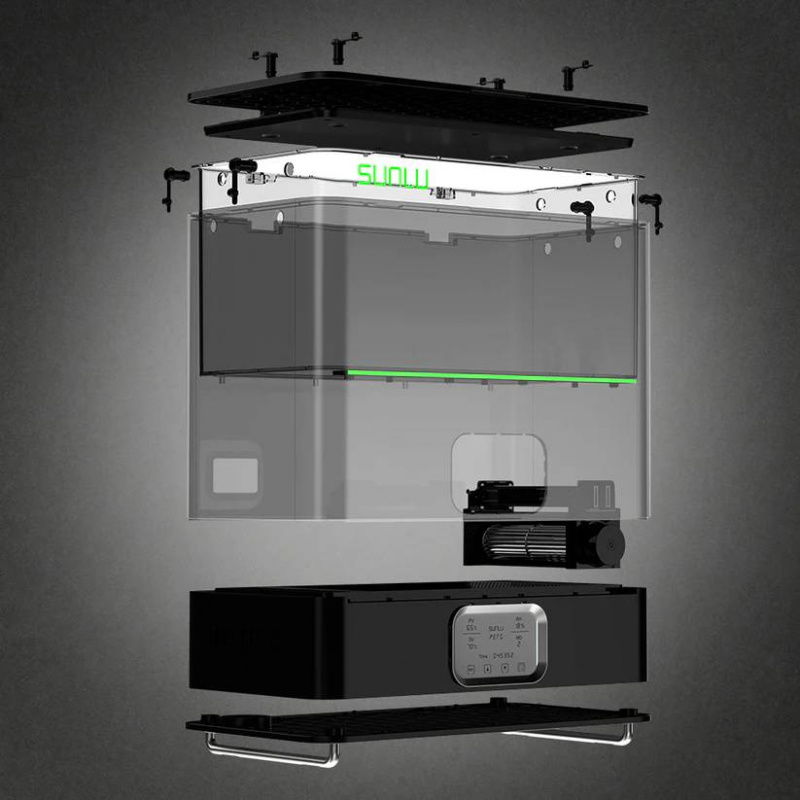

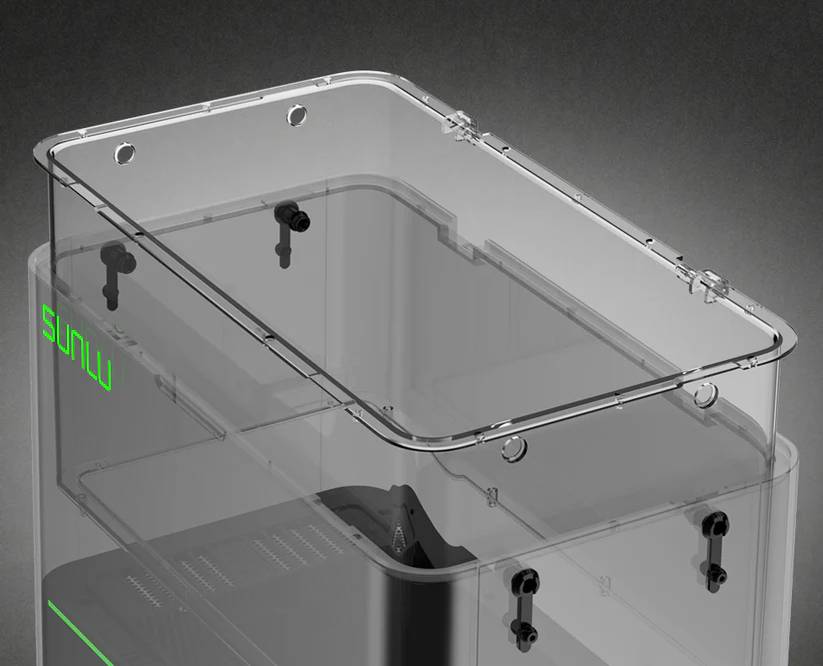

Tight construction and insulation - less moisture, more stable parameters

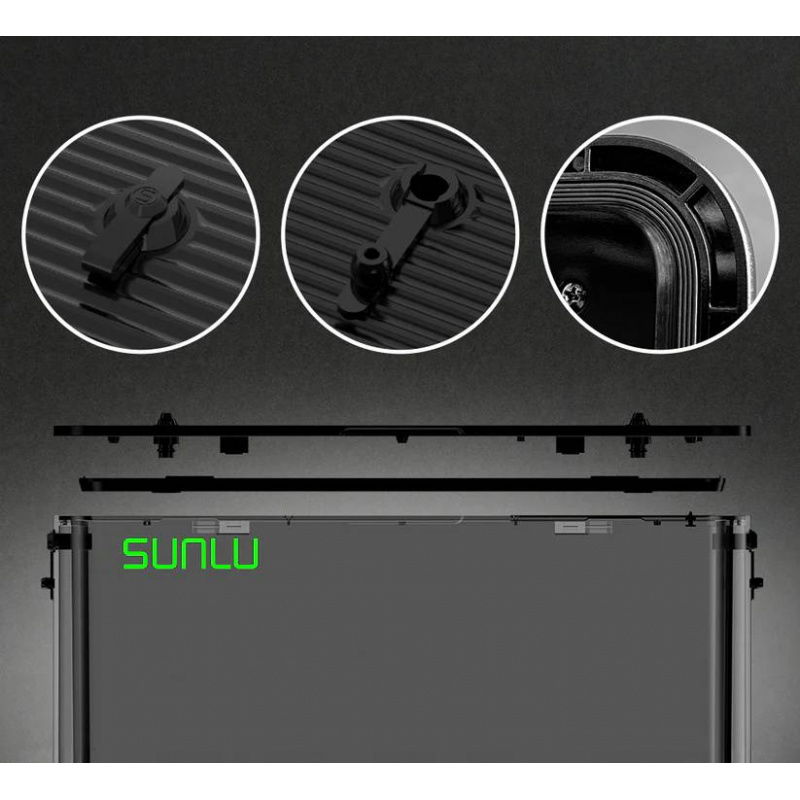

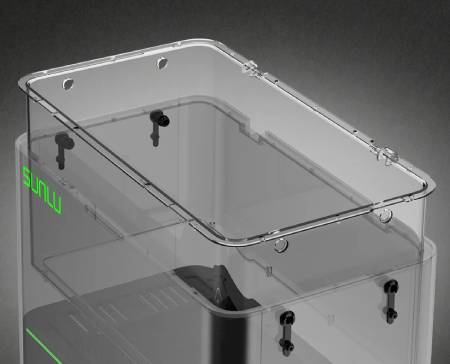

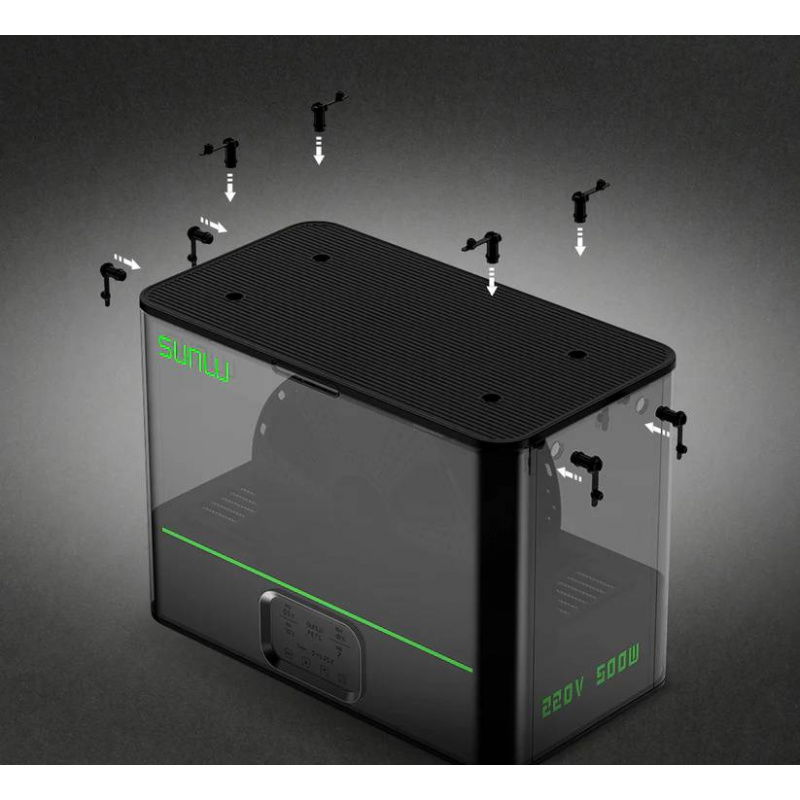

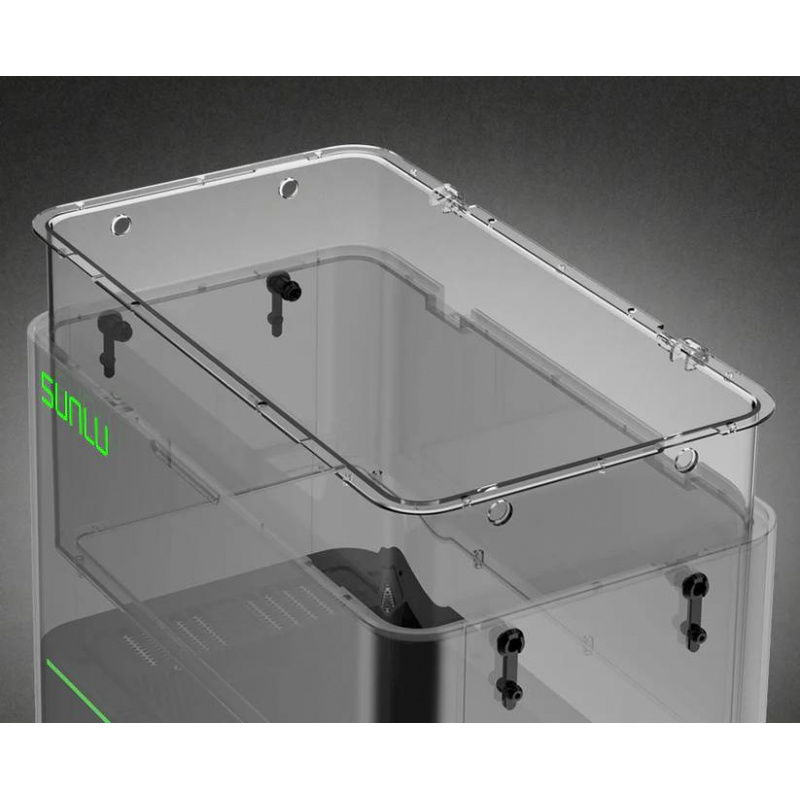

The Sunlu FilaDryer E2's design is engineered to limit the ingress of ambient moisture and maintain a stable chamber temperature. A one-piece silicone plug for the filament outlet and silicone seals in the lid help isolate the chamber from water vapor. A magnetic closing system enhances airtightness and improves heat retention. Dual-chamber, multi-layer insulation in the top, middle, and bottom of the housing enables stable operation at temperatures exceeding 100°C . This allows you to more effectively dry and anneal technical materials, reducing the risk of re-moisturization during operation.

Sunlu Fila Dryer E2 Technical Specifications

• Operating temperature range: 35°C to 110°C

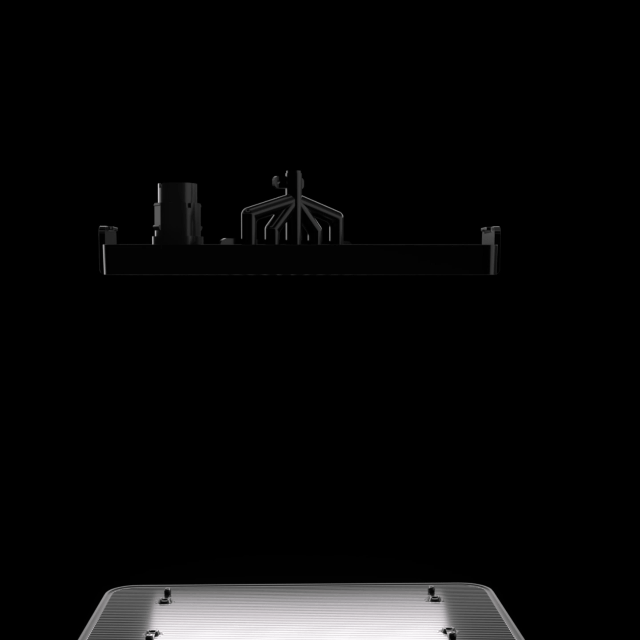

• Heating power: 500 W PTC
• Timer range: 0 h to 99 h
• Humidity display range: 10% to 90% (±10%)
• Supported filament diameters: 1.75 mm / 2.85 mm / 3 mm
• Maximum spool size: Φ250mm x 153mm (2 x 1kg or 2 x 2kg or 1 x 3kg)
• Operating environment: temperature: 10°C to 35°C, relative humidity: ≤ 95%
• Maximum operating current: 2.2 A at 230 V, 4.2 A at 120 V
• Standby power: ≤ 1 W
• Chamber dimensions: 372 x 192 x 255 mm
• Device dimensions: 400 x 220 x 307 mm
• Weight: 6.1 kg

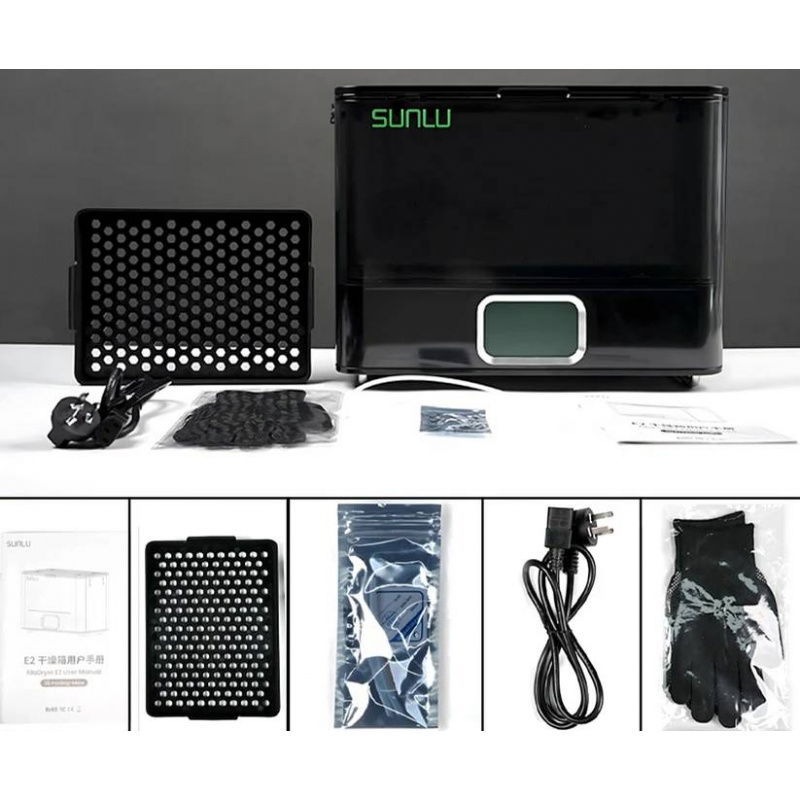

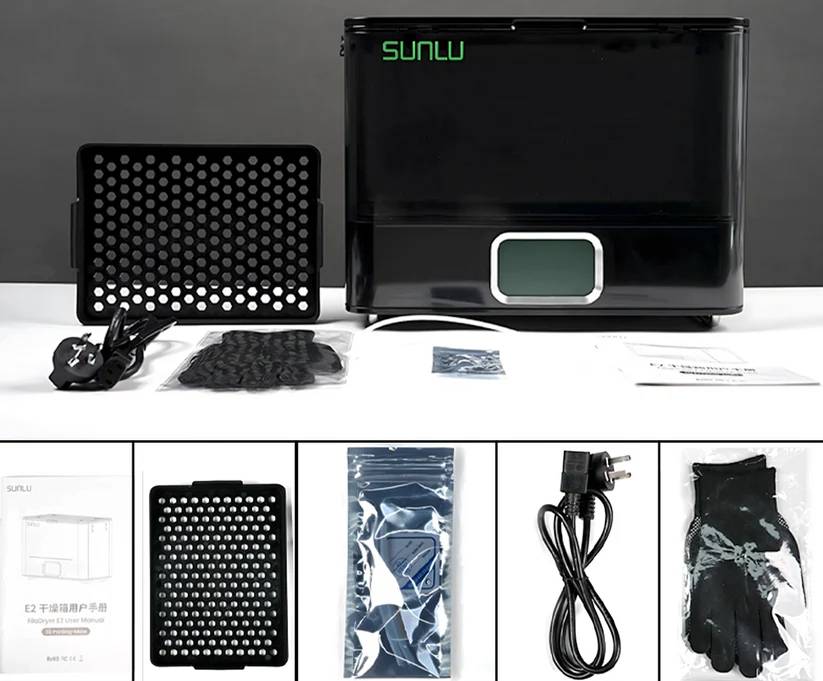

Contents of the set

• Sunlu FilaDryer E2
• Power cord
• PTFE tubes 4 x 3 mm: 8 cm (2 pcs.) and 1 m (2 pcs.)
• Annealing tray
• Thermal insulation gloves
• User manual
