Product description: BleBox SwitchBoxD DIN - 2-channel 230 V WiFi relay - Android / iOS application
A double version of the SwitchBox DIN switch by BleBox , enabling independent control of two different circuits with a power of up to 1.1 kW using one controller. The controller is designed to be mounted on a DIN rail in a distribution box, therefore the installation requires the assistance of an electrician. Thanks to SwitchBoxD DIN, you can control machines, home appliances or lighting . It also collects information about the energy consumption of controlled devices. You can create 2 wired central buttons or, with the actionBox module, wireless buttons that send a signal to the controller via WiFi. The module is powered by 230 V.
You can download the free wBox application on both Andriod and iOS devices. It is also possible to operate the controller via a Windows application.

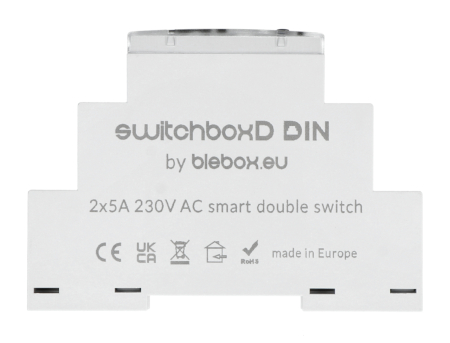

BleBox SwitchBoxD DIN - 2-channel 230 V WiFi relay - Android / iOS application.

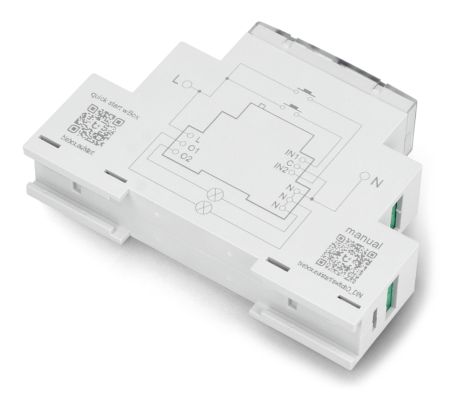

The device is designed to be mounted on a 35 mm DIN rail.
Main features of the SwitchBoxD DIN module
- Remote control of two 1.1 kW circuits
- DIN rail mounting
- Measurement of energy consumption by controlled devices
- Individual device work schedule
- Astronomical clock function
- Possibility to create 2 wired central buttons or wireless buttons, with the actionBox module
- Compatible with voice assistants such as Google Home or Alexa
- Possibility of pairing with uRemote and sRemote remote controls and with the inBox button module
- Automation in combination with other BleBox sensors:
- windSensor
- airSensor
- rainSensor
- tempSensor
SwitchBoxD DIN technical specification
- Mounting: on a 35 mm DIN rail
- Supply voltage: 230V AC
- Power Consumption: < 1W
- Number of outputs: 2
- Maximum current: 2x 5 A (5 A per output)
- Maximum power:
- AC1 (ohmic, power factor: 0.95): 2x 5 A @ 230 V AC = 2x 1150 W
- AC3 (IEC60947-4-1): 2x ~0.15kW @ 240VAC
- Measuring range: 0W to 2300W
- Number of inputs: 2
- Input voltage range: from 12 V to 230 V AC / DC
- Supported buttons: monostable, bistable
- Signaling on the housing: colored backlight
- Transmission standard: µWiFi, compatible with WiFi, 802.11g
- Transmission frequency: 2.4 GHz
- Transmission type: two-way, encrypted
- API: open
- Degree of protection: IP20
- Housing: ABS, acrylic
- Operating temperature: -20°C to 50°C
- Dimensions: 98.8 x 17.5 x 64.5mm

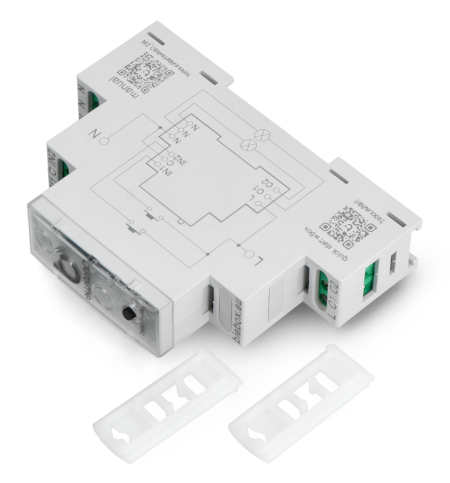

The controller uses the existing WiFi network, you do not need any additional control panel.
