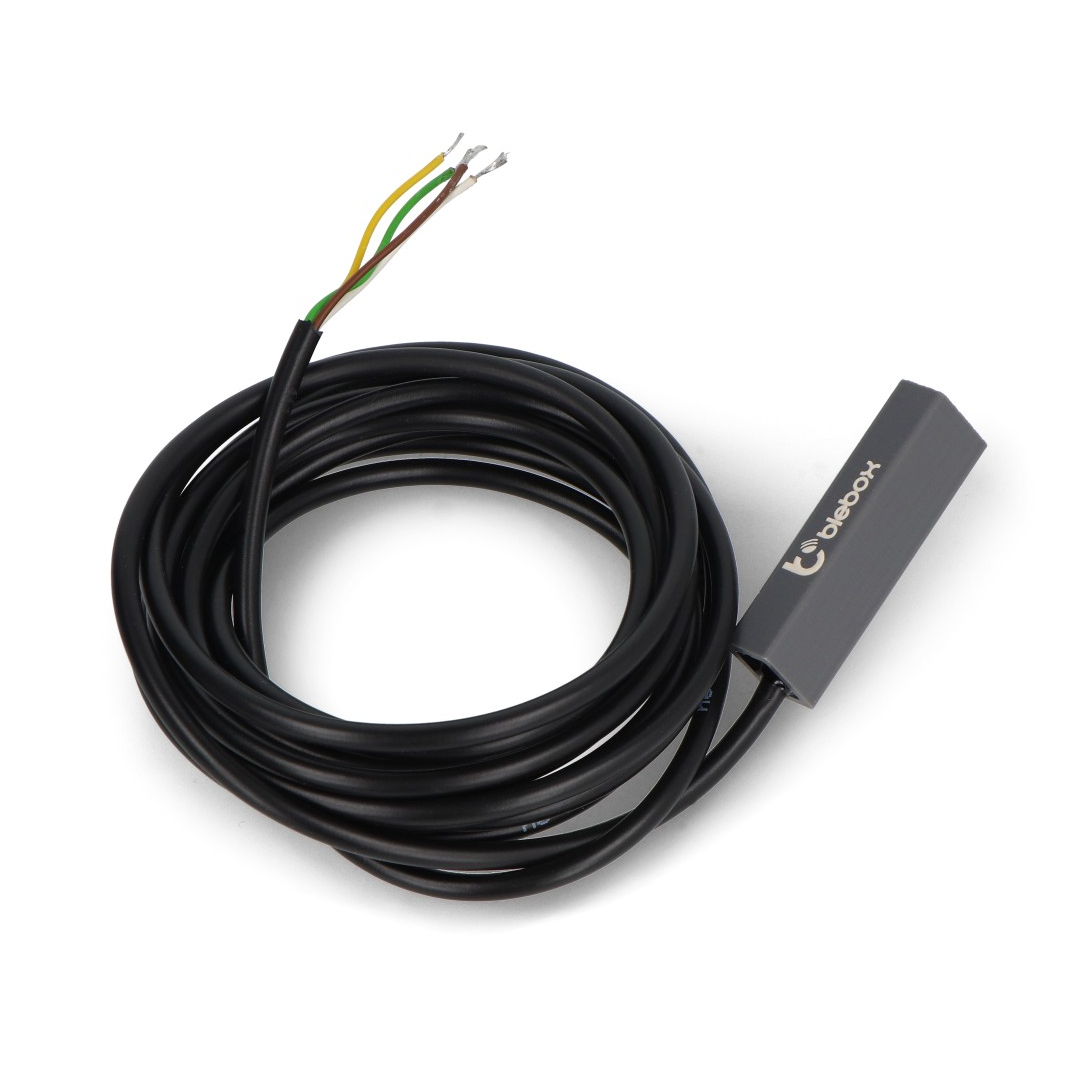

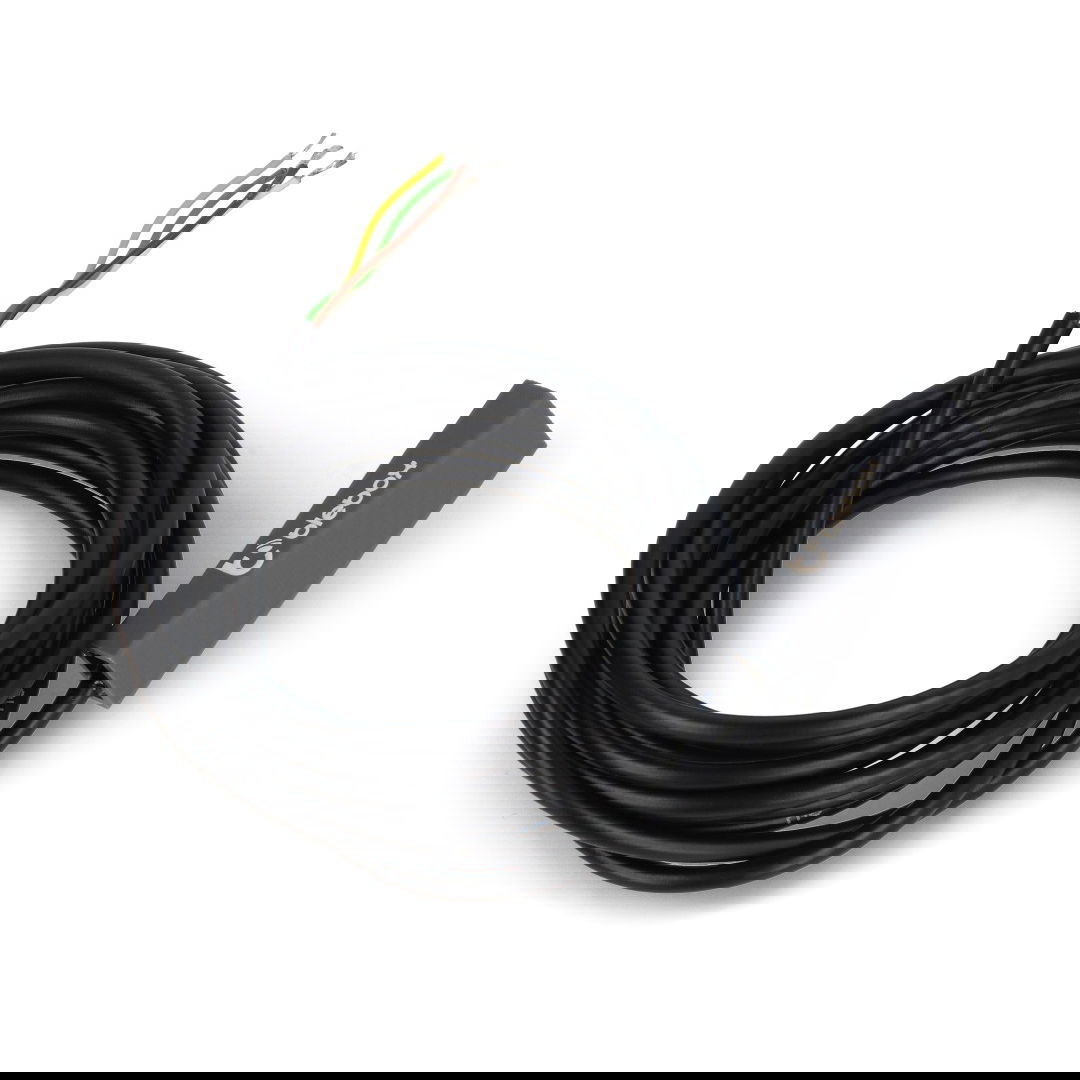

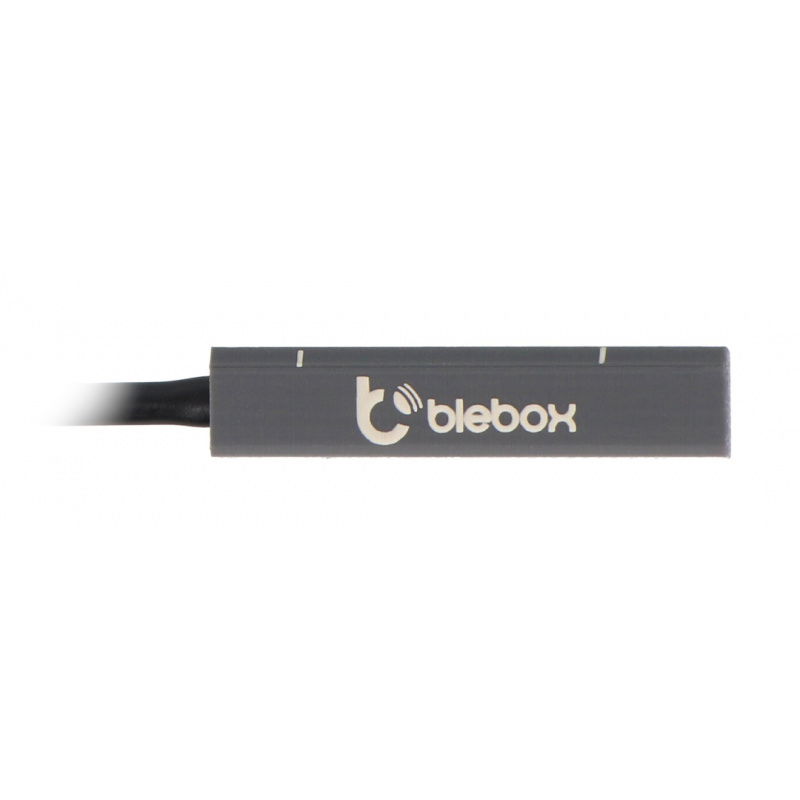

Product description: BleBox openSensor - WiFi door and window opening sensor - anthracite
BleBox openSensor is a smart WiFi opening sensor designed to monitor the status of windows, doors, gates, and many other elements of home and industrial infrastructure . Wireless communication and integration with the wBox app allow users to check the device's status in real time from anywhere in the world. The module can detect two or three opening states— open, closed, and optionally ajar—which is particularly useful for windows . The device can also send push notifications to smartphones and record event history, which can be analyzed in interactive charts or exported to CSV and XLSX files.
BleBox openSensor - WiFi door and window opening sensor - anthracite.
BleBox openSensor is an intelligent WiFi opening sensor designed to monitor the status of windows, doors, gates and many other elements of home or industrial infrastructure.Special features
- Miniature WiFi sensor: compact dimensions allow for discreet installation in windows, doors or gates
- 2 or 3 state detection: can detect open/closed or open/tilt/closed state
- Integration with the wBox app: real-time device status monitoring from anywhere in the world
- Push notifications: automatic alerts on your smartphone with the ability to personalize the content of messages
- Event history: data archiving for up to 12 months and export to CSV or XLSX files
- BleBox automation: the ability to create scenarios for cooperation with other smart home devices
- Two signal outputs: integration with alarm systems or wired automation

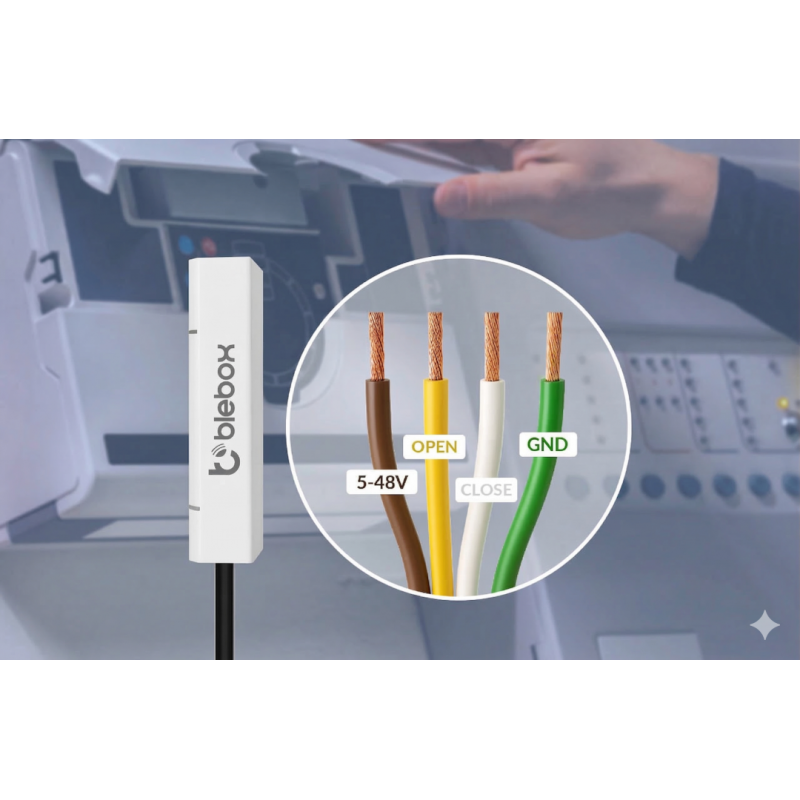

- Constant power supply: voltage from 5 V to 48 V DC, no need to replace batteries
- WiFi communication: local or remote control via the BleBox cloud
- Voice assistant integration: compatible with Google Assistant and Amazon Alexa
Practical applications

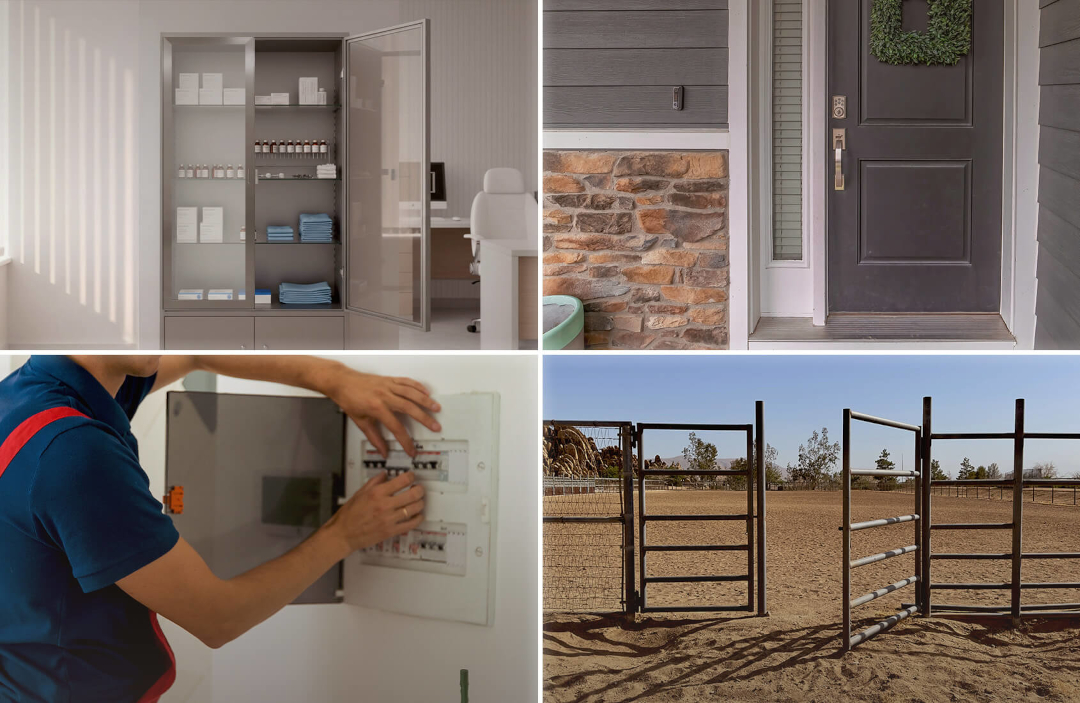

The BleBox sensor is primarily used in smart home systems , where it allows you to monitor the status of windows and doors and automate the operation of other devices. For example, it can turn off the air conditioning when a window is opened or send a notification if a balcony door is left open for an extended period . The device is also useful in security systems, monitoring access to electrical switchboards, IT cabinets, and technical boxes. Thanks to its wired signal outputs, it can be easily integrated with alarm systems.
Sensor technical specifications
- Supply voltage: 5 V to 48 V DC
- Power consumption: < 1 W
- Cable length: 2 m
- Number of outputs: 2
- Output type: open collector (ground driven)
- Maximum load: 2 x 50 mA
- Maximum output power: 2 x 250 mW
- Output functions: output 1 - opening signal, output 2 - closing signal
- Type of measurement: measurement of magnetic induction at two points
- Detection mode: open, ajar (optional), closed
- Transmission standard: μWiFi compatible with WiFi 802.11g
- Transmission frequency: 2.4 GHz
- Transmission type: two-way, encrypted
- Encryption: WPA2-PSK, AEAD
- Protection class: IP65
- Operating temperature: -20°C to 50°C
- Housing material: PLA filled with polyurethane composition, self-extinguishing
- Housing colors: anthracite
- Compatible systems: Android, iOS, macOS
- Dimensions: 41 x 13 x 9 mm

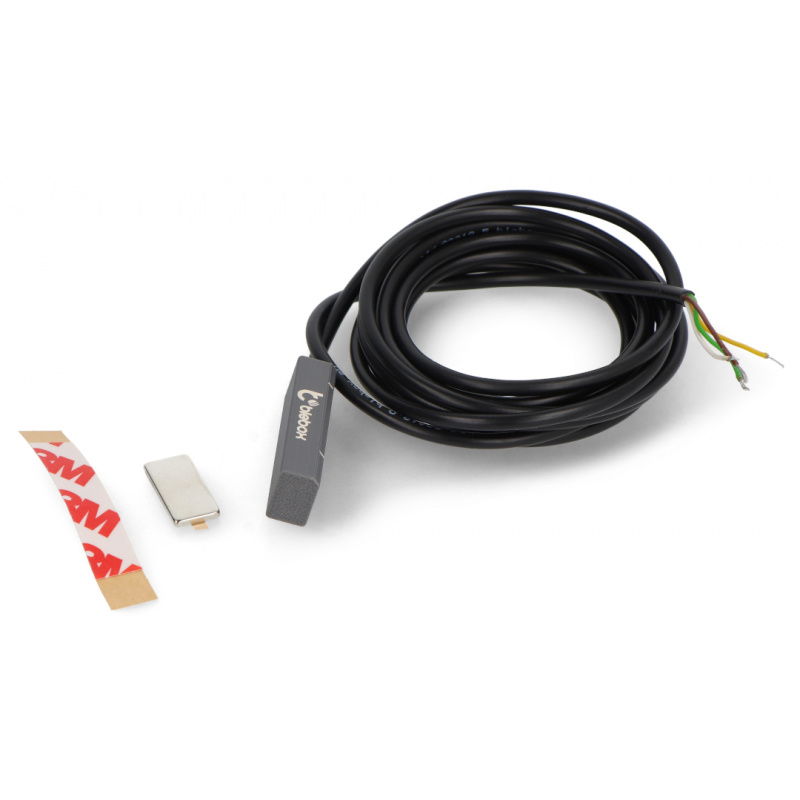

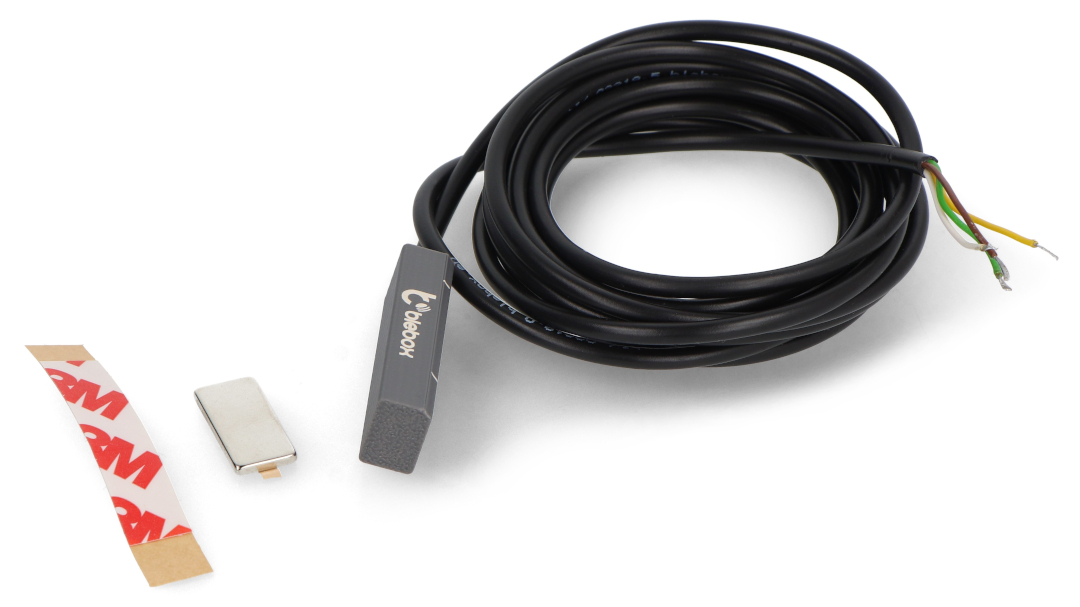

Contents of the set
- BleBox openSensor WiFi sensor
- Magnetic element
- Double-sided mounting tape
The module enables detection of two or three opening states.
