8-channel potentiometer - STM32F030F4P6 expansion unit for M5Stack development modules

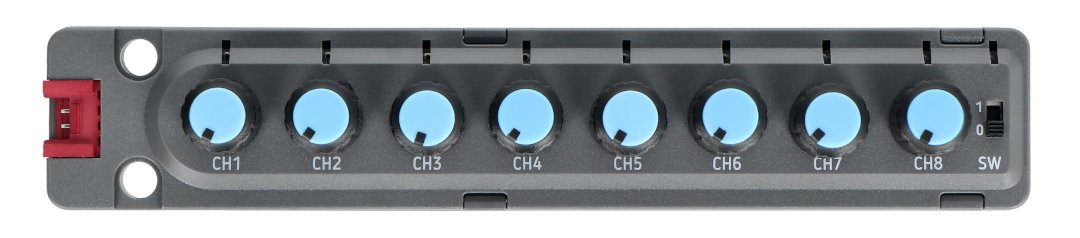

Module in the form of a Unit type extension for M5Stack development modules equipped with 8 potentiometers and the STM32F030F4P6 control system. The potentiometer has a rotation angle of 280° and can be rotated to the left and to the right . Each potentiometer has one RGB LED, and in the extreme part of the module there is also a mechanical switch that allows you to turn the LEDs on and off. The Unit extension uses the I2C interface to communicate with connected devices.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 8-channel potentiometer - STM32F030F4P6 - Unit expansion module for M5Stack development modules
Module in the form of a Unit type extension for M5Stack development modules equipped with 8 potentiometers and the STM32F030F4P6 control system. The potentiometer has a rotation angle of 280° and can be rotated to the left and to the right . Each potentiometer has one RGB LED, and in the extreme part of the module there is also a mechanical switch that allows you to turn the LEDs on and off. The Unit extension uses the I2C interface to communicate with connected devices.
8-channel potentiometer - STM32F030F4P6 - Unit expansion module for M5Stack development modules.
The manufacturer has also prepared a user's guide , in which you will find a diagram of the system and sample program codes - check it out!
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
The module allows you to control the robot joint with many degrees of freedom.
Special features of the module
- 8 rotary potentiometers and 8 RGB LEDs on one board
- Rotation angle equal to 280°
- Onboard 5V -> 3.3V LDO voltage regulator ME6210A33M3G
- Supported development environments Arduino, UIFlow (Blockly, Python)
- 2 LEGO compatible mounting holes
Suggested use of the module
- Multi-degree-of-freedom robot joint control
- Music volume control
- Multi-channel lighting control
Technical Specifications
- Module type: potentiometer
- Number of potentiometers: 8
- Built-in control chip: STM32F030F4P6
- Operation signaling: RGB LEDs
- Number of LEDs: 8
- LED type: SK6812-3535
- Input voltage: 5V
- Communication interface: I2C
- I2C interface address: 0x43
- Dimensions: 128 x 24 x 22.7mm
- Weight: 34.9g

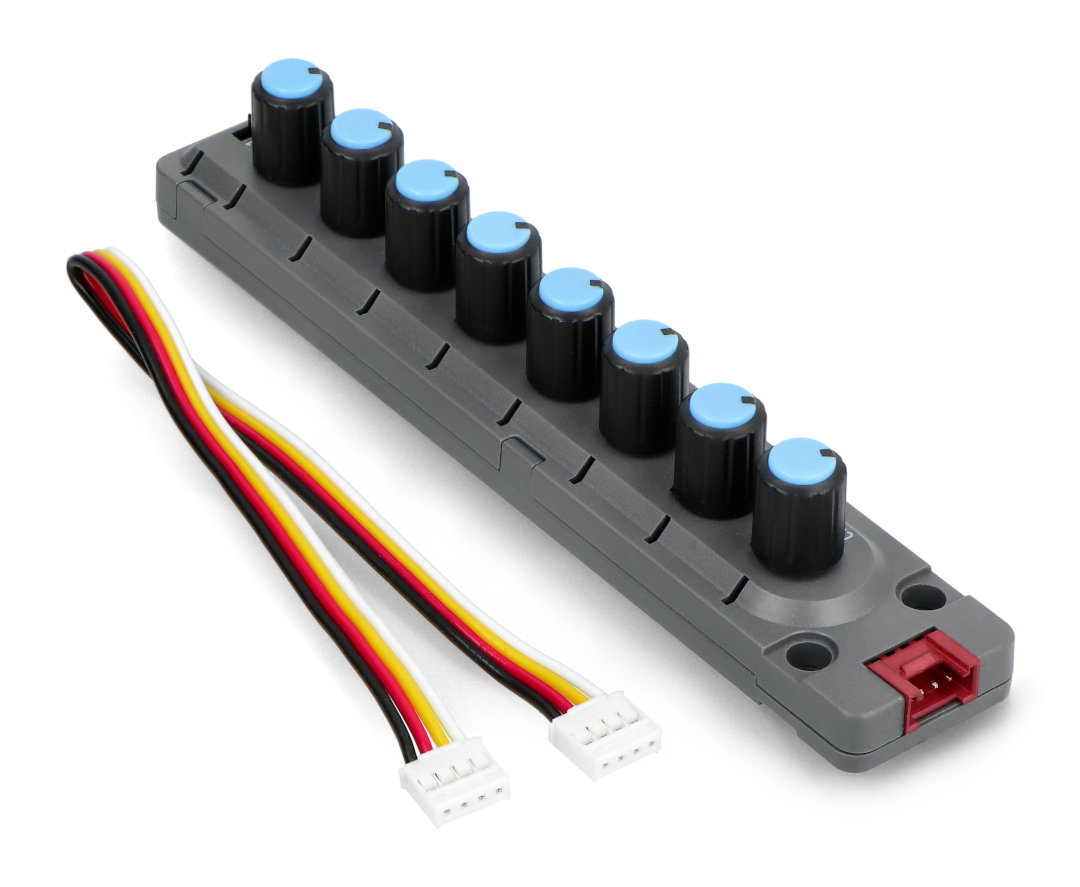

Kit contents
- 8-channel potentiometer - STM32F030F4P6 - Unit expansion module for M5Stack development modules
- Connection cable with Grove connector - 5 cm
Components included in the set.
Useful links
| Name | Value |
|---|---|
| Width | 13.5 cm |
| Height | 2.8 cm |
| Depth | 2.8 cm |
| Weight | 0.044 kg |
