Product description: Seeed Xiao MG24 Sense - Matter / Thread / Bluetooth - Seeedstudio 102010610
Seeed Xiao MG24 Sense is a compact yet versatile development board that combines modern wireless technology with ultra-low power consumption. Based on the EFR32MG24 processor and equipped with an ARM Cortex M33 core at 78 MHz, it supports Matter , Thread and Bluetooth 5.3 protocols. 4 MB Flash memory , 19 GPIOs and a built-in antenna , it is ideal for battery-powered IoT projects. With an integrated microphone and a six-axis IMU sensor , the Xiao MG24 Sense is designed for TinyML applications such as posture detection and motion analysis. Arduino compatibility ensures easy programming and support for a wide range of libraries. The module is compact and offers flexible implementation, making it an ideal choice for IoT , Smart Home and smart device projects.
Seeed Xiao MG24 Sense - Matter / Thread / Bluetooth - Seeedstudio 102010610.
The Seeed Xiao MG24 Sense is a compact yet versatile development board that combines modern wireless technology with ultra-low power consumption.Special Features
- Matter support - ensures compliance with the modern standard of communication in smart homes
- Bluetooth 5.3 - stable, energy-efficient, long-range wireless connectivity
- Ultra-low power consumption - operating current of only 1.95 μA allows for long operation in battery-powered projects
- Built-in IMU sensor - 6-axis accelerometer and gyroscope allow you to monitor the movement and position of the device
- Integrated microphone - perfect for sound recognition and TinyML applications
- Small dimensions - compact design (20 x 17.5 mm) makes it easy to implement in small projects
- Compactness - 19 GPIO pins provide wide possibilities for connecting additional devices and sensors
- Integrated Antenna - Eliminates the need for additional cabling for stable wireless connectivity
- Arduino support - easy programming and a wide range of available libraries and examples

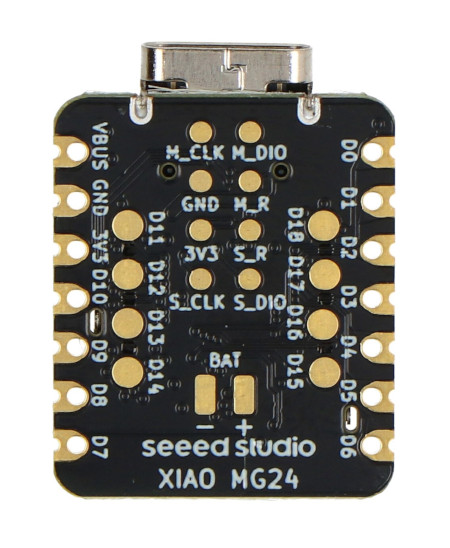

Layout of components on the Xiao MG24 Sense board
- Reset button
- User LED
- USB Type-C port
- Power LED
- Gyroscope
- Microphone
- U.FL Antenna Connector
- Built-in antenna
Layout of components on the Xiao MG24 Sense board.
The board is based on the Silicon Labs EFR32MG24 processor with an ARM Cortex M33 core, supports Matter, Thread and Bluetooth LE 5.3 protocols.Technical specification
- System: EFR32MG24
- Processor: ARM Cortex M33 (78MHz)
- Communication: Matter, Thread, Bluetooth 5.3
- Memory: 256 KB RAM, 1538 KB + 4 MB Flash
- GPIO: 19 pins
- IMU: 6-axis sensor (accelerometer + gyroscope)
- Microphone: Analog, built-in
- Ultra-low current: 1.95 μA
- Power supply: 3.7 V (Li-Po battery) or USB Type-C (5 V)
- Interfaces: I2C, SPI, UART, GPIO, ADC, PWM
- Dimensions: 21 x 17.8 mm
- Weight: 3 g

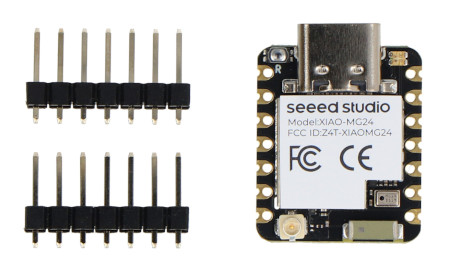

Kit Contents
- Xiao MG24 Sense Module
- 2x goldpin connector
