The ACS724 current sensor is a compact, low-resistance module that is designed to measure current in the range of -10 A to +10 A. Thanks to its built-in electrical insulation and high bandwidth, it is suitable for fast and precise measurements while ensuring minimal power loss .
ACS724 current sensor carrier -10A to +10A - Pololu 4043
€13.90
€11.30 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Pololu

Product description: ACS724 current sensor -10 A to +10 A - Pololu 4043

The ACS724 current sensor from Pololu is a versatile module designed to precisely measure current in two directions in the range from -10 A to +10 A. It uses the Hall effect for measurements, offers a low internal resistance value of approximately 1.2 mΩ and has electrical insulation up to 2.4 kV RMS , which makes it an ideal solution for applications requiring accurate current monitoring in various electrical systems. Additionally, a passband of 120 kHz enables quick response to current changes during control. The sensor module is powered by the preferred voltage of 5 V and generates a proportional analog voltage of 200 mV / A.

A green Pololu current sensor module lies on a white background. ACS724 current sensor -10 A to +10 A - Pololu 4043.

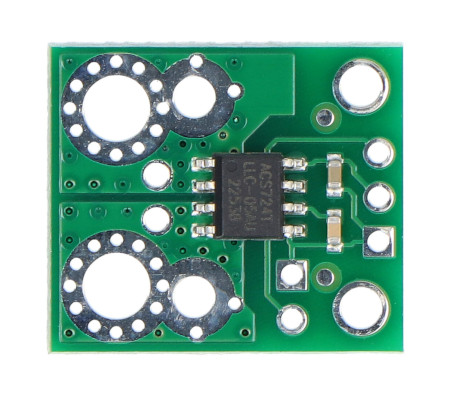

The Pololu current sensor lies on a white background. The device contains electrical insulation of 2.4 kV RMS.

Main features of the sensor

  • It allows precise measurement of bidirectional currents in the range from -10 A to 10 A
  • It offers a low current path resistance of approximately 1.2 mΩ, which results in low power losses
  • Provides electrical insulation up to 2.4 kV RMS
  • Generates an output voltage proportional to the input current - 200 mV / A for a supply voltage of 5 V
  • It operates on a passband of 120 kHz
  • It operates in a voltage range of 4.5V to 5.5V, with 5V being the preferred voltage
  • Enables direct soldering of wires to the sensor or use of solderless connectors

Current sensor applications

The ACS724 current sensor offers a wide range of applications thanks to its versatility and measurement precision. It is used to monitor energy consumption, overload protection and control industrial processes . It can be used to continuously monitor the operation of electrical devices and to detect possible faults and irregularities in their operation.

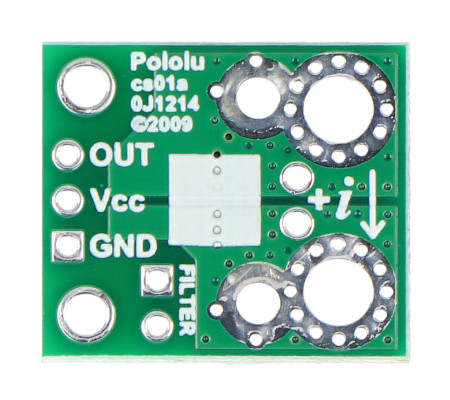

The green Pololu current sensor module lies upside down on a white background. The current sensor is suitable for monitoring the current in various electrical systems.

Described sensor pins. Current sensor pins.

Current sensor pins

  • IP+ (Positive Current Input) : A pin intended to be connected to the positive side of a circuit carrying current in order to monitor it.
  • IP- (negative current input) : a pin intended to be connected to the negative side of a circuit through which current flows for the purpose of monitoring it.
  • VCC (logic power supply) : used to connect the supply voltage for the current sensor measurement system. The supply voltage should be between 4.5 V and 5.5 V.
  • OUT : output of the system from which an analog voltage proportional to the measured current is read. This signal can be further processed or used for direct current monitoring.
  • GND : system ground.

Technical specifications of the sensor

  • Built-in system: Allegro ACS724LLCTR-10AB
  • Current measurement range: -10 A to 10 A
  • Passband: 120 kHz
  • Operating voltage range: from 4.5 V to 5.5 V, standard 5 V
  • Sensor sensitivity for 5 V voltage: 200 mV / A
  • Internal resistance: approximately 1.2 mΩ
  • Electrical insulation: up to 2.4 kV RMS
  • Operating temperature range: from -40°C to 150°C
  • Dimensions: 17.8 x 20.3 mm

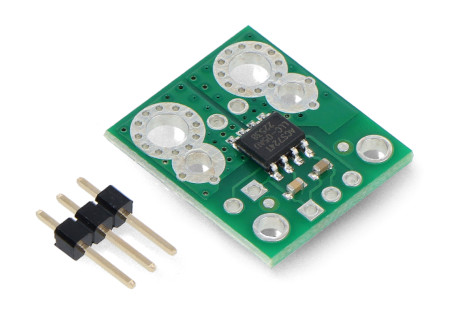

A current sensor with a set of pins to be soldered lies on a white background. The product has a built-in ACS724LLCTR-10AB system.

Package width 7.5 cm
Package height 8.5 cm
Package depth 0.5 cm
Package weight 0.002 kg
