Product description: SenseCAP Watcher W1-B - AI assistant for space monitoring - ESP32-S3 - with white housing - Seeedstudio 113991275
SenseCAP Watcher W1-B is an innovative AI assistant from Seeedstudio that transforms spaces into intelligent ecosystems. Equipped with an ESP32-S3 processor and Himax HX6538 , it offers advanced image and data processing capabilities. A 120° camera and microphone allow for scene and sound recognition , and LLM functions enable precise event analysis. Thanks to integration with the SenseCraft application, Watcher responds with voice, sends notifications and controls other IoT devices. The device is expandable via the Grove port and compatible with Home Assistant, Node-RED and Arduino platforms. It offers open source code and support for local implementations, ensuring security and flexibility of use.
The manufacturer has prepared a detailed user guide to help you get started with SenseCAP Watcher W1-B.

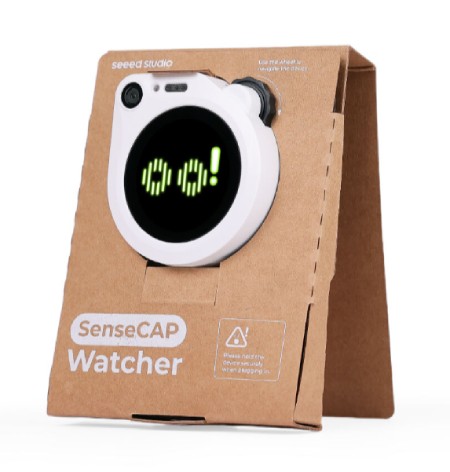

SenseCAP Watcher W1-B - AI system for monitoring space - ESP32-S3 - with white housing - Seeedstudio 113991275.
Watcher uses an AI model to detect objects, which are then analyzed by the LLM system.
Key Features of SenseCAP Watcher W1-B
- Advanced event analysis : AI and LLM integration enables accurate scene and event recognition
- IoT integration : supports platforms such as Home Assistant, Node-RED, Arduino and ESP32 devices
- Extensive equipment : equipped with a camera with a viewing angle of 120°, microphone, speaker and touch screen
- Expandability : Grove port allows for connection of additional sensors
- Data security : open source code and support for local deployments ensure full control over your data
SenseCraft AI Services offers flexible subscription options for SenseCAP Watcher users. You can start with the Basic plan, which is free and includes features such as image analysis every 15 minutes and 200 monthly LLM conversations. If you need more, the Pro plan is available for a fee.
Voice control
Just give a voice command and Watcher will do the job . The "Push to Talk" function and the SenseCraft app allow you to quickly set up monitoring of selected events and receive real-time notifications.
Intelligent scene recognition
SenseCAP Watcher, thanks to the integration of AI and LLM, not only identifies objects, but also analyzes scenes and behaviors . It accurately recognizes events such as "dog playing with a ball" or "person in courier clothes".
You can create your own personalized user interface (UI) for SenseCAP Watcher.
Supports microSD cards up to 32 GB .
Voice response to events
Watcher provides voice responses to detected events . You can program responses, such as a notification about the availability of a product in a store or a request to stop an unwanted activity, such as smoking in a prohibited place.
Easy system expansion
SenseCAP Watcher integrates seamlessly with platforms such as Home Assistant, Node-RED , and Arduino . It can control lights, appliances, and respond to various events in real time.
Unique personalization
Customize Watcher to your needs by creating your own emotions and interface. With support for PNG files, you can give your device a personalized look and also design a unique user interface using Squareline.
Full privacy and local processing
SenseCAP Watcher is an open-source AI that guarantees complete data privacy. SenseCraft software enables local processing and storage of information, eliminating the need to send it to the cloud. It is compatible with Windows, MacOS and Linux systems, provided that the appropriate hardware requirements are met.
It can be placed on a desk or mounted on a wall to act as a smart device. It can also be transformed into a robot head.
Items included in the set.
SenseCAP Watcher W1-B Technical Specification
- Microcontroller: ESP32-S3, 240 MHz, 8 MB PSRAM
- Built-in AI Processor: Himax HX6538 (Cortex M55 + Ethos-U55)
- Flash Memory: 32MB Flash for ESP32-S3, 16MB Flash for Himax HX6538
- Camera: OV5647, 120° FOV, fixed focus 3m
- WiFi: IEEE 802.11b/g/n, 2.4 GHz band, range up to 100 m (in open space)
- Bluetooth LE: Bluetooth 5
- Screen: touch, 1.45'', resolution 412 x 412 px
- Microphone and speaker: 1x microphone, 1W speaker output
- Buttons: 1x scroll wheel and button, 1x reset button
- LED: 1x RGB LED for signaling
- microSD slot: supports cards up to 32 GB (FAT32)

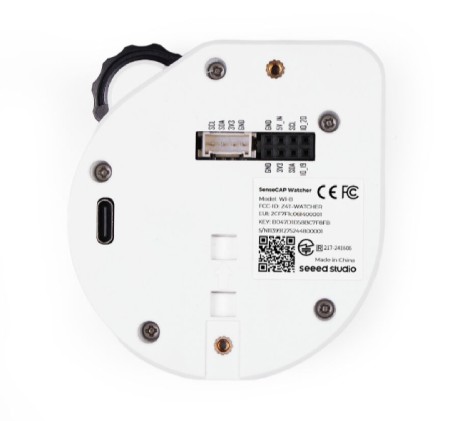

- Expansion Interface: 1x Grove IIC, 2x4 female connectors (1x IIC, 2x GPIO, 2x GND, 1x 3.3V OUT, 1x 5V IN)
- USB Type-C: 1x USB Type-C rear (power only), 1x USB Type-C bottom (power and programming)
- Power supply: 5V DC
- Battery: Li-ion 3.7 V, 400 mAh
- Operating temperature: 0°C to 45°C
- Mounting: Supports wall, desk and bracket mounting
- Housing color: white
- Dimensions: 69 x 65 x 20 mm

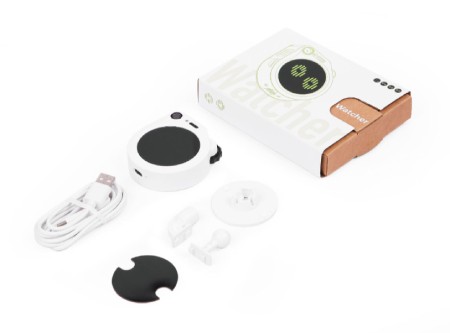

Kit Contents
- 1x SenseCAP Watcher W1-B
- 1x 360° swivel base
- 1x 1/4'' tripod adapter
- 1x USB Type-C Cable
- 2x Mounting screws (3 x 10 mm)
