Product description: SenseCAP Watcher W1-A - AI assistant for space monitoring - ESP32-S3 - with transparent housing - Seeedstudio 113991315
SenseCAP Watcher W1-A is an innovative AI device from Seeedstudio that transforms spaces into intelligent environments. The built-in ESP32-S3 processor and Himax HX6538 provide advanced image and data processing. The 120° camera and microphone enable scene and sound recognition , and LLM functions support accurate event analysis. Thanks to integration with SenseCraft , Watcher responds with voice, sends notifications and controls other IoT devices. Expandable via Grove port and compatible with Home Assistant, Node-RED and Arduino . Open source code and support for local implementations guarantee security and flexibility of use.
The manufacturer has prepared a detailed user guide to help you get started with SenseCAP Watcher W1-A.

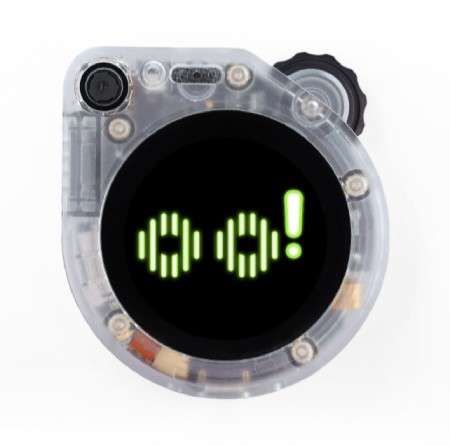

SenseCAP Watcher W1-A - AI system for space monitoring - ESP32-S3 - with transparent housing - Seeedstudio 113991315.
Watcher uses an AI model to detect objects, which are then analyzed by the LLM system.
Key Features of SenseCAP Watcher W1-A
- Advanced Event Analysis : AI and LLM combined for precise scene and event recognition
- IoT integration : Home Assistant, Node-RED and Arduino/ESP32 device support
- Extensive equipment : built-in 120° camera, microphone, speaker, and touch screen
- Expandability : Grove port for additional sensors
- Data security : open source and local implementations
SenseCraft AI Services offers flexible subscription options for SenseCAP Watcher users. You can start with the Basic plan, which is free and includes features such as image analysis every 15 minutes and 200 monthly LLM conversations. If you need more, the Pro plan is available for a fee.
Speak and control with your voice
Simply issue a voice command and Watcher will do the job . With the "Push to Talk" option or the SenseCraft app, you can quickly set up monitoring for specific events and receive real-time notifications.
Intelligent scene recognition
SenseCAP Watcher, thanks to the combination of AI and LLM, not only detects objects but also analyzes scenes and behaviors . Accurately recognizes events such as "dog playing with a ball" or "person in a courier outfit."
You can create your own personalized user interface (UI) for SenseCAP Watcher.
Supports microSD cards up to 32 GB .
Vocal reactions to events
Watcher responds to detected events with a voice . You can program responses, such as a notification about a product in a store or a request to stop an unwanted activity, such as smoking in a prohibited place.
Easy system extension
SenseCAP Watcher integrates easily with Home Assistant, Node-RED or Arduino . It can control lights, devices and respond to many events in real time.
Unique personalization
Create your own emotions and interface for Watcher. With support for PNG files you can give your device a personal touch and even design a unique UI using Squareline.
Full privacy and local service
SenseCAP Watcher is an open-source AI device that provides complete data privacy. SenseCraft software enables local processing and storage of data , without sending it to the cloud. It runs on Windows, MacOS and Linux, requiring appropriate hardware parameters to function properly.

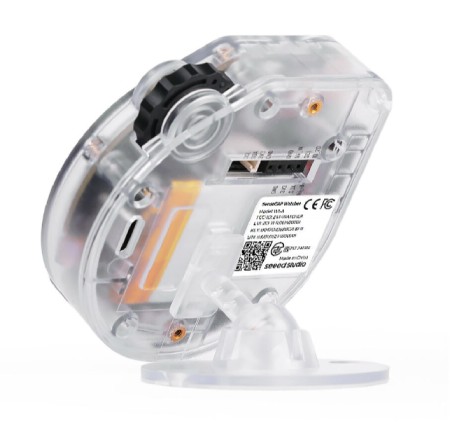

It can be placed on a desk or mounted on a wall to act as a smart device. It can also be transformed into a robot head.

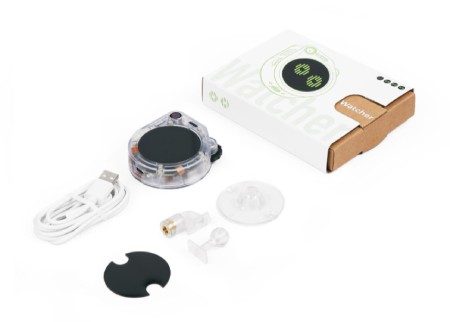

Items included in the set.
SenseCAP Watcher W1-A Technical Specification
- Microcontroller: ESP32-S3, 240 MHz, 8 MB PSRAM
- Built-in AI Processor: Himax HX6538 (Cortex M55 + Ethos-U55)
- Flash Memory: 32MB Flash for ESP32-S3, 16MB Flash for Himax HX6538
- Camera: OV5647, 120° FOV, fixed focus 3m
- WiFi: IEEE 802.11b/g/n, 2.4 GHz band, range up to 100 m (in open space)
- Bluetooth LE: Bluetooth 5
- Screen: touch, 1.45'', resolution 412 x 412 px
- Microphone and speaker: 1x microphone, 1W speaker output
- Buttons: 1x scroll wheel and button, 1x reset button
- LED: 1x RGB LED for signaling
- microSD slot: supports cards up to 32 GB (FAT32)
- Expansion Interface: 1x Grove IIC, 2x4 female connectors (1x IIC, 2x GPIO, 2x GND, 1x 3.3V OUT, 1x 5V IN)
- USB Type-C: 1x USB Type-C rear (power only), 1x USB Type-C bottom (power and programming)
- Power supply: 5V DC
- Battery: Li-ion 3.7 V, 400 mAh
- Operating temperature: 0°C to 45°C
- Mounting: Supports wall, desk and bracket mounting
- Housing color: transparent
- Dimensions: 69 x 65 x 20 mm
Kit Contents
- 1x SenseCAP Watcher W1-A
- 1x 360° swivel base
- 1x 1/4'' tripod adapter
- 1x USB Type-C Cable
- 2x Mounting screws (3 x 10 mm)
