Product description: Raspberry Pi AI HAT+ 2 40 TOPS - AI accelerator Hailo-10H add-on for Raspberry Pi 5
The Raspberry Pi AI HAT+ 2 is a next-generation add-on board fully compliant with the HAT+ specification, designed to expand the AI capabilities of your Raspberry Pi 5. Thanks to the PCIe interface and seamless integration with Raspberry Pi OS, users can instantly benefit from the Hailo-10H AI accelerator with up to 40 tera operations per second (TOPS) of INT4 inference performance. Featuring 8 GB of onboard LPDDR4X RAM, this HAT allows smooth execution of generative AI models — including large language models (LLMs) and vision-language models (VLMs) — without stressing the host CPU. It’s perfect for edge AI, offline inference, and applications that require low latency and high privacy.

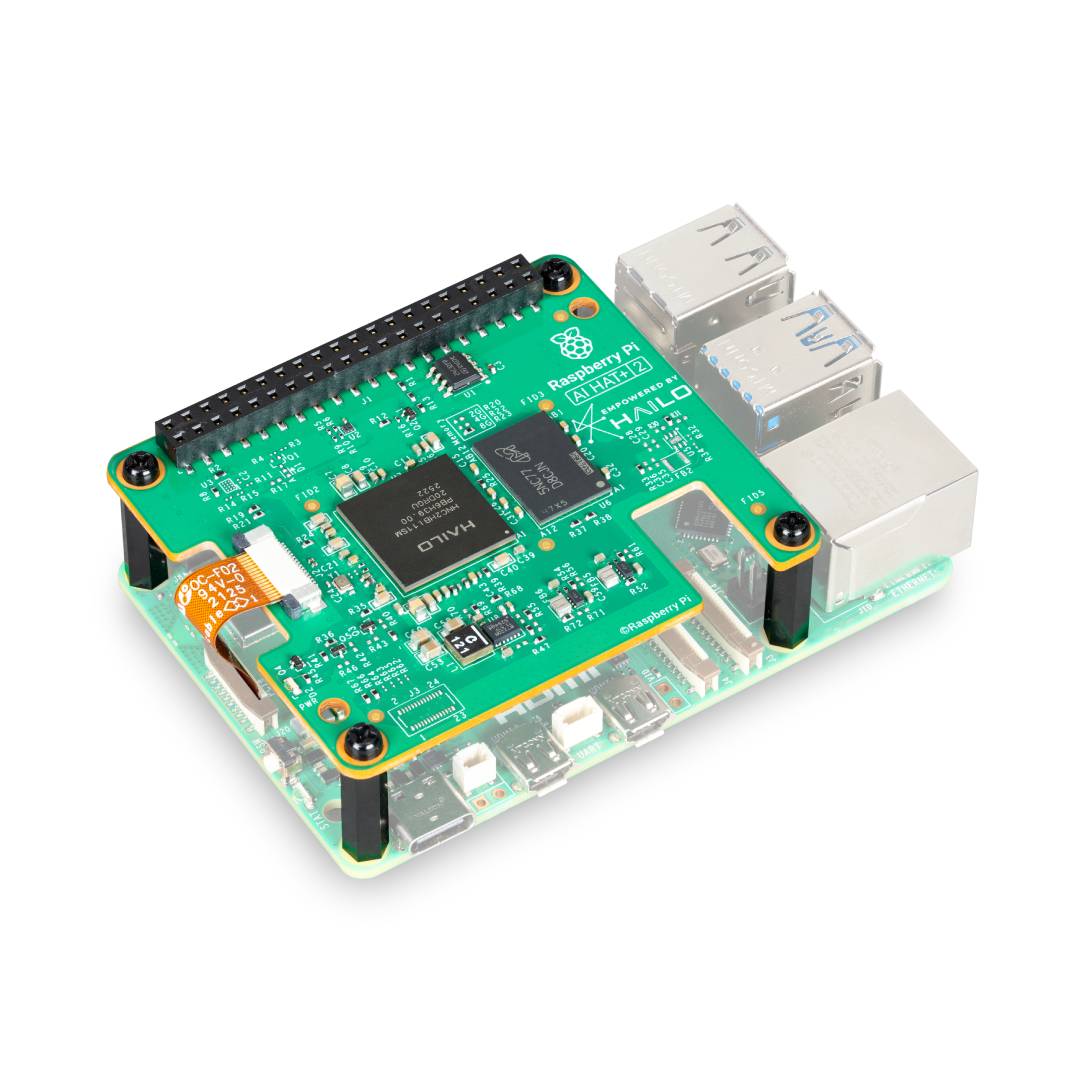

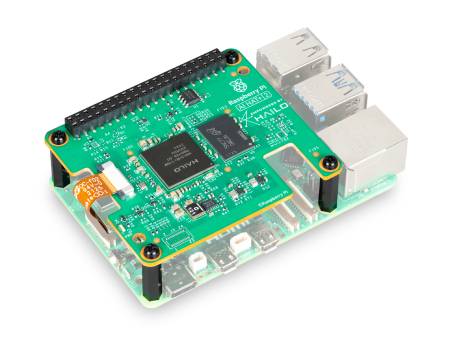

Raspberry Pi AI HAT+ 2 40 TOPS - Hailo-10H AI accelerator add-on for Raspberry Pi 5
Compatible exclusively with Raspberry Pi 5, connected via PCIe interface
Main features of Raspberry Pi AI HAT+ 2
- Hailo-10H AI accelerator: up to 40 TOPS (INT4) of high-performance neural inference
- 8 GB LPDDR4X memory: dedicated onboard RAM offloads processing from the host
- Support for LLMs and VLMs: compatible with Whisper, LLaMA, QWEN, and other generative models
- Seamless integration with Raspberry Pi OS: automatically recognized and utilized by rpicam-apps
- PCIe interface: high-speed data connection to Raspberry Pi 5
- Optional heatsink: recommended for demanding AI workloads
- Mechanical compatibility: works with Raspberry Pi 5 and Active Cooler using included 16 mm standoffs
Local inference and privacy-first AI processing
By enabling AI models to run locally, the Raspberry Pi AI HAT+ 2 ensures full control over your data. It eliminates the need for cloud APIs, reducing operational costs while enhancing privacy and security. This makes it an ideal solution for building secure, offline AI applications that demand low latency and maximum independence.
Practical applications
The AI HAT+ 2 is a great fit for projects such as:
- computer vision and video analytics (edge AI)
- low-latency chatbots and language models
- speech recognition and natural language processing (e.g. Whisper, ASR)
- robotics and automation using embedded AI
- facility management, smart monitoring, anomaly detection
- multimodal AI applications combining text, image, and audio

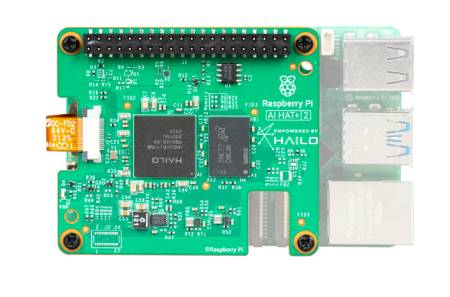

The add-on board includes 8 GB of LPDDR4X memory

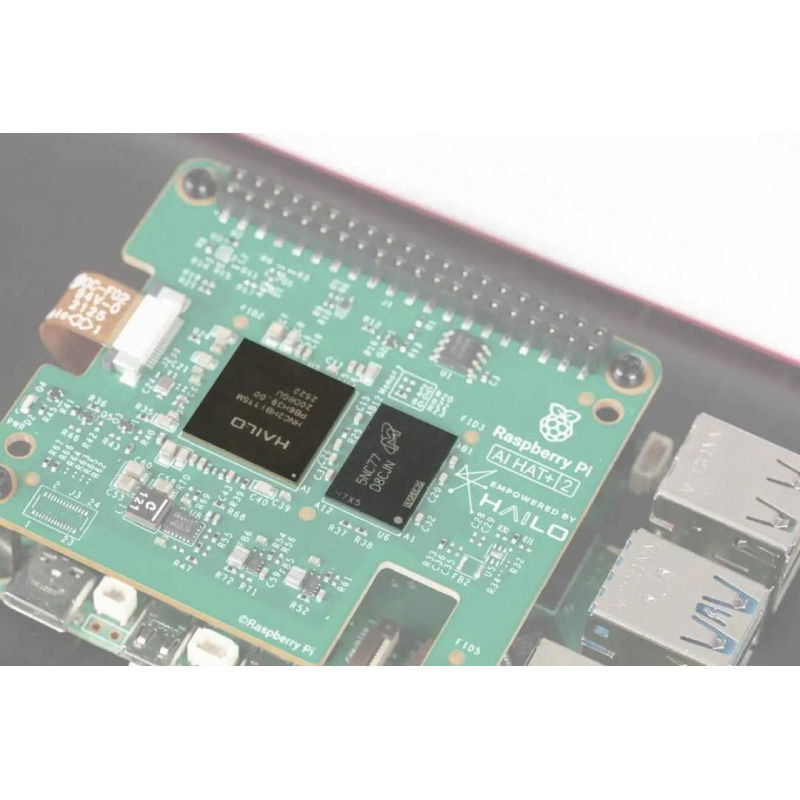

The Raspberry Pi AI HAT+ 2 includes the Hailo-10H AI accelerator
Technical specifications - Raspberry Pi AI HAT+ 2
- AI chip: Hailo-10H
- Inference performance: up to 40 TOPS (INT4)
- RAM: 8 GB LPDDR4X onboard memory
- Interface: PCIe (for Raspberry Pi 5 only)
- Supported models: LLMs, VLMs, generative AI (Whisper-base, LLaMA-3, QWEN, etc.)
- Integration: Full support in Raspberry Pi OS, including rpicam-apps
- Compatibility: Raspberry Pi 5, compatible with Raspberry Pi Active Cooler
- Operating temperature: 0°C to 50°C
- Dimensions: 56.7 x 65.1 x 5.5 mm
- Weight: 19 g
Kit contents
- 1x Raspberry Pi AI HAT+ 2 board
