Product description: Power Over Ethernet HAT (F) - PoE power and 802.3af/at network overlay - for Raspberry Pi 5 - Waveshare 26399
Power Over Ethernet HAT (F) is a module in the form of a HAT overlay for Raspberry Pi 5 , which, using one cable with an Ethernet connector, provides power and 802.3af/at network connectivity. The module is equipped with a fully isolated switching power supply (SMPS) that ensures safe and stable power supply. A high-performance fan and metal heat sink ensure effective heat dissipation, allowing you to maintain low temperatures even during intensive use. Additionally, the module offers 5 V and 12 V power outputs that enable powering additional peripheral devices, which is especially useful in more complex projects. With support for a standard 40-pin GPIO connector , the Power Over Ethernet HAT (F) is easy to install and compatible with a wide range of other HAT modules, allowing you to expand the functionality of your Raspberry Pi. For the proper operation of the Power over Ethernet HAT, a router / switch with the PoE (Power over Ethernet) function is required.
The manufacturer provides a product Wiki page that contains a detailed user guide to help you get started with the module.

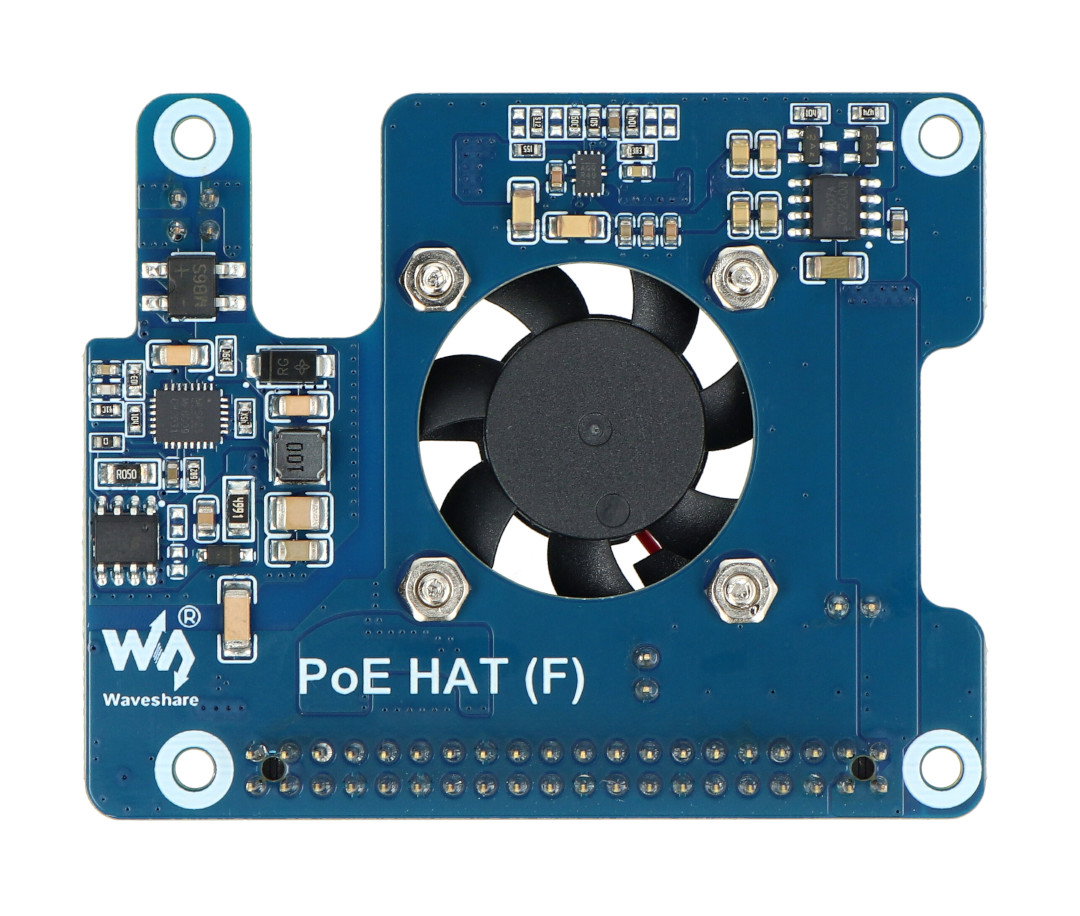

Power Over Ethernet HAT (F) - PoE power and 802.3af/at network overlay - for Raspberry Pi 5 - Waveshare 26399.
The module provides power and 802.3af/at network connectivity.
Special features of the PoE HAT (F)
- Raspberry Pi 5 Compatibility: Specially designed for Raspberry Pi 5.
- PoE (Power Over Ethernet): IEEE 802.3af/at compliant, allows power and network to be delivered over a single Ethernet cable.
- Isolated Switching Power Supply (SMPS): Provides safe and stable power supply.
- Built-in fan and metal heat sink: allows for efficient heat dissipation for stable operation.
- 5V and 12V power outputs: allow you to power additional peripherals.
- Standard 40-pin GPIO connector: Support for standard GPIO connector, allows connection of other HAT modules.
Uses and advantages of the Raspberry Pi overlay
Power Over Ethernet HAT (F) for Raspberry Pi 5 is a versatile overlay that significantly expands the capabilities of the minicomputer . This is an ideal solution for professional installations in industrial environments, smart homes or monitoring systems, where minimizing cabling and increasing reliability are crucial. One of the greatest advantages of HAT (F) is the built-in active cooling system with a metal radiator, which ensures stable operation even in demanding conditions. Additionally, the ability to power peripheral devices makes this shield ideal for complex projects where additional power is needed. The module is used in various areas : from home servers, through automation systems, to advanced IoT projects. With it, you can easily and effectively manage power and network connectivity, which greatly simplifies the installation and maintenance of Raspberry Pi 5-based systems.

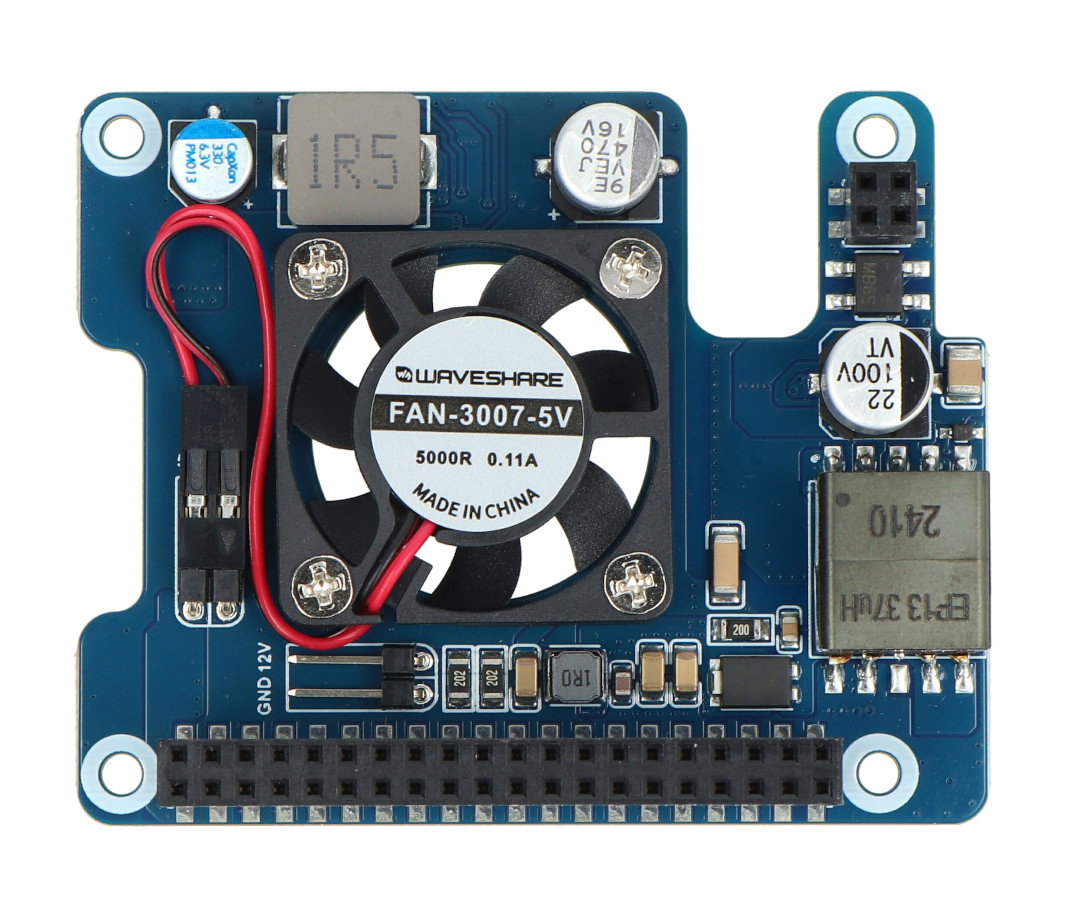

The module offers 5V and 12V power outputs.

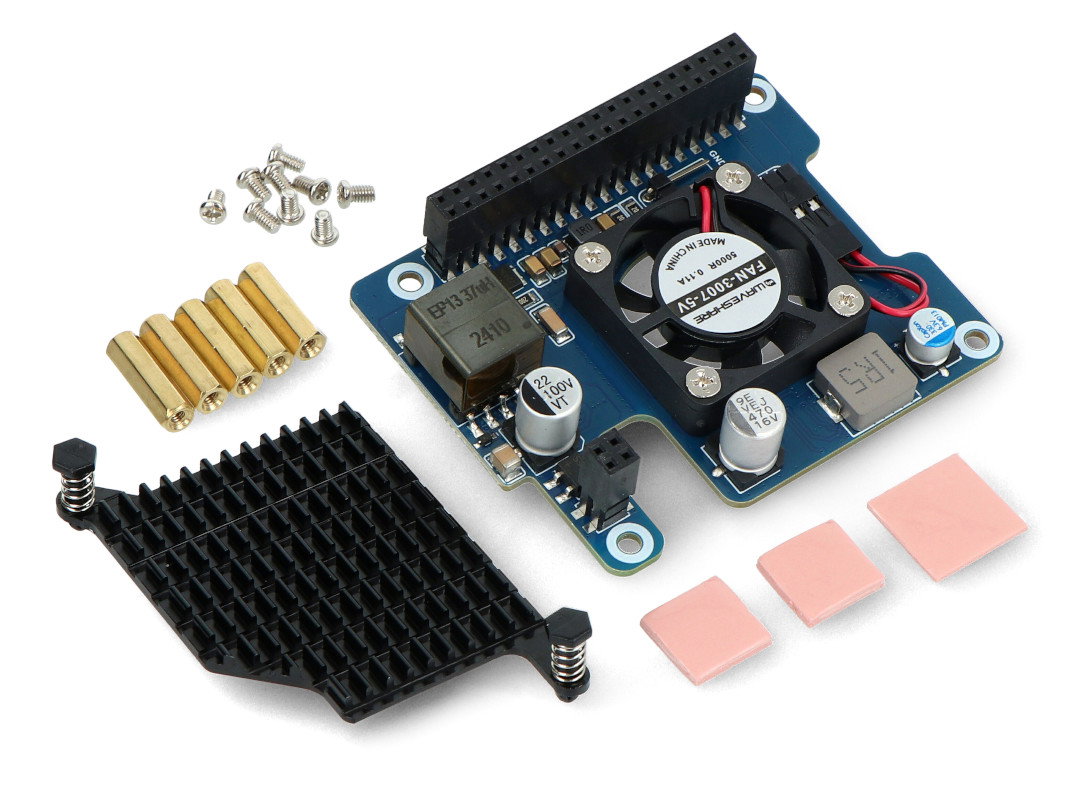

Elements included in the set.
Technical specifications of the overlay
- Type: power module
- Built-in chip: MP8759GD
- Compatible with Raspberry Pi 5
- PoE power input: 37V to 57V DC
- Power Output:
- GPIO connector: 5V / 4.5A (maximum)
- 2-pin connector: 12V / 2A (maximum)
- Network standard: IEEE 802.3af/at PoE
- Module dimensions: 56.5 mm x 70 mm
Set contents
- Power over Ethernet HAT (F) - PoE power and 802.3af/at network overlay
- Radiator
- Mounting elements (spacer sleeves, screws, covers)
