Product description: Raspberry Pi M.2 HAT+ Compact - an adapter for NVMe drives and M.2 accessories for Raspberry Pi 5
The Raspberry Pi M.2 HAT+ Compact is an alternative to the standard M.2 HAT+ . It's designed to fit inside the official Raspberry Pi 5 case , providing high performance and easy integration. It uses a built-in FPC cable , eliminating the need for additional cabling. It offers a fast PCIe 2.0 interface with throughput of up to 4 Gbit/s (~450 MB/s) , allowing for the efficient use of NVMe SSDs and other PCIe accessories. The product is fully compliant with the HAT+ standard and is automatically detected by the latest Raspberry Pi software.

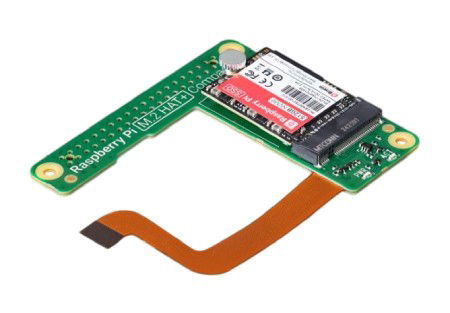

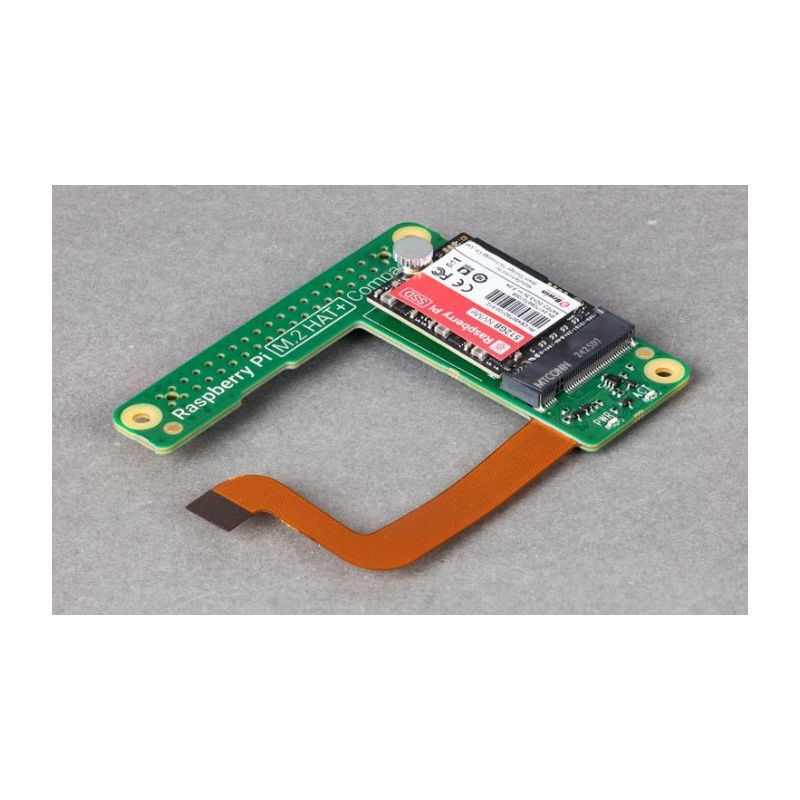

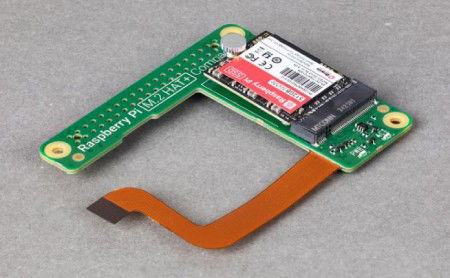

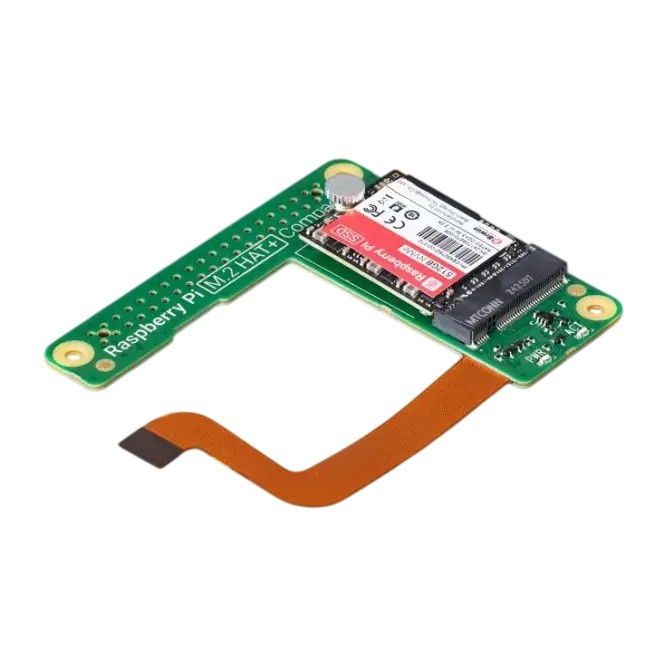

Raspberry Pi M.2 HAT+ Compact - an adapter for NVMe drives and M.2 accessories for Raspberry Pi 5.
The Raspberry Pi M.2 HAT+ Compact is the perfect solution for Raspberry Pi 5 users who want to use the official case.
Main features of the Raspberry Pi M.2 HAT+ Compact
- Supports PCIe 2.0 interface with transfer speeds up to ~450 MB/s
- Built-in FPC cable eliminates the need for a separate ribbon cable
- Automatic detection by the latest Raspberry Pi software
- The compact size allows the shield to fit into the official Raspberry Pi 5 case.
- The set includes spacers and mounting screws
What is the M.2 standard?
M.2 is a popular interface standard that allows you to connect a variety of peripherals, such as SSDs, network cards, and AI accelerators . Its compact size makes it suitable for laptops, mini-PCs, and single-board computers. It supports various data transfer protocols, including SATA and PCIe, ensuring flexibility and high performance.
Raspberry Pi M.2 HAT+ Compact Technical Specifications
- Power: PCIe 2.0 connector / GPIO Raspberry Pi 5
- Maximum data transfer speed: up to 4 Gbit/s (~450 MB/s)
- Supported formats: 2230
- Compatibility: Raspberry Pi 5
- Mounting: possible inside the Raspberry Pi 5 case
- Dimensions: 28.5 x 37 x 8 mm
- Weight: 10 g
Kit contents
- 1x Raspberry Pi M.2 HAT+ Compact
- 3x Nylon spacer M2.5 8 mm
- 6x M2.5 mounting screw
Our offer also includes Raspberry Pi M.2 HAT+ .
