Product description: Power over Ethernet HAT (B) - PoE and 802.3af network overlay - for Raspberry Pi 3B+/4B - Waveshare 18014
Power over Ethernet HAT (B) is an overlay module designed for Raspberry Pi minicomputer3B+and4Bversions. It provides both an 802.3afnetwork connectionandsupplies powerto the Raspberry Pi via an Ethernet connector. The PoE input voltage should be in the range of 37 V to 57 V. The overlay has an easy to read 0.9'' display which showstemperature, IP address and fan status (built into the overlay). It has built-in PCF8574 chip and SSD1306 driver. For proper operation of Power over Ethernet HAT requiresa router / switchwith PoE (Power over Ethernet) function.
The item being sold is thePower over Ethernet HAT (B), theRaspberry Piminicomputer needs to be purchased separately.Product compatible with Raspberry Pi 3B+ and 4B
The manufacturer provides aproduct wiki pagethat includes a detailed user guide to help you get started with the power module.

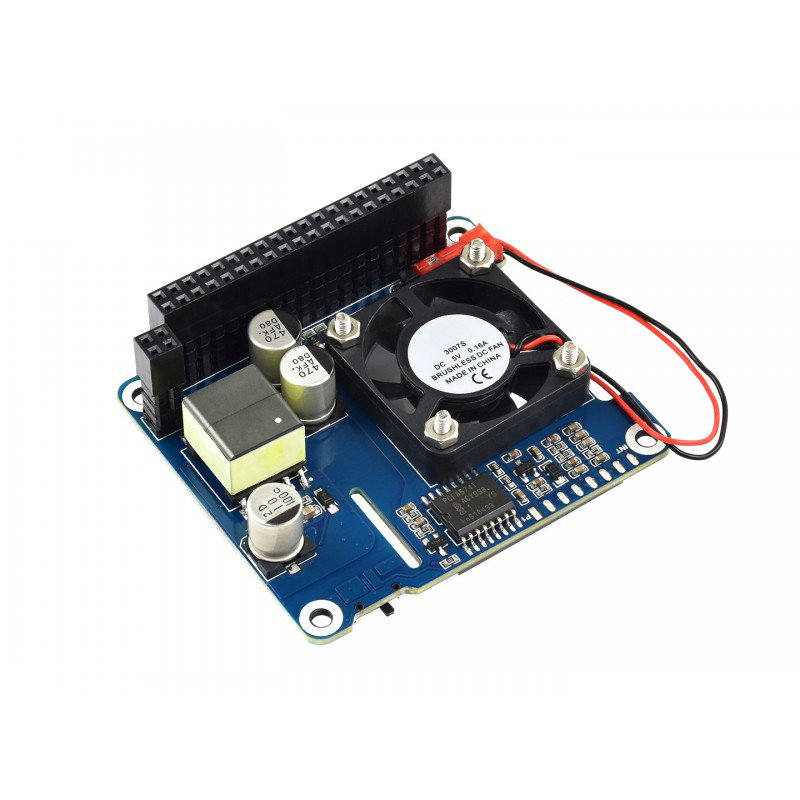

The overlay has a fan to effectively cool down the minicomputer.
Special features
- Overlay equipped with a connector compatible with Raspberry Pi GPIO pinouts
- PoE (Power Over Ethernet) power supply overlay compliant with 802.3af standard
- Fully isolated Switch Mode Power Supply (SMPS)

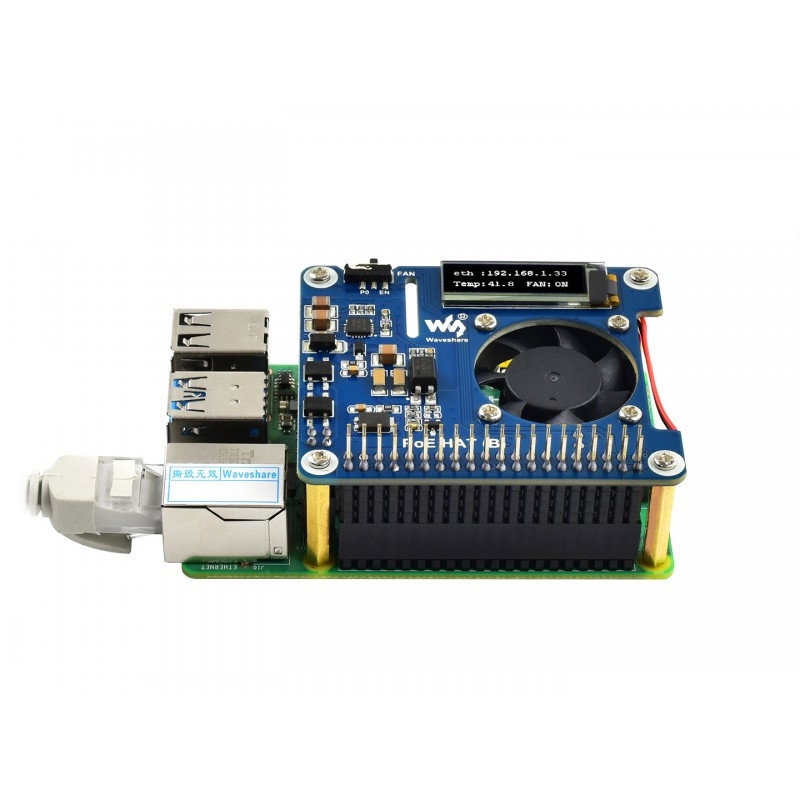

- Equipped with an easy to read 0.9'' OLED display which shows parameters such as temperature, IP address and fan operation status

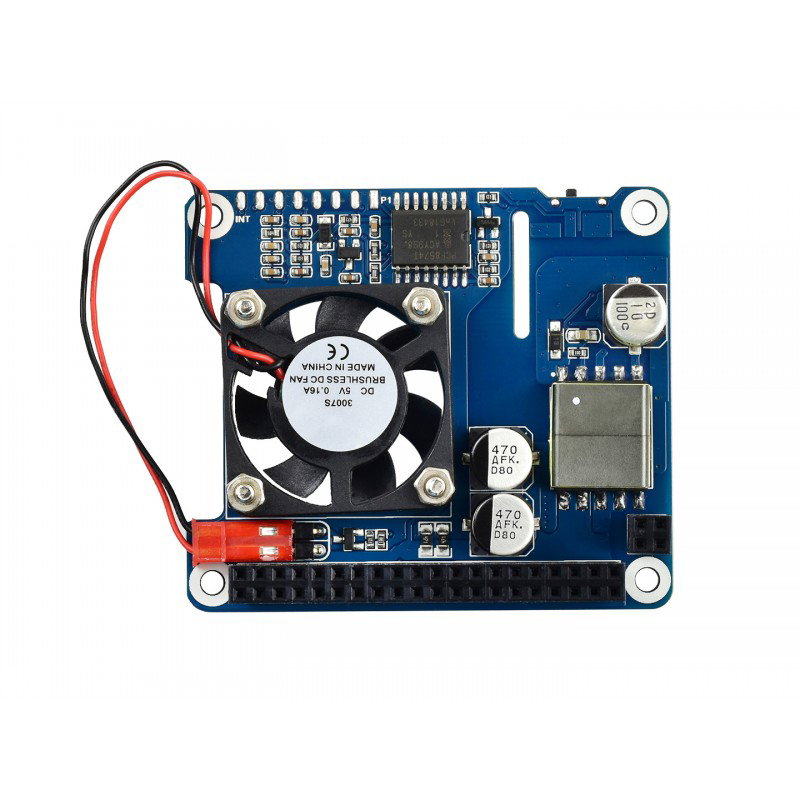

- Built-in cooling fan
Set contents
- Power over Ethernet HAT (B) - PoE and 802.3af power overlay
- Mounting elements:
- spacer - 4 pcs.
- screw - 4 pcs.
- cap - 4 pcs.
Technical specification of the cap
- Type: power supply module
- Built-in circuit: PCF8574
- Compatible with Raspberry Pi version3B+/4B
- PoE power input: 37V to 57V DC
- PoE power output: 5 V / 2.5 A DC 5.5 / 2.5 mm
- Network Standard: 802.3 af PoE
- Display:
- type: OLED display
- diagonal: 0.9''
- resolution: 128 x 32 px
- built-in driver: SSD1306
- value display colour: white
- Module dimensions: 56,5 mm x 65 mm
Power over Ethernet HAT (B) - PoE and 802.3af power overlay for Raspberry Pi 3B+/4B.
