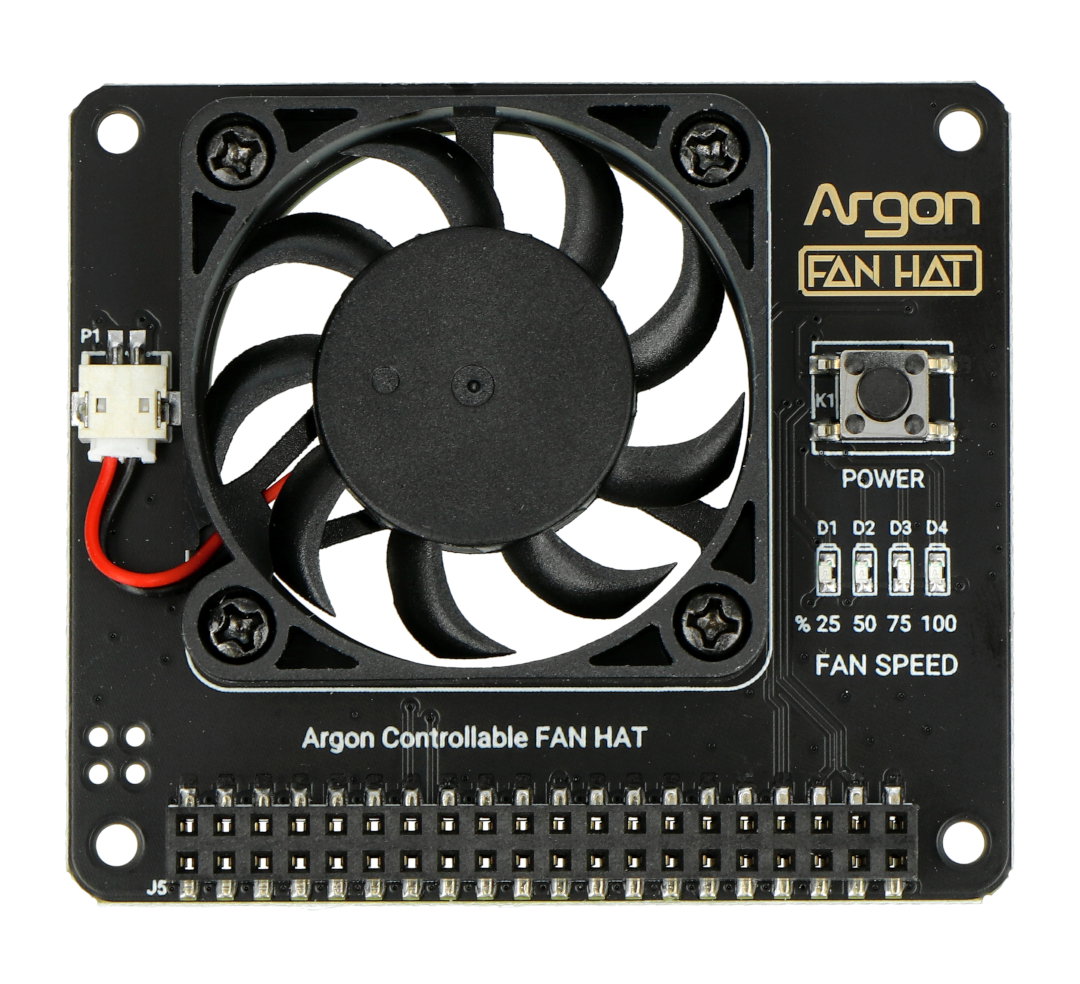

Argon Fan HAT v1.5 - module with fan for Raspberry Pi
Overlay with 40 x 40 mm fan for Raspberry Pi 4B / 3B+ / 3B. After downloading the script from the manufacturer's website, you can adjust the fan speed. There is a power / reset button on the board and LEDs to indicate the fan speed.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Argon Fan HAT v1.5 - fan shade for Raspberry Pi
Overlay with 40 x 40 mm fan for Raspberry Pi 4B / 3B+ / 3B. After downloading the script from the manufacturer's website, you can adjust the fan speed. There is a power / reset button on the board as well as LEDs to indicate the fan speed.
The item is an overlay, Raspberry Pi minicomputer can be purchased separately.
Botland is an official distributor of Argon40 Raspberry Pi accessories in Poland. Cases, expansions, fans and remotes serve the platform both aesthetically and protectively. Our range holds original Argon40 products only.
Argon Fan HAT v1.5.
Installation instructions
- Connect the Argon Fan HAT overlay to your Raspberry Pi.
- Connect your Raspberry Pi to the internet.
- Open Terminal on your Raspbian system.
- Type the command:
curl https://download.argon40.com/argonfanhat.sh | bash
- Reboot.
To remove the script, type the following command in the terminal:
argonone-uninstall
Fan speed
Once the script is installed on the Raspberry Pi, the program will automatically adjust the fan speed depending on the temperature, the default values are in the table below. The values can be edited by opening the Argon One Config program on the desktop or by typing a command in the terminal:
argon-config
| CPU TMEP | FAN POWER |
|---|---|
| 55°C | 10% |
| 60°C | 55% |
| 65°C | 100% |
Argon Fan HAT v1.5 specification
- Compatible with: Raspberry Pi 4B / 3B+ / 3B
- Controllable fan speed
- Power / Reset button
- Status LEDs
- Fan dimensions: 40 x 40 mm
Argon Fan HAT v1.5 - a fan shoe for Raspberry Pi
The Argon Fan HAT is a practical fan overlay for the Raspberry Pi 4B, 3B+, 3B. The extension allows the board to be cooled efficiently, preventing the module from overheating during heavy use, protecting the processor and other delicate components from damage due to excessive heat.

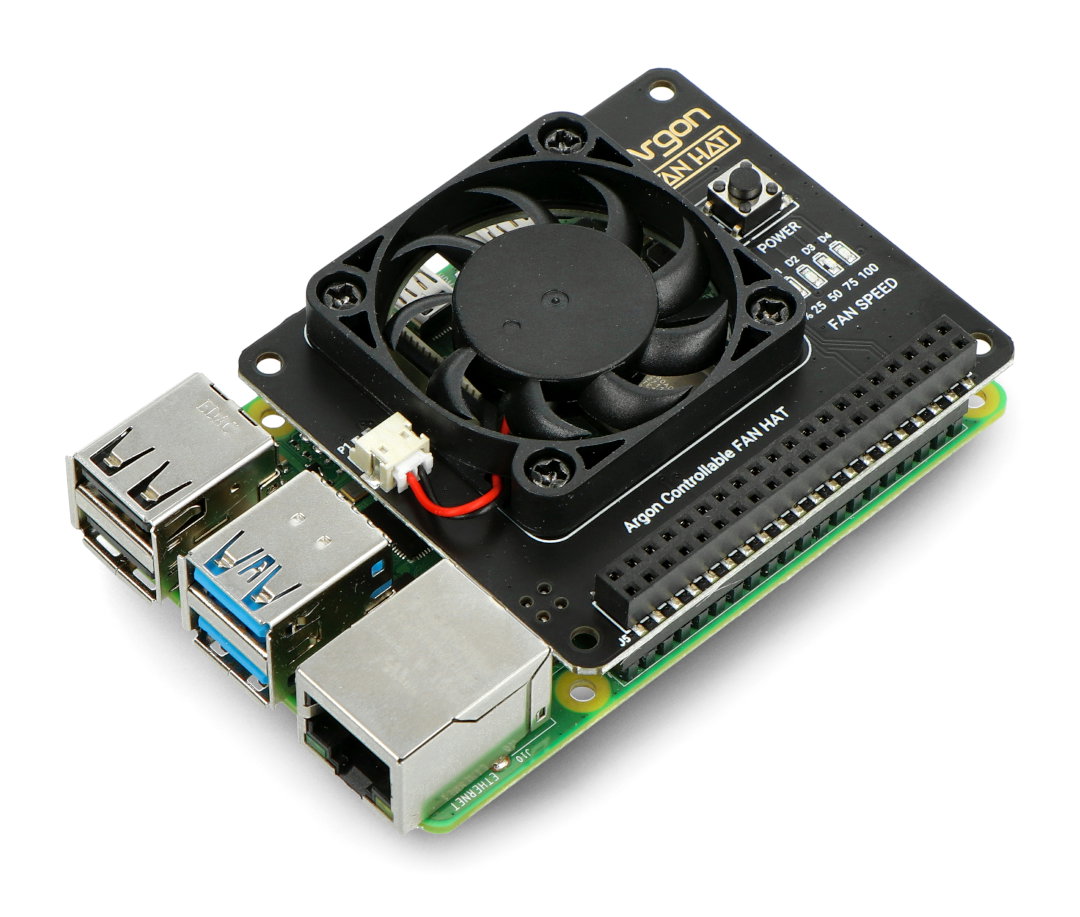

The Argon Fan HAT has been designed to allow for convenient mounting as a GPIO extension to the Raspberry Pi. This way the device does not require soldering and can be quickly disassembled if needed. Additionally, there are four mounting holes on the board to allow for screwing.
GPIO fan overlay for Raspberry Pi
The Argon Fan HAT by Argon40 allows you to adjust the fan speed so you can adjust the cooling performance to the current CPU temperature. This avoids overheating of the board but also unnecessary power consumption.
We also offer other GPIO extensions and Hat overlays for Raspberry Pi - including pinout expanders, sensor modules and more. In addition, we offer a wide selection of Raspberry Pi accessories and educational materials.
Useful links
| Name | Value |
|---|---|
| Width | 8 cm |
| Height | 12 cm |
| Depth | 1.4 cm |
| Weight | 0.025 kg |
