Product description: Power over Ethernet HAT (E) - PoE and 802.3af network adapter - for Raspberry Pi 3B+ / 4B - Waveshare 23285

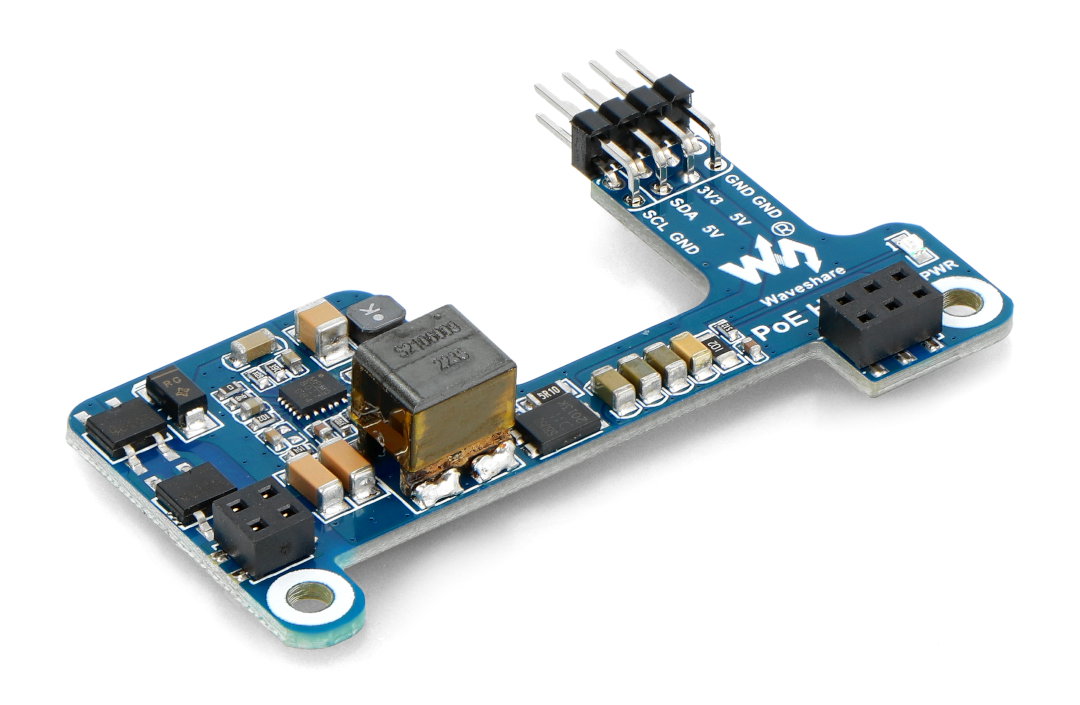

Power over Ethernet HAT (E) is a shield for Raspberry Pi in version 3B+ and 4B . It allows you to simultaneously obtain a network connection in the 802.3af standard and to supply power to the module via the Ethernet connector. The input voltage ranges from 37 V to 57 V DC, and the output parameters are 5 V / 2.5 A. For the proper operation of the Power over Ethernet HAT, a router / switch with the PoE (Power over Ethernet) function is necessary. In addition, the overlay has a small size, and its design allows it to be used also with official cases for the Raspberry Pi.
The product is compatible with Raspberry Pi 3B+ and 4B
The manufacturer provides a product wiki page - check it out!
The subject of the sale is the Power over Ethernet HAT (E).Raspberry Pi must be purchased separately.

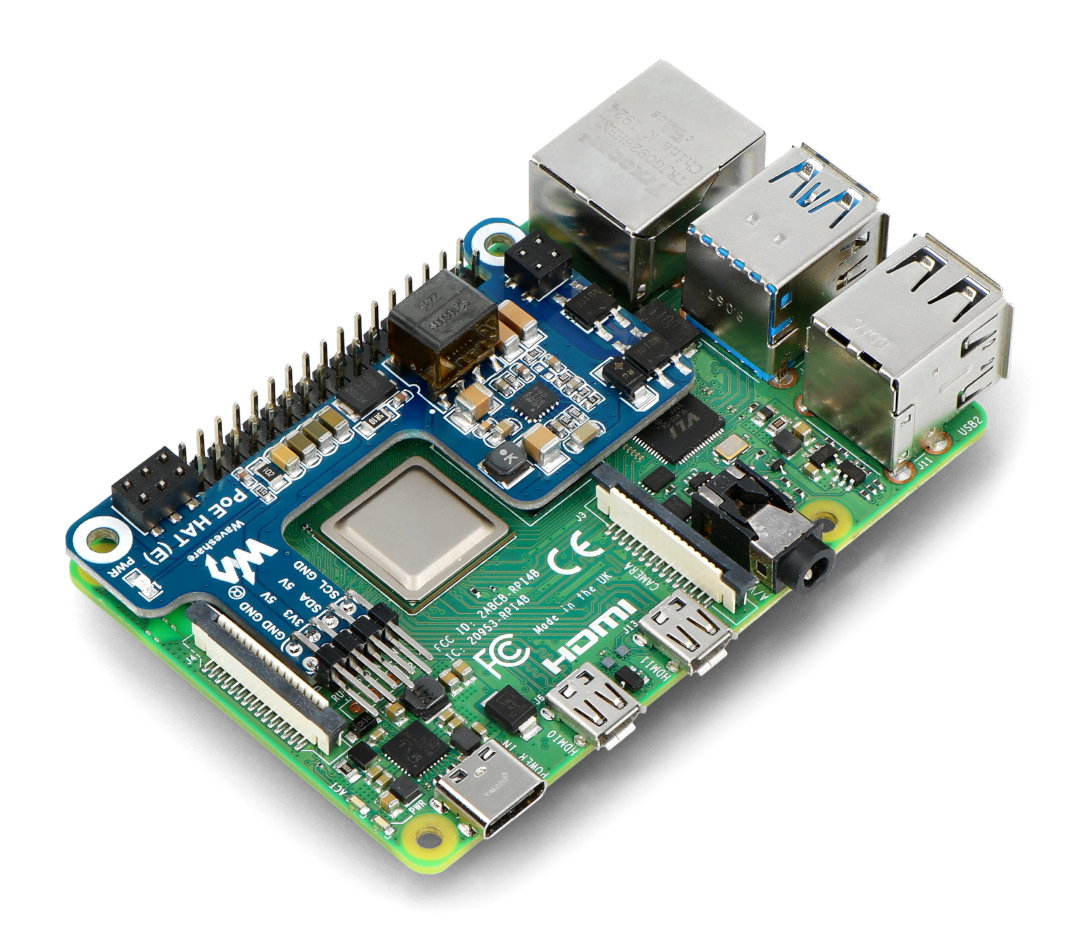

The minimalist design allows you to place the overlay in the official housing.
What is PoE? What is PoE technology?
PoE - Power over Ethernet - is a technology that enables simultaneous powering of network devices and data transfer. It is used in all telecommunication installations, e.g. IP cameras, access points and routers as well as network switches or VoIP phones (Voice of IP phones).
Special features of the overlay
- The ability to power PoE, compatible with the 802.3af standard
- Compatible with official case for Raspberry Pi 4B and official case for Raspberry Pi 3B+/3B/2B
- Equipped with a fully isolated switched-mode power supply (SMPS)
- It has leads for connecting the fan (not included)
- Compact and compact
Overlay technical specification
- Type: power module
- Compatible with Raspberry Pi version 3B+ / 4B
- PoE power input: 37 V to 57 V DC
- PoE power output: 5V/2.5A
- Network standard: 802.3 af PoE
- Module dimensions: 65 x 32 mm
Kit contents
- Power over Ethernet HAT (E) - PoE and 802.3af network overlay
Power over Ethernet HAT(E) - Waveshare 23285.
