Product description: Power over Ethernet HAT (D) - PoE and 802.3af power overlay - for Raspberry Pi 3B+/4B - compatible with official enclosure - Waveshare 19532

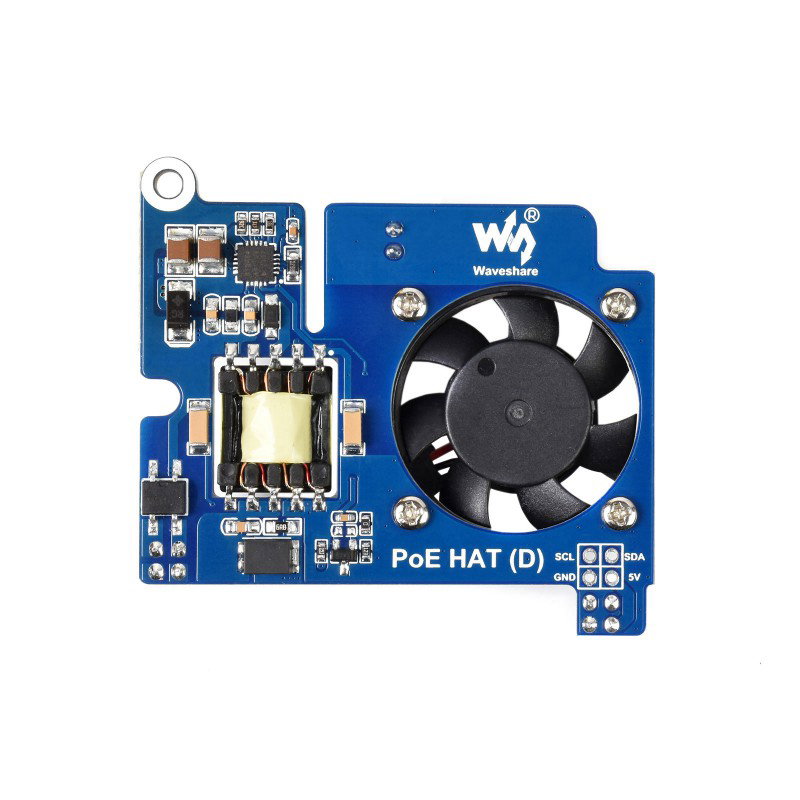

Power over Ethernet HAT (D) is an overlay module designed for Raspberry Pi minicomputer3B+and4Bversions. The small size and specially designed construction allows to use it also with official Raspberry Pi cases. The Power over Ethernet HAT simultaneously provides an 802.3afnetwork connectionandsupplies powerto the Raspberry Pi via an Ethernet connector. The PoE input voltage ranges from 37 V to 57 V. The module is equipped with a powerful 5 V / 0.11 A fan. A PoE (Power over Ethernet) enabledrouter / switchis required for proper operation of the Power over Ethernet HAT.
The subject of sale is Power over Ethernet HAT (D) overlay - compatible with official case. TheRaspberry Piminicomputer and enclosure must be purchased separately.Product compatible with Raspberry Pi 3B+ and 4B
The manufacturer provides aproduct wiki pagethat includes a detailed user guide to help you get started with the power module.

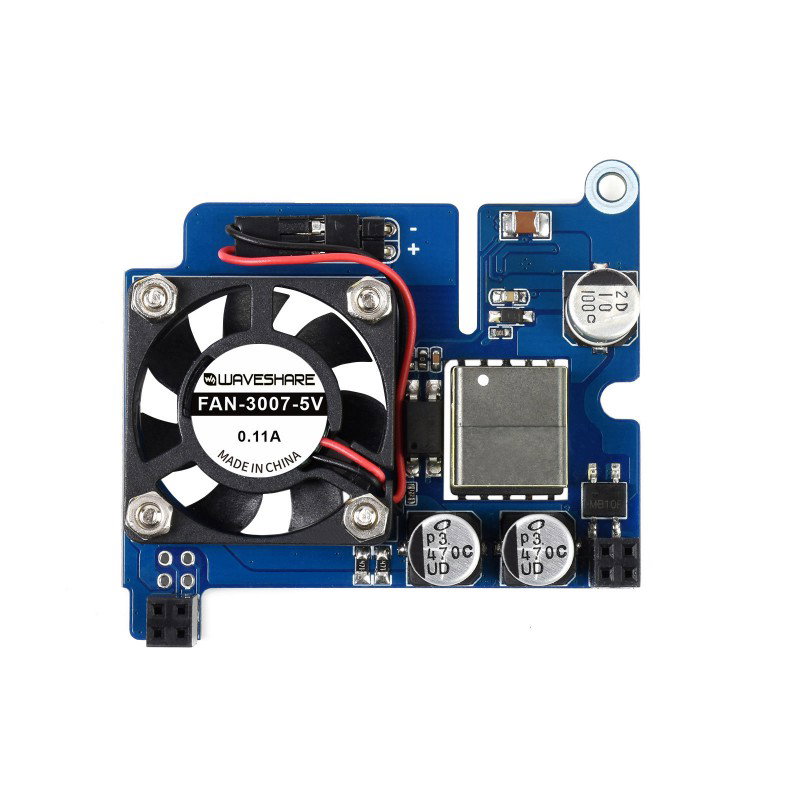

The overlay has a fan to effectively cool down the minicomputer.
Special features
- Overlay equipped with a connector compatible with Raspberry Pi GPIO pinouts
- PoE (Power Over Ethernet) power supply overlay compliant with 802.3af standard
- Compatible withofficial Raspberry Pi 4Benclosure andofficial Raspberry Pi 3B+/3B/2B enclosure
- Fully isolated Switch Mode Power Supply (SMPS)
- Built-in cooling fan
Note:
When the case is fully closed, the fan operation is less effective. Do not load the overlay for a long time while operating in this configuration.
Technical specification of the frontend
- Type: power supply module
- Built-in chip: SI3404-A-GM
- Compatible with Raspberry Pi version3B+/4B
- PoE power input: 37V to 57V DC
- PoE power output: 5 V / 2.5 A
- Network standard: 802.3 af PoE
- Module dimensions: 56.5 mm x 65 mm
Set contents
- Power over Ethernet HAT (D) - PoE and 802.3af network overlay
- Mounting elements:
- spacer - 1 pc.
- screw - 1 pc.

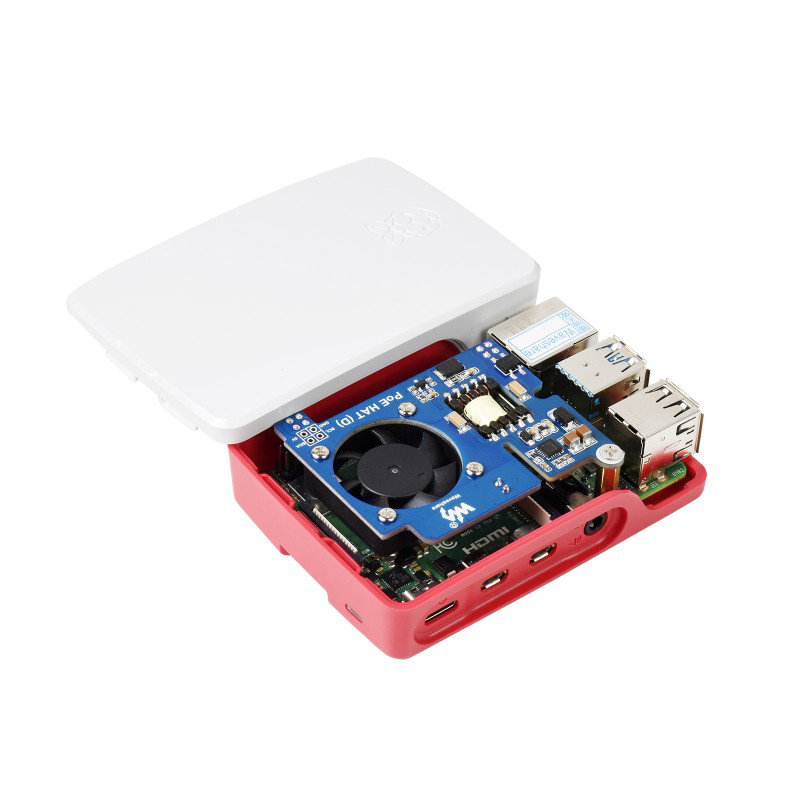

Power over Ethernet HAT (D) - PoE and 802.3af power overlay - for Raspberry Pi 3B+/4B in official enclosure.
