Description
The board provides the connection of the three modules to each of the GPIO pins of the Raspberry Pi. It has 3 rows of goldpin connectors, 40 pieces in each (pitch of 2.54 mm). Each row consisting of double straps, it's the same parallel connected connectors GPIO of minicomputer.
Module is compatible withRaspberry Pi, version 3, 2 and B+. The subject of the sale is a shield, minicomputer can be purchased separately.
Pins
Board has 120 outputs in the formof goldpin strips, 3 for each of the GPIO on the Raspberry Pi.

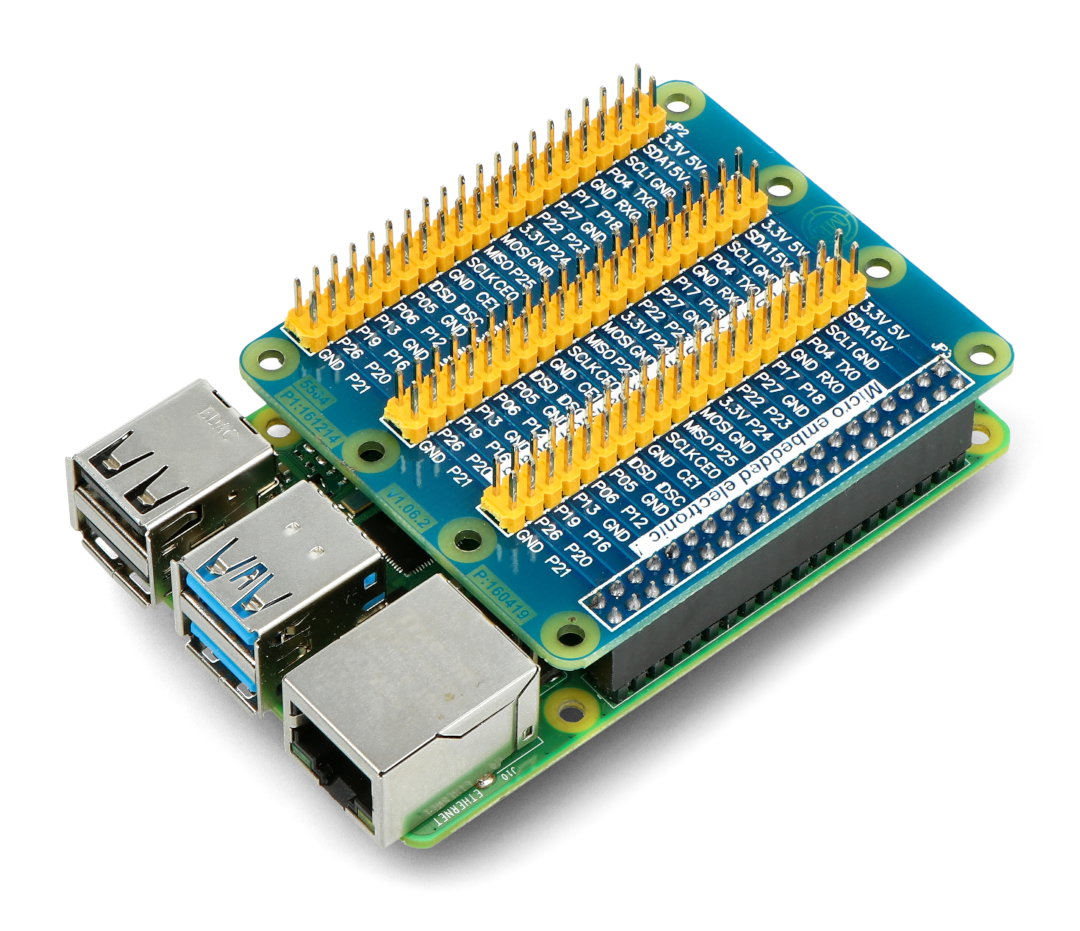

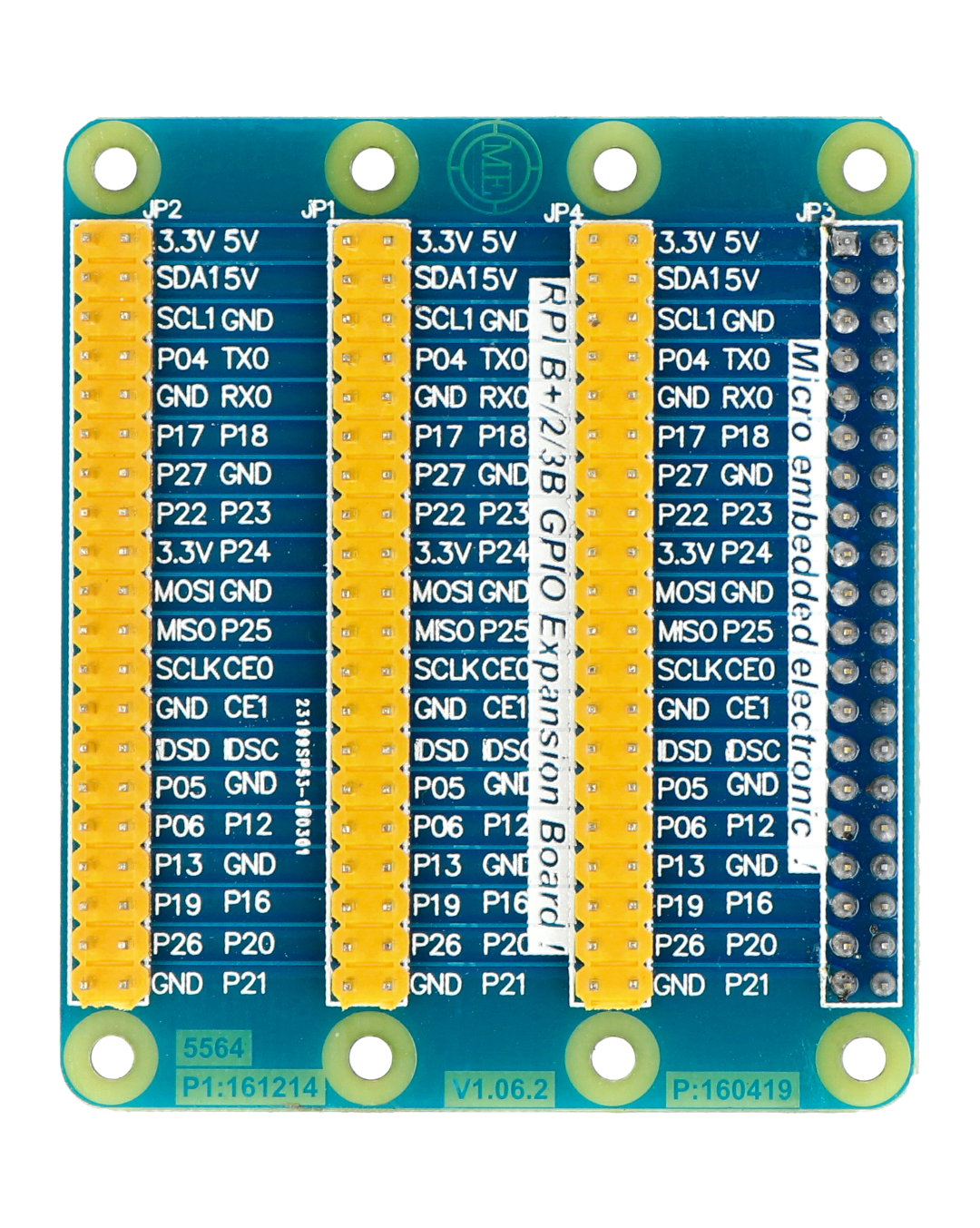

GPIO shielad - top view. Pins were signed on board.
