Product description: NVMe Base Duo expansion board - for Raspberry Pi 5 - Pimoroni PIM704
NVMe Base Duo is a PCIe Gen 2 expansion board designed specifically for Raspberry Pi 5 . It allows you to connect one or two NVMe SSD drives (sizes from 2230 to 2280) using M-Key slots, which provides instant access to data and large storage capacity. You can mount it below or above the Raspberry Pi . This extension is ideal for creating file servers, multimedia centers, proxy servers, home automation systems with built-in backup and many other applications. NVMe Base Duo complies with the new "PIP" (Pi Interface Protocol) guidelines provided by Raspberry Pi, ensuring ease of use and long-term support through Raspberry Pi OS updates. Currently, you cannot boot from NVMe drives connected to the NVMe Base Duo, but this will be possible in future firmware updates. The kit includes an NVMe Base board with an M.2 slot, a PCIe Flex cable , rubber feet for stability, and a set of screws and spacers needed to mount the SSD and the board itself.
The manufacturer has prepared a user guide that makes it much easier to start working with the NVMe Base Duo expansion board for Raspberry Pi 5.

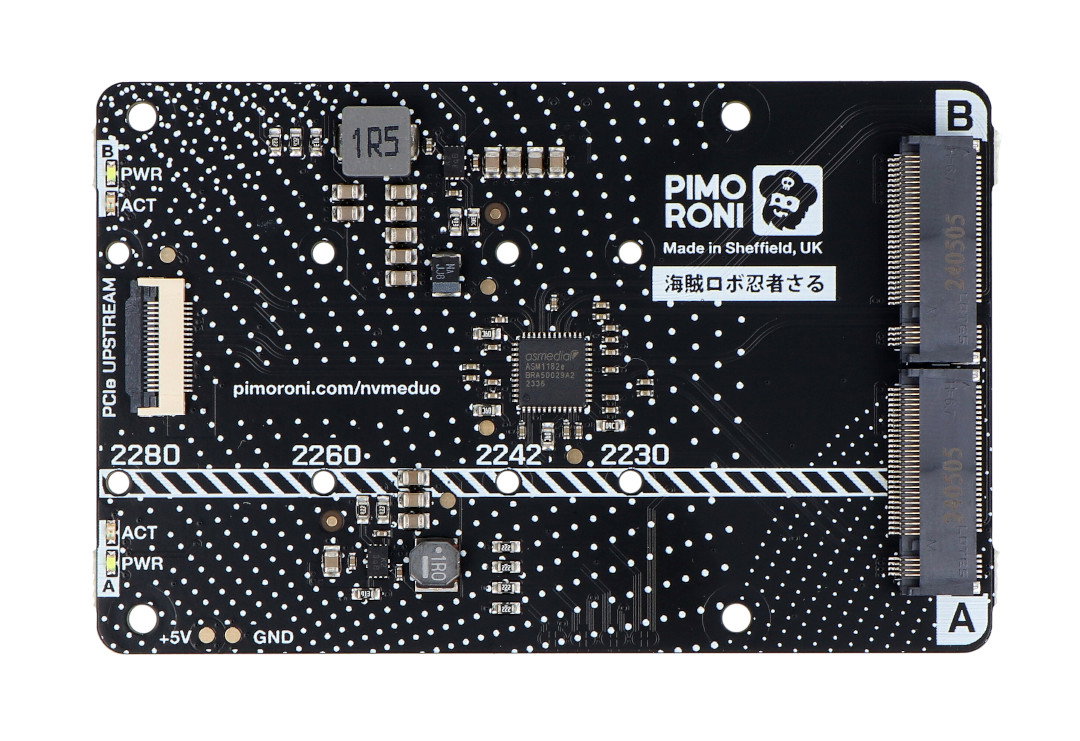

NVMe Base Duo expansion board - for Raspberry Pi 5 - Pimoroni PIM704.

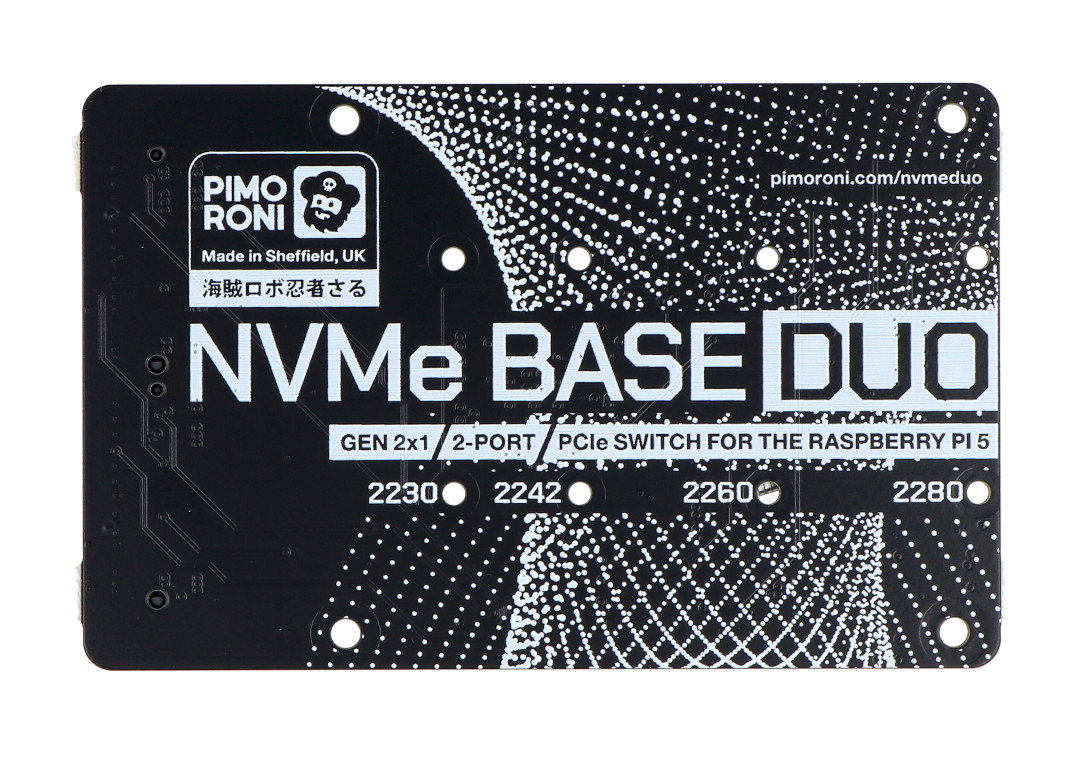

The board allows you to connect one or two NVMe SSD drives to Raspberry Pi 5.
Special features of NVMe Base Duo
- PCIe Gen 2 : PCIe Gen 2 extension for Raspberry Pi 5.
- M-Key NVMe SSD : Supports one or two NVMe SSDs (sizes 2230-2280).
- Compact installation : can be mounted above or below the Raspberry Pi.
- PIP Compliant : Complies with "PIP" guidelines for long-term support and ease of use.
- Plug-and-Play : simple installation, no need to modify configuration files.
- Performance : The extension is ideal for tasks requiring large amounts of data storage, such as file servers, media centers, etc.
The set does not include the Raspberry Pi 5 minicomputer and the NVMe disk. Our offer includes Raspberry Pi 5 4 GB and Raspberry Pi 5 8 GB .
Technical specifications of the NVMe Base board
- Interface: PCIe Gen 2 x1
- Disk support: M.2 NVMe sizes from 2230 to 2280 (a detailed list of compatible disk models is described on the manufacturer's website )
- Port access: 2x M.2 (M-Key) for mounting NVMe SSDs and PCIe for connecting the board to Raspberry Pi 5
- Compatibility: Raspberry Pi 5
- Mounting under or above Raspberry Pi 5
- Black colour
- Dimensions: 87.5 x 56 mm
Set contents
- NVMe Base Duo PCB with two M.2 (M-Key) slots
- PCIe Flex flat cable
- 4x rubber feet
- 4x M2 screws
- 2x 5 mm washers
- 4x M2.5 spacers, 12 mm long
- 8x short M2.5 screws
- 4x M2.5 20 mm screws

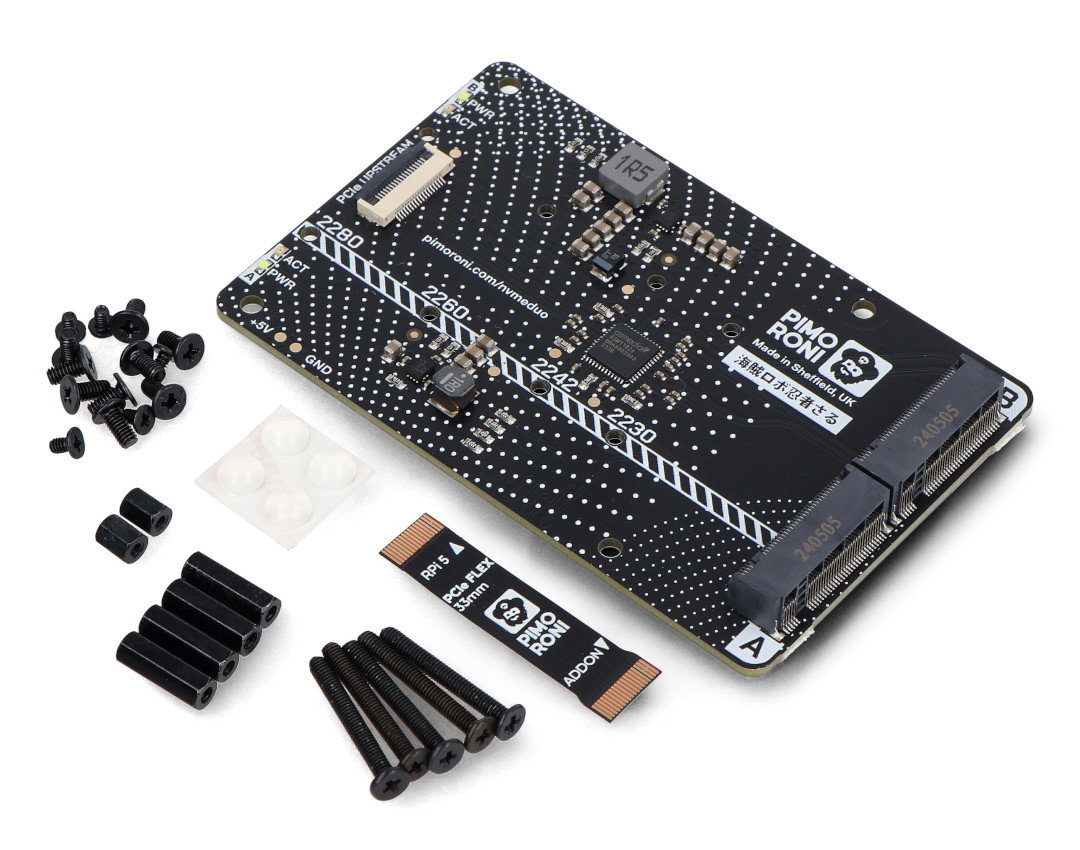

Elements included in the set.
