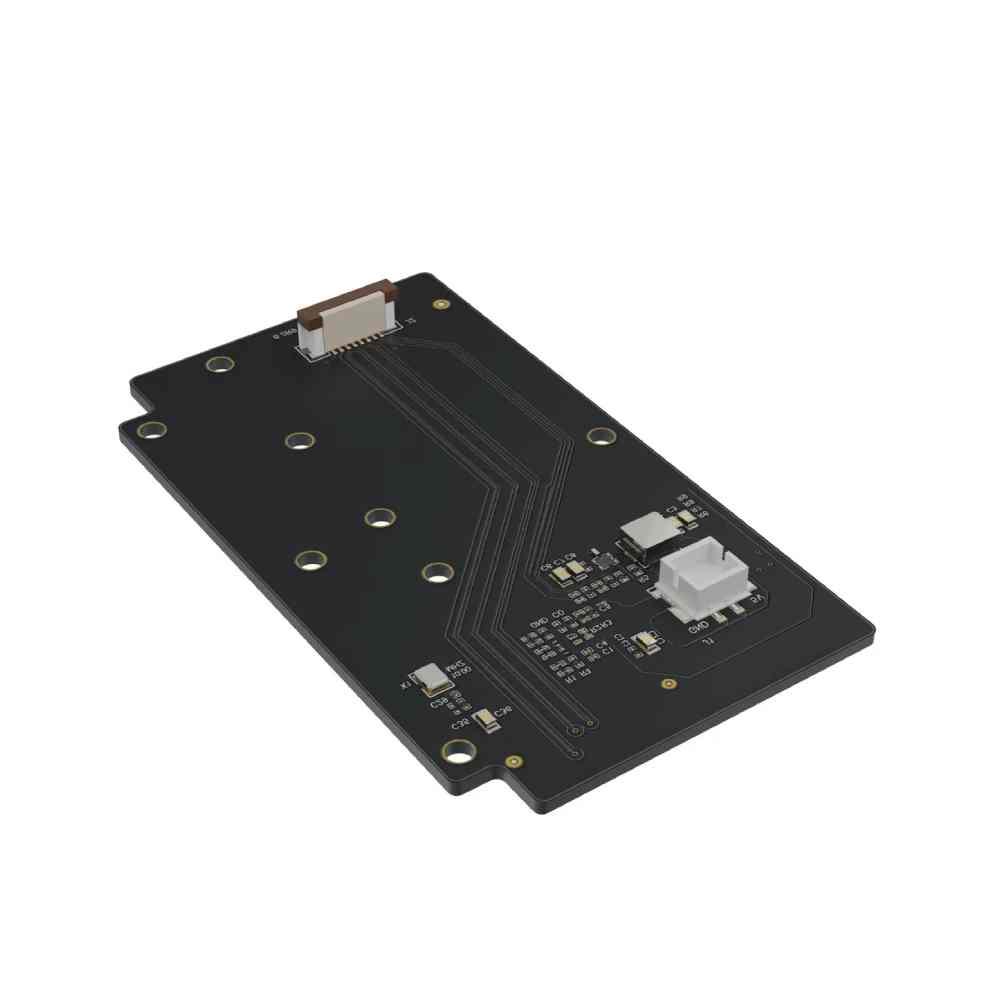

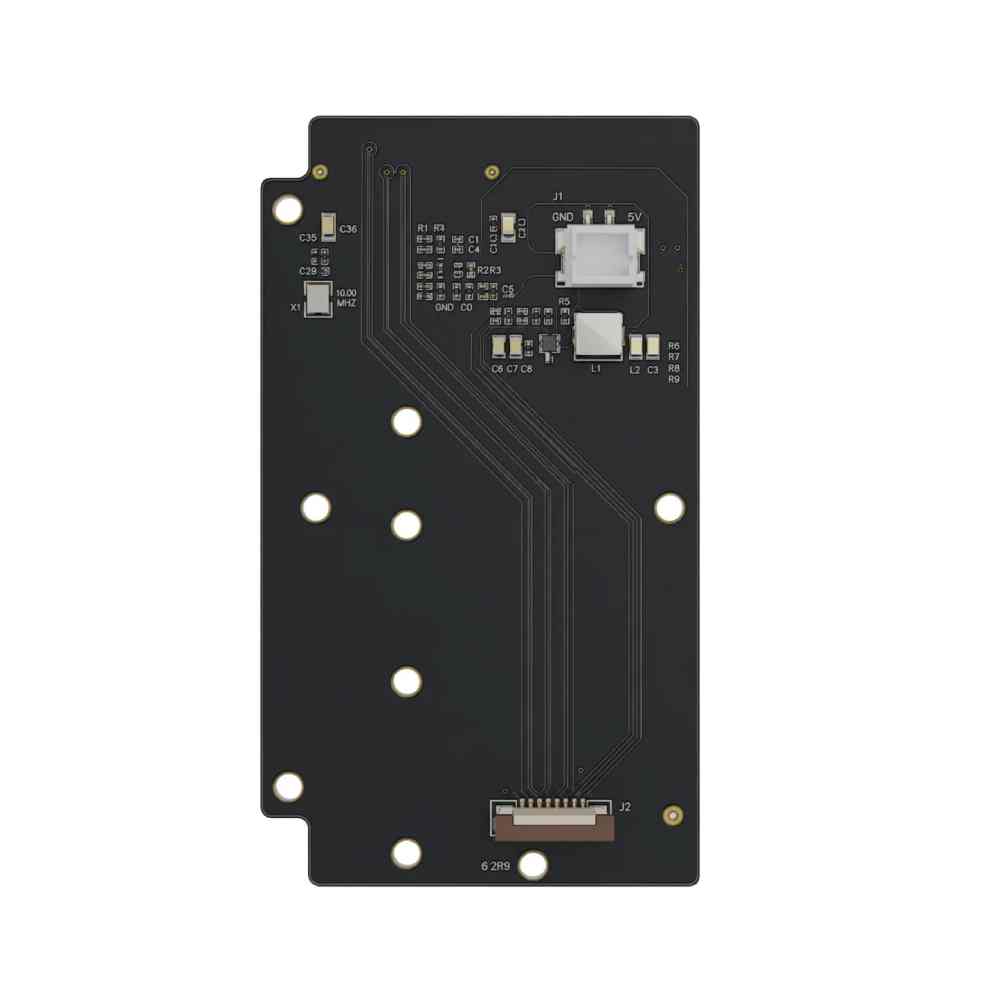

Product description: Argon ONE V5 M.2 NVMe - M.2 NVMe expansion board for Raspberry Pi 5
The Argon ONE V5 M.2 NVMe is a practical M.2 NVMe expansion board for the Raspberry Pi 5 , designed to work with the Argon ONE V5 enclosure. This module allows you to expand your mini-PC with a fast NVMe SSD , providing significantly more efficient data access than a standard microSD card. It's a good solution for users who want to use the Raspberry Pi 5 as a server, media center, NAS system, Home Assistant platform, or computer for working with larger amounts of data.
The board is equipped with a single M.2 NVMe PCIe slot , supporting M-Key drives up to 2280. This allows you to use many popular SSD media available on the market, increasing the storage capacity and speed of the Raspberry Pi 5.
The kit includes the expansion board only. The Raspberry Pi 5 , Argon ONE V5 case, and M.2 NVMe drive are not included.
Argon ONE V5 M.2 NVMe - M.2 NVMe expansion board for Raspberry Pi 5.
The Argon ONE V5 M.2 NVMe is a practical M.2 NVMe expansion board for the Raspberry Pi 5.Detailed features
- Storage Expansion: Allows you to connect a fast M.2 NVMe SSD to your Raspberry Pi 5
- Single NVMe PCIe slot: The module allows you to use a single M.2 NVMe drive as high-performance system memory or data storage
- M-Key support: the board works with M.2 NVMe drives equipped with M-Key
- Up to 2280 drive format: Compatible with popular M.2 SSDs up to 2280
- Better performance than microSD: NVMe drives provide faster read and write speeds than standard memory cards
- Compatibility with Argon ONE V5: the module is designed to expand sets based on the Argon ONE V5 housing
- Broad drive compatibility: the manufacturer has tested the module with many popular NVMe drives from different brands
- Application in server projects: the board is suitable for NAS, Home Assistant, file servers, backup systems and IoT projects
Technical specifications
- Compatibility: Raspberry Pi 5, Argon ONE V5 case
- Number of NVMe slots: 1
- Supported drives: M.2 NVMe
- Disk Key: M-Key
- Maximum disk size: 2280
- Interface: PCIe
- Examples of compatible drives: Argon Dataterm, Official Raspberry Pi SSD, Western Digital SN850, SN740, SN570, SN530, WD Blue SN580 NVMe, Samsung 980 Pro, Samsung 980, Sabrent Rocket, PNY CS1030, Lexar NM710, Lexar NM620, Kioxia Exceria, Kingston KC3000, Crucial P2, AData XPG SX8200 Pro

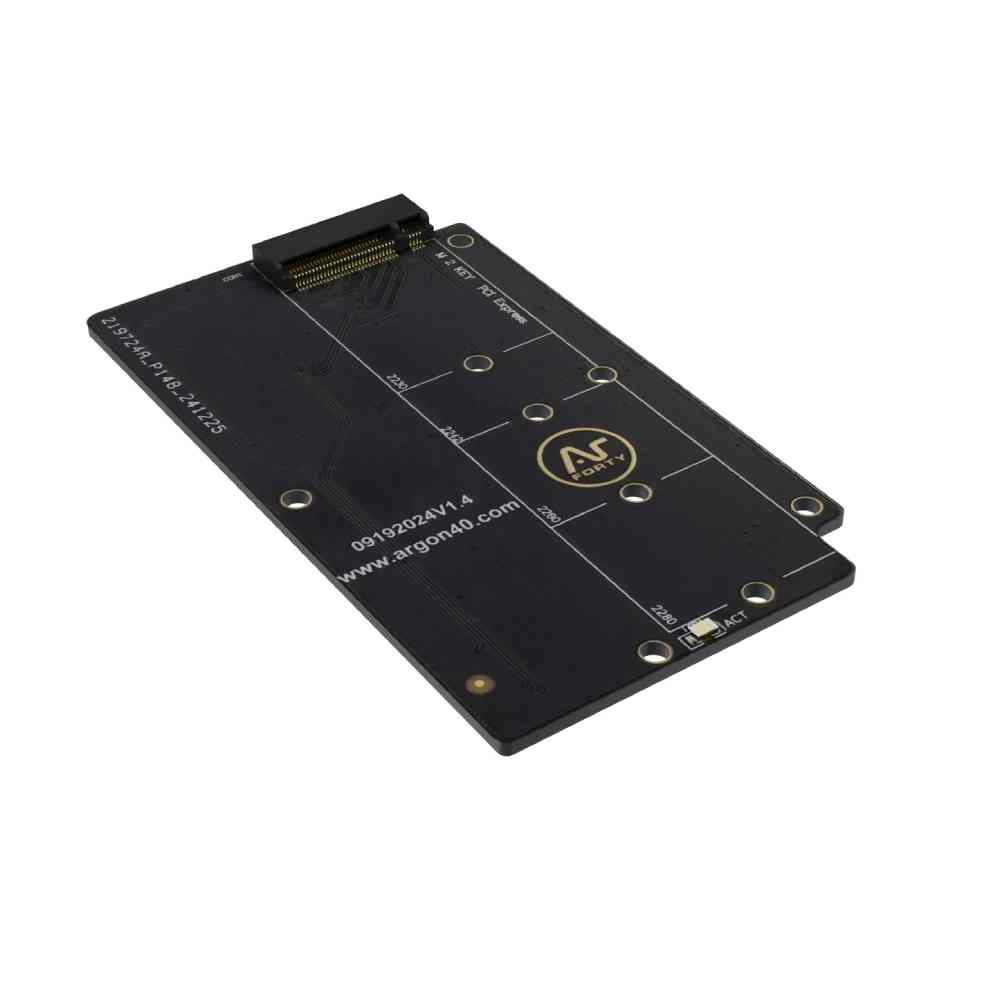

The board is equipped with a single M.2 NVMe PCIe slot, supporting M-Key drives up to 2280 in size.
