LTE GPS HAT - LTE / GPRS / GPS SIM7600E-H - for Raspberry 4B/3B+/3B/2B/Zero - Waveshare 14952

Index: WSR-12533 EAN: 5904422319519

Shield for Raspberry Pi that allows you to send text messages and create calls in the GSM network. It also has a GPS module. It supports LTE CAT4 up to 150 Mbps. It communicates via serial interface UART (RX, TX) using the AT command.

LTE GPS HAT - LTE / GPRS / GPS SIM7600E-H - for Raspberry 4B/3B+/3B/2B/Zero - Waveshare 14952
€82.24
€66.86 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Description

The module working witha Raspberry Pi that provides the GSM and GPRS communication. It allows for voice chat, sending SMS messages. It also has built-in GPS module. It supports LTE CAT1. On the Board are: connector for SIM-card u.FL dlot for mounting an externalantennaand connector mini-jack for microphone or headphones.

The subject of the sale is a shield, minicomputerRaspberry Pican be purchased separately.

Applied SIM7000E module provides a connection through the network GPRS/LTE, it also has a GPS module. On the board is the slot for SIM card and slot mini Jack 3.5 mm.

Attention!

System SIM7600E-H supports a range of region of Europe, Africa, South-Eastj Asia and Western Asia, before buying, you should make sure that the operator supports the given range.

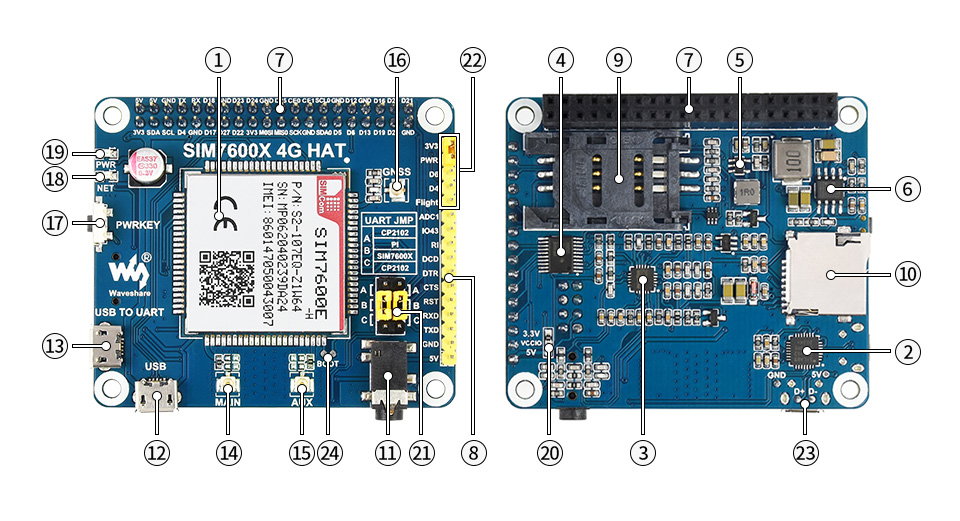

What's on the Board

  1. System SIM7600E-H
  2. Converter USB-UART CP2102
  3. Audio decoder NAU8810
  4. Voltage transistor TXS0108EPWR: reduce 3.3 V/ 5 V to 1.8 V
  5. Power system MP2128DT
  6. Power system MP1482
  7. GPIO connector of the Raspberry Pi
  8. The management interface SIM7600: enables the connection of the module forArduino/STM32
  9. Slot for SIM card: supports the SIM card 1.8 V / 3 V
  10. The microSD card slot: allows you to store SMS files
  11. Connector of 3.5 mm mini jack for microphone / headphone
  12. USB connector: for testing AT commands, downloading GPS data, etc.
  13. USB - UART interface: for debugging the serial
  14. Main antenna connector
  15. Antenna connector AUX
  16. Antenna connector GNSS
  17. The power switch
  18. LED indicating the network
  19. LED indicating the power
  20. Jumper changing the input voltage:
    • VCCIO - 3.3 V: sets the voltage of 3.3 V
    • VCCIO - 5 V: sets the voltage 5 V
  21. The choice of UART
      1. access to Raspberry Pi via USB - UART
      2. management of SIM7600 using Raspberry Pi
      3. management of SIM7600 via USB - UART
  22. Zworka konfiguracji PWR
  23. Pola lutownicze na złącze USB
  24. BOOT

Specification

  • Supply voltage: 5 V
  • Working voltage: 5 V / 3.3 V (by default - 3.3 V)
  • Moduł controlled with AT commands
  • Built-in GSM/LTE/GPS SIM7600E-H module:
    • 6-band LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20
    • 3-band LTE-FDD: B38 / B40 / B41
    • 3-band UMTS/HSPA+: B1 / B5 / B8
    • GSM/GPRS/EDGE 900 / 1800 MHz
    • UMTS: 384 Kbps (up), 384 Kb/s (down)
    • HSPA+: 5.76 Mbps/sec (up), 42 Mbps (down)
    • EDGE: 236.8 kbps (up), 236.8 kbps (down)
    • GPRS 85.6 kbps (up), 85.6 kbps (down)
    • Output power:
      • GSM900: 2 W
      • GSM1800: 1 W
      • EGSM900: 0.5 W
      • DCS1800: 0.4 W
      • LTE: 0.25 W
    • Generation:
      • LTE: 4G
      • WCDMA / TD-SCDMA / CDMA 2000: 3G
      • EDGE: 2.5 G
      • GSM/GPRS: 2G
    • Operating temperature: -30 °C to 80 °C
    • GNSS (GPS, GLONASS)
    • Type of receiver:
      • 16-channel
      • The C/A code
    • Frequency:
      • Tracking: -159 dBm (GPS) / -158 dBm (GLONASS)
      • Cold start: -148 dBm
    • Time-To-First-Fix
      • Cold start: <35 sec
      • Hot start: < 1 sec
    • Accuracy:
      • Position: < 2.5 m CEP
  • The GNSS and GPRS antenna for U. FL connector
  • Board sizes: 56 x 65 mm

Set includes

  • Shield with module SIM7600E-H
  • Antenna GSM SMA
  • GPS SMA antenna
  • 2x microUSB cable
  • 2x adapter SMA - u.Fl
  • Screws and spacers



Voltage to 5.0 V
Voltage from 5.0 V
Interface UART
GPS - Accuracy -159 dBm
