RPi Relay Board (B) IC Test Board - Waveshare 15275
Shield for Raspberry Pi 3 / 2 / B+ / Zero / Zero W enabling the control of up to 16 servos. It communicates via I2C interface and is based on PCA9685 system.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Shield for Raspberry Pi 3 / 2 / B+ / Zero / Zero W enabling the control of up to16 servos. It communicates viaI2Cinterface and is based onPCA9685system. Servos are powered with the voltage of5 V and a logic part works on3.3 V,the maximum current which a modulecan give is3 A. The board consumes the current directly from the pin 5 V Raspberry Pi, but for maintaining the servos, we recommend connecting additional power supply from 6 V to 12 Vvia a dual connector ARK. The kit has metal spacers with screws for mounting.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
The product is compatible with Raspberry Pi The manufacturer provides auser manualandexample of source code. |
Specification
- Disposition: PCA9685
- Power supply:
- 5 V directly from the RPI
- from 6 V to 12 V via ARK connector
- Communication: I2C (2 pins)
- Connecting: directly to the GPIO of the Raspberry
- Possibility of connecting up to: 16 servos
- Resolution: 12 bit per channel
- Supply voltage of servos: 5 V
- Voltage of logic of servos: 3.3 V
- Maximum current: 3 A

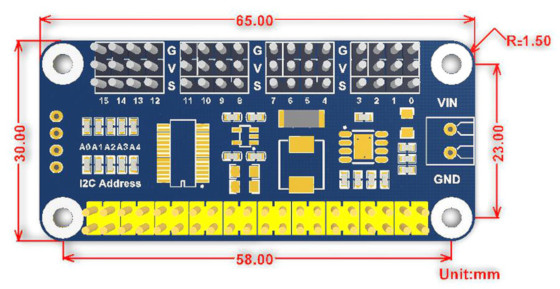

- Dimensions: 65 x 30 mm
Useful links
| Name | Value |
|---|---|
| Voltage to | 5.0 V |
| Voltage from | 12.0 V |
| Current | 4 A |
| Channels | 16 |
| Width | 5.2 cm |
| Height | 2.4 cm |
| Depth | 7.1 cm |
| Weight | 0.025 kg |
