Product description: IO Expansion HAT - Expansion HAT - Expander for Raspberry Pi 4B/3B+/3B/2B
Overlay forRaspberry Pimini-computerin 4B / 3B+ / 3B / 2B version, whereindividual sections ofRaspberry Pioutputs have been separated, such as: digital, analog, PWM, I2C, UART SPI, I2C pins, together with an additional VCC and GND power supply pin. Additionally, the module is equipped with an ARK connector for external power supply from 6 V to 12 V for PWM.
The subject of sale is an overlay,Raspberry Piminicomputer can be purchased separately.

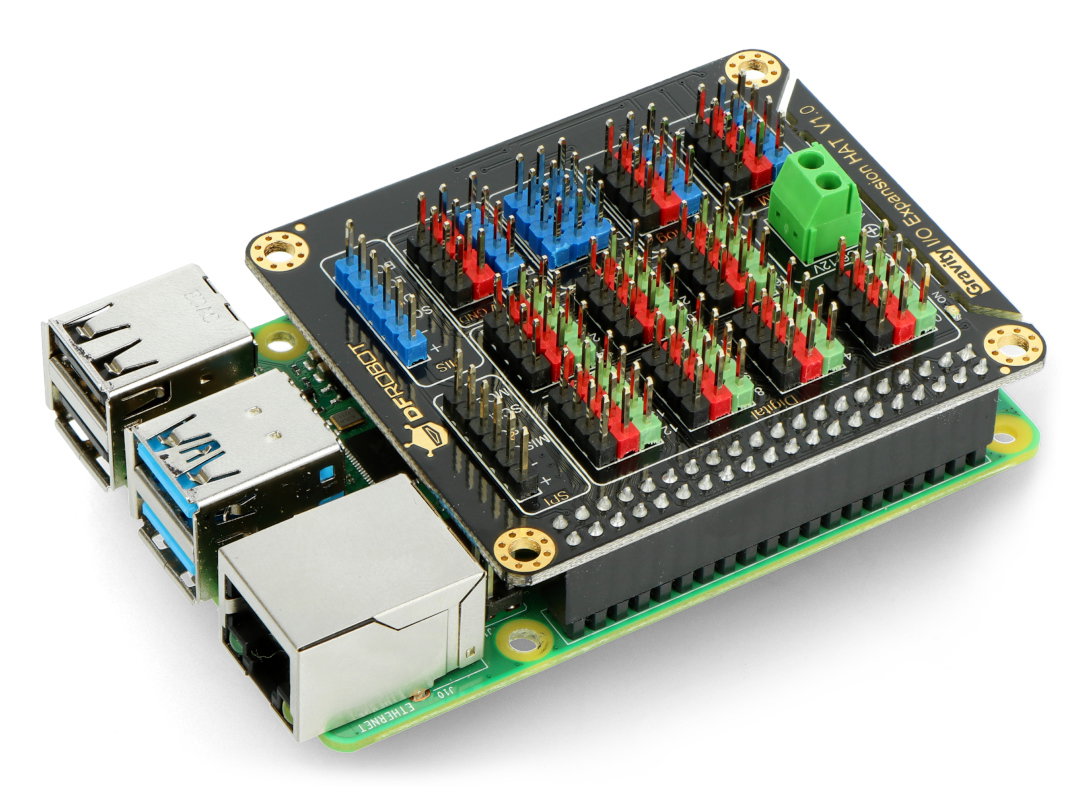

The layout of the components on the board.
|
Product compatible withRaspberry Pi The manufacturer has prepared auser guidefor Raspberry Pi users. |
The overlay is compatible with the Gravity sensor series. The GPIO Raspberry Pi pins work with a maximum voltage of 3.3V. In addition to the sensors and modules powered at 3.3 volts, the product also supports:
- modules and sensors powered by 5 V with 3.3 V logic.
- external power supply from 6 V to 12 V for PWM channels
- controlling multiple servos
IO Expansion HAT overlay specification
- The tension of work: 5 V
- External PWM port power supply: 6 V to 12 V
- The voltage of the logical part: 3,3 V
- Dimensions: 65 x 56 mm
