Description

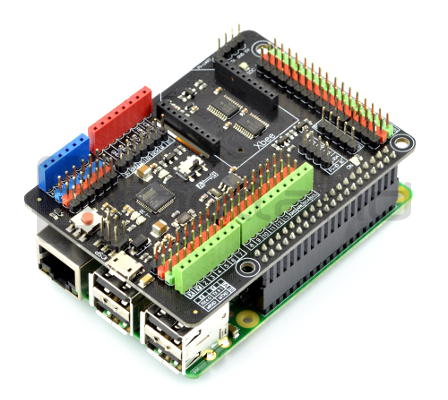

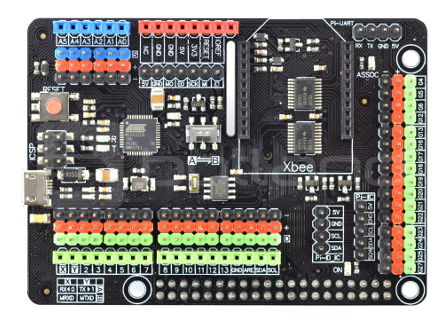

Shield for Raspberry Pi with ATmega32u4 microcontroller known from Arduino Leonardo. Board allows you to combine the computing power of the Raspberry Pi with control functions of the Arduino. For example, when designing a mobile robot - minicomputer, because of the computing performance, it can perform the functions of the main brain, while the Arduino will support sensors, motors of servos, etc.
Board is suitable for connectors of the Raspberry Pi, a detailed description can be found inthe user guide.
Specification
- Working Voltage: 5 V
- The module is compatible with Arduino Leonardo:
- Microcontroller: ATmega32u4
- The number of digital pins: 20
- The number of PWM channels: 7
- Number of analog inputs: 12
- Flash memory: 32 KB (4 KB is reserved for bootloader)
- SRAM memory: 2.5 KB
- EEPROM memory: 1 KB
- The module works withRaspberry Pi 3B/2B/B+
- Led-out GPIO pins: 16
- Led-out interfaces: I2C, ID_I2C, SPI, UART
- The possibility of installation of the shields, the so-calledArduino Shield
- Connector for direct attachment of wireless communication module XBee
- Slot for the battery CR1220- battery sold separately
- Board sizes: 88 x 56 x 26 mm
The Board has also connectors to attach the wireless communication module XBee.
Included
- Main board
- USB cable of 20 cm
