Product description: Ethernet / USB (B) HUB - 3x USB 1x RJ45 Ethernet - overlay for Raspberry Pi - Waveshare 20416
A practical overlay for Raspberry Pi in the form of a port hub, adding three USB ports and one RJ45 Ethernet port. It has a built in Ethernet RTL8152B chip. The pinout of the pogo allows the overlay to connect directly to Raspberry Pi Zero / Zero W / Zero WH. In addition, the overlay is also compatible with Raspberry Pi 4B / 3B+ / 3A+ / 2B, with which it connects via a USB cable (not included, to be purchased separately).
Compatible with Raspberry Pi!
The Ethernet / USB HUB overlay is compatible with Raspberry Pi Zero series by directly plugging in via pogo pins, and with Raspberry Pi 4B / 3B+ / 3A+ / 2B by connecting via cable.
Ethernet / USB HUB - 3x USB 1x RJ45 Ethernet overlay for Raspberry Pi - Waveshare 20416.

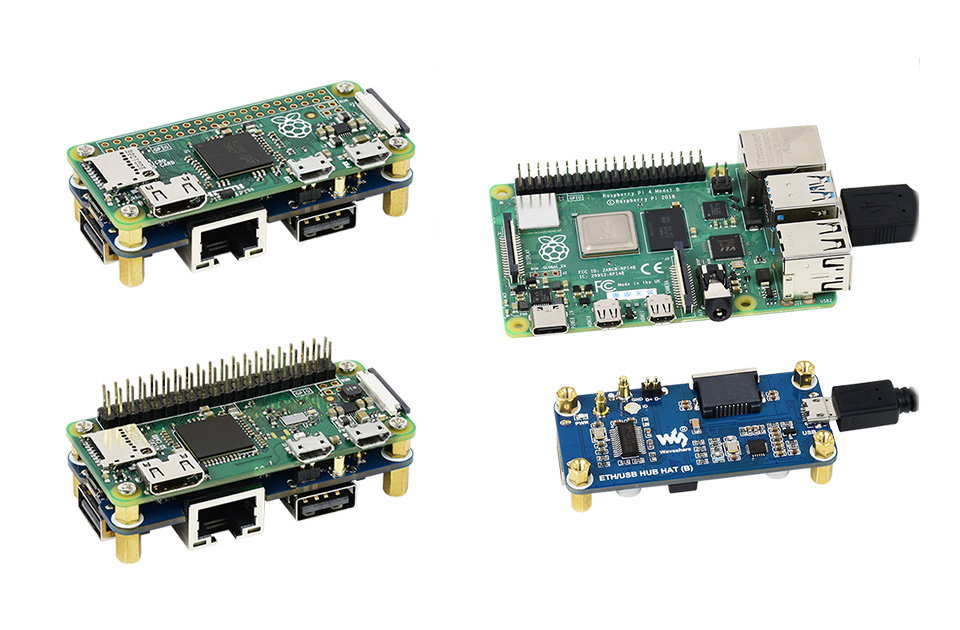

Connection of overlay with different versions of Raspberry Pi. Only the overlay is sold, Raspberry Pi can be purchased separately.
Ethernet / USB HUB overlay features
- 3x extended USB ports, compatible with USB 2.0 / 1.1
- Built-in Ethernet RTL8152B chip
- Pins design suitable for direct connection to Raspberry Pi Zero / Zero W / Zero WH
- Equipped with additional USB connector to connect to Raspberry Pi 4B / 3B+ / 3A+ / 2B via USB cable
How will you use the Ethernet / USB HUB cap?
The Raspberry Pi Lead Expander will be perfect for any project requiring connecting your Raspberry Pi board with more peripherals. It will also prove useful when connecting expansion modules that communicate via USB or Ethernet ports.
Technical specification of the overlay
- Application: Raspberry Pi Zero / Zero W / Zero WH / 4B / 3B+ / 3A+ / 2B series
- Overlay type: hub
- Overlay ports:
- 3x USB 2.0
- 1x Ethernet RJ45
- Embedded chip: RTL8152B
- Overlay dimensions: 65 x 30 mm

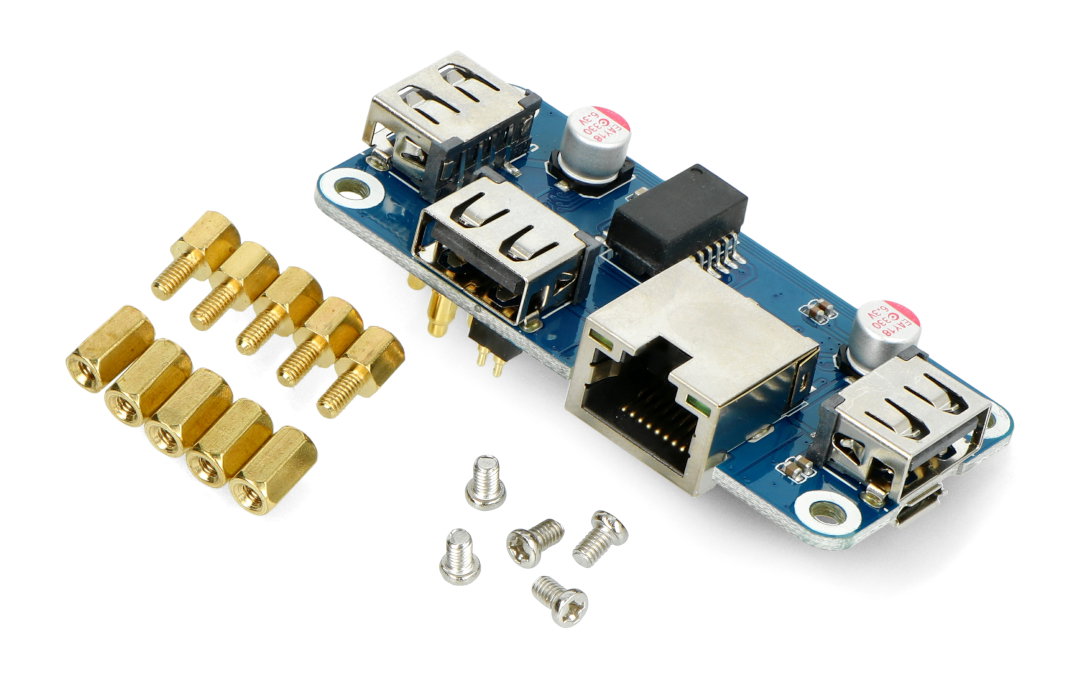

Contents of the kit
- Ethernet / USB HUB - 3x USB 1x RJ45 Ethernet - overlay for Raspberry Pi - Waveshare 20416
- Female to female spacers - 5 pieces
- Female-female spacers - 5 pieces
- Mounting screws - 5 pieces
The kit includes the necessary mounting hardware.
