Product description: ProtoMate universal printed circuit board for Raspberry Pi Zero - PiHut 106568

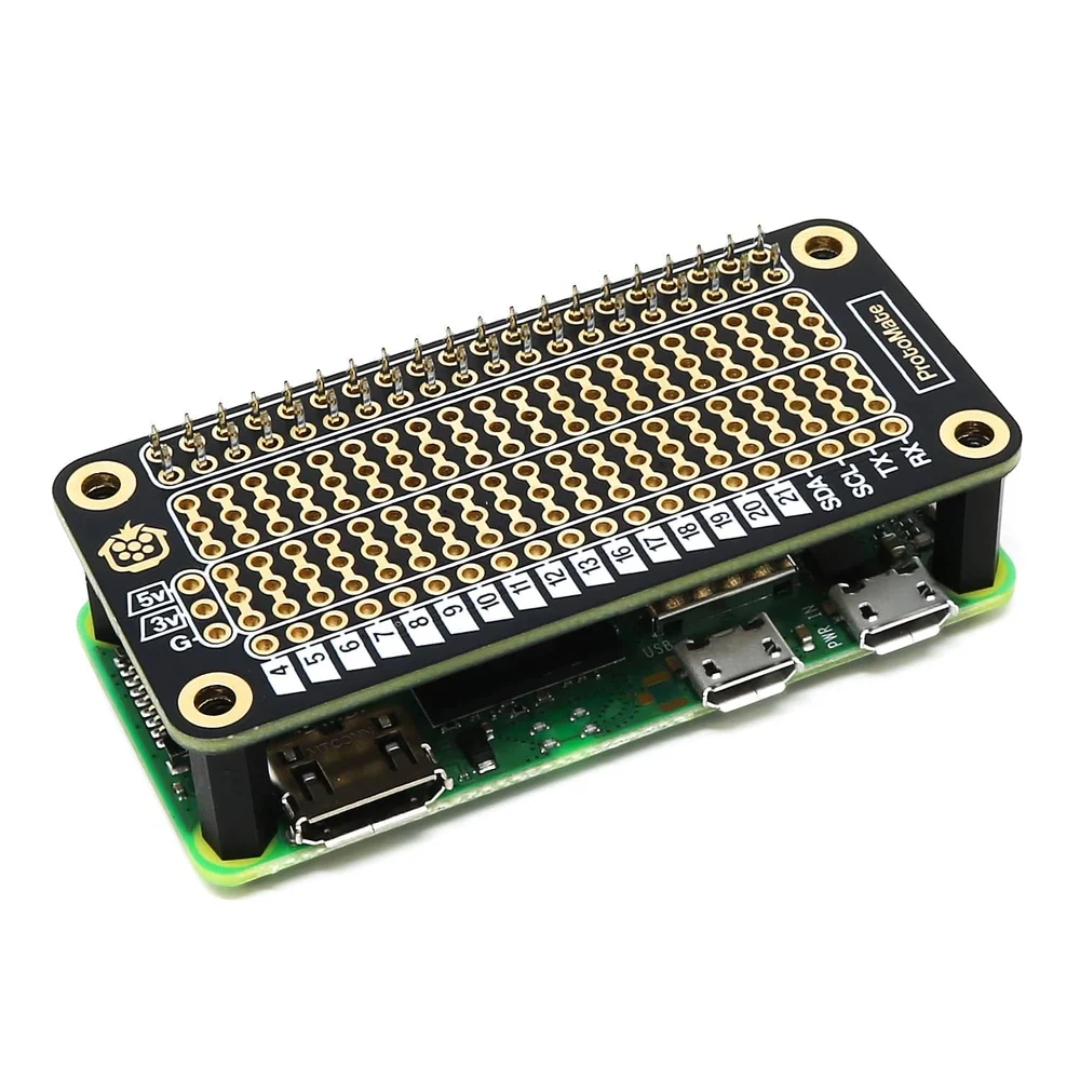

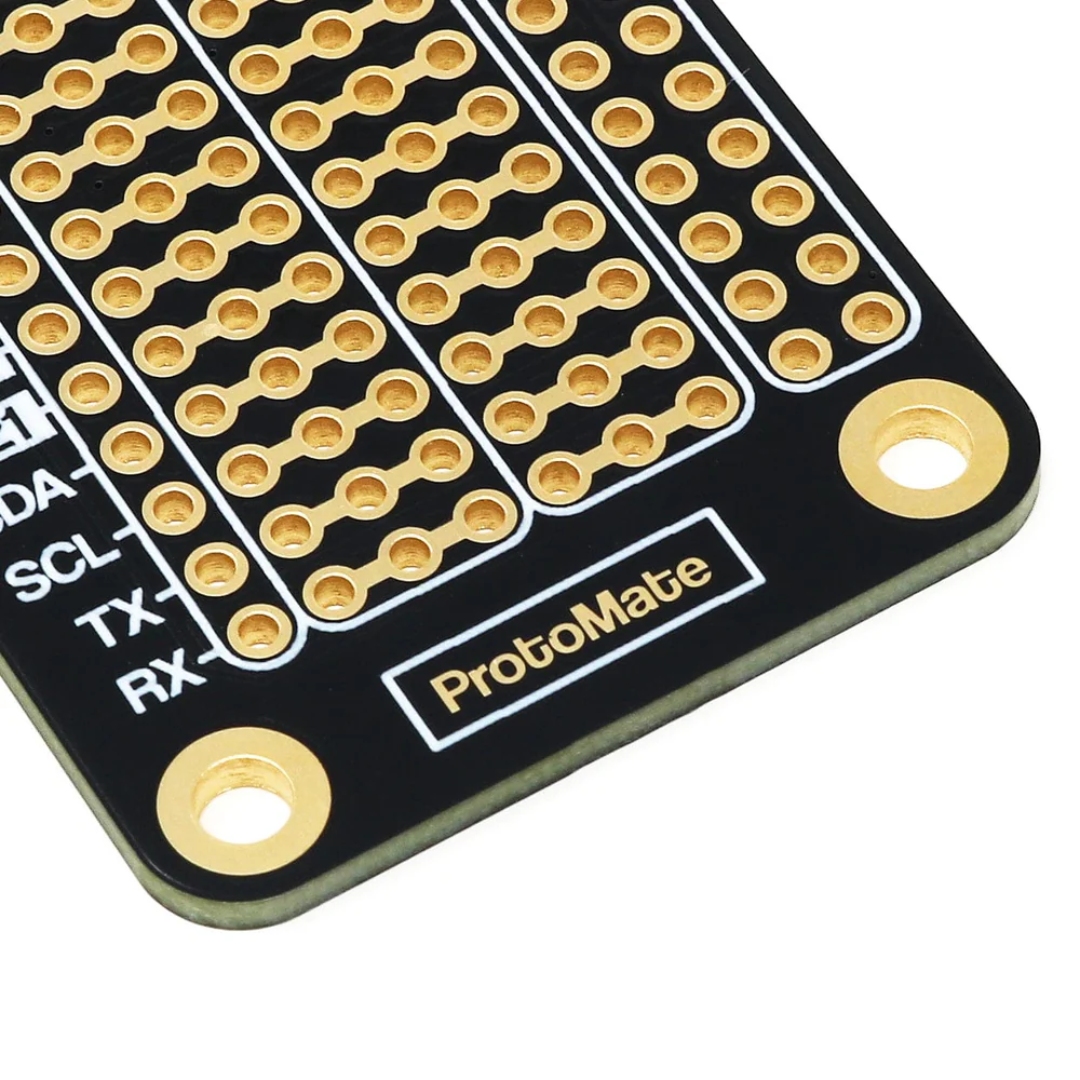

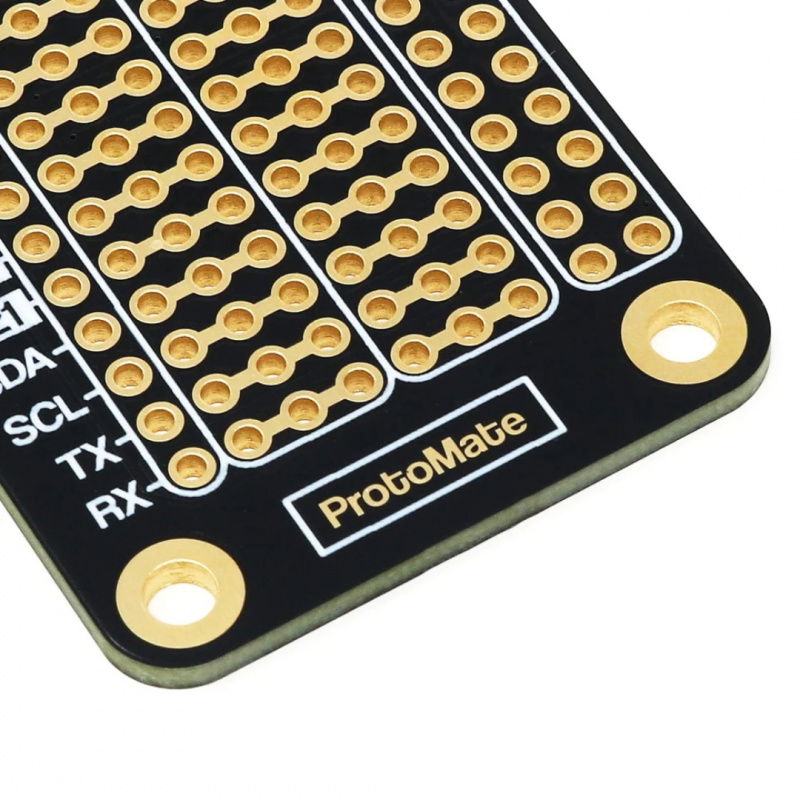

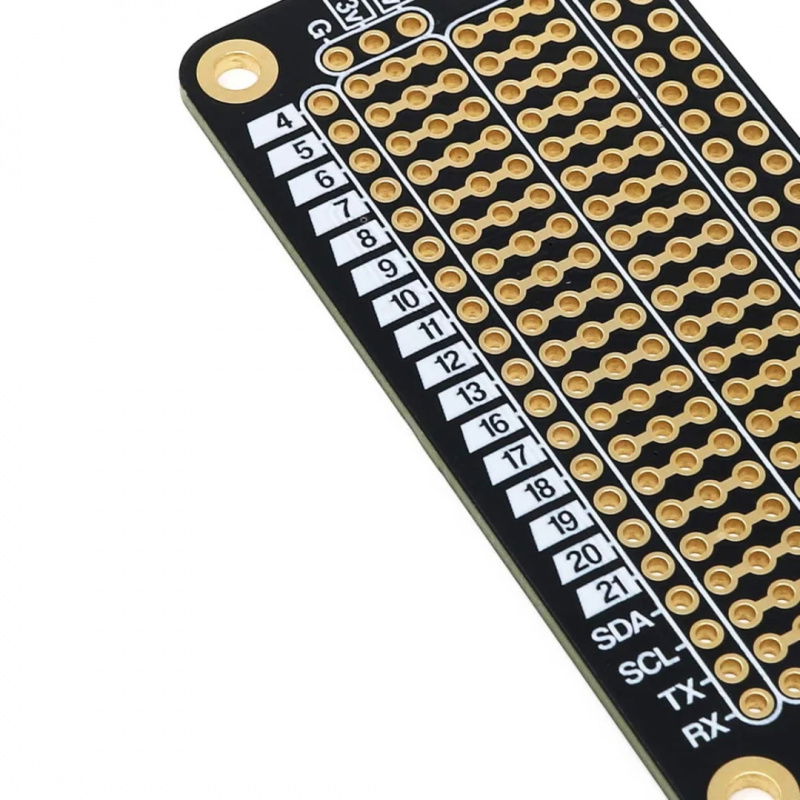

ProtoMate allows you to transfer prototype designs from a breadboard to a permanent, solderable pHAT design . The board features a solder area where pads/holes are connected into tracks , making it easy to create and organize your own circuits. By connecting all the necessary GPIO pins, including 16 standard ones, as well as pins for I2C, serial port, 5V and 3.3V power, and GND , users can fully utilize the Raspberry Pi Zero's capabilities. The tracks can be cut if necessary, and the gold-plated PCB (ENIG) ensures durability and oxidation resistance. A GPIO header is included, preferably mounted end-on to facilitate soldering components from the bottom. The module is compatible with the Raspberry Pi Zero and other 40-pin microcomputers, and M2.5 mounting holes facilitate stable board mounting.
ProtoMate Universal Printed Circuit Board for Raspberry Pi Zero - PiHut 106568.
ProtoMate allows you to move prototype designs from a breadboard to a permanent, solderable structure in pHAT format.Special features
- Prototype board: allows for quick and easy soldering of components in connected tracks
- GPIO pins: 16 standard pins, I2C and serial ports, and 5V and 3.3V power supply with GND
- Durable construction: Gold-plated PCB (ENIG) for increased oxidation resistance and long life
- Design flexibility: ability to cut paths between tracks to create independent circuits
- Easy assembly: M2.5 holes fit the Raspberry Pi Zero
Practical applications
- Soldering and prototyping circuits for the Raspberry Pi Zero
- Create stable and durable designs instead of using a breadboard
- Connecting Sensors, Modules, and Other Components to the Raspberry Pi Zero
- Perfect for hobbyists and professionals designing small electronic devices
Technical specifications of the board
- Format: HAT compatible with 40-pin formats and Raspberry Pi Zero
- Pinout: 16 standard GPIOs, I2C, serial port, 5V, 3.3V, GND
- Material: Gold-plated PCB (ENIG)
- Mounting holes: M2.5
- Dimensions: 30 x 65 mm
Contents of the set

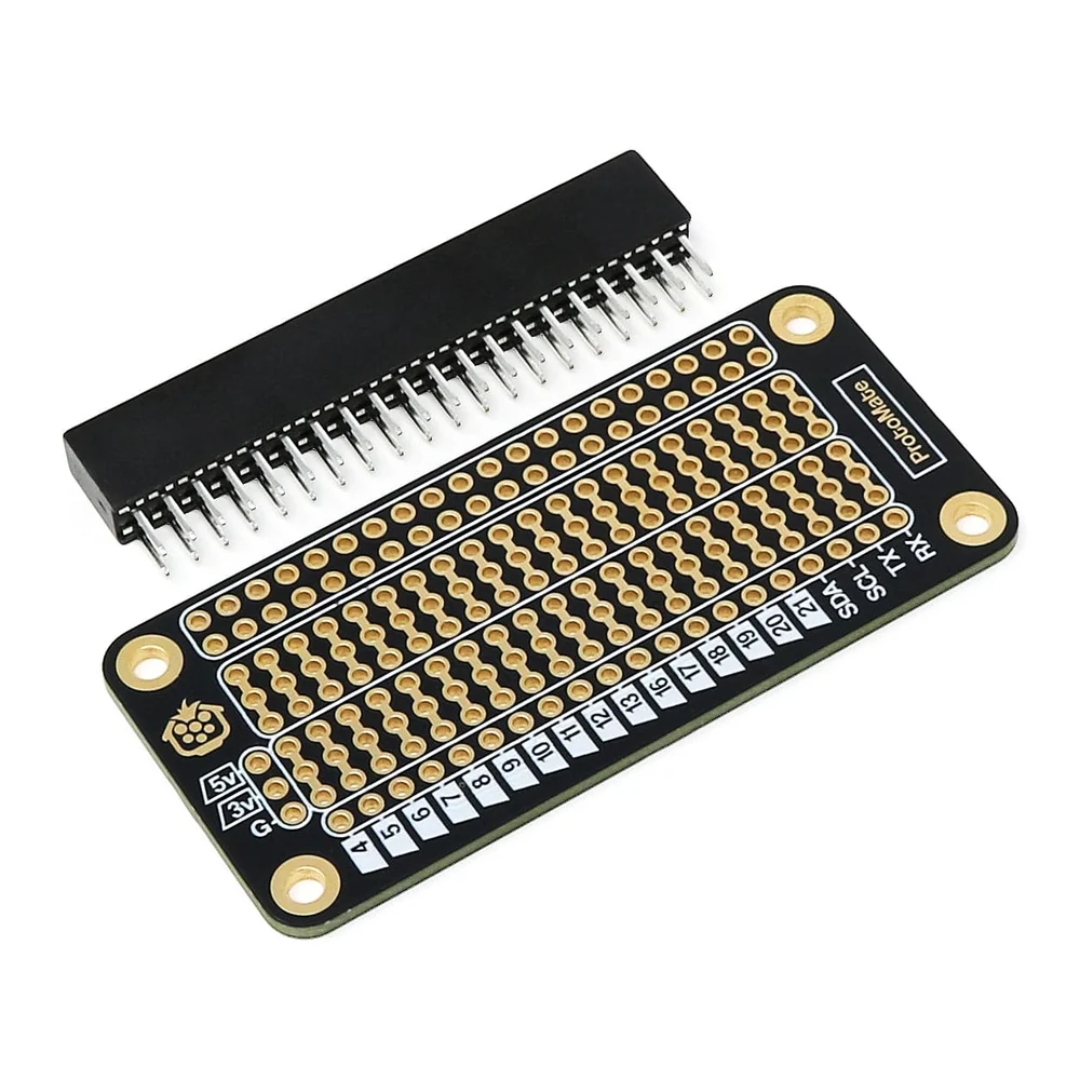

- 1x ProtoMate for Raspberry Pi Zero
- 1x GPIO strip
The module is compatible with the dimensions of the Raspberry Pi Zero and other 40-pin microcomputers, and the M2.5 mounting holes facilitate stable mounting of the board. Useful links |
