Product description: Argon ONE V5 Dual M.2 NVMe - board with 2 M.2 NVMe slots for Raspberry Pi 5
The Argon ONE V5 Dual M.2 NVMe Expansion Board Only is a practical expansion board with two M.2 NVMe slots for the Raspberry Pi 5 , designed to work with the Argon ONE V5 enclosure. This board expands the mini-computer with two fast NVMe SSDs, providing significantly more data space and higher performance than a standard microSD card. It's a good solution for users who want to use the Raspberry Pi 5 as a file server, NAS system, Home Assistant platform, multimedia center, or workspace for larger data volumes.
The board is equipped with two M.2 NVMe PCIe slots , supporting M-Key drives up to 2280 in size. The manufacturer states that in this version the speed is limited to the PCIe Gen 2.0 standard, i.e. up to 500 MB/s per lane.
The kit includes the expansion board only. The Raspberry Pi 5, Argon ONE V5 case, and M.2 NVMe drives are not included.
Argon ONE V5 Dual M.2 NVMe - expansion board with 2 M.2 NVMe slots for Raspberry Pi 5.
Argon ONE V5 Dual M.2 NVMe is a practical expansion board with 2 M.2 NVMe slots for Raspberry Pi 5Special features
- Storage Expansion: Allows you to connect two fast M.2 NVMe SSDs to your Raspberry Pi 5
- Dual NVMe PCIe slots: The module allows you to use two M.2 NVMe drives as high-performance system memory or data storage
- M-Key support: the board works with M.2 NVMe drives equipped with M-Key
- Up to 2280 drive format: Compatible with popular M.2 SSDs up to 2280
- Speed up to 500 MB/s per lane: Dual version works limited to PCIe Gen 2.0 standard
- Better performance than microSD: NVMe drives provide faster read and write speeds than a standard memory card
- Compatibility with Argon ONE V5: the module is designed to expand sets based on the Argon ONE V5 housing
- Broad drive compatibility: the manufacturer has tested the module with many popular NVMe drives from different brands
- Application in server projects: the board is suitable for NAS, Home Assistant, file servers, backup systems and IoT projects
Technical specifications
- Compatibility: Raspberry Pi 5, Argon ONE V5 case
- Number of NVMe slots: 2
- Supported drives: M.2 NVMe
- Disk Key: M-Key
- Maximum disk size: 2280
- Interface: PCIe
- Operating standard: PCIe Gen 2.0
- Transmission speed: up to 500 MB/s per line
- Examples of compatible drives: Argon Dataterm, Official Raspberry Pi SSD, Western Digital SN850, SN740, SN570, SN530, WD Blue SN580 NVMe, Samsung 980 Pro, Samsung 980, Sabrent Rocket, PNY CS1030, Lexar NM710, Lexar NM620, Kioxia Exceria, Kingston KC3000, Crucial P2, AData XPG SX8200 Pro

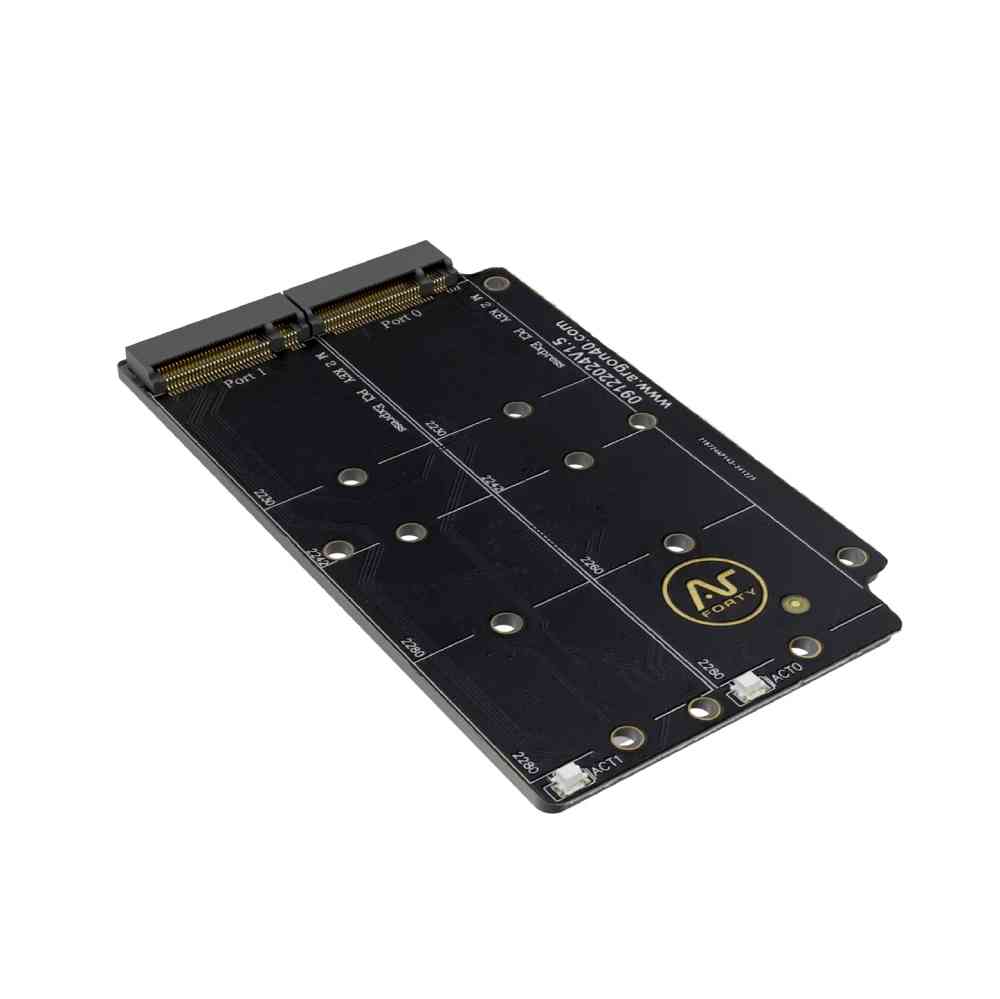

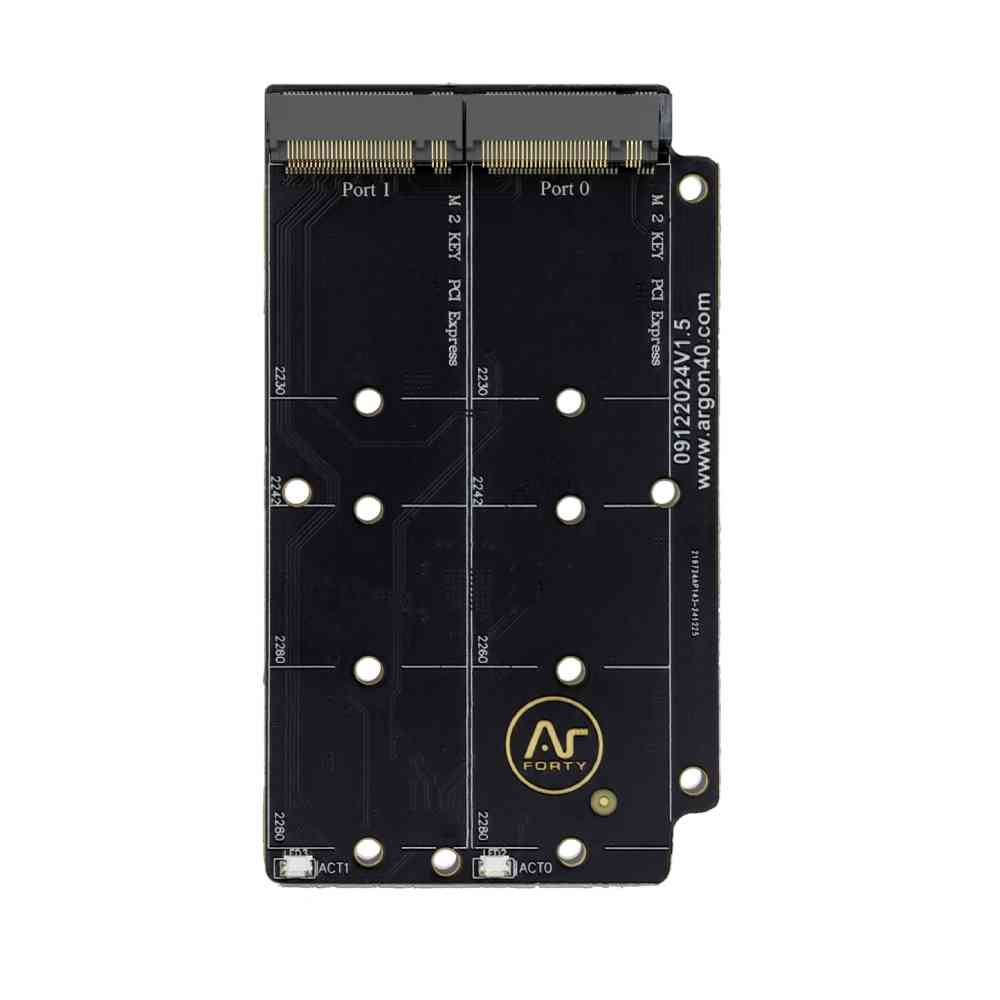

The board is equipped with two M.2 NVMe PCIe slots, supporting M-Key drives up to 2280 in size.
