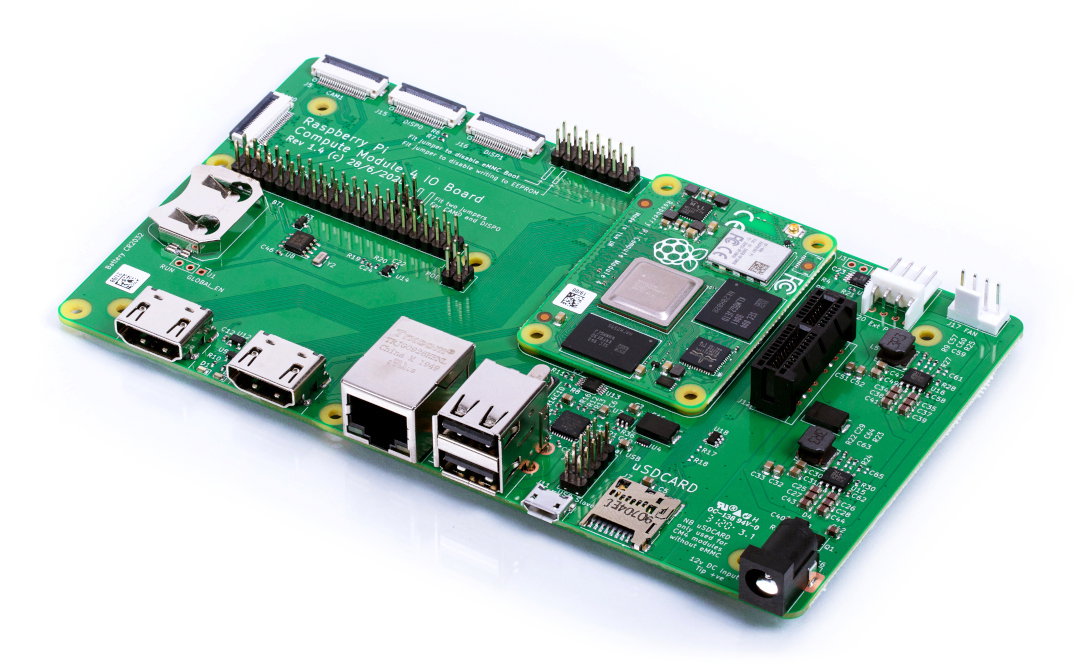

Raspberry Pi CM4IO - extension board for Raspberry Pi CM4 Compute Module 4

Index: RPI-18213 EAN: 5904422368708
4.8
(12)
Ask a question

An extension module designed for the miniaturized version of Raspberry Pi 4B in the form of Compute Module 4. It allows to lead its connectors to GPIO pins. Additionally it has two HDMI, Gigabit Ethernet, two USB connectors, DC jack, camera and screen connectors, RTC and PCIe slot.

Raspberry Pi CM4IO - extension board for Raspberry Pi CM4 Compute Module 4
€41.44
€33.69 tax excl.
Check quantity
Available
Shipping in 24 hours
Free shipping
30 days to return
PayPal payment
Check quantity
Manufacturer: Raspberry Pi
Compatibility: Raspberry Pi

Product description: Raspberry Pi CM4IO - expansion board for Raspberry Pi CM4 Compute Module 4

Expansion module for miniaturized version ofRaspberry Pi 4Bas modules Compute Module 4. It allows to lead its connectors to GPIO pins. Additionally it has two HDMI, Gigabit Ethernet, two USB connectors, a DC jack, camera and screen connectors, RTC and a PCIe slot.

Main features of the CM4IO module

  • Power supply: 5 V to 12 V
  • 2x full HDMI 2.0 connectors
  • 2x MIPI DSI MIPI connectors to connect screens
  • 2x MIPI CSI-2 connectors for connecting cameras
  • 2x USB 2.0 connectors
  • Gigabit Ethernet connector with PoE support (requires dedicated PoE HAT overlay)
  • PCIe 2 connector
  • MicroSD card slot (to be used with CM4 Lite module)
  • RTC battery socket
  • Dimensions: 160 x 90 mm

Raspberry Pi Compute Module 4 must be purchased separately.

CM4IO module outputs.

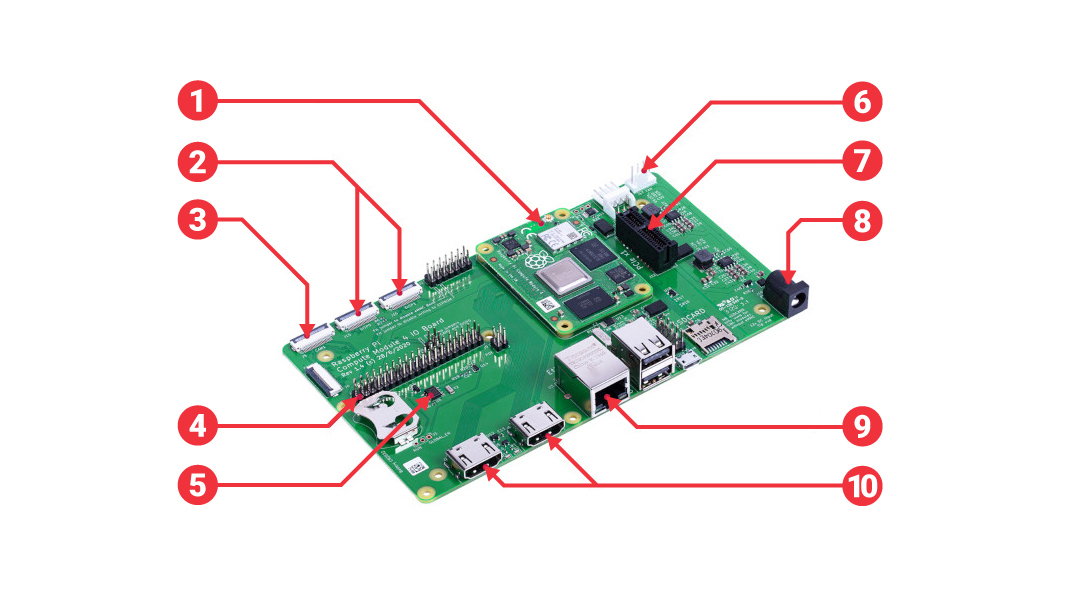

Arrangement of components on Raspberry Pi CM4IO

  1. Raspberry Pi Compute Module 4 (to be purchased separately)
  2. DSI connector
  3. Camera connector
  4. GPIO connector
  5. RTC clock
  6. Fan connector
  7. PCIe
  8. DC power connector
  9. Gigabit Ethernet connector
  10. HDMI Ports
Package width 17 cm
Package height 2.8 cm
Package depth 10 cm
Package weight 0.106 kg
Send us your question

Be the first to ask a question about this product!

Product reviews

Raspberry Pi CM4IO - extension board for Raspberry Pi CM4 Compute Module 4

4.8/5

Average grade

12

Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.
Dominik 04.04.2024 Confirmed purchase Translated review
Everything is fine. It is an original record.👍️
Maciej 18.12.2023 Confirmed purchase Translated review
super fast delivery as always. Very nice board - quick configuration of CM4 and plenty of room for improvement.
Maarte 03.01.2023 Confirmed purchase
Works like a charm !
Jakub 06.12.2022 Confirmed purchase Translated review
The converter on the board can be heard from several meters
Paweł 29.09.2022 Confirmed purchase Translated review
Everything is great
Piotr Ł. 07.06.2022 Confirmed purchase Translated review
CUT OFF
Leszek W. 23.12.2021 Confirmed purchase Translated review
Good quality RPi CM4 motherboard. The basis for testing the module before installing it in the target board. Extensive I / O set. It can be used as a reference plate.
Piotr G. 16.11.2021 Confirmed purchase Translated review
No comments
Adam M. 12.11.2021 Confirmed purchase Translated review
Git
Adrian W. 16.07.2021 Confirmed purchase Translated review
Meets expectations
Miłosz K. 03.03.2021 Confirmed purchase Translated review
. Currently on this hardware I have an MQTT server running and a statistics server after SMNP .. Additionally, a few projects still waiting for implementation. At the moment, utilization of resources at the level of about 2%. Why is this RPI version in my case? Ultimately, the device is to be placed in the RAC housing, so CM4IO was a natural choice. Who would I recommend this product to? Primarily for those who are considering buying RPI 4 and need a more transparent platform. Quality? There is nothing to complain about :).
