Product description: Fan 3007 - for Raspberry Pi 4 Compute Module 4 - Waveshare 19720
The 3007mounting fan manufactured by Waveshare. The component is dedicated for use with the Raspberry Pi 4 CM4 compute module. Specially developed design makes the fan fit the module in terms of dimensions and mounting holes. It generates low noise and guarantees fast heat dissipation. Moreover, its use does not interfere with antenna connector. And it has 4-wire PWM speed control connector.

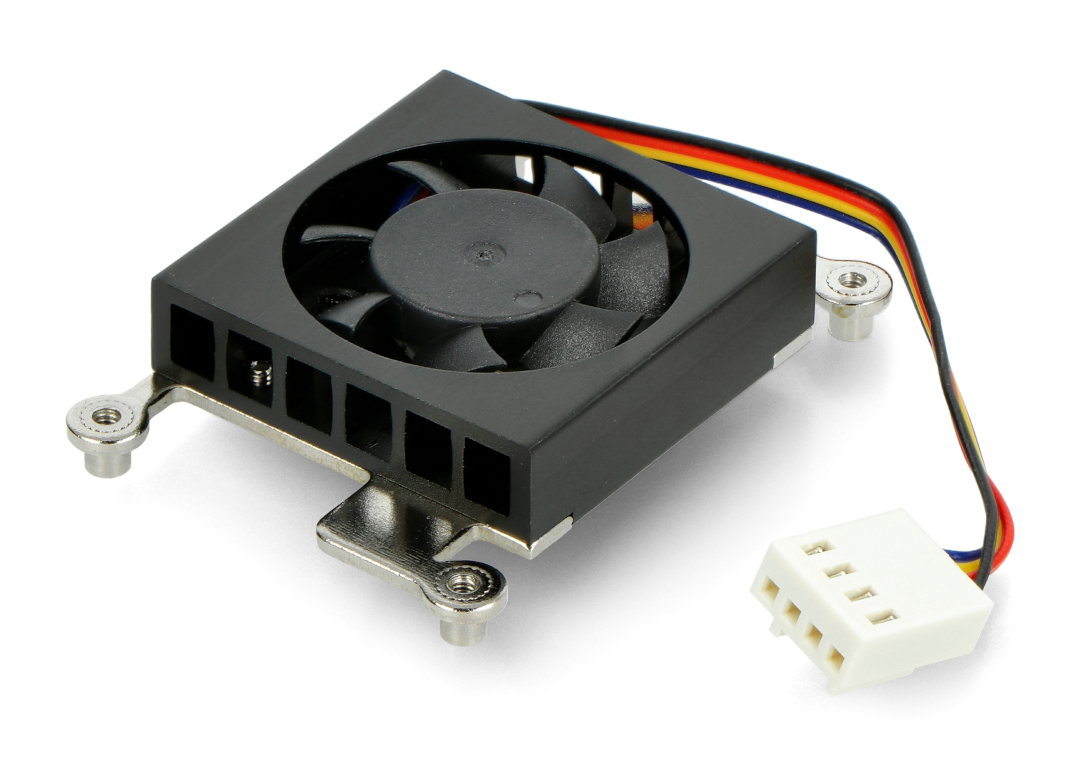

Fan 3007 - for Raspberry Pi 4 Compute Module 4.
Technical specification of the fan
- Type: mounted fan
- Application: for Raspberry Pi CM4Compute Module
- Interface: 4-wire PWM speed controlled fan connector
- Rated speed: 8000 ± 10% RPM
- Power rating: 1.62 W (12 V, 0.135 ±0.02 A)
- Cable length: 90 ±10 mm
- Fan dimensions: 54 x 39 x 13 mm
Set contents
- Fan 3007 - for Raspberry Pi 4 Compute Module 4
- Thermal conductive tape - 3 pieces
- Mounting screws - 10 pieces
- Washers - 5 pieces
- Screwdriver

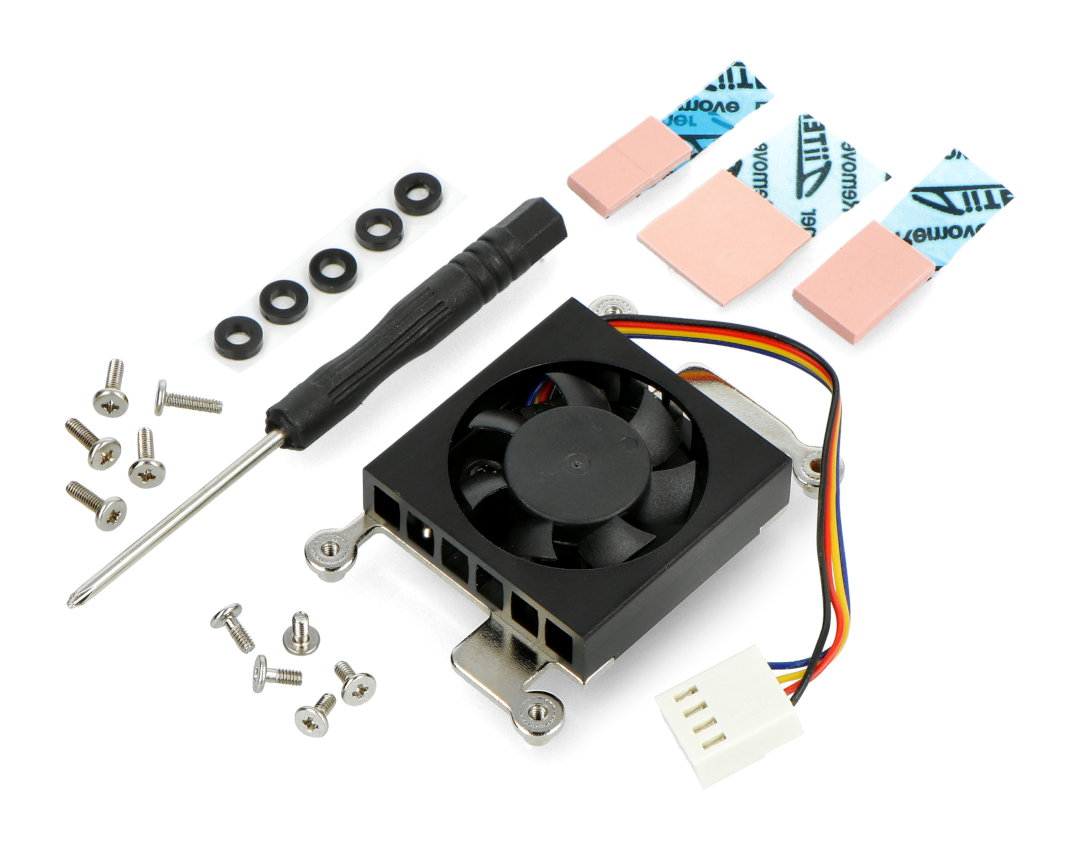

Fan set contents.
