Product description: Case with radiator for Raspberry Pi CM4 IoT Router Carrier Board Mini - aluminum - DFRobot FIT0788-V2
The metal housing with heat sink is designed specifically for the Raspberry Pi CM4 IoT Router Carrier Board Mini , offering reliable protection and efficient cooling. Thanks to the integrated aluminum heat sink , the housing effectively dissipates heat from the BCM2711 processor , ensuring stable operation even under heavy load. The housing also protects the PCB from dust and accidental short circuits , making it an ideal solution for mounting in switchboards and IoT applications. The set includes two thermal pads of different thicknesses - a thinner one for the Raspberry Pi CM4 , and a thicker one for other CM4-compatible modules.

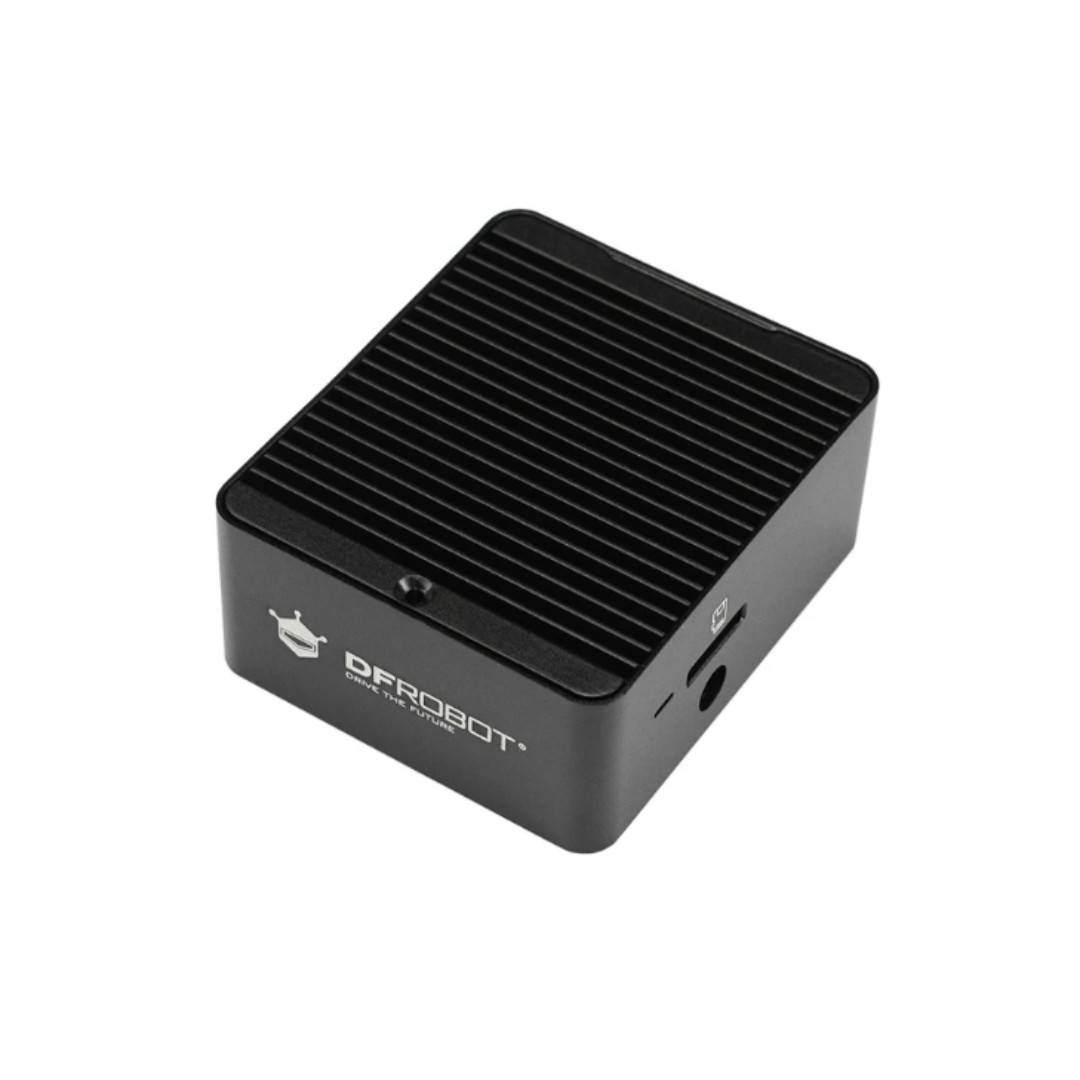

Case with radiator for Raspberry Pi CM4 IoT Router Carrier Board Mini - aluminum - DFRobot FIT0788-V2.

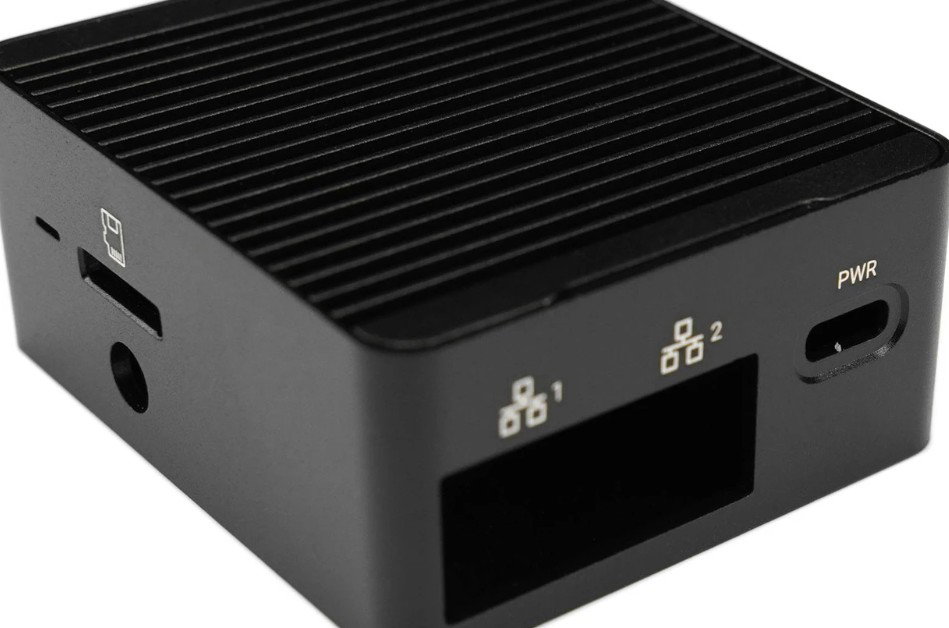

The case provides convenient access to all ports of the Router Carrier Board Mini.
Main features of the case
- Compatibility : dedicated to Raspberry Pi CM4 IoT Router Carrier Board Mini
- High cooling efficiency : aluminum construction with a radiator cover, effectively dissipates heat from the BCM2711 processor
- Motherboard protection : protection against short circuits and mechanical damage
- Dual thermal pads : adaptable to different Compute Module 4 modules
- Compact design : ideal for installation in switchboards and IoT applications
- Easy assembly : quick installation thanks to precisely matched elements
Compatibility and installation
The case is designed for the Raspberry Pi CM4 IoT Router Carrier Board Mini , but can also be used with other Compute Module 4 compatible modules .
The installation process is simple:

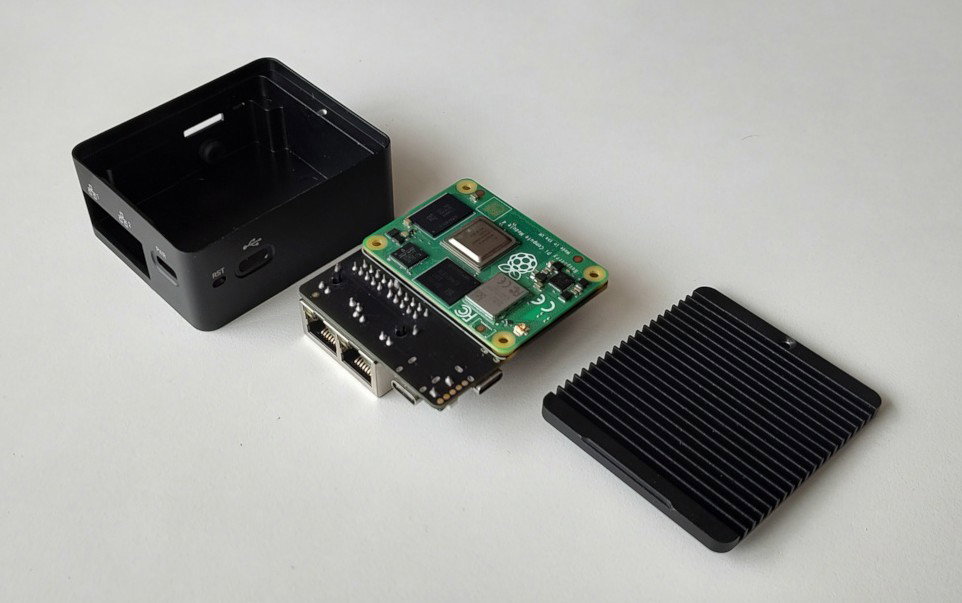

- Installing the CM4 IoT Router Carrier Board Mini in the Case
- Thermopad Placement - Choose the Right Thickness for Your Module
- Screwing on the radiator cover
- Optional plugging of the antenna hole in the housing
The set includes all necessary assembly elements.
Technical specification of the housing
- Housing material: aluminum
- Heatsink material: aluminum
- Compatibility: Raspberry Pi CM4 IoT Router Carrier Board Mini
- Color: black
- Dimensions: 59 x 69 x 29 mm

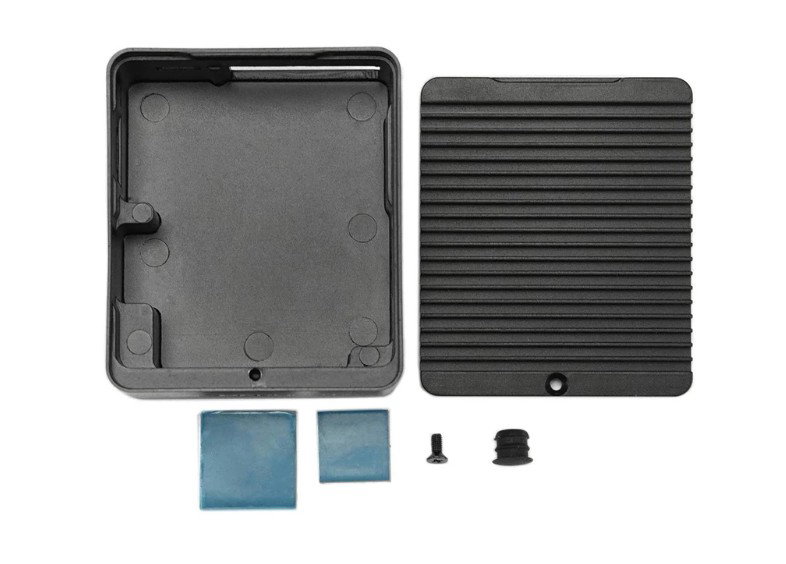

Contents of the set
- Raspberry Pi CM4 IoT Router Carrier Board Mini Case - 1 pc.
- Radiator - 1 pc.
- Thermopads - 2 pcs.
- Mounting screw - 1 pc.
- Antenna hole plug - 1 pc.
