Product description: Dual Gigabit Ethernet extension for Raspberry Pi CM4 - Waveshare 22360
Extension module for the Raspberry Pi Compute Module 4 equipped with two Gigabit Ethernet connectors, a USB type A connector, a USB type C connector, a microSD card slot and a 40-pin GPIO connector. The board is powered by 5 V via the USB Type-C connector. The module in combination with the Raspberry Pi CM4 is suitable for projects that require multiple Ethernet ports, such as soft routing.
The manufacturer has prepared a detailed user guide with sample programs for the Raspberry Pi CM4.

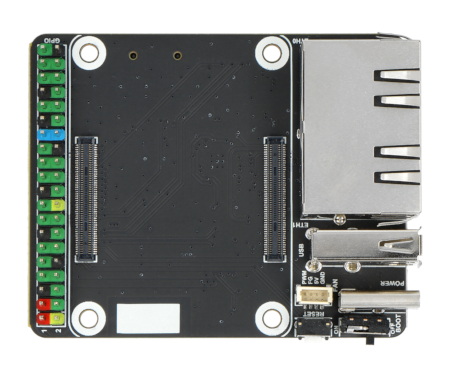

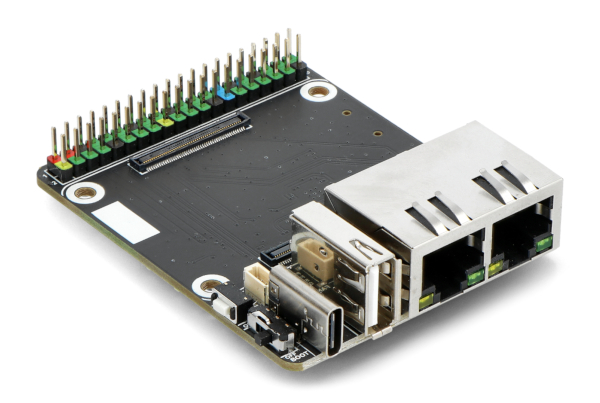

Dual Gigabit Ethernet extension for Raspberry Pi CM4.

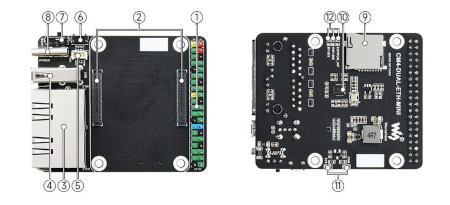

Layout of elements on the board.Layout of elements on the board
- GPIO pins 40-pin
- CM4 connector
- Two Gigabit RJ45 Ethernet ports
Ethernet 0: default CM4 network port - Ethernet 1: PCIe extended network port
- USB 2.0 type A port for connecting peripheral devices
- Speed adjustable fan interface
- Reset button
- Boot switch
ON: CM4 will boot via USB Type-C interface
OFF: CM4 will boot via eMMC or microSD - USB type C port for 5 V / 2.5 A power supply or eMMC memory programming
- microSD memory card slot
- Gigabit LAN chip RTL8111H
- PWR and SYS status LEDs
- SYSTEM switch
EEPROM_WP: protects EEPROM from being overwritten
WiFi_DIS: disable WiFi, only for CM4 version with wireless communication
BT_DIS: disables Bluetooth, only for CM4 version with wireless communication
Specification of the dual Ethernet board for Raspberry Pi CM4
- CM4 slot: compatible with any version of Raspberry Pi Compute Module 4
- Network: Two RJ45 Gigabit Ethernet ports
- USB: USB 2.0 Type-A port
- Pins: Raspberry Pi 40-pin GPIO interface
- Memory: microSD memory card slot for Compute Module 4 Lite version (without eMMC memory)
- Fan connector: 4-pin SH1.0, speed controllable, 5V
- Supply voltage: 5 V, USB type C interface
- Dimensions: 55x68mm
