Product description: Mounting fan 3007 - 5 V - for Raspberry Pi CM4 - Waveshare 23326
Mounting fan from Waveshare that allows for quick and effective heat dissipation from the module that heats up during operation. It is compatible with the Raspberry Pi CM4 series of boards, has mounting holes adapted to the computing modules. The fan has adjustable rotational speed (PWM), thanks to which the user can configure the speed of rotation of the blades according to individual needs. The maximum number of revolutions is approximately 5000 ± 10% rpm . The supply voltage is 5 V and the rated power is 1 W (5 V / 0.2 ± 0.02 A).
In our offer you will also find a series of Raspberry Pi Compute Modules - check it out!

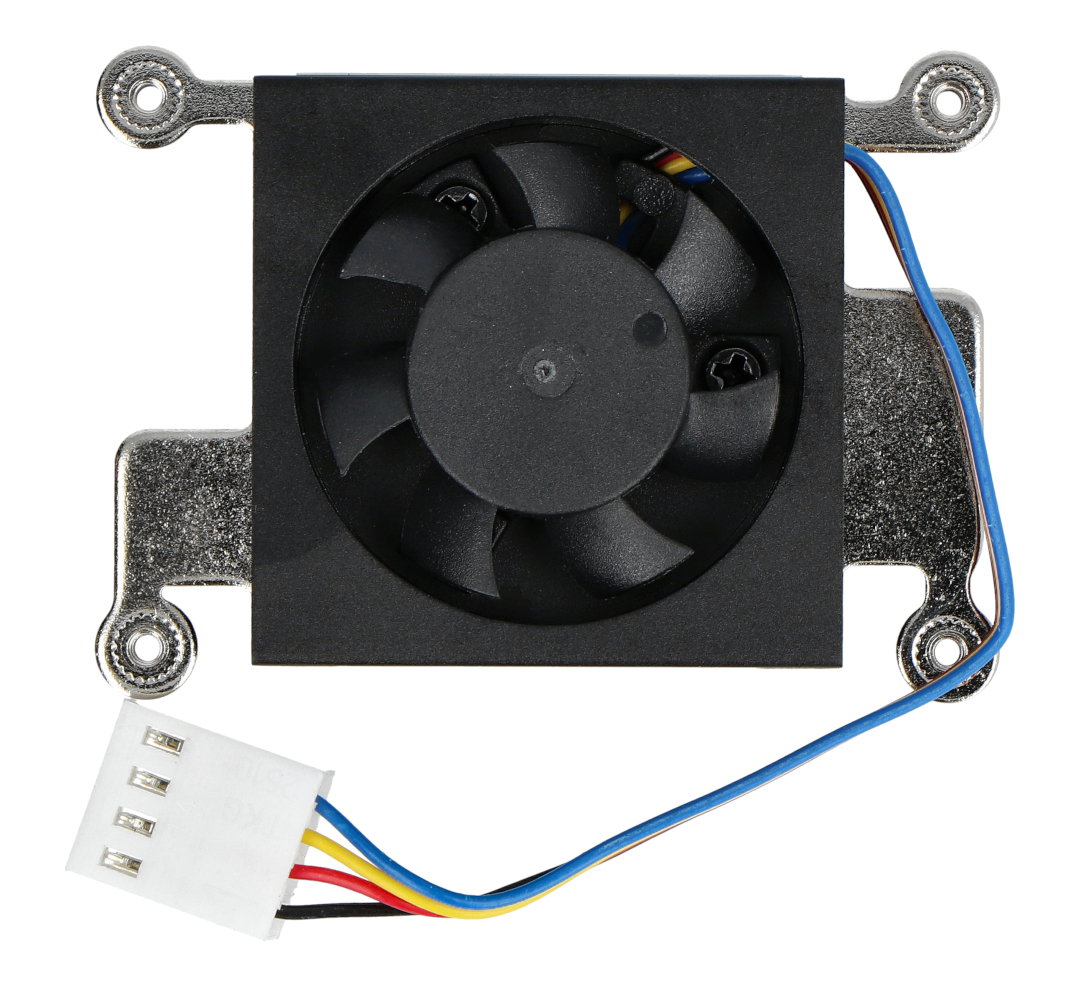

Mounting fan designed to cool the Raspberry Pi Compute Module CM4.

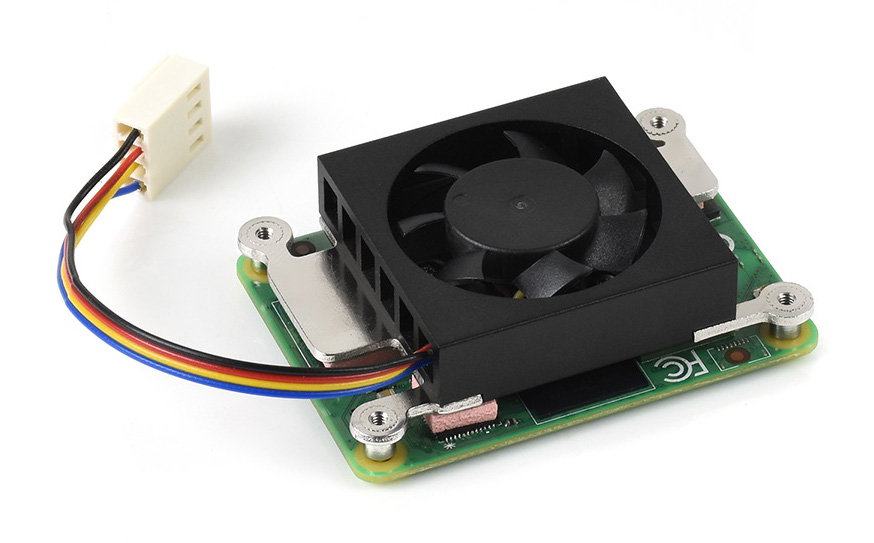

Fan application - CM4 must be purchased separately.
Fan technical specification
- Type: mounting fan
- Version: 3007-5V
- Purpose: for the Raspberry Pi Compute Module of the CM4 series
- Terminals: 4 wires terminated with a plug compatible with CM4
- Supply voltage: 5V
- Rated Power: 1W (5V/0.2±0.02A)
- Maximum rotational speed: 5000 ±10% rpm
- Speed regulation: yes, PWM
- Overall dimensions: 54 x 39 x 13 mm
- Cable length: 90 ±10 mm
Kit contents
- Mounting fan 3007 - 5 V - for Raspberry Pi CM4
- Fitting elements:
- Screws
- Pads
- Thermally conductive tapes
- Screwdriver
More information on installing the fan with individual modules can be found on the manufacturer 's website.

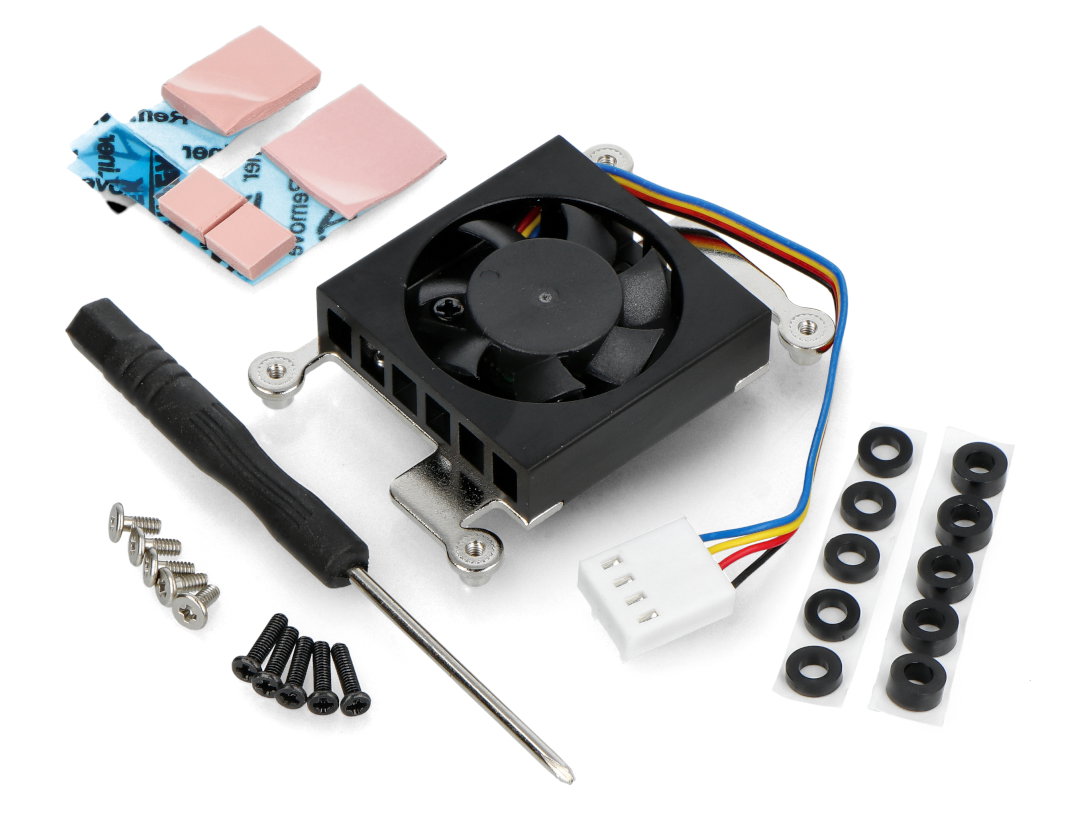

Components included in the set.
