Nano Base Board (C) - lead expander with 8MPx camera for Raspberry Pi Compute Module 4 Lite/eMMC - Waveshare 23451
Nano Base Board (C) is a compact pin expander for Raspberry Pi Compute Module 4 Lite / eMMC . This small development board is equipped with an IMX219-D160 camera with a resolution of 8 MPx and additional connectors that expand the module's capabilities, offering 40 GPIO pins, a USB 2.0 port, a DSI connector and a miniHDMI port . Additionally, for the Lite version, a microSD card slot is available. The board is powered by 5 V via the USB C connector and has dimensions of 55 x 40 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Nano Base Board (C) - pin expander with 8 MPx camera for Raspberry Pi Compute Module 4 Lite / eMMC - Waveshare 23451
Nano Base Board (C) for Raspberry Pi CM4 Lite / eMMC is a pin expander in the form of an overlay that allows full use of available interfaces. The board equipped with a camera with a resolution of 8 MPx and a viewing angle of 160° is designed for various applications, including applications requiring visualization. The shield has a 40-pin GPIO connector , a USB 2.0 port for connecting peripheral devices, a DSI connector and a miniHDMI port that supports 4K output at 30 fps , ideal for multimedia applications. Additionally, a microSD card slot for the Lite version allows you to store the operating system and data. The board is powered and programmed via the USB C connector, which supplies 5 V. The dimensions of the Nano Base Board (C) are only 55 x 40 mm , which makes it extremely compact and easy to integrate into a variety of projects, such as monitoring and video surveillance systems, home and industrial automation, or educational and prototyping projects.
Product compatible with Raspberry Pi Compute Module 4
The manufacturer has prepared a user guide that will facilitate the integration of the overlay with Raspberry Pi CM4.
Nano Base Board (C) - pin expander with 8 MPx camera for Raspberry Pi Compute Module 4 Lite / eMMC - Waveshare 23451.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
The shield has a 40-pin GPIO connector, a USB 2.0 port, a DSI connector and a miniHDMI port.
Special features Nano Base Board (C)
- Support for Lite and eMMC variants of the Raspberry Pi Compute Module 4 (CM4).
- 40-pin GPIO connector for easy connection of HAT modules.
- USB 2.0 type A port and miniHDMI port supporting 4K / 30 fps video output.
- MIPI DSI connector for connecting the display interface.
- TF card slot for Lite Compute Module 4.
- Integrated IMX219-D160 camera with 8 MPx resolution and 160° viewing angle.
- BOOT switch allows you to select the USB interface: type C for programming mode or type A for normal boot.
- ACK and PWR indicators informing about the operating and power status of the CM4.

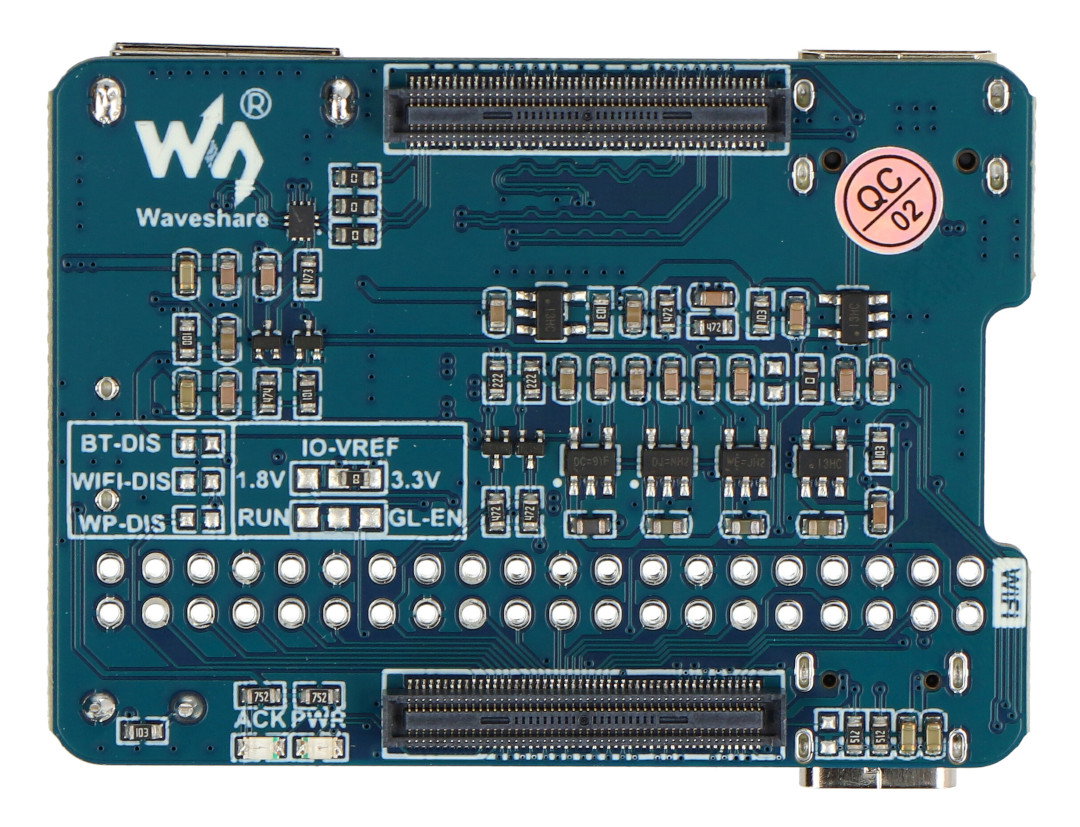

Arrangement of elements on the board
- CM4 socket - suitable for all Raspberry Pi Compute Module 4 variants
- miniHDMI connector - supports 4K / 30 fps output
- DSI connector - MIPI DSI display interface
- USB 2.0 connector - for connecting various types of USB devices
- microSD card slot - for connecting a microSD memory card
- USB connector - for 5 V power supply / programming
- 40-pin GPIO header for connecting shields
- IMX219-D160 camera - 8 MPx, 160° field of view
- User button
- BOOT switch
ON: Switch the USB interface to Type C, it will enter download mode after power on (configured as large capacity disk)
OFF: Switch the USB interface to Type A interface, it will not enter download mode when turned on (booted from eMMC or microSD card) - ACK indicator - CM4 operating status
- PWR indicator - CM4 power status

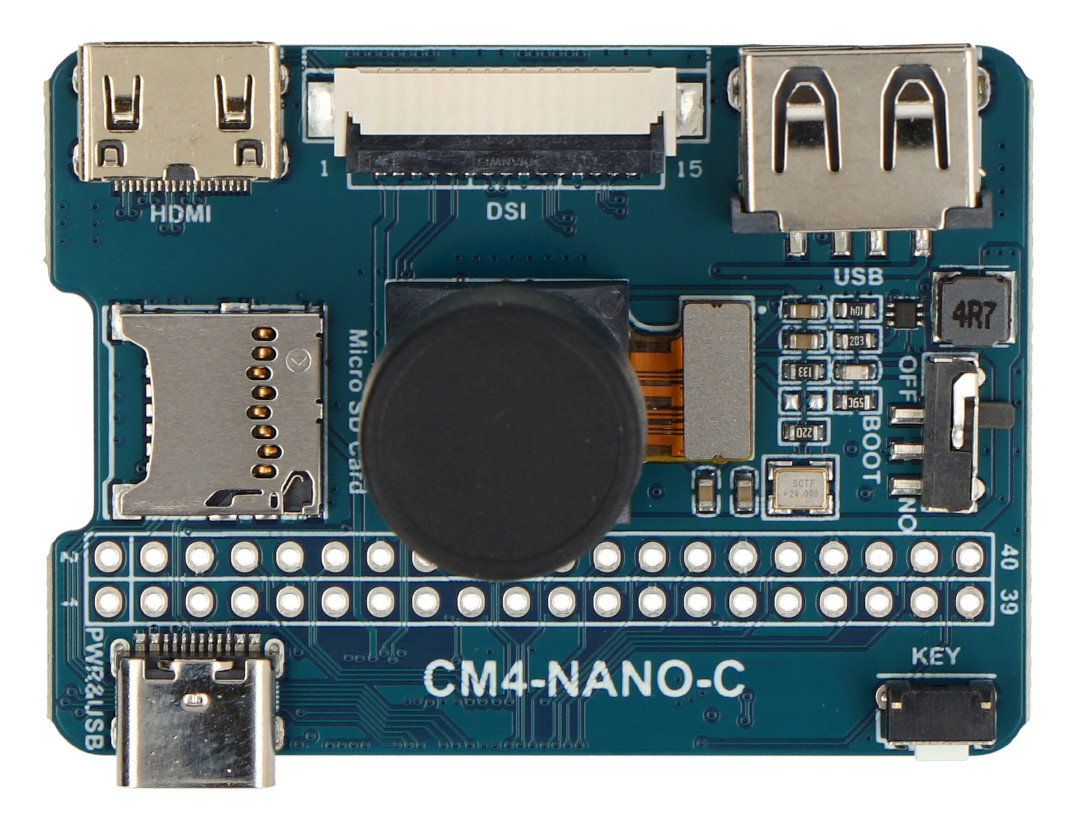

Arrangement of elements on the Nano Base Board (C).
Elements included in the set.
Technical specifications of Nano Base Board (B)
- CM4 socket: compatible with all Compute Module 4 variants
- GPIO pins: 40
- USB interface: 1x USB 2.0 type A connector
- Display interface: 1x MIPI DSI port (15-pin FPC connector with a pitch of 1.0 mm)
- Video interface: 1x miniHDMI port (supports 4K/30 fps output)
- Memory: microSD card slot for Compute Module 4 Lite (without eMMC)
- Supply voltage: 5V
- Camera: IMX219-D160 (8 MPx, FoV 160°)
- Dimensions: 55 x 40 mm
Set contents

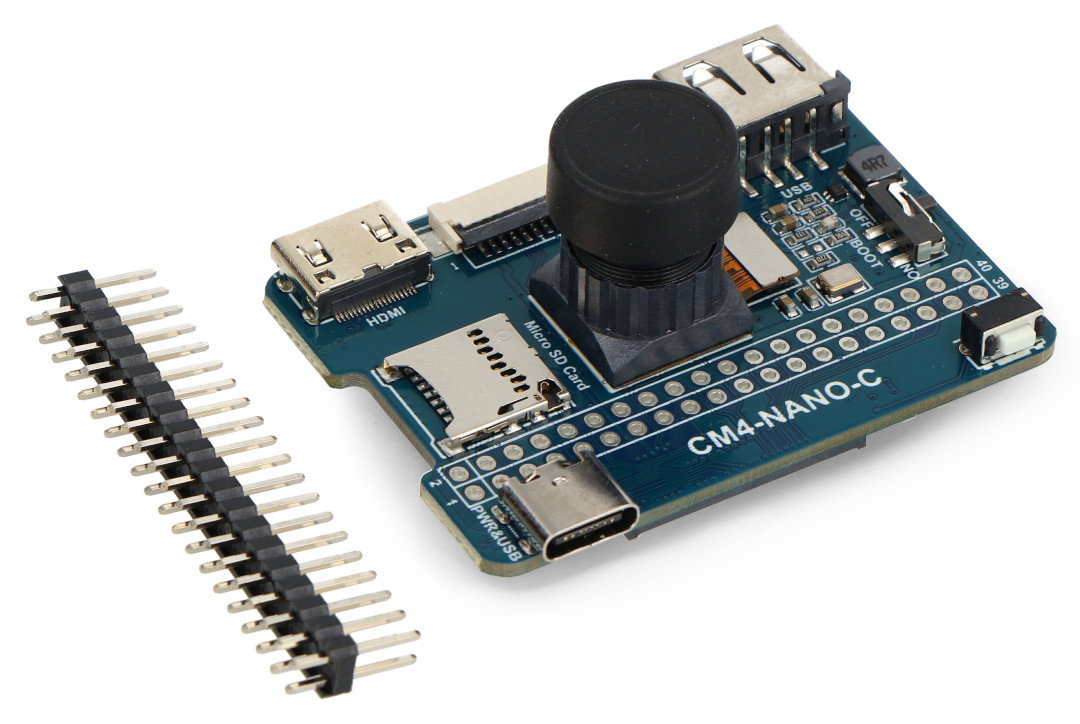

- 1x Nano Base Board (C) - pin expander for Raspberry Pi Compute Module 4
- 1x IMX219-D160 Camera
- 1x 2x20 pin strip with straight pins - 2.54 mm pitch
