Product description: reComputer R1035-10 - Raspberry Pi CM4 - 8 GB RAM + 32 GB eMMC - Seeedstudio 113991314
reComputer R1025-10 is a powerful IoT controller built on the Raspberry Pi CM4 . With a quad-core Cortex A72 processor (1.5 GHz), 8 GB of RAM and 32 GB of eMMC memory , it provides computing power sufficient to process large amounts of data in real time. The module offers a rich set of interfaces, including 3 isolated RS485 ports , dual Ethernet connectors , an M.2 slot for NVMe SSDs and support for many communication protocols such as BACnet and Modbus (RTU, TCP/IP). With support for WiFi and BLE and connectors for optional 4G, LoRa and ZigBee modules, it can act as an IoT gateway in various building automation, energy management and industrial monitoring applications. The Raspberry Pi OS and Ubuntu operating system ensures broad software compatibility and easy integration with existing IT systems.

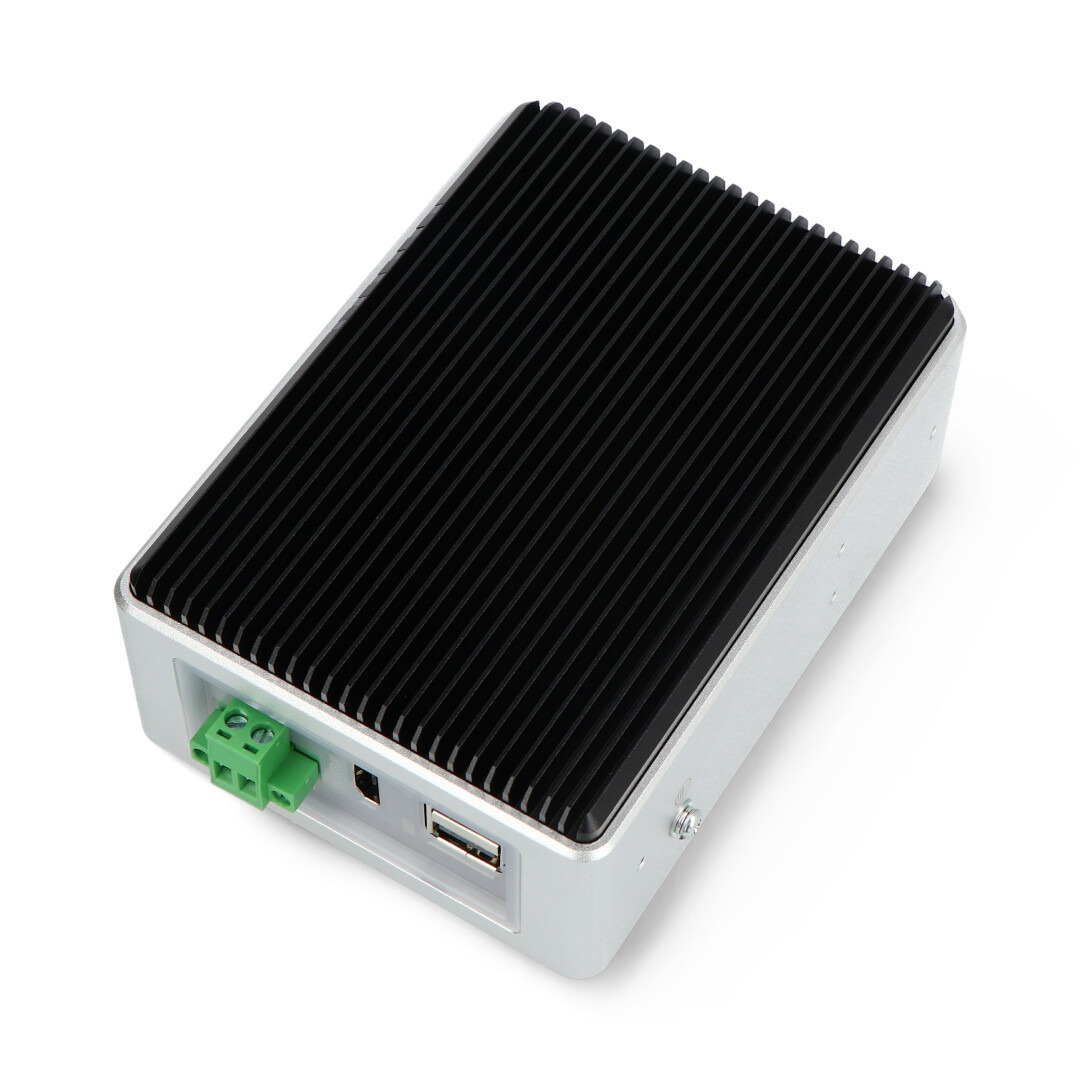

reComputer R1035-10 - Raspberry Pi CM4 - 8 GB RAM + 32 GB eMMC - Seeedstudio 113991314.

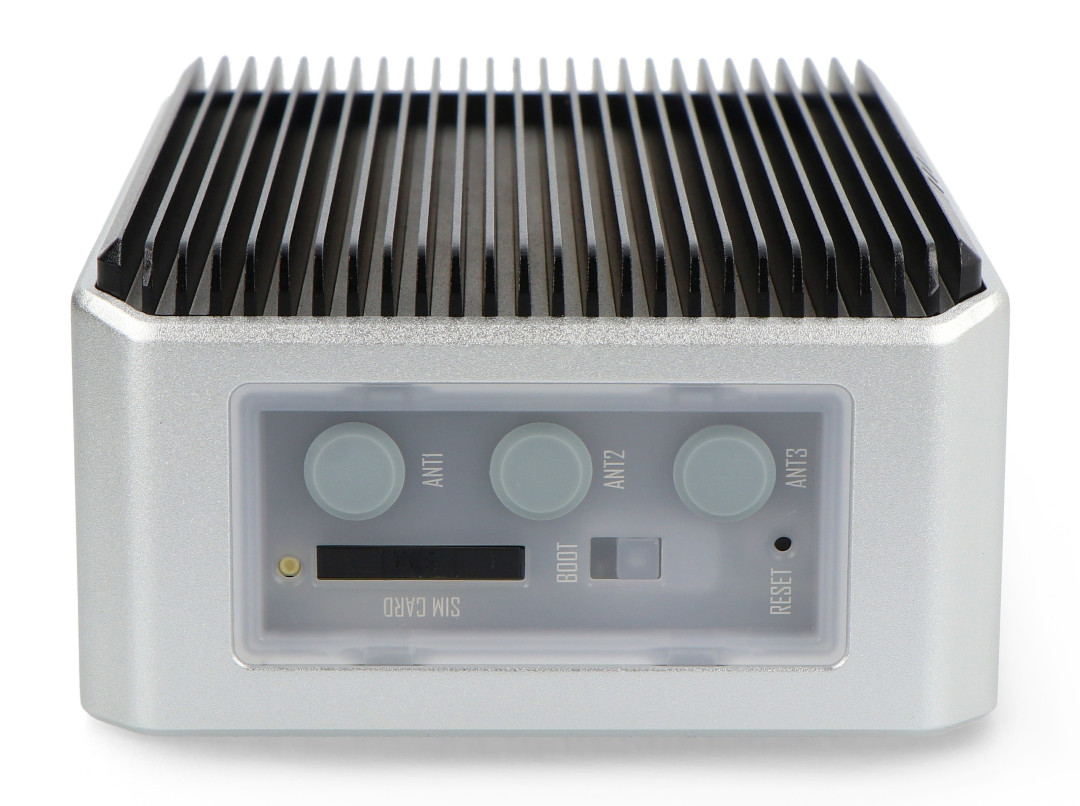

reComputer provides versatile wireless communication.
Key Features of the reComputer R1035-10
- Processor : Raspberry Pi CM4 with quad-core Cortex-A72 clocked at 1.5 GHz
- RAM : 8 GB RAM LPDDR4 for smooth operation of industrial applications
- Mass storage : built-in 32 GB eMMC for fast data writing and reading
- AI Compatibility : Expandable with NPU accelerators for AI applications
- Communication ports : 3 isolated RS485 ports and 2 Ethernet ports (1 GbE PoE + 100 MbE)
- Expansion interfaces : M.2 slot for NVMe drives, SIM card slot, HDMI 2.0, USB Type-A and USB Type-C
- Wireless connectivity : Supports WiFi, BLE, LoRa, ZigBee and 4G LTE (with optional modules)
- Power : Powered by 9V to 36V DC, 12V to 24V AC or PoE for flexible installation
- Security : TPM 2.0 module, RS485 isolation and EMC interference immunity
- Industrial strength : operating temperature range from -30°C to 70°C, adapted to harsh conditions
Applications of reComputer R1035-10
reComputer R10xx-10 is widely used in various fields , such as fleet management, cloud technologies, industrial edge computing, and image recognition. The platform enables integration with popular technologies such as NodeRed, FUXA, FIN, N3uron, balena, Home Assistant, AWS IoT Core, and Ultralytics Computer Vision . It can be used in solutions such as intelligent supermarket management systems based on Raspberry Pi CM4, lighting control systems based on body posture recognition, and data management in the IIoT industry using MING Stack. Additionally, the FIN platform supports the automation of smart building management in various environments.
Smart supermarket system powered by Raspberry Pi CM4
reComputer has versatile interfaces and works with various wireless communication protocols.

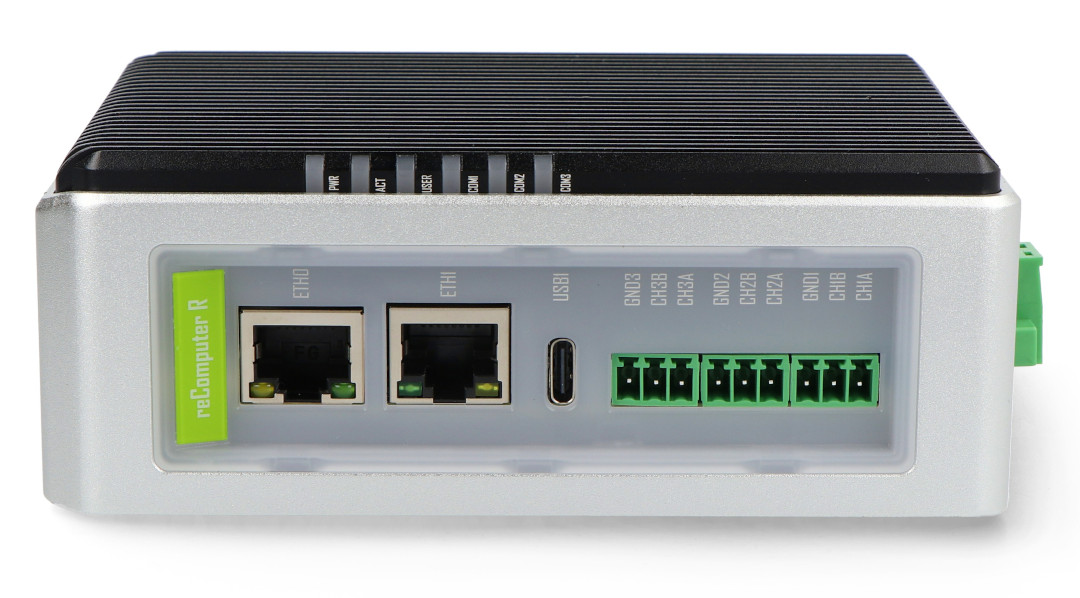

Interfaces in reComputer
- 1x mini-PCIe1 slot : supports 4G LTE, USB LoRa and USB ZigBee modules
- 1x mini-PCIe2 slot : supports SPI LoRa, USB LoRa and USB ZigBee modules
- 3x RS485 (isolated) : supports serial communication with isolation for higher level of security
- 1x 10/100/1000 Mbps Ethernet : Supports Power over Ethernet (PoE), allowing power to be delivered over the network cable
- 1x Ethernet 10/100 Mbps : Supports Ethernet port for standard network connectivity
- 1x HDMI 2.0 : Support HDMI port for high definition video output
- 2x USB Type-A 2.0 : supports standard USB ports for connecting peripherals or storage devices
- 1x USB Type-C 2.0 : Supports USB port, mainly used for OS updates and other possible functions
- 1x SIM card slot : supports SIM cards, usually used for mobile network connectivity
- 1x M.2 slot : Supports M.2 expansion card slot for added functionality or SSD storage option

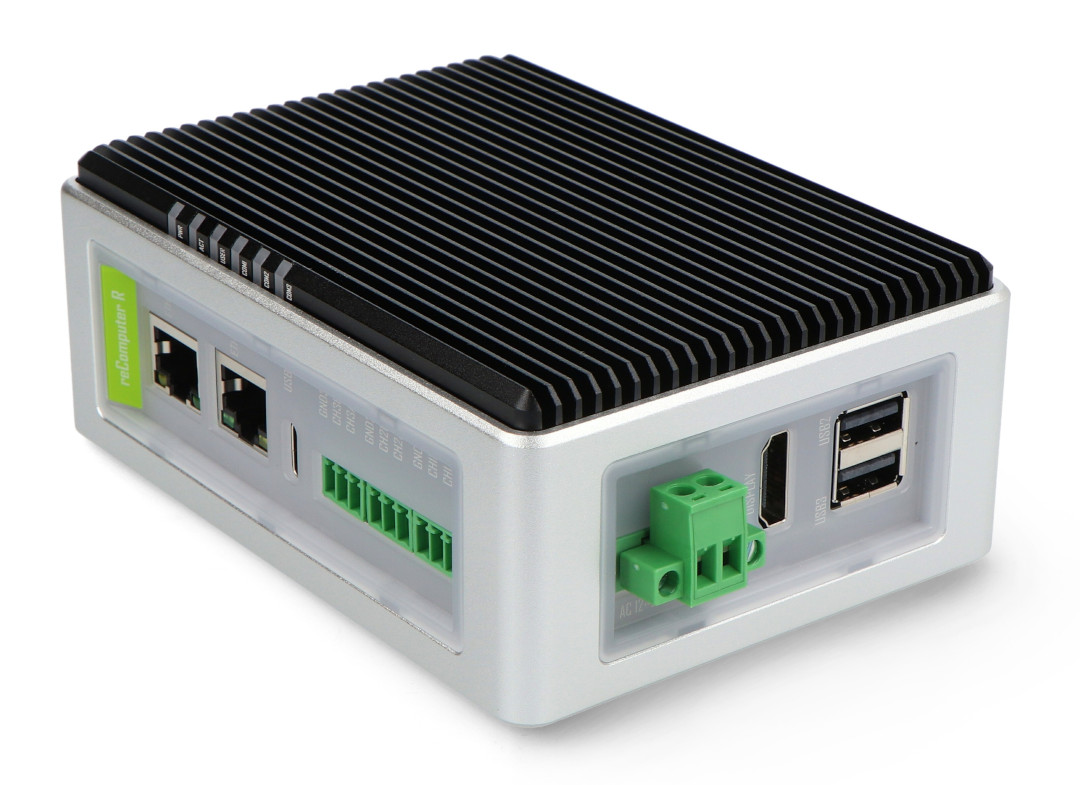

Durable construction
The controller housing is made of durable, shock-resistant materials, such as 6061 aluminum alloy with transparent PC panels , which ensures durability in demanding conditions. An important feature is the wide operating temperature range from -30°C to 70°C and compliance with vibration, shock, electrostatic discharge (ESD), fast surge (EFT) and surge (Surge) resistance standards. Additionally, the IP40 protection class guarantees effective protection against dust in a difficult industrial environment.
The housing is compatible with DIN rail and wall mounting.

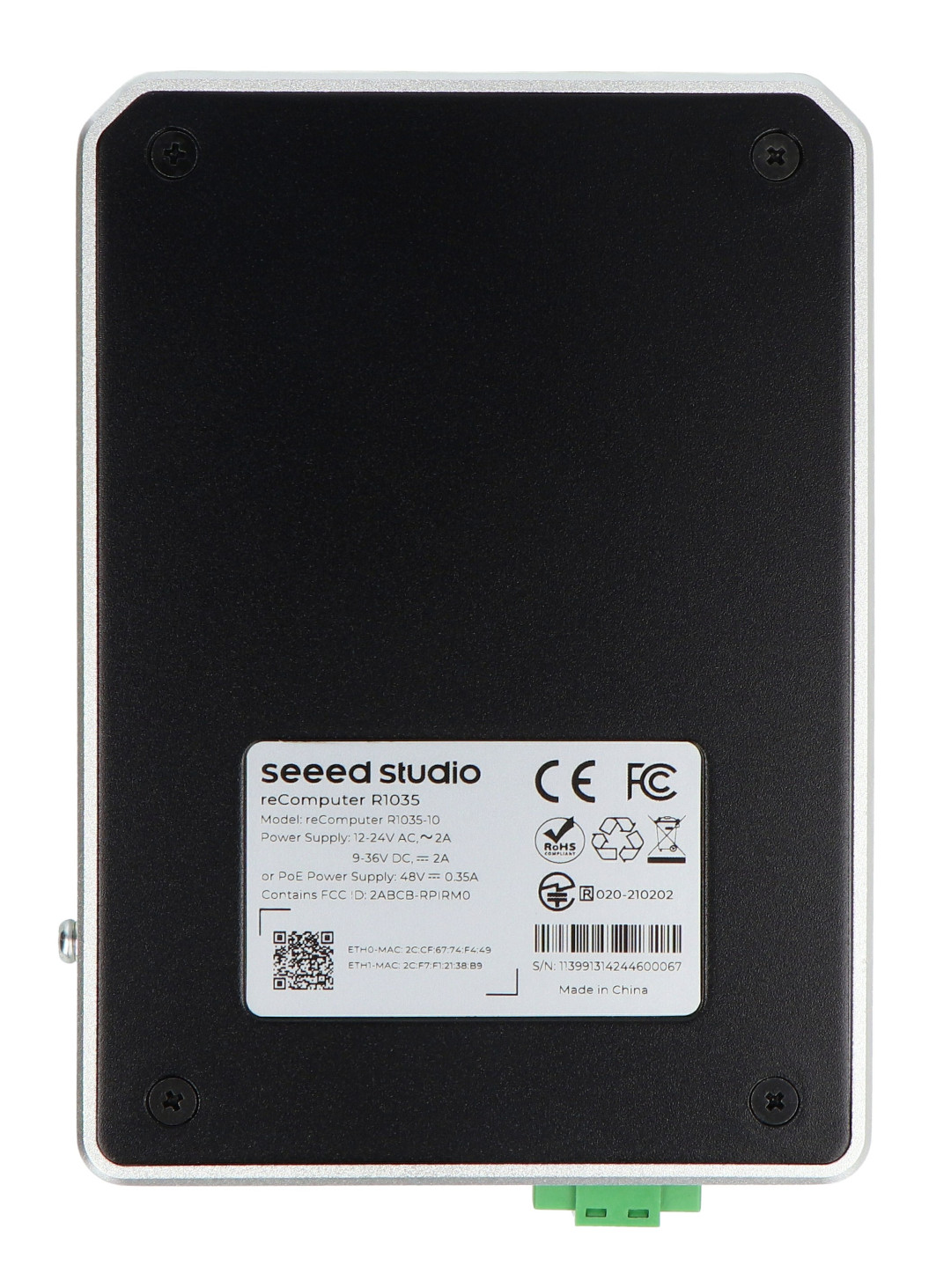

Power and mounting options for industrial requirements
The controller supports a wide input voltage range from 12 V to 24 V AC and from 9 V to 36 V DC , which provides great flexibility in choosing a power source. For critical applications, it is worth considering the possibility of redundant power supply via PoE (Power over Ethernet), which must be purchased separately. Additionally, low energy consumption and optimization of current consumption contribute to reduced heat generation. The optional UPS guarantees continuous operation of the device and notifies about a power outage. The controller is also very versatile in terms of mounting, allowing for installation on a wall or on a DIN rail , making it an ideal solution for industrial cabinets and control panels.

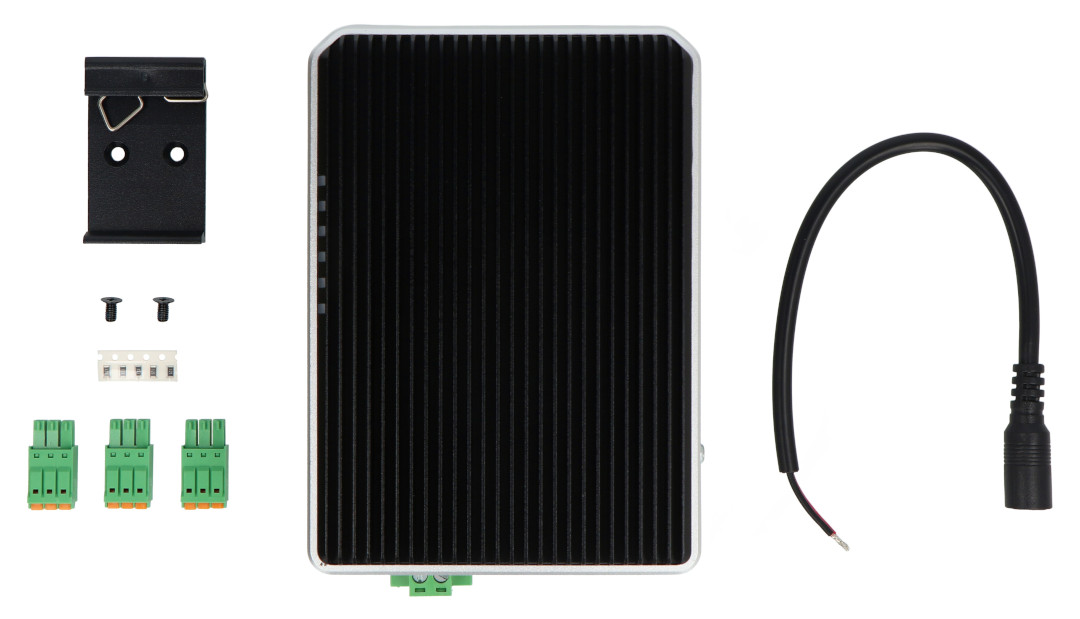

Kit Contents
- 1x reComputer R1035-10
- 1x DIN rail mount
- 1x Screw set
- 1x Female socket to screw terminal adapter
- 3x 3-pin male terminal connector
- 5x Resistor 120Ω
- 1x English User Manual
Items included in the set.
| reComputer R1000 Technical Specifications and Comparison | ||
|---|---|---|
| Product | ||
| CPU | ||
| Operating system | ||
| RAM | ||
| eMMC | ||
| Power supply | ||
| PoE | ||
| Fuse | ||
| Energy consumption | ||
| Power switch | ||
| Restart switch | ||
| Interfaces | 1x 10 / 100 Mb/s IEEE802.3/802.3u, 2x USB A 2.0, 1x USB C 2.0 (OS flashing), 3x RS485, 1x HDMI 2.0, 1x SIM slot, 1x M.2 NVMe SSD | |
| LED | ||
| Buzzer | ||
| Reset button | ||
| Wi-Fi | ||
| BLE | ||
| Lora | ||
| ZigBee | ||
| Operating temperature | ||
| Working humidity | ||
| Dimensions | ||
| Mass | ||
