Product description: reComputer R1024-10 - Raspberry Pi CM4 - 4 GB RAM + 16 GB eMMC - Seeedstudio 113991314
reComputer R1024-10 is an advanced IoT controller based on Raspberry Pi CM4 . With a quad-core Cortex A72 processor (1.5 GHz), 4 GB RAM and 16 GB eMMC memory , it provides high performance. The module is equipped with a range of interfaces, including 3 isolated RS485 ports , dual Ethernet connectors , an M.2 slot for NVMe SSDs and support for protocols such as BACnet and Modbus (RTU, TCP/IP). With WiFi and BLE support and the ability to connect optional 4G, LoRa and ZigBee modules, it can act as an IoT gateway in building automation, energy management and industrial monitoring applications. The Raspberry Pi OS and Ubuntu operating system guarantee broad software compatibility and easy integration with existing IT systems.

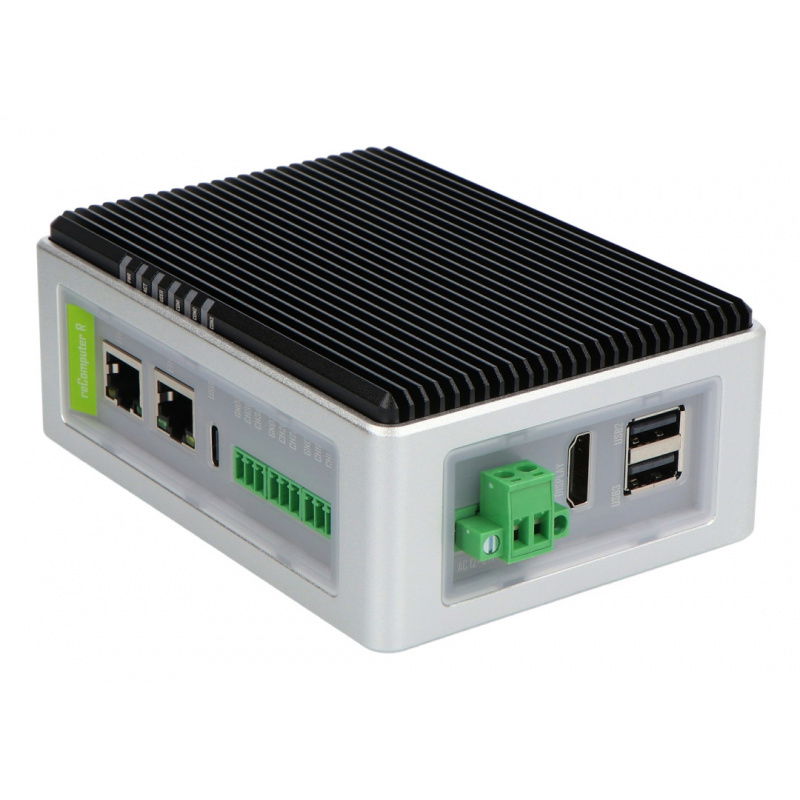

reComputer R1024-10 - Raspberry Pi CM4 - 4 GB RAM + 16 GB eMMC - Seeedstudio 113991314.

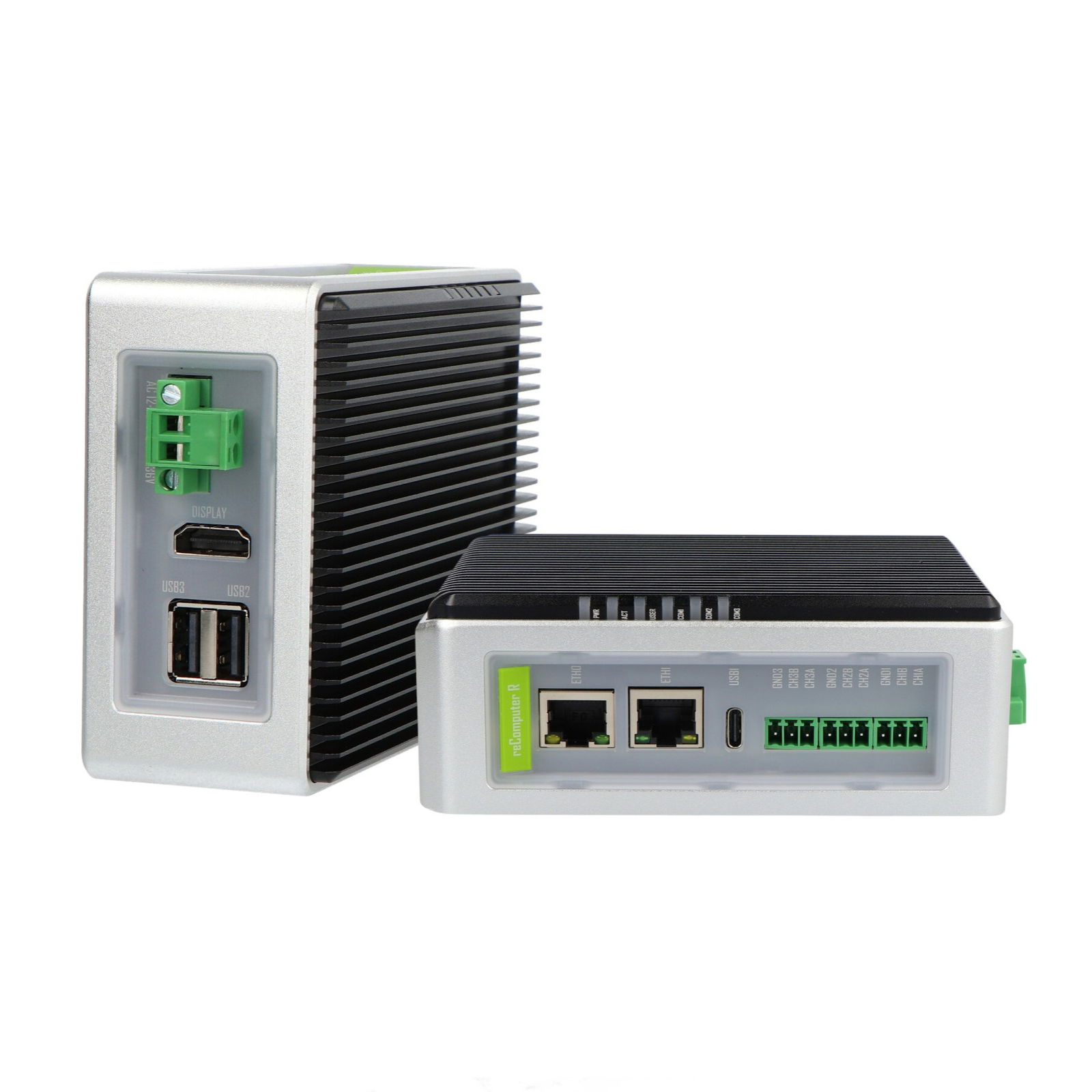

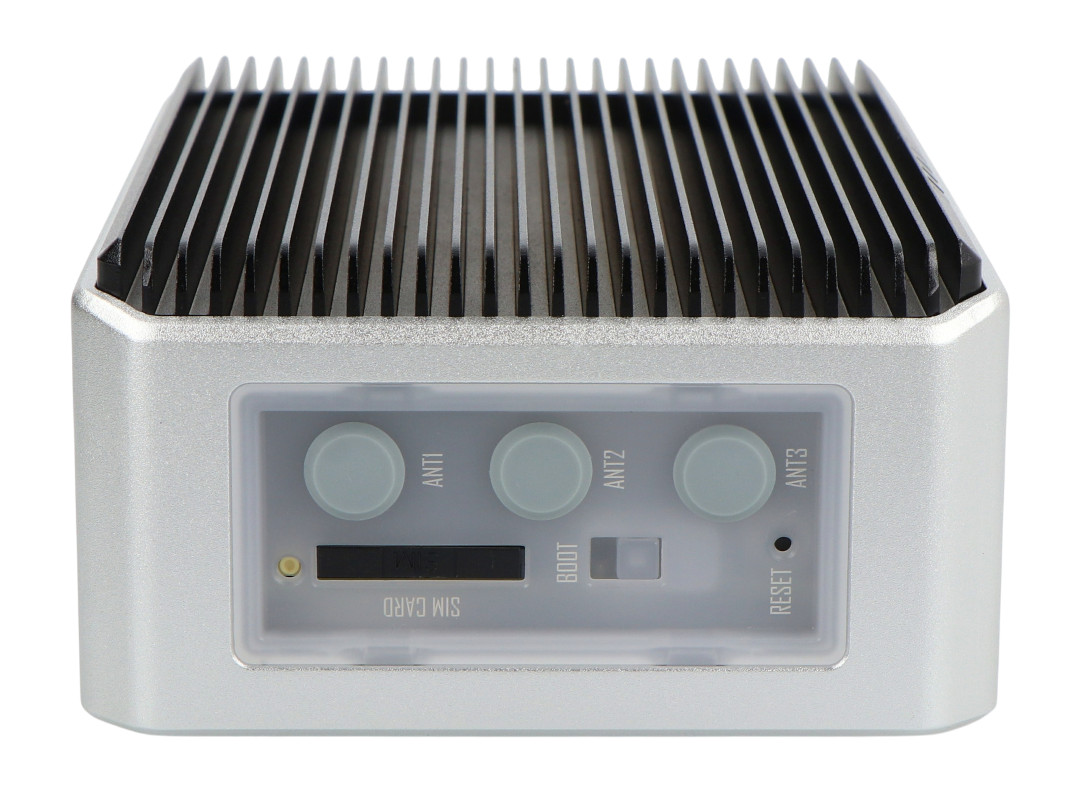

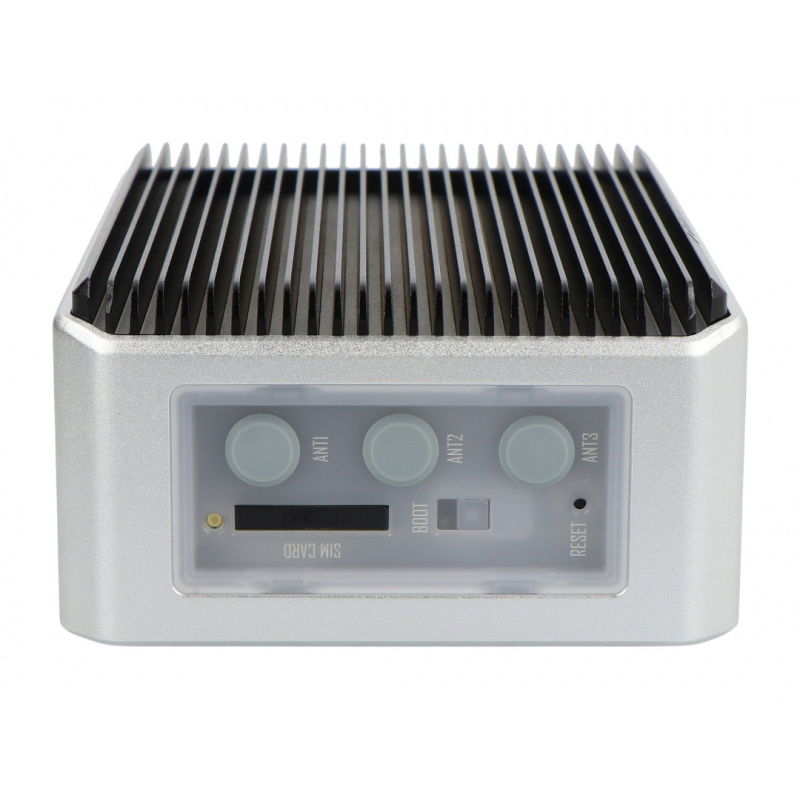

reComputer provides versatile wireless connectivity.
Main Features of the reComputer R1024-10
- Processor : Raspberry Pi CM4 with quad-core Cortex-A72 clocked at 1.5 GHz
- RAM : 4 GB RAM LPDDR4 for smooth operation of industrial applications
- Mass storage : built-in 16GB eMMC for fast data writing and reading
- AI Compatibility : Expandable with NPU accelerators for AI applications
- Communication ports : 3 isolated RS485 ports and 2 Ethernet ports (1 GbE PoE + 100 MbE)
- Expansion interfaces : M.2 slot for NVMe drives, SIM card slot, HDMI 2.0, USB Type-A and USB Type-C
- Wireless connectivity : Supports WiFi, BLE, LoRa, ZigBee and 4G LTE (with optional modules)
- Power : Powered by 9V to 36V DC, 12V to 24V AC or PoE for flexible installation
- Security : TPM 2.0 module, RS485 isolation and EMC interference immunity
- Industrial strength : operating temperature range from -30°C to 70°C, adapted to harsh conditions
Applications of reComputer R1024-10
The reComputer R10xx-10 applications cover a wide range of domains, such as fleet management, cloud technologies, industrial edge computing or image recognition. The platform supports integration with popular technologies such as NodeRed, FUXA, FIN, N3uron, balena, Home Assistant, AWS IoT Core and Ultralytics Computer Vision . It can be used in projects such as intelligent supermarket management systems using Raspberry Pi CM4, lighting control systems based on body posture analysis or data management in the IIoT industry using MING Stack. Additionally, the FIN platform supports the automation of smart building management processes in various environments.
Smart supermarket system powered by Raspberry Pi CM4

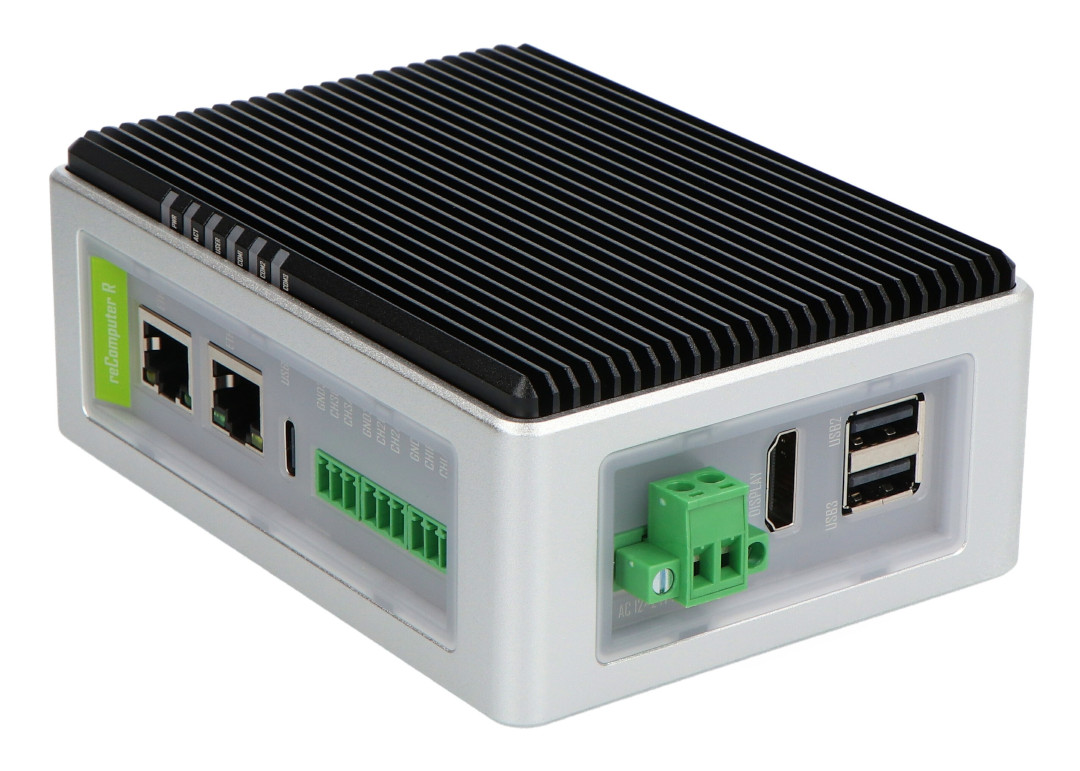

reComputer has a variety of interfaces and works with many wireless communication protocols.
Interfaces in reComputer
- 1x mini-PCIe1 slot : supports 4G LTE, USB LoRa and USB ZigBee modules
- 1x mini-PCIe2 slot : supports SPI LoRa, USB LoRa and USB ZigBee modules
- 3x RS485 (isolated) : supports serial communication with isolation for higher level of security
- 1x 10/100/1000 Mbps Ethernet : Supports Power over Ethernet (PoE), allowing power to be delivered over the network cable
- 1x Ethernet 10/100 Mbps : Supports Ethernet port for standard network connectivity
- 1x HDMI 2.0 : Support HDMI port for high definition video output
- 2x USB Type-A 2.0 : supports standard USB ports for connecting peripherals or storage devices
- 1x USB Type-C 2.0 : Supports USB port, mainly used for OS updates and other possible functions
- 1x SIM card slot : supports SIM cards, usually used for mobile network connectivity
- 1x M.2 slot : Supports M.2 expansion card slot for added functionality or SSD storage option
Durable construction
The controller housing is made of high-quality shock-resistant materials, such as 6061 aluminum alloy with transparent PC panels , which makes it durable in harsh conditions. An important feature is the wide operating temperature range from -30°C to 70°C , as well as meeting the standards of resistance to vibration, shock, electrostatic discharge (ESD), fast surges (EFT) and surge pulses (Surge). Additionally, the IP40 degree of protection provides effective protection against dust in demanding industrial conditions.

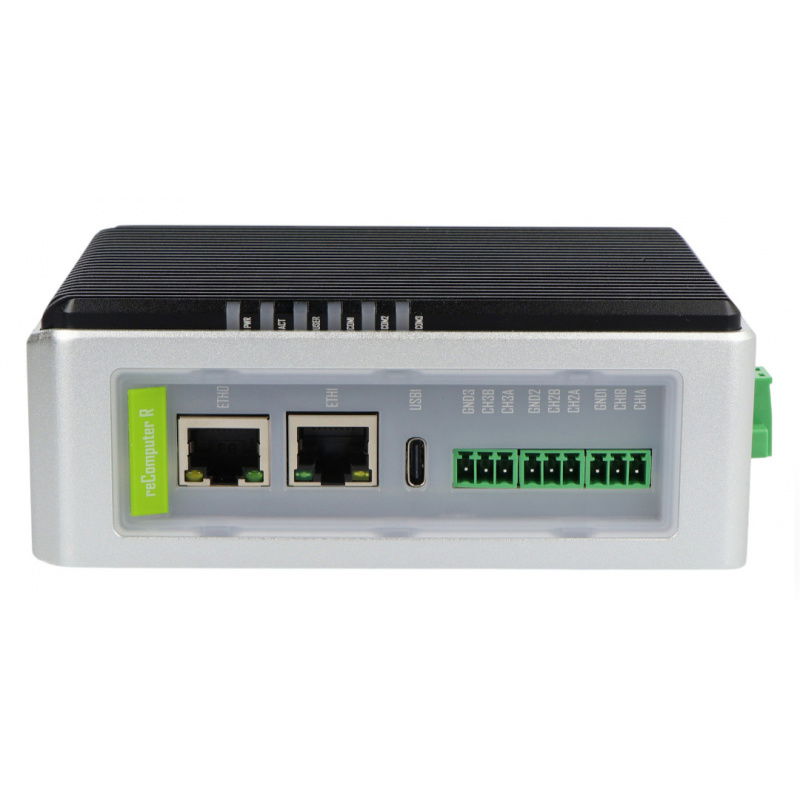

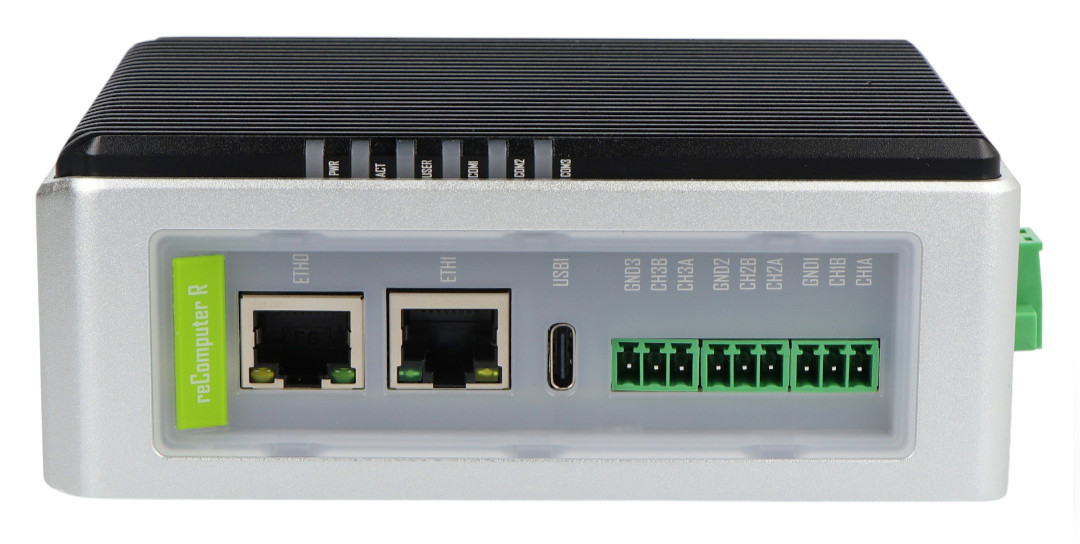

The controller is equipped with two Ethernet ports.

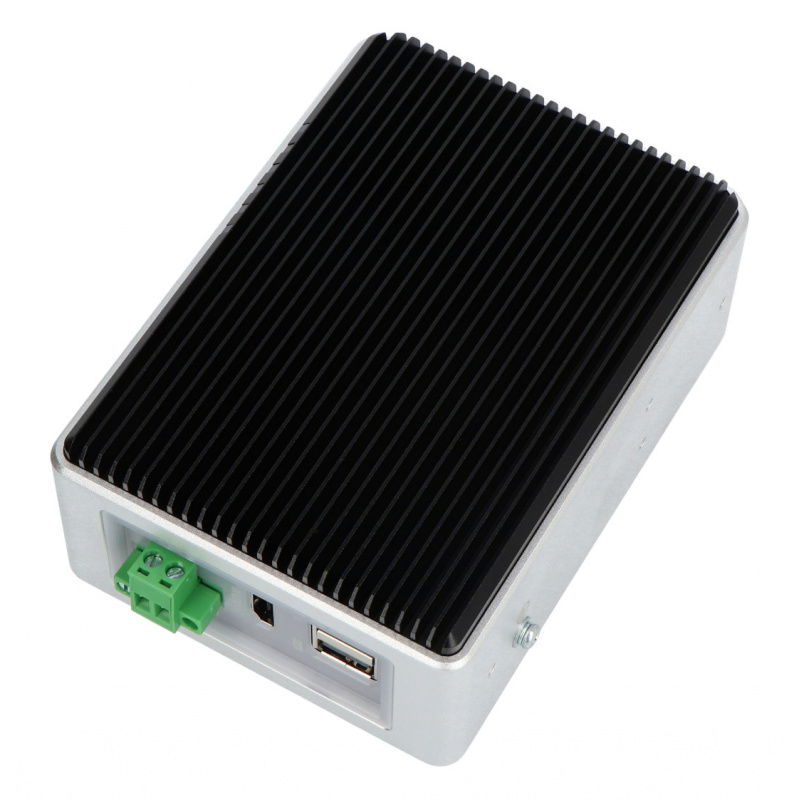

The housing is suitable for mounting on a DIN rail and on a wall.
Power and mounting options for industrial requirements
The controller supports a wide input voltage range from 12 V to 24 V AC and from 9 V to 36 V DC , providing great flexibility in selecting a power source. For critical applications, it is recommended to consider the option of redundant power supply via PoE (Power over Ethernet), which must be purchased separately. Additionally, low power consumption and optimization of current consumption help reduce heat generation. The optional UPS ensures continuity of power supply and informs about power outages. The controller offers great mounting versatility, allowing for installation on a wall or on a DIN rail , making it an ideal solution for industrial cabinets and control panels.
Kit Contents
- 1x reComputer R1024-10
- 1x DIN rail mount
- 1x Screw set
- 1x Female socket to screw terminal adapter
- 3x 3-pin male terminal connector
- 5x Resistor 120Ω
- 1x English User Manual

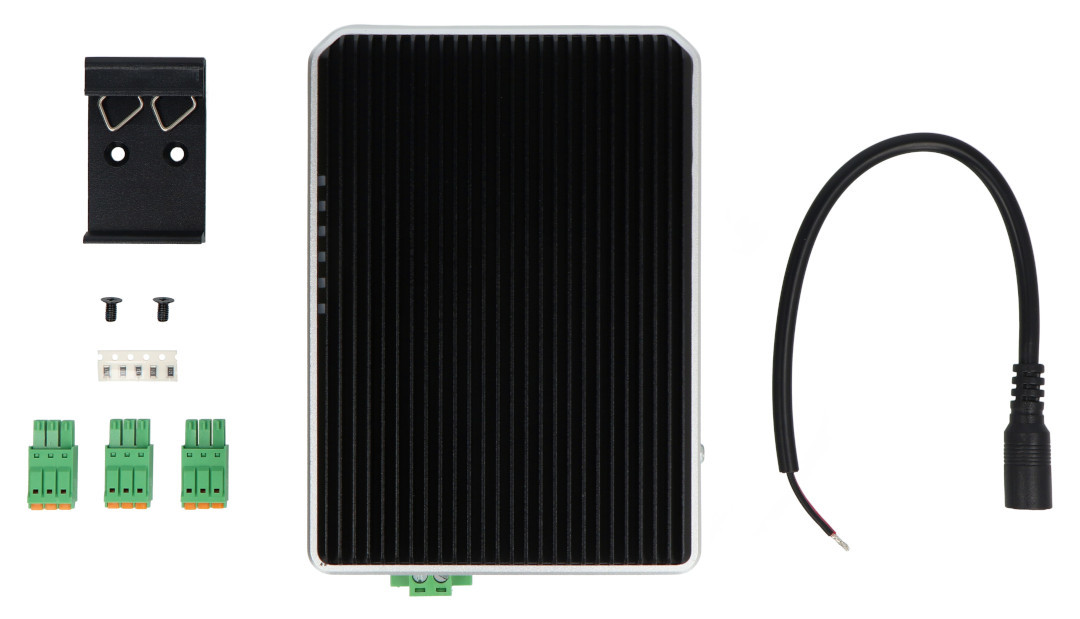

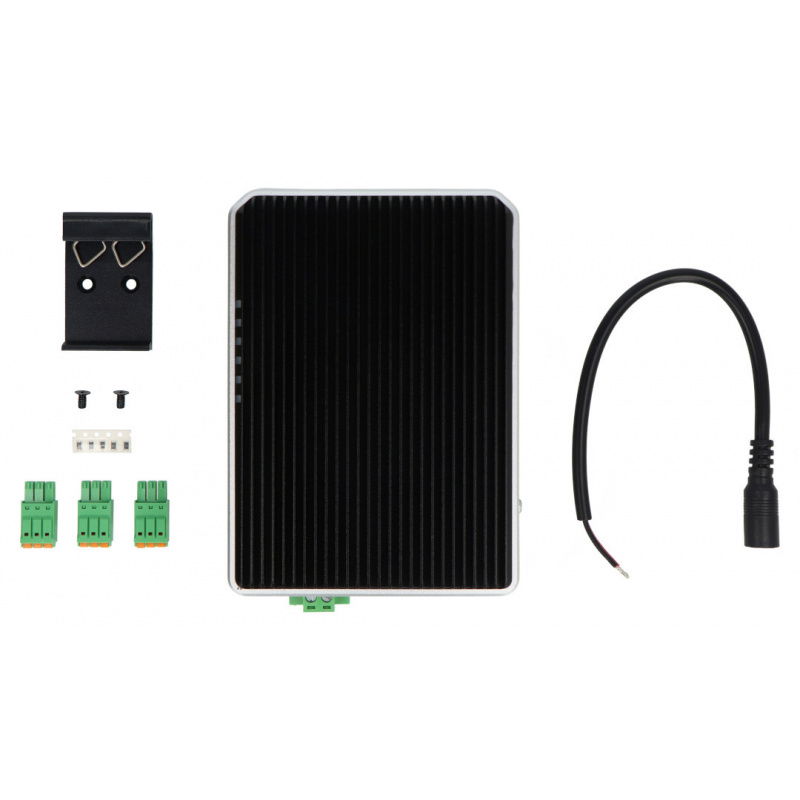

Items included in the set.
| reComputer R1000 Technical Specifications and Comparison | ||
|---|---|---|
| Product | ||
| CPU | ||
| Operating system | ||
| RAM | ||
| eMMC | ||
| Power supply | ||
| PoE | ||
| Fuse | ||
| Energy consumption | ||
| Power switch | ||
| Restart switch | ||
| Interfaces | 1x 10 / 100 Mb/s IEEE802.3/802.3u, 2x USB A 2.0, 1x USB C 2.0 (OS flashing), 3x RS485, 1x HDMI 2.0, 1x SIM slot, 1x M.2 NVMe SSD |
|
| LED | ||
| Buzzer | ||
| Reset button | ||
| Wi-Fi | ||
| BLE | ||
| Lora | ||
| ZigBee | ||
| Operating temperature | ||
| Working humidity | ||
| Dimensions | ||
| Mass | ||
