CM4-PoE-UPS Base - expander for CM4 - PoE, Gigabit Ethernet, Dual HDMI, Quad USB2.0 - Waveshare 22116
An expansion for the Compute Module 4 in the form of an advanced pin expander . The board features a number of useful interfaces and a three-battery cage that allows for wireless powering of the CM4 . The CM4-PoE-UPS Base also provides USB, DC, and PoE power interfaces, 2x HDMI ports, 4x USB 2.0 ports, 1x USB Type-C programming port, 2x indicator LEDs, 1x Gigabit Ethernet port, 40 GPIO pins for connecting peripherals, 1x DSI port, 2x CSI ports, 1x M.2 KEY slot, and a microSD memory card slot.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: CM4-PoE-UPS Base - pin expander for CM4 - PoE, Gigabit Ethernet, Dual HDMI, Quad USB2.0 - Waveshare 22116
An expansion for the Compute Module 4 in the form of an advanced pin expander . The board features a number of useful interfaces and a battery cage for three batteries , which allows for wireless powering of the CM4 . The CM4-PoE-UPS Base also provides USB, DC, and PoE interfaces, 2x HDMI connectors, 4x USB 2.0 connectors, 1x USB Type-C programming connector, 2x indicator LEDs, 1x Gigabit Ethernet connector, 40 GPIO pins for connecting peripherals, 1x DSI connector, 2x CSI connectors, 1x M.2 KEY slot, and a microSD memory card slot.
Before starting to work with the CM4-PoE-UPS Base, please read the user guide prepared by the manufacturer.

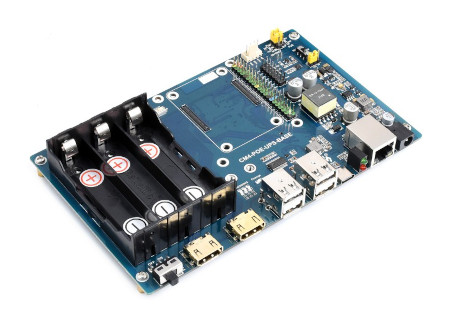

CM4-PoE-UPS Base - pin expander for CM4.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.

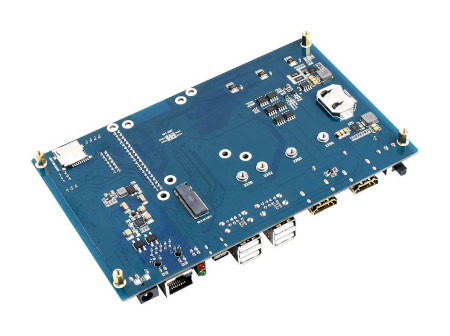

CM4-PoE-UPS Base - pin expander for CM4 - PoE, Gigabit Ethernet, Dual HDMI, Quad USB 2.0 - Waveshare 22116.
Special features of the CM4-PoE-UPS Base
- Designed for use with CM4
- Allows for wireless powering of the module and additionally three external power supply options: USB, DC and PoE interfaces
- It has protection circuits against overcharging/discharging, short circuiting and reverse polarity
- Equipped with a Gigabit Ethernet RJ45 connector, it integrates an 802.3af-compliant PoE circuit (5V/2.5A)
- Equipped with an M.2 KEY slot for connecting an NVME SSD or a communication module with a PCIE M.2 KEY interface
- It can charge batteries and simultaneously power the system from an external power source.
- Automatically switches to battery power in the absence of an external power source, ensuring trouble-free and continuous system operation
- The built-in CSI and DSI connectors have 22 pins with a pitch of 0.5 mm, it is recommended to purchase a CSI adapter and a DSI adapter for use with a camera and display with 15-pin connectors with a pitch of 1 mm
Arrangement of components on the board
The CM4-PoE-UPS Base board includes the following interfaces:
- Battery basket for 3x 18650 batteries
- Power - user button
- 2x HDMI connector
- 4x USB 2.0 connectors
- 1x USB Type-C connector for programming
- 2x status LEDs informing about CM4 operation
- 1x Gigabit Ethernet connector
- 1x DC socket
- Connectors for connecting the fan
- 40 GPIO pins
- Slot for connecting the Raspberry Pi Compute Module 4
- 1x DSI connector
- 2x CSI connector
- 1x M.2 KEY slot
- MicroSD memory card slot
- Battery slot for RTC

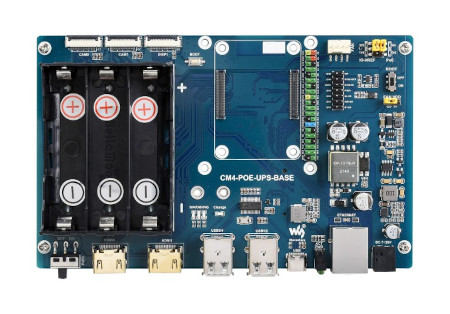

View of the components on the board.

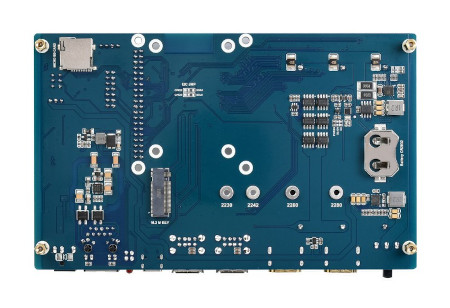

Not sure how to power the CM4 with PoE? Use the CM4-PoE-UPS Base board.
Technical specifications
- Compatible with Raspberry Pi Compute Module 4
- Built-in battery basket: yes
- 3x 18650 Li-ion battery slots (battery sold separately)
- Equipped with a Gigabit Ethernet RJ45 connector
- integrates an 802.3af-compliant PoE circuit (5 V/2.5 A)
- USB interface: 4x USB2.0 type A
- Connectors:
- 40-pin GPIO Raspberry Pi
- M.2 KEY slot for connecting an NVME SSD or a communication module with a PCIE M.2 KEY interface
- Display connector: MIPI DSI port 1x (22-pin 0.5mm FPC connector)
- Camera connector: MIPI CSI-2 port 2x (22-pin 0.5mm FPC connector)
- Video connector: HDMI 2x, supports 4K 30fps output
- RTC: built-in real-time clock with battery socket and ability to wake up Compute Module 4
- Memory: microSD card slot for Compute Module 4 Lite (no eMMC)
- Fan connector: 5V/12V with adjustable speed
- Operation indication: LED diode 2x
- Supply voltage: 7 V to 36 V
- Plate dimensions: 175 x 108 mm
Contents of the set
- 1 x CM4-PoE-UPS Base board with three-battery basket
- 3 x Li-Ion 18650 battery
- Mounting elements
Useful links
| Name | Value |
|---|---|
| Width | 21.5 cm |
| Height | 15 cm |
| Depth | 3.5 cm |
| Weight | 0.213 kg |
