Manufacturer's description: EdgeBox RPi 200 - Edge industrial controller 4 GB RAM + 16 GB eMMC - Seeedstudio 102110771
EdgeBox RPi 200 is an industrial controller based on the Raspberry Pi Compute Module 4 . The highly durable device supports multiple I/O pins and industrial protocols. It is equipped with 4 GB of RAM and 16 GB of eMMC memory . The EdgeBox RPi 200 series controllers are ideal as a tool for implementing automation and artificial intelligence in the industry. Edgebox can support many industrial processes , replacing PLC, PAC, IIOT gateway, OPC UA server and industrial computer. It complies with the IEC 61131-3 standard . The device has great communication capabilities, supports WiFi, Bluetooth 5.0 and Gigabit Ethernet RJ45 port, and the Mini PCIe slot supports 4G LTE module, LoRaWAN module and Zigbee module . The EdgeBox RPi 200 has a rich open source software ecosystem and uses platforms such as Codesys, Node Red, MQTT, OPC UA and Ignition.

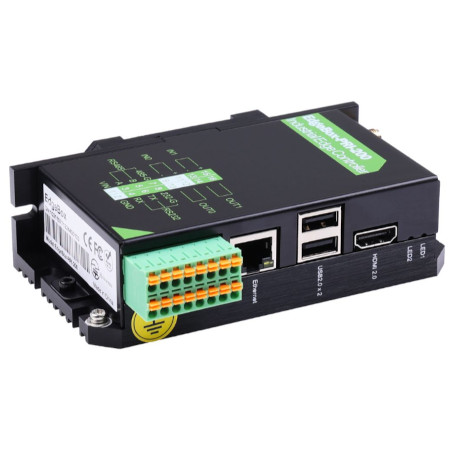

EdgeBox RPi 200 - Edge industrial controller 4 GB RAM + 16 GB eMMC.
4G LTE module and LoRa module cannot be supported at the same time.

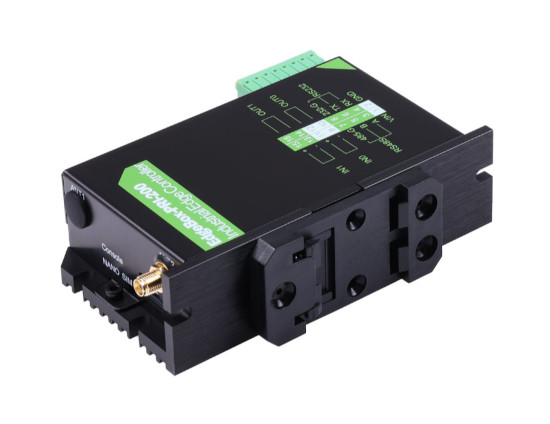

The controller can be mounted on a DIN rail or wall.
Main features of EdgeBox RPi 200
- Raspberry Pi Compute Module 4 (CM4) quad-core processor with 4GB RAM and 16GB eMMC
- Combination of PLC/PAC, IIOT gateway, OPC UA server and industrial PC
- IEC 61131-3 compliant
- Support for AWS and AZURE
- A wide range of I/O pins and industrial protocols
- Very large computing capabilities
- Continuously improved software
- Perfect connectivity between the controller and the cloud
- Rugged, maintenance-free controller design
- No need for fan cooling
- Can be mounted on a DIN rail or wall
Industrial controller application
The Edgebox RPi 200 series are devices that integrate a PLC/PAC controller, IIOT gateway, OPC UA server and industrial computer in one housing. Controllers fetch data from devices and perform multi-threaded calculations. The security of data and the accuracy of their processing is significantly increased. The Edgebox RPi 200 with the reTerminal device can act as a SCADA system, providing a reliable improvement in industrial automation.

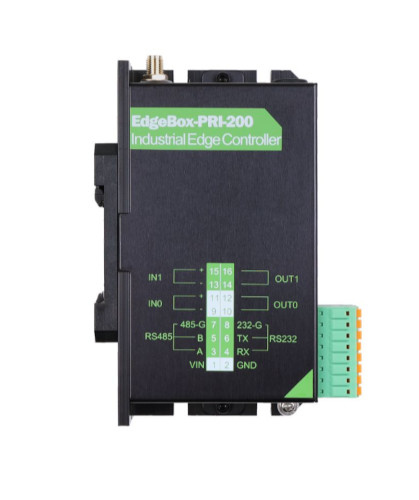

Industrial controller based on Raspberry Pi CM4.

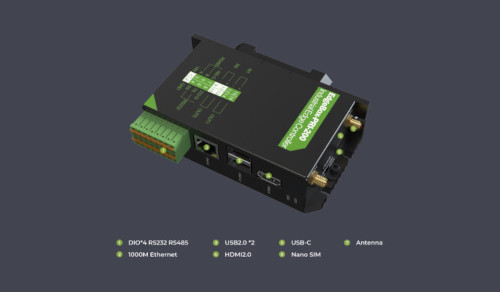

Edgebox RPi 200 pinouts.
The rich interface of the EdgeBox RPi 200
Controller outputs:
- 2x insulated DI, 2x insulated DO
- 1x isolated RS485, 1x RS232
- 1000M Ethernet RJ45
- 2x USB 2.0
- HDMI 2.0
- USB-C
- Nano SIM
- M.2 slot
- Antenna
Controller technical specification
- Processor: Raspberry Pi CM4 quad-core
- RAM: 4GB
- Internal Memory: 16GB
- WiFi: 2.4GHz/5.0GHz IEEE 802.11b/g/n/ac
- Bluetooth: 5.0BLE
- Mini PCIe: Support 4G/LoRaWAN/Zigbee
- M.2: 2242 NVME SSD card can be connected
- Supply voltage: DC 12 V to 36 V
- Operating temperature: from - 20°C to 60°C
- Storage temperature: -20°C to 75°C
- Dimensions: 124 x 76 x 35mm

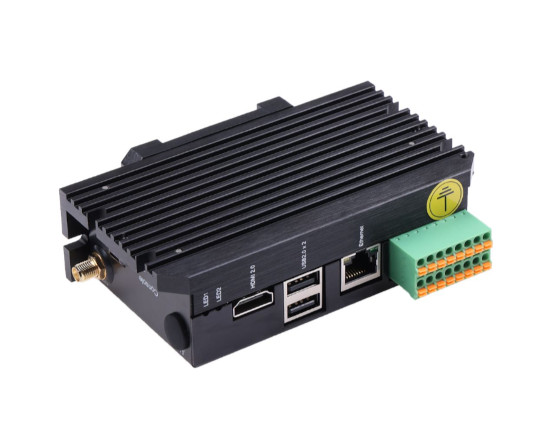

EdgeBox RPi 200 is the perfect tool for implementing automation and artificial intelligence in industry.
