Product description: Argon One V3 M.2 NVMe PCIe expansion board - for Raspberry Pi 5
The Argon One V3 M.2 expansion board, created by Argon40 specifically for the Argon One V3 chassis, allows you to run a Raspberry Pi 5 using an NVMe M.2 SSD . This guarantees faster system startup and more effective access to data. To use this board, you need to replace the standard Argon One V3 chassis base with the Argon One V3 M.2 extension. This board is compatible with M.2 NVMe SSDs with key M up to size 2280 . It supports the UASP protocol, which allows you to maximize the minicomputer's data transfer speed. Thanks to the built-in aluminum heatsink , the board provides better cooling of the drives, which translates into optimal performance. Steady and reliable data transfer is achieved with the included impedance-controlled FPC cable .

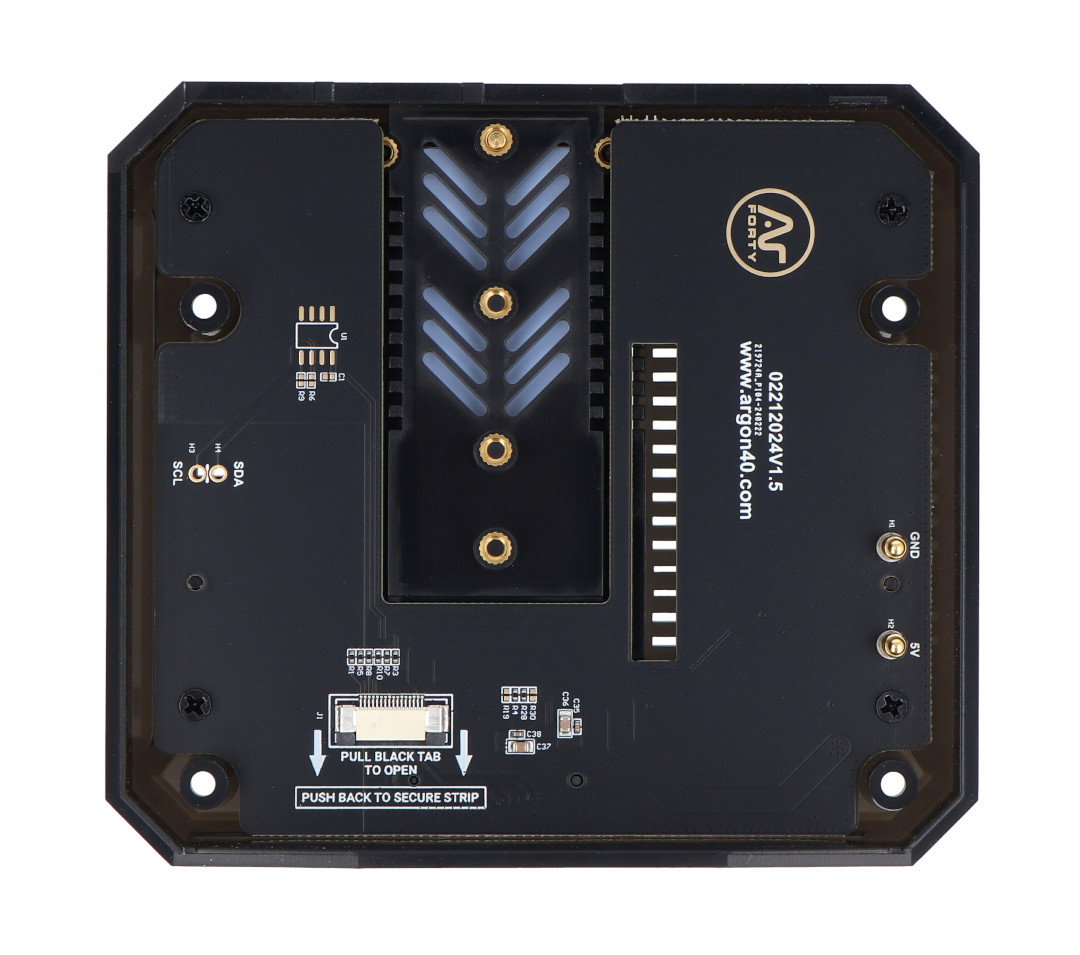

Argon One V3 M.2 NVMe PCIe expansion board - for Raspberry Pi 5.
The expansion board is compatible with M.2 NVMe SSDs up to size 2280.
Main features of the Argon One V3 M.2 NVMe expansion board
- Extending the capabilities of Raspberry Pi 5 in the Argon One V3 housing.
- Booting Raspberry Pi 5 from an NVMe M.2 drive, allowing for faster system startup.
- Built-in heatsink for M.2 NVMe drives, ensuring better thermal management and longer life.
- Access memory faster and more efficiently by connecting M.2 NVMe drives via a PCIe slot.
- Comprehensive M.2 NVMe SSD support, compatible with any M-key M.2 NVMe drive up to size 2280.
- Reliable and constant data transfer thanks to the included impedance-controlled FPC cable.
Our offer includes many different accessories for Raspberry Pi 5 - check it out!
Technical specifications of the board
- Manufacturer: Argon40
- Compatibility: Argon One V3 case for Raspberry Pi 5
- Communication protocol: UASP
- Supported drives: M.2 NVMe SSD with M key up to size 2280
- Passive cooling: radiator
Set contents
- Argon One V3 M.2 NVMe expansion board
- Fitting elements
- User manual
Argon One V3 housing and the Raspberry Pi 5 minicomputer are not included in the set - they must be purchased separately.

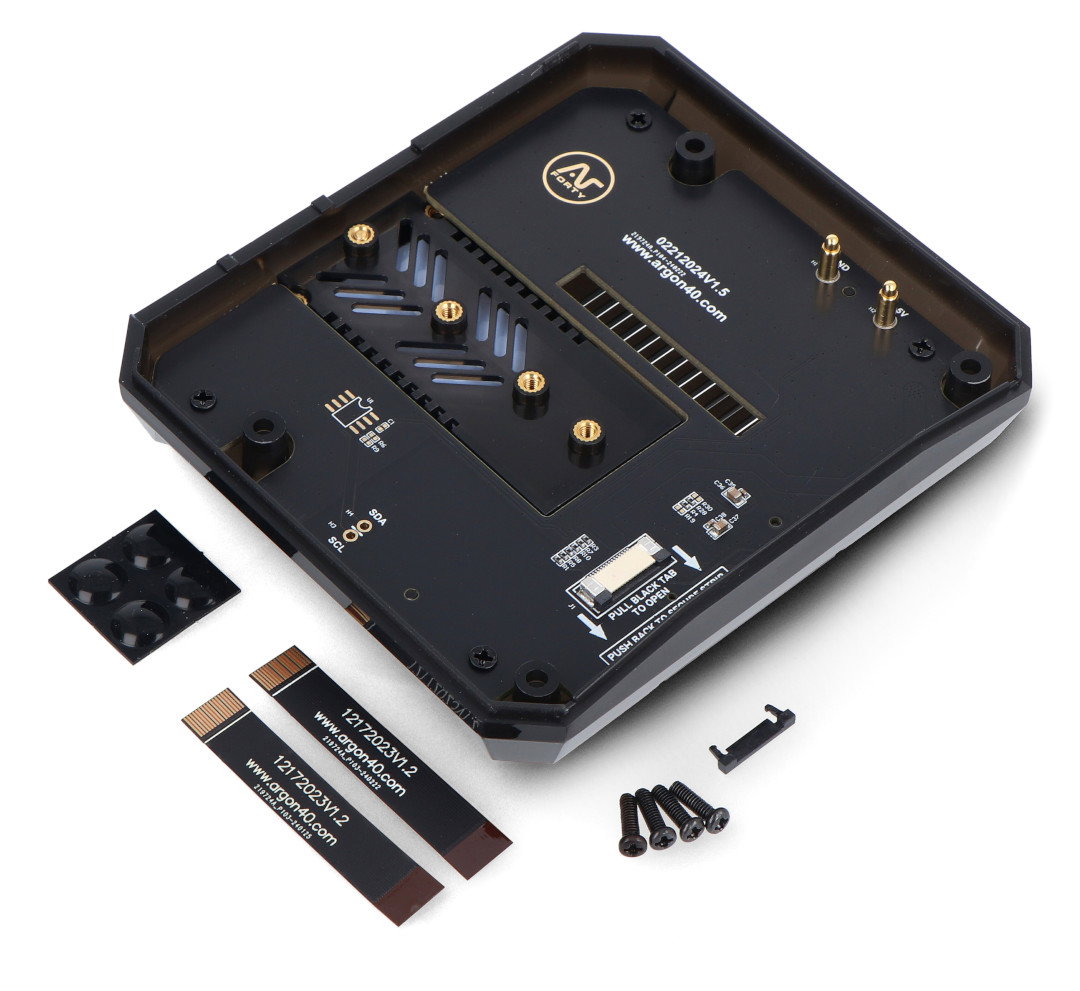

Elements included in the set.
