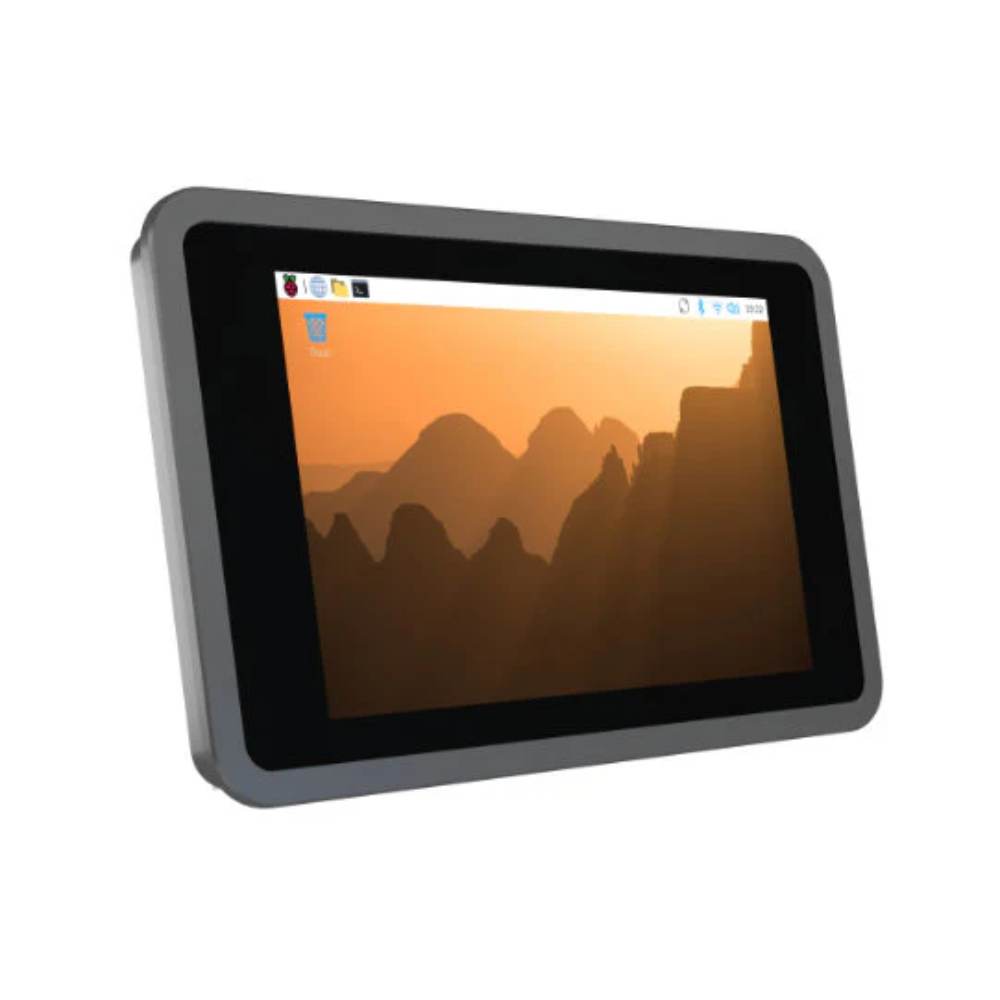

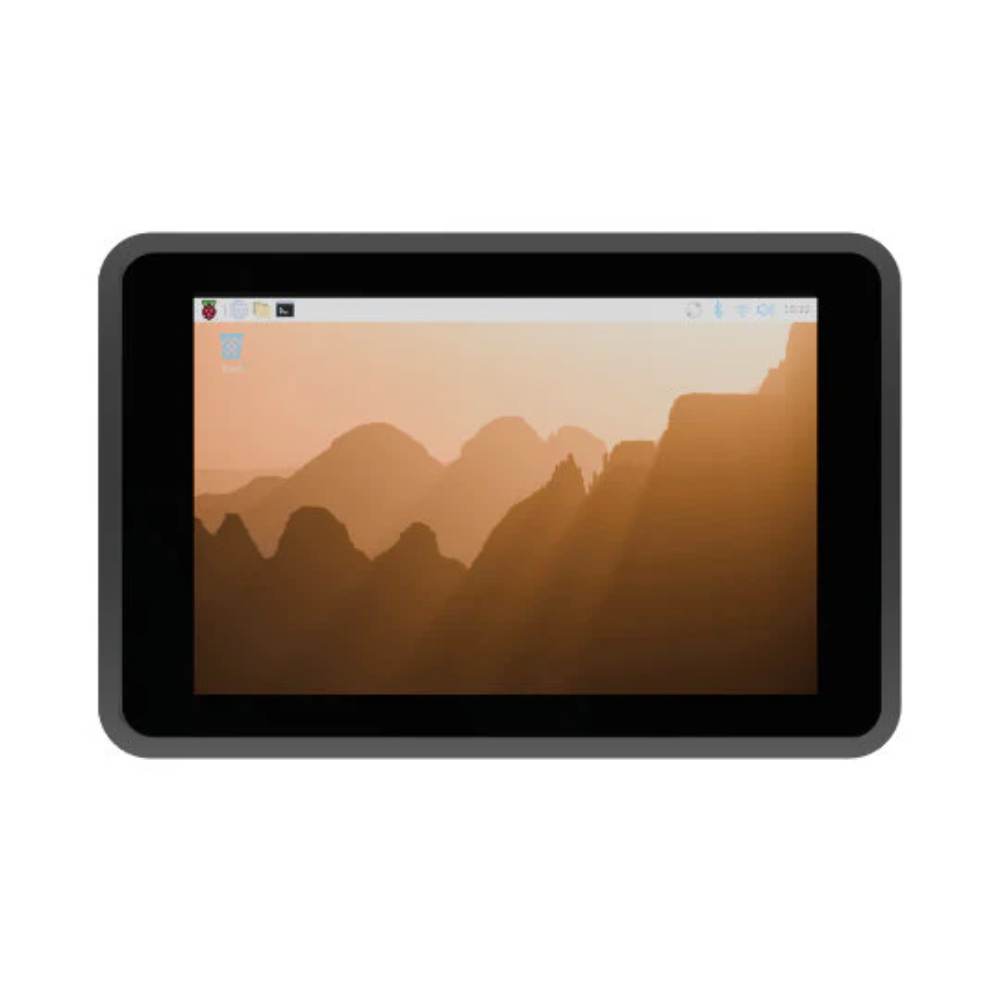

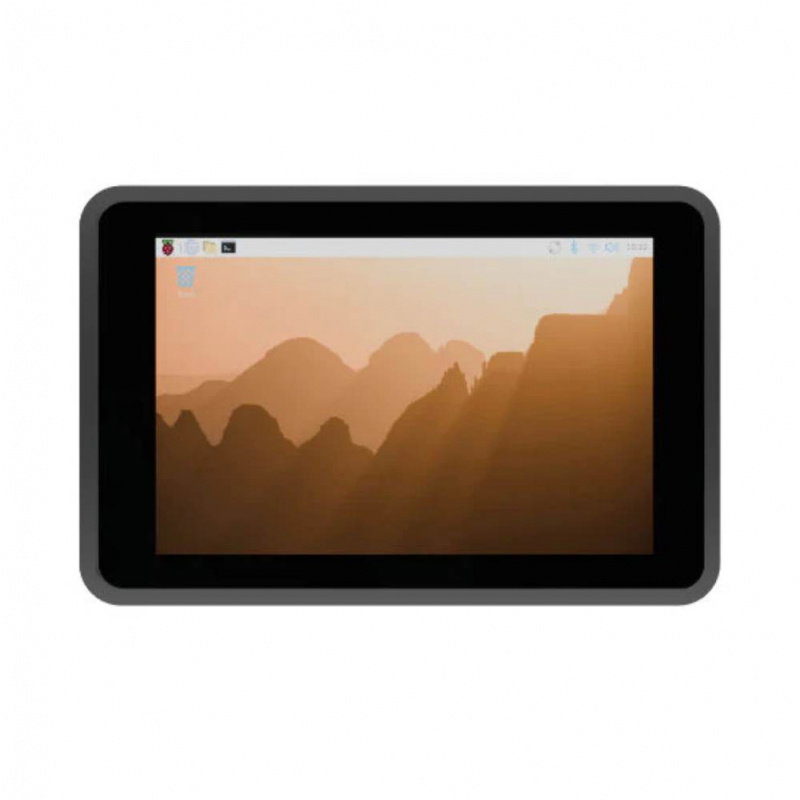

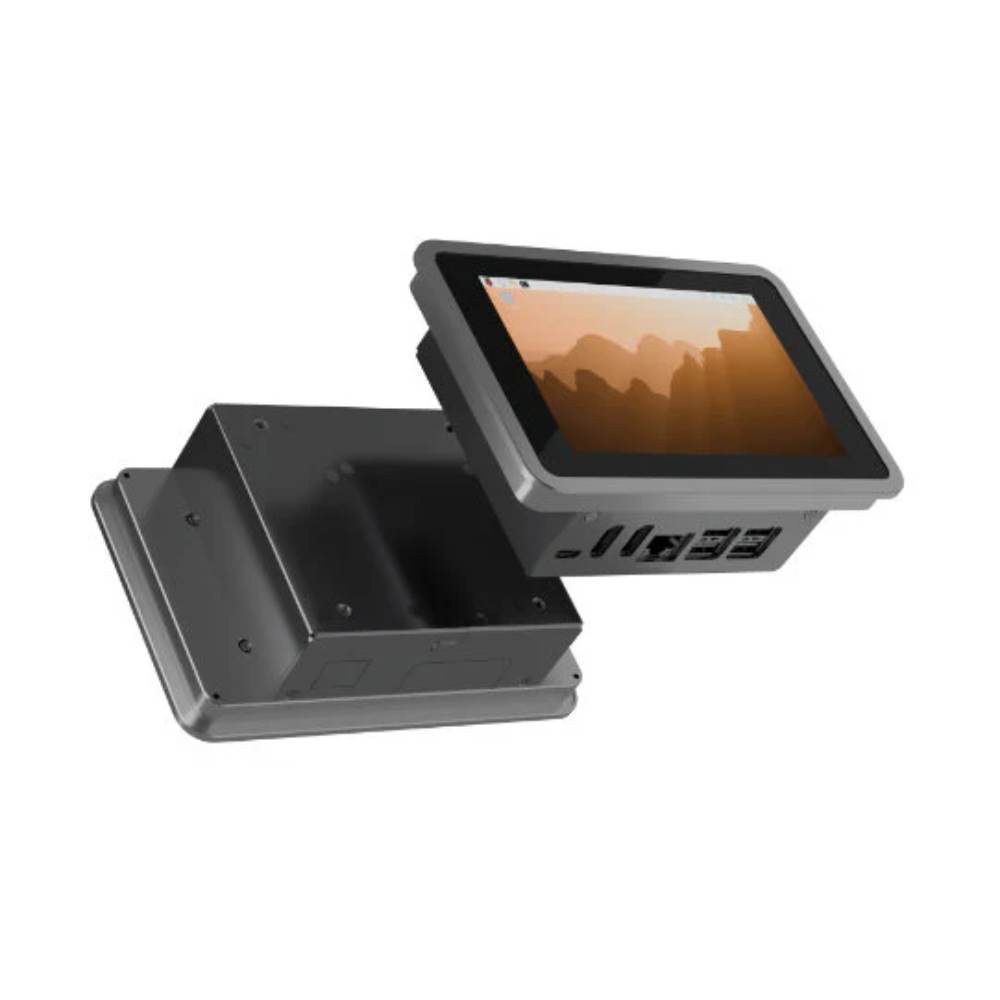

Product description: Argon Industria HMI 7C Enclosure - HMI enclosure for Raspberry Pi 5
The Argon Industria HMI 7C Enclosure is a robust HMI enclosure for the Raspberry Pi 5 , designed for industrial applications, automation, operator panels, and intelligent control interfaces. The design allows you to combine the Raspberry Pi 5 and the official Raspberry Pi Touch Display 2 7" into an aesthetic, durable, and functional system for use in demanding environments. The aluminum enclosure increases the device's mechanical durability, and the precise construction ensures convenient access to key ports.
The HMI 7C model offers passive cooling with the option of expanding it with an optional active cooling module. The enclosure supports VESA mounting, panel mounting, and desktop placement, making it easily adaptable to a workstation, control cabinet, or prototype installation. The design also allows for expansion with Argon Industria communication modules and Raspberry Pi HATs, including the Cytron Industrial HAT.
The kit does not include a Raspberry Pi 5 or a Raspberry Pi Touch Display 2 7". These items must be purchased separately.
Argon Industria HMI 7C Enclosure - industrial HMI enclosure for Raspberry Pi 5 and 7" screen.
The Argon Industria HMI 7C Enclosure is a robust HMI enclosure for the Raspberry Pi 5.Special features of the Argon Industria HMI housing
- Raspberry Pi 5 Compatibility: The case is designed to build an HMI panel based on the Raspberry Pi 5
- Touch Display 2 7" support: Designed to fit the official Raspberry Pi screen with a resolution of 720 x 1280 px via MIPI interface
- Aluminum construction: durable housing increases mechanical resistance and gives the device a professional look
- Passive cooling: the heatsink supports stable operation of the Raspberry Pi 5 without the need for a fan in the basic configuration
- Active cooling capability: the chassis can be expanded with an optional active cooling module
- Flexible mounting: VESA, panel, and desk mount compatibility for easy integration into a variety of workstations
- Port access: The design provides convenient access to USB, Ethernet, HDMI and GPIO
- GPIO Expansion: Raspberry Pi HAT support, including Cytron Industrial HATs
- Communication modules: expandable with Argon Industria Communication modules tailored to the installation requirements
- Industrial use: the housing is suitable for control panels, automation, monitoring and operator interfaces
Technical specifications
- Product type: HMI case for Raspberry Pi 5
- Model: Argon Industria HMI 7C Enclosure
- Version: Case Only
- Compatibility: Raspberry Pi 5
- Compatible screen: Raspberry Pi Touch Display 2 7"
- Supported screen resolution: 720 x 1280 px
- Screen interface: MIPI
- Housing material: aluminum
- Cooling: passive, radiator
- Optional cooling: active cooling module
- Mounting methods: VESA, panel, desktop
- Available ports: USB, Ethernet, HDMI, GPIO
- Shield support: Raspberry Pi HAT via GPIO, Cytron Industrial HAT
- Expandability: Argon Industria Communication modules
- Not included: Raspberry Pi 5, Raspberry Pi Touch Display 2 7"
Kit contents
- Argon Industria HMI 7C Enclosure
The HMI 7C model offers passive cooling with the option of expanding it with an optional active cooling module.
