Product description: Argon Industria HMI 5C Enclosure - HMI enclosure for Raspberry Pi 5 and Touch Display 2 5" screen

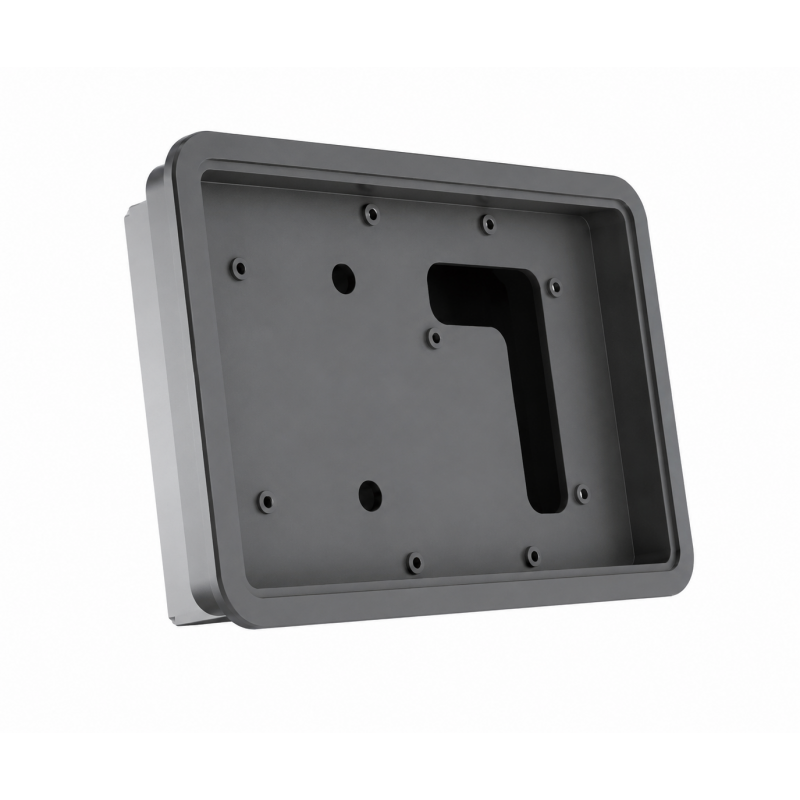

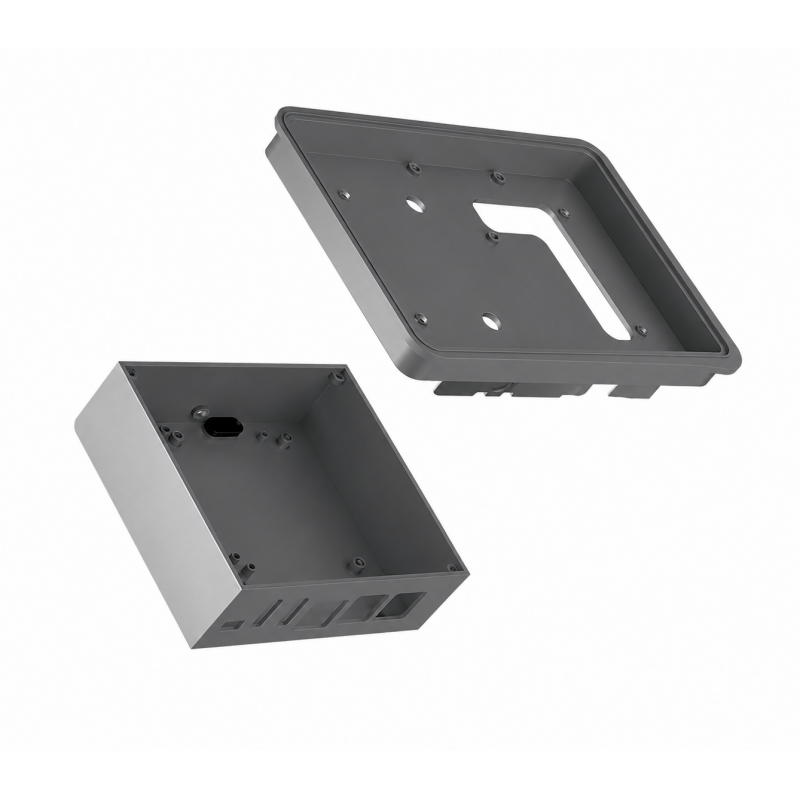

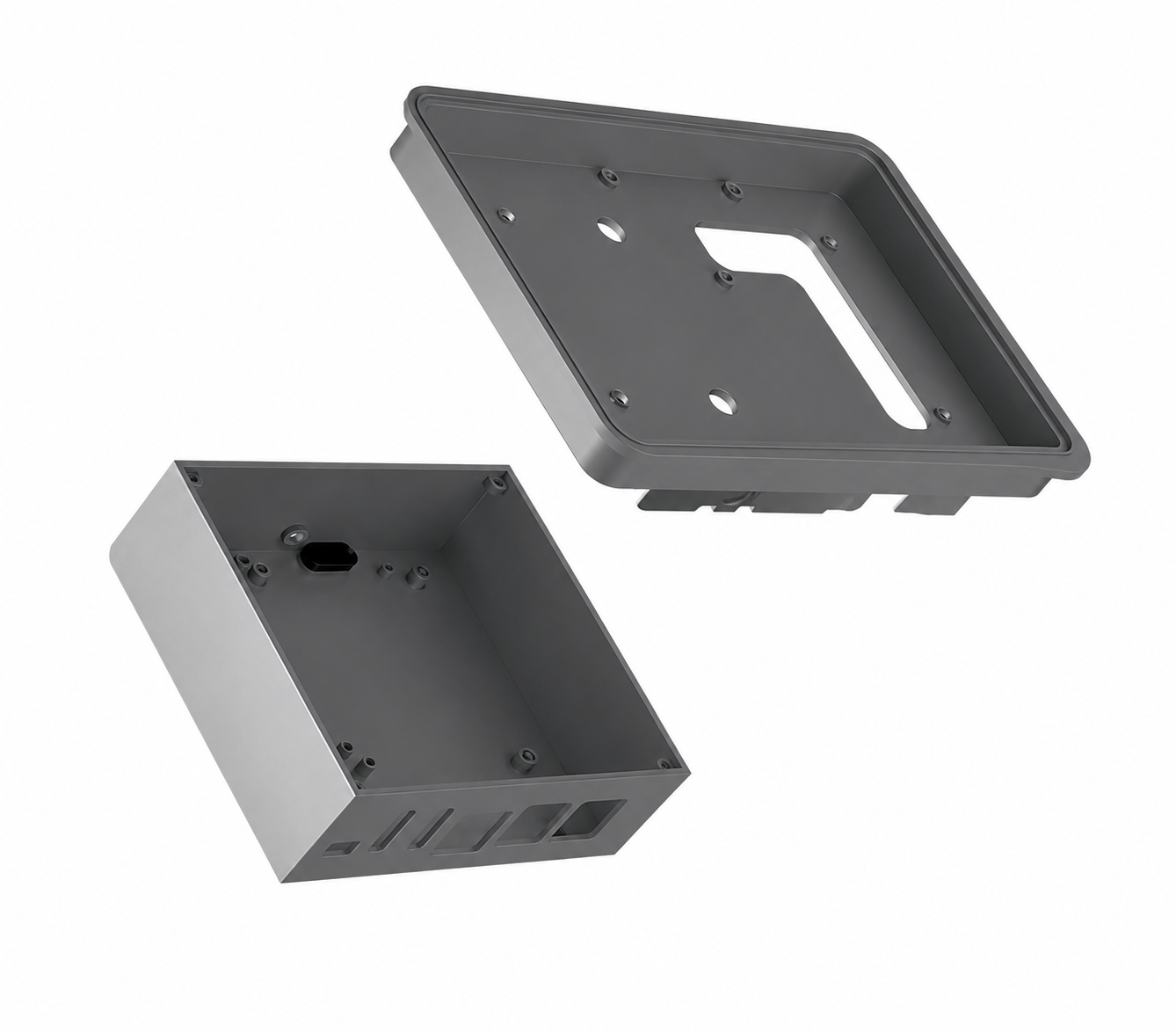

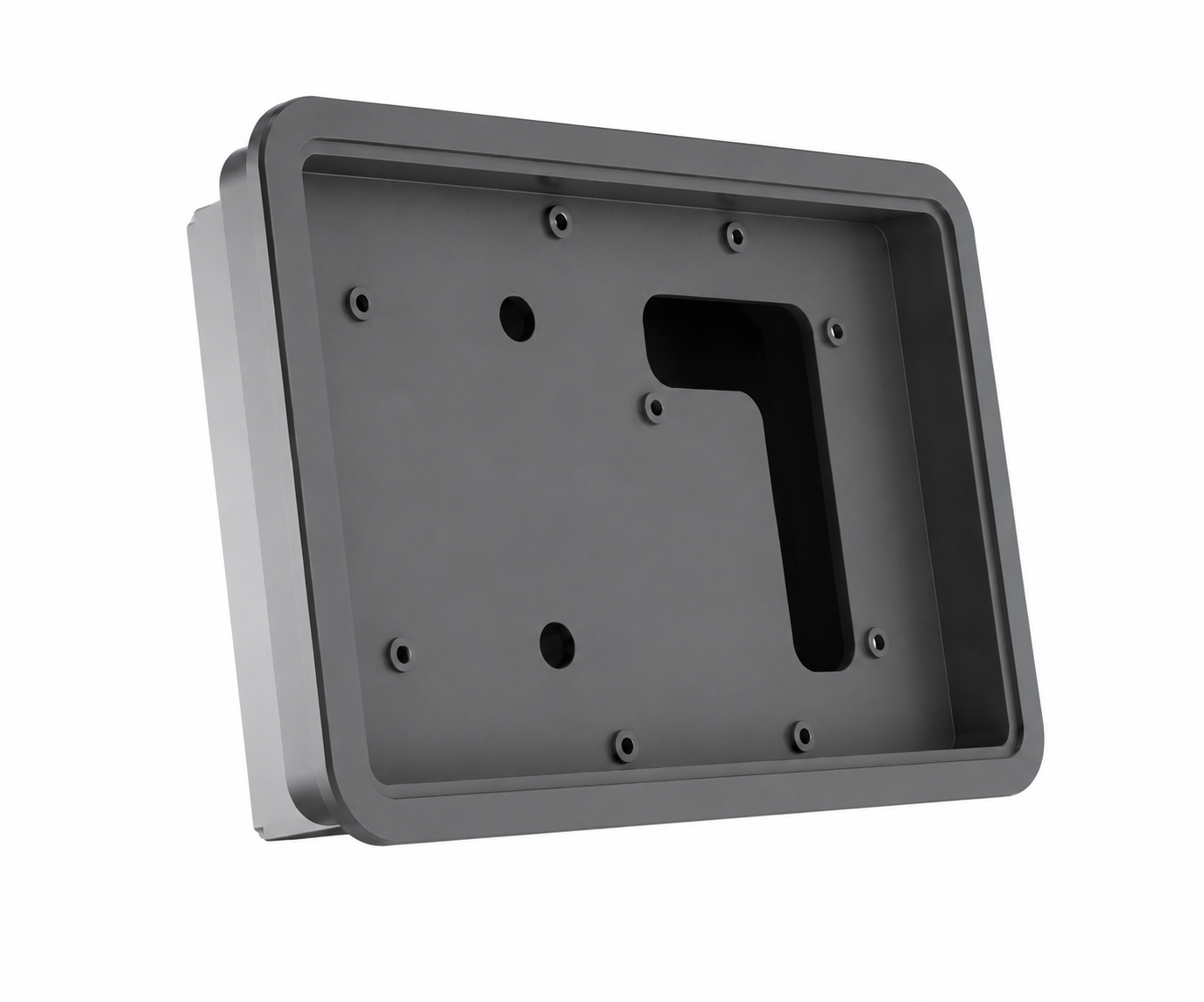

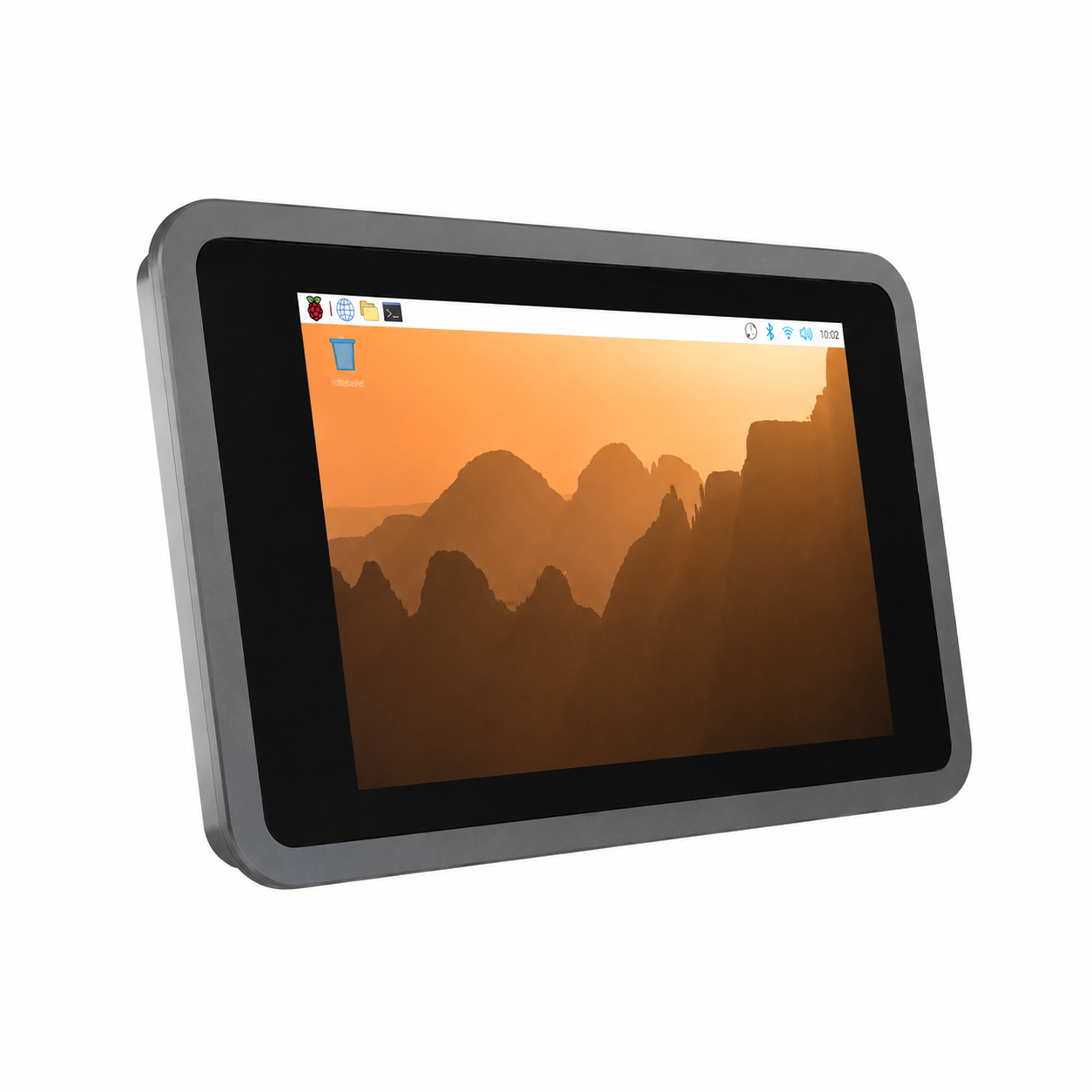

The Argon Industria HMI 5C Enclosure is an industrial enclosure designed to build a professional HMI panel using the Raspberry Pi 5 and the official Raspberry Pi Touch Display 2 5" . The design allows you to turn the popular minicomputer into a convenient human-machine interface for controlling, monitoring, and visualizing data in technical applications.
The enclosure is made of aluminum , ensuring high durability and good protection for electronics in demanding operating environments. An integrated heatsink supports passive cooling of the Raspberry Pi 5 , while an optional active cooling module allows for increased thermal efficiency. The well-thought-out design provides access to USB, Ethernet, HDMI, and GPIO ports, as well as expandability with Raspberry Pi HATs and Argon Industria communication modules.
This product is shipped as a case only. The kit does not include a Raspberry Pi 5 or a Raspberry Pi Touch Display 2 5". These items must be purchased separately.
Argon Industria HMI 5C Enclosure - HMI enclosure for Raspberry Pi 5 and Touch Display 2 5" screen.
Designed to build a professional HMI panel using the Raspberry Pi 5 and the official Raspberry Pi Touch Display 2 5".Main features of the Argon Industria HMI 5C housing
- Raspberry Pi 5 Compatibility: The case is designed to work with the Raspberry Pi 5 in HMI and automation applications
- Supports official 5" screen: the design allows for mounting a Raspberry Pi Touch Display 2 5" with a resolution of 720 x 1280 px
- MIPI interface: the screen works with the Raspberry Pi 5 via a fast interface designed for touchscreen displays
- Industrial design: aluminum housing increases durability, rigidity and reliability in demanding operating conditions
- Passive Cooling: Built-in heatsink helps dissipate heat effectively from the Raspberry Pi 5
- Optional active cooling: optional cooling module for more demanding applications
- Flexible mounting: VESA, panel, and desk mount compatibility for easy integration into a variety of workstations
- Port Access: Convenient access to USB, Ethernet, HDMI and GPIO without having to disassemble the case
- Expandability: Supports Cytron Industrial HAT, standard Raspberry Pi HATs, and Argon Industria communication modules
Technical specifications
- Compatible computer: Raspberry Pi 5
- Compatible screen: Official Raspberry Pi Touch Display 2 5"
- Supported screen resolution: 720 x 1280 px
- Screen interface: MIPI
- Cooling: passive, built-in radiator
- Optional cooling: Active cooling module
- Available ports: USB, Ethernet, HDMI, GPIO
- Supported extensions: Cytron Industrial HAT, Raspberry Pi HATs, Argon Industria communication modules
- Mounting: VESA, panel, desktop
- Housing material: aluminum
Contents of the set
- 1x HMI Case for Raspberry Pi 5 and Touch Display 2 5"
The housing is made of aluminum, ensuring high durability and good protection of electronics in demanding working environments.
