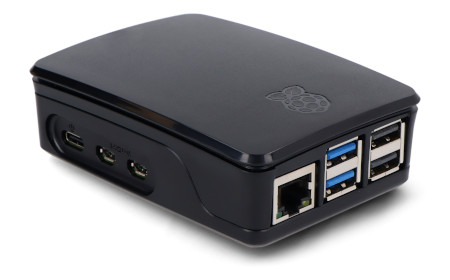

Product description: Official case for Raspberry Pi 5 - graphite
Official black and gray case for Raspberry Pi 5 . It was made of materials with increased thermal resistance , taking into account the greater energy demand of the latest edition of raspberry. Additionally, the casing is equipped with a dedicated fan that effectively dissipates heat and guarantees optimal air circulation inside. Thanks to this, Raspberry Pi maintains a stable operating temperature. Raspberry Pi 5 is equipped with a special connector for the fan, enabling dynamic regulation of rotation speed. To access the GPIO pins, simply remove the top of the case, just like in the previous version.
Official red and white case with fan for Raspberry Pi 5 (illustrative photo).

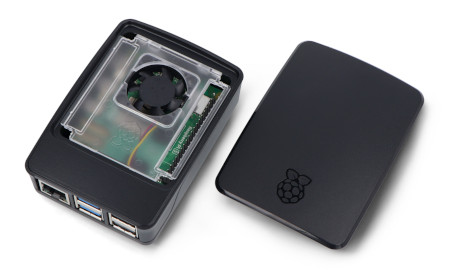

The housing is equipped with dedicated cooling in the form of a fan (illustrative photo).
The housing is dedicated to Raspberry Pi version 5 , therefore it will not fit Raspberry Pi in older versions 4B, 3B+, 3B or 2.
Specification of the official case for Raspberry Pi 5
- Fan:
-
- Number of wires: 4 (VCC, GND, PWM, tachometer)
- FDB bearing: ensures quiet operation and long service life (approx. 50,000 hours)
- Rotational speed: max. 8000 rpm
- Maximum air flow: 2.79 CFM
- Dimensions: 30 x 30 x 7.5 mm
- Case:
-
- Color: black and gray
- Material: ABS with increased temperature resistance
- Cooling: built-in fan
- Compatibility: Raspberry Pi 5
