Housing for HiFiBerry and Raspberry Pi 5 - steel - black

Index: RHF-25041 EAN: 4260439550941

Ask a question

Remove from wishlist Add to wishlist

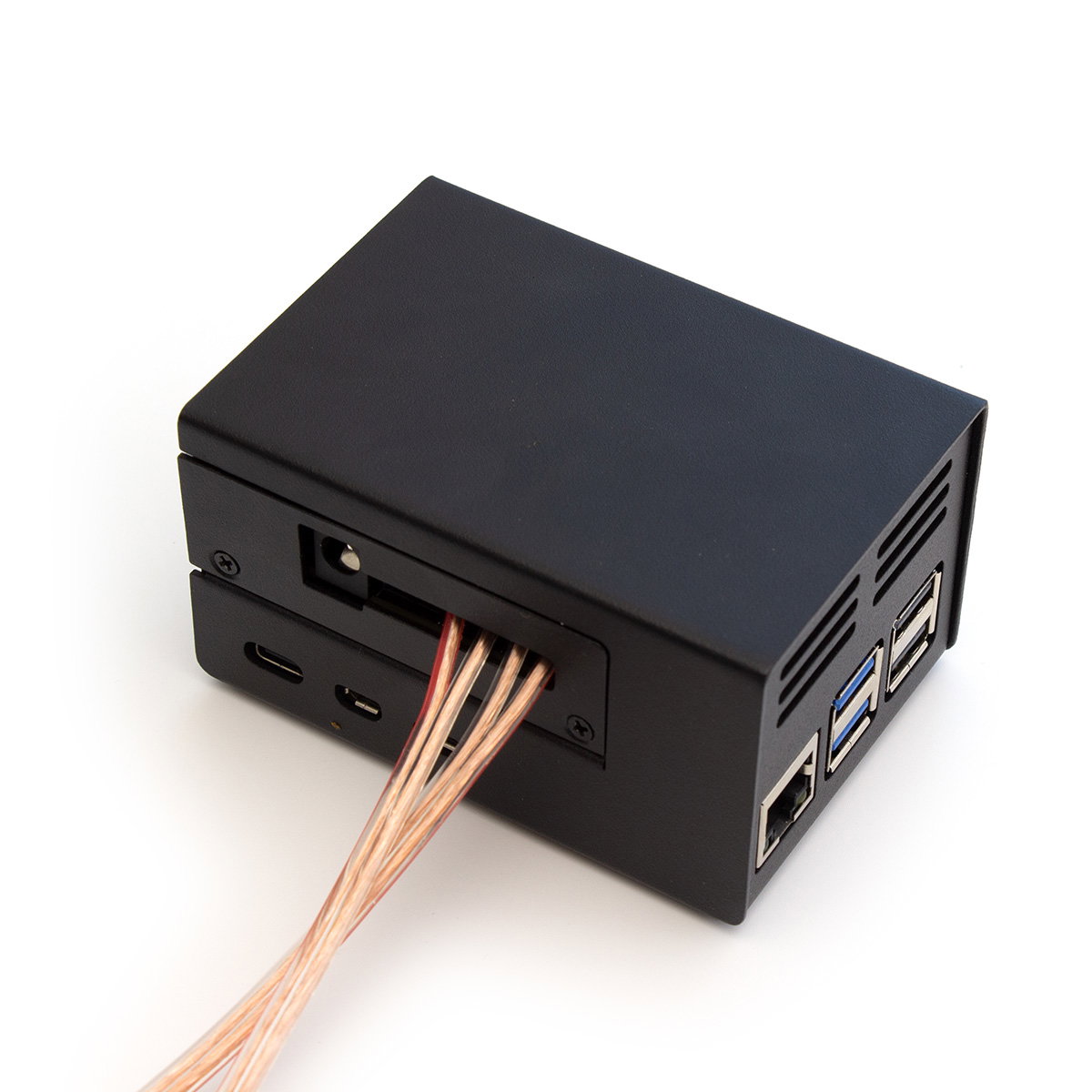

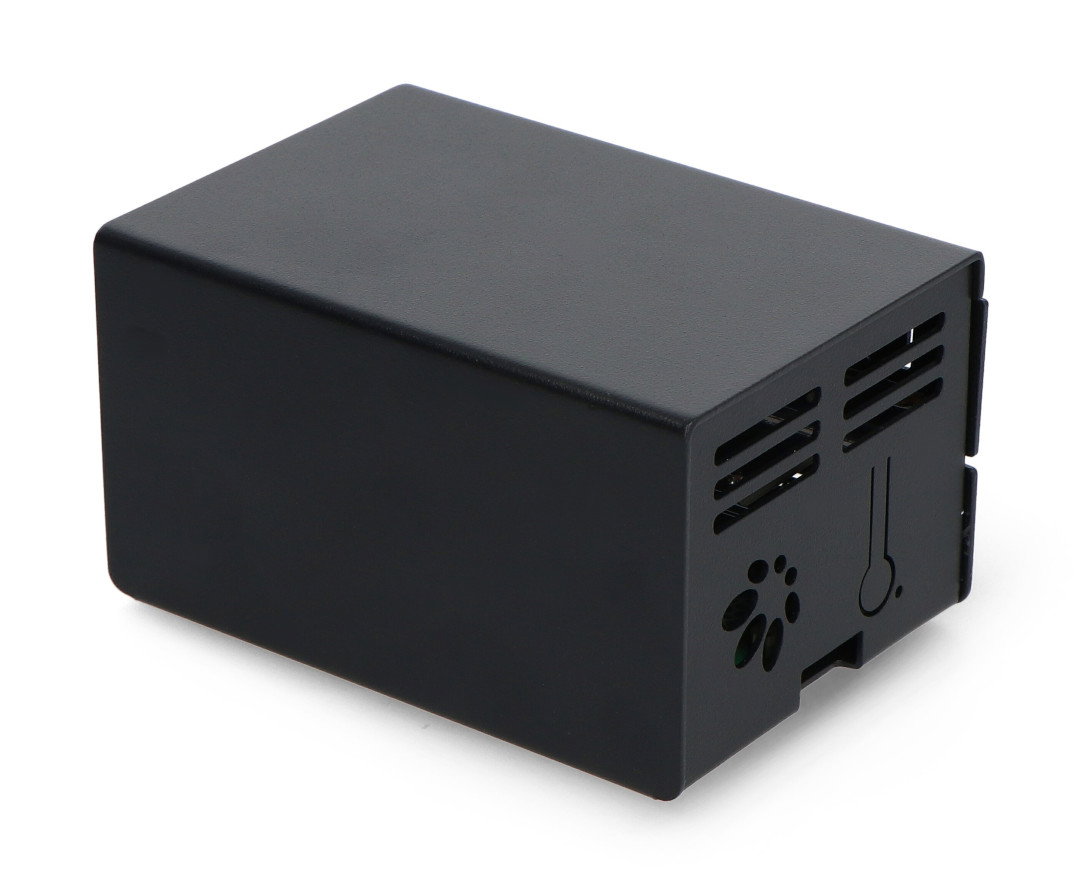

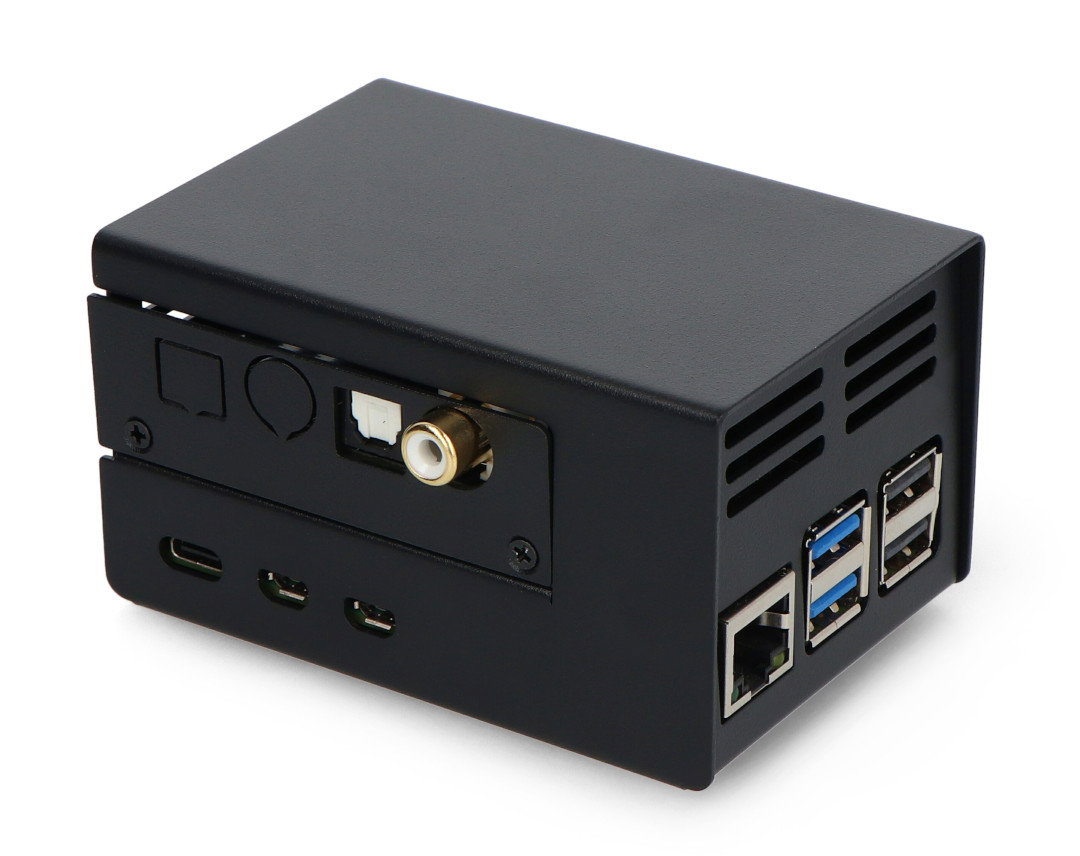

Case perfectly matched to Raspberry Pi 5 and HiFiBerry . Made of high-quality steel , it offers solid protection and an elegant appearance. The front and rear parts contain ventilation holes . Thanks to the precise design, the installation of components is quick and easy, making it an excellent choice for any electronics enthusiast.

€35.90

€29.19 tax excl.

Check quantity

Manufacturer: HiFiBerry

Compatibility: Raspberry Pi

Must-have accessories

Raspberry Pi 5 8GB

€89.90

Raspberry Pi 5 4GB

€67.50

Product description: Case for HiFiBerry and Raspberry Pi 5 - steel - black

Steel case measuring 12 x 6 x 8 cm , designed for Raspberry Pi 5 and HiFiBerry. Durable and aesthetic design provides not only protection, but also comfort of use thanks to easy installation and versatility.

Offer includes case only . Raspberry Pi 5 and HiFiBerry sound card must be purchased separately.

Case for HiFiBerry and Raspberry Pi 5 - steel - black.

Case for Raspberry Pi 5 and HiFiBerry.

Special Features of the Raspberry Pi 5 Case

Solid construction: made of high-quality steel, ensures durability and protection.
Precise fit: Perfectly fits the Raspberry Pi 5, ensuring a stable mount.
Easy installation: quick and easy installation thanks to the accessories supplied.
Versatile: Supports various HiFiBerry cards, including DSP, Amp, DAC and Digi.

Case Applications

Perfect for those building audio systems based on the Raspberry Pi 5.
A perfect solution for those using HiFiBerry sound cards.
It is suitable for use in electronic projects requiring a solid and aesthetic housing.

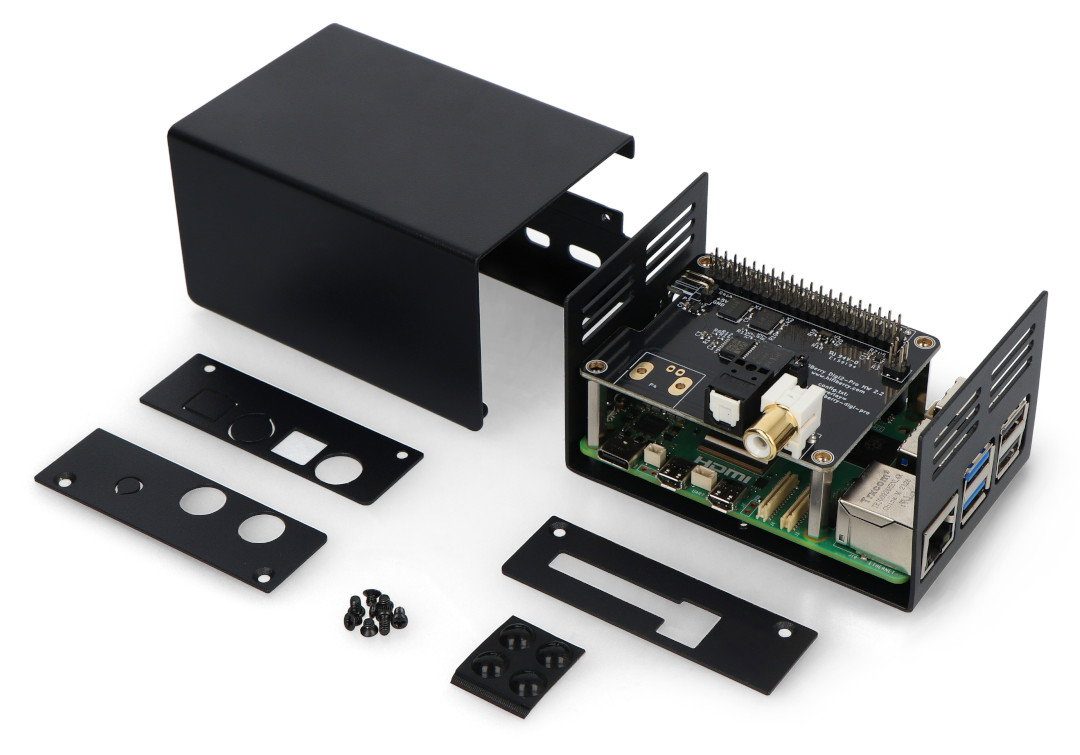

Brief assembly instructions

Start by positioning the bottom plate and secure the Raspberry Pi using the four standoffs.
Then add the 40-pin extender and HiFiBerry sound card, securing them to the case using the supplied screws.
If your card supports a DSP add-on, simply connect it directly to the HiFiBerry card.
If using a HiFiBerry Amp, connect the wires and mount the backplate for the amplifier. If using a DAC or Digi, you can skip this step.
Slide the side cover onto the bottom of the case, adjusting it as necessary to ensure a perfect fit.
Turn the case over and secure the top cover with the screws provided.
Finally, add the back plate and secure it with screws.
