Product description: Argon ONE V3 M.2 NVMe PCIe case for Raspberry Pi 5 - with fan and heatsink - aluminum - black
Argon ONE V3 M.2 NVMe PCIe is an extended version of the Argon ONE V3 aluminum housing for Raspberry Pi 5, which additionally provides support for M.2 NVMe drives . This allows users to boot the system using ultra-fast drives , which significantly increase hardware performance. It is equipped with passively cooling radiators placed on the NVMe drive and other key components of the Raspberry Pi 5, and also has an actively cooling blower fan . The housing allows for precise control of power and fan speed. On the back of the case there is a power button that allows you to safely turn off and restart the system. Additionally, Argon ONE V3 M.2 NVMe PCIe is equipped with a magnetic cover for easy access to GPIO pins and a built-in infrared receiver that is compatible with the Argon IR remote control. There is also an optional 3.5mm audio jack that supports the Argon BLSTR DAC sound board, which is scheduled for release in March 2024.
Our offer also includes another variant of this housing - Argon ONE V3 .

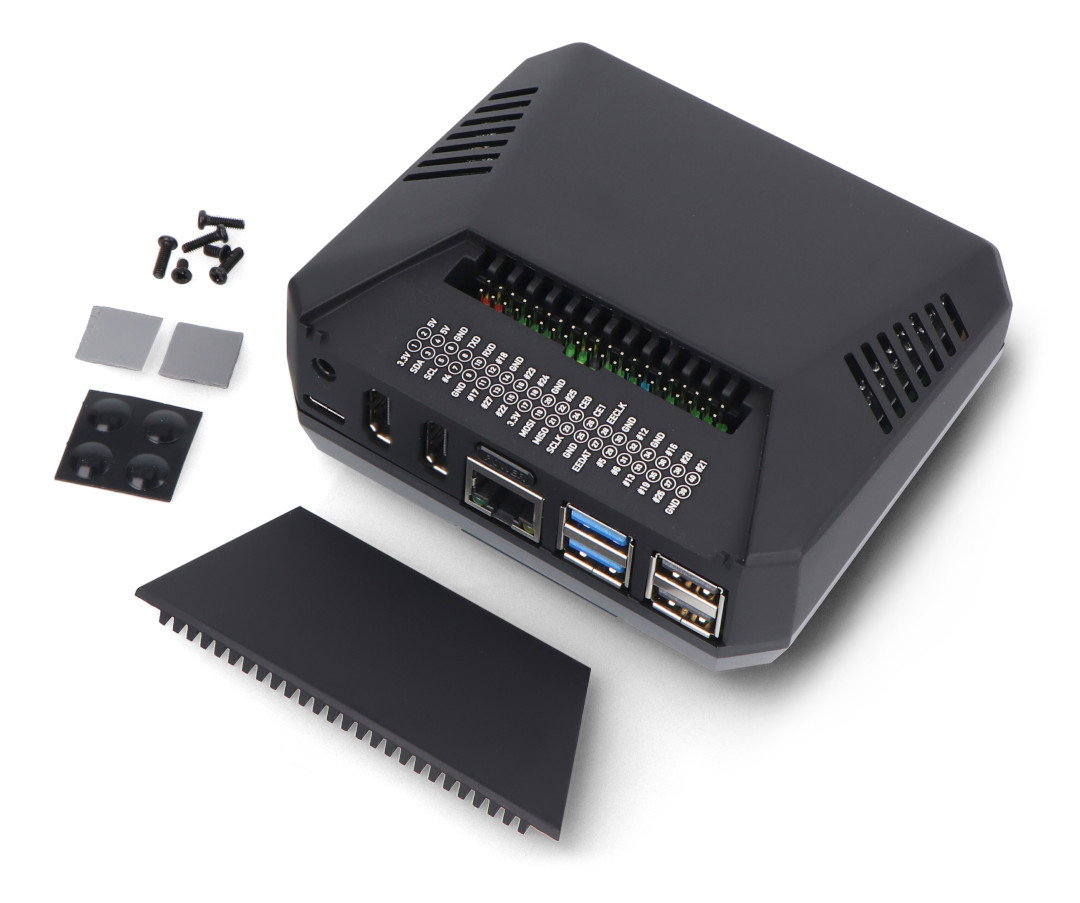

Argon ONE V3 M.2 NVMe PCIe case for Raspberry Pi 5 - with fan and heatsink - aluminum - black.

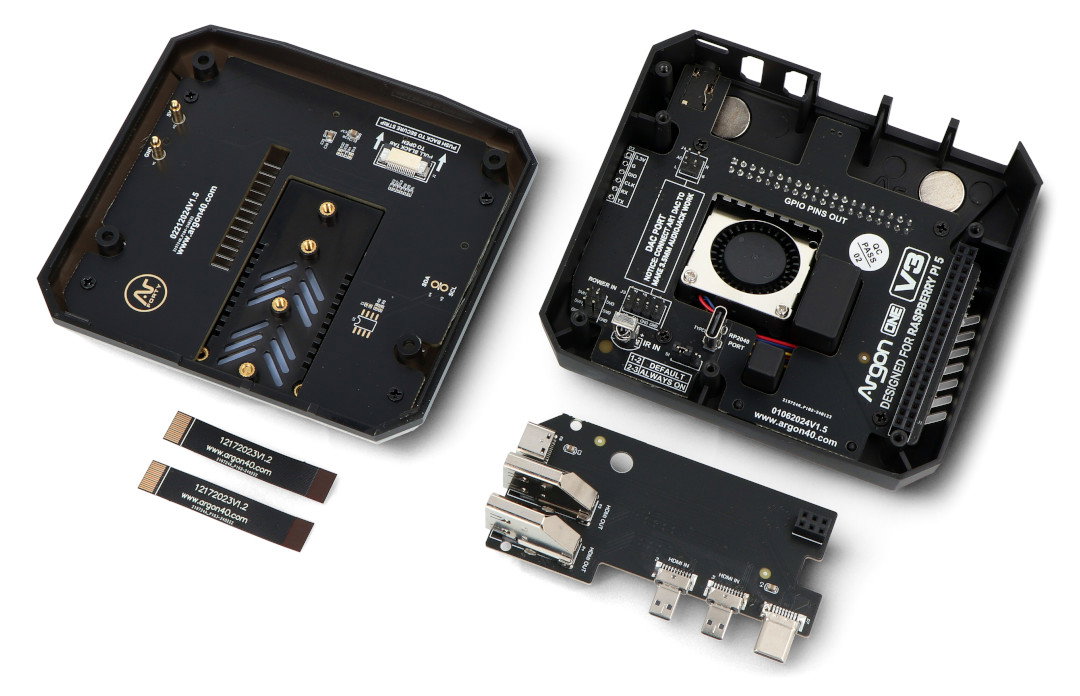

The case has a fan and heat sinks and offers easy access to the GPIO pins.
Technical specifications of the Argon ONE V3 M.2 NVMe PCIe housing
- Compatibility: Raspberry Pi 5
- Drive support: M.2 NVMe 2280
- Cooling type: active-passive cooling
- Active cooling: PWM blower fan, diameter 30 mm
- Passive cooling: heatsink for power management chip, CPU and NVMe drive
- Port access: 40-pin GPIO, 2x HDMI Type A, 2x USB 3.0, 2x USB 2.0, 1x USB Type C (power), 1x Gigabit Ethernet, 1x 3.5 mm audio jack (for Argon BLSTR DAC), 1x socket M.2 NVMe drive
- GPIO access: via easy removal of the magnetic cover
- IR sensor: built-in infrared sensor compatible with Argon IR remote control
- Built-in power button: yes
- Material: aluminum
- Black colour
- Dimensions: 105 x 95 x 44 mm
Set contents
- Argon ONE V3 M.2 NVMe PCIE Case for Raspberry Pi 5 with PWM Fan and Heatsinks
- Fitting elements
- Magnetic cover for access to GPIO pins
- 35mm FPC cable
- Thermally conductive tape
- User manual
The set does not include the Raspberry Pi 5 minicomputer and the Argon BLSTR DAC audio card. Our offer includes Raspberry Pi 5 4 GB and Raspberry Pi 5 8 GB .
